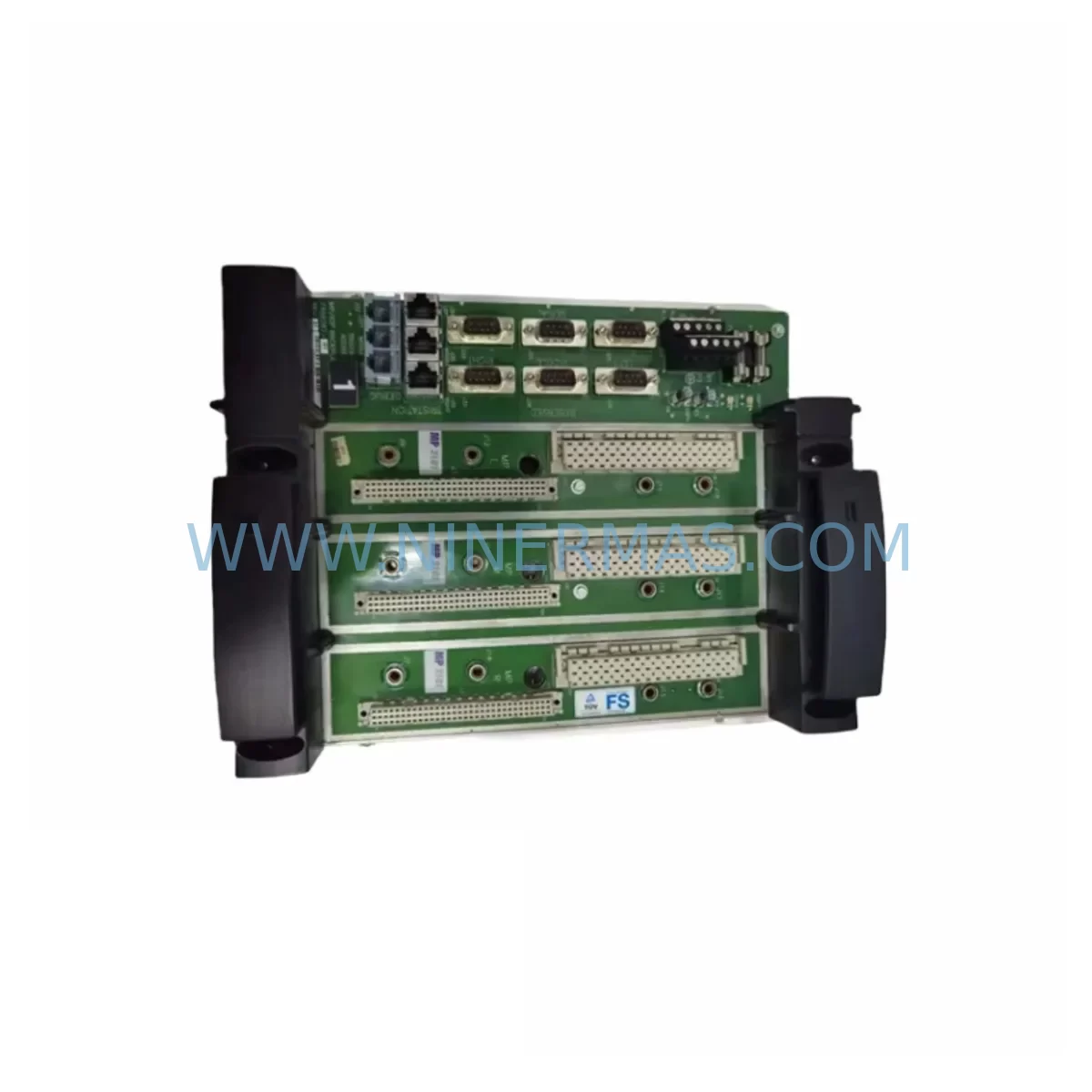

Triconex 7400207-001 MP2101 Safety-Reliable Main Processor

Triconex 7400207-001 MP2101 Safety-Reliable Main Processor for Critical Control Sites

The Triconex 7400207-001 MP2101 is a high-integrity main processor module engineered for the Tricon Triple Modular Redundant (TMR) safety system platform. Designed to operate at the core of safety instrumented systems (SIS), this processor delivers deterministic, fault-tolerant control execution in the most demanding industrial environments — including petrochemical plants, offshore platforms, power generation facilities, and continuous process manufacturing sites where unplanned shutdowns carry severe operational and safety consequences.

As a direct replacement and upgrade solution for the Tricon MP Series, the MP2101 (P/N 7400207-001) maintains full backward compatibility with existing Tricon chassis backplanes and I/O infrastructure, enabling seamless spare parts substitution without system reconfiguration. Its TMR architecture ensures that even in the event of a single-channel fault, the remaining two channels continue to execute the safety logic without interruption — a critical capability for SIL 2 and SIL 3 rated safety loops in high-hazard processes.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a Tricon-based safety control cabinet, the 7400207-001 MP2101 main processor operates as the central execution engine, continuously voting across three independent processing channels to detect and isolate faults before they propagate to field devices or safety outputs. This TMR voting mechanism is the foundation of risk reduction in high-consequence control loops — eliminating single points of failure that could trigger spurious trips or, more critically, fail-to-danger conditions.

To maintain the integrity of the full safety loop, the MP2101 works in close coordination with the Triconex 3703E Enhanced Intelligent Communication Module (EICM), which handles peer-to-peer and host communication without burdening the main processor’s safety execution cycle. In high-EMI environments such as motor control centers or variable frequency drive (VFD) cabinets, the Triconex 3625 Digital Output Module and Triconex 3703 Communication Module provide shielded, optically isolated signal paths that prevent noise-induced false outputs from reaching actuators or shutdown valves.

Power stability is equally critical. The Triconex 8312 Power Supply Module delivers regulated, redundant DC power to the Tricon chassis, ensuring that voltage transients, surges, or momentary grid disturbances do not interrupt the MP2101’s execution cycle. In facilities with unstable utility feeds — common in mining, port operations, and offshore platforms — pairing the 8312 with a Triconex 8310 Power Supply Module in a redundant configuration eliminates the power supply as a single point of failure.

For analog process measurement integrity, the Triconex 3700A Analog Input Module provides high-resolution, TMR-voted analog inputs for pressure, temperature, and flow signals feeding into the MP2101’s safety logic. Signal drift — a common failure mode in aging I/O modules exposed to thermal cycling — is continuously detected and alarmed, allowing maintenance teams to replace degraded modules during planned windows rather than emergency shutdowns. Similarly, the Triconex 3805E Digital Input Module ensures that discrete field signals from pushbuttons, limit switches, and pressure switches are read with full TMR redundancy, preventing a single wiring fault from masking a genuine process alarm.

For facilities integrating Tricon systems into a broader DCS or SCADA architecture, the Triconex 4351B Enhanced Intelligent Communication Module supports Modbus TCP and OPC connectivity, enabling the MP2101 to report safety system status to control room historians and alarm management platforms without compromising the safety network’s isolation. This communication architecture is essential for facilities operating under IEC 61511 functional safety management requirements, where safety system audit trails and proof test records must be maintained and accessible.

Critical Industrial Safety Applications

The Triconex 7400207-001 MP2101 is deployed across a broad spectrum of critical industrial safety applications where control interruption is not an option:

Petrochemical and Refining: In hydrocarbon processing units — including crude distillation, catalytic cracking, and gas compression — the MP2101 executes emergency shutdown (ESD) logic for high-pressure vessel protection, burner management systems (BMS), and compressor anti-surge control. Its TMR architecture ensures that a single processor fault does not trigger a spurious plant trip, which in large refineries can result in millions of dollars in lost production and equipment damage from thermal shock.

Power Generation: In coal-fired, gas turbine, and nuclear auxiliary systems, the MP2101 manages turbine overspeed protection, boiler safety interlocks, and generator protection relays. The deterministic scan cycle of the Tricon platform — unaffected by communication load or diagnostic overhead — is essential for time-critical protection functions where response times must be guaranteed within milliseconds.

Mining and Minerals Processing: In underground mining operations and surface processing plants, the MP2101 controls conveyor safety interlocks, crusher protection systems, and ventilation fan emergency stops. The module’s wide operating temperature range and vibration tolerance make it suitable for installation in field control rooms subject to mechanical shock from blasting operations and heavy equipment.

Water and Wastewater Treatment: Municipal and industrial water treatment facilities rely on the MP2101 for chlorine dosing safety interlocks, pump protection, and overflow prevention systems. In these environments, the module’s resistance to humidity and condensation — combined with its sealed backplane connection — ensures reliable operation in control rooms adjacent to wet process areas.

Metallurgy and Steel Production: In electric arc furnace (EAF) and continuous casting operations, the MP2101 manages electrode regulation safety limits, cooling water interlock systems, and ladle transfer protection. The high electromagnetic interference generated by EAF operations makes the Tricon TMR platform’s inherent noise immunity a critical selection criterion.

Port and Marine Applications: In ship loading terminals and LNG carrier loading arms, the MP2101 executes emergency release system (ERS) logic and overfill protection interlocks. Its ability to maintain safety function integrity during communication network disturbances — without defaulting to a fail-danger state — is essential for marine loading operations where environmental and life-safety consequences of a control failure are severe.

Safety and Quality FAQ

Q1: What warranty coverage is provided for the Triconex 7400207-001 MP2101?
All Triconex 7400207-001 MP2101 modules supplied by NINERMAS carry a 12-month warranty from the date of shipment. This warranty covers functional failures under normal operating conditions and includes technical support for installation and commissioning. Warranty claims are processed with priority to minimize any impact on your facility’s safety system availability.

Q2: What pre-shipment testing is performed on each module?
Every MP2101 unit undergoes a comprehensive pre-shipment functional test protocol, including power-on self-test (POST) verification, communication interface validation (TriStation 1131 connectivity, Modbus, and peer-to-peer link checks), and I/O channel integrity verification. Test records are available upon request and can be included with the shipment documentation for your facility’s quality management system.

Q3: Is the 7400207-001 MP2101 compatible with existing Tricon chassis and I/O modules?
Yes. The MP2101 is fully backward compatible with Tricon 3006, 3007, and 3008 chassis backplanes and is designed to operate alongside existing Tricon I/O modules including the 3700A Analog Input, 3805E Digital Input, 3625 Digital Output, and 3703/3703E Communication Modules. No firmware reconfiguration of existing I/O modules is required for a direct MP replacement.

Q4: Can NINERMAS support long-term supply and lifecycle management for the MP2101?
Yes. NINERMAS maintains dedicated stock of the Triconex 7400207-001 MP2101 and related Tricon platform components to support long-term spare parts programs for facilities with extended asset lifecycles. We offer stock commitment programs for customers requiring guaranteed availability over multi-year maintenance contracts, with fixed lead times and priority allocation for critical safety system spares. Contact our team to discuss a tailored long-term supply agreement.
