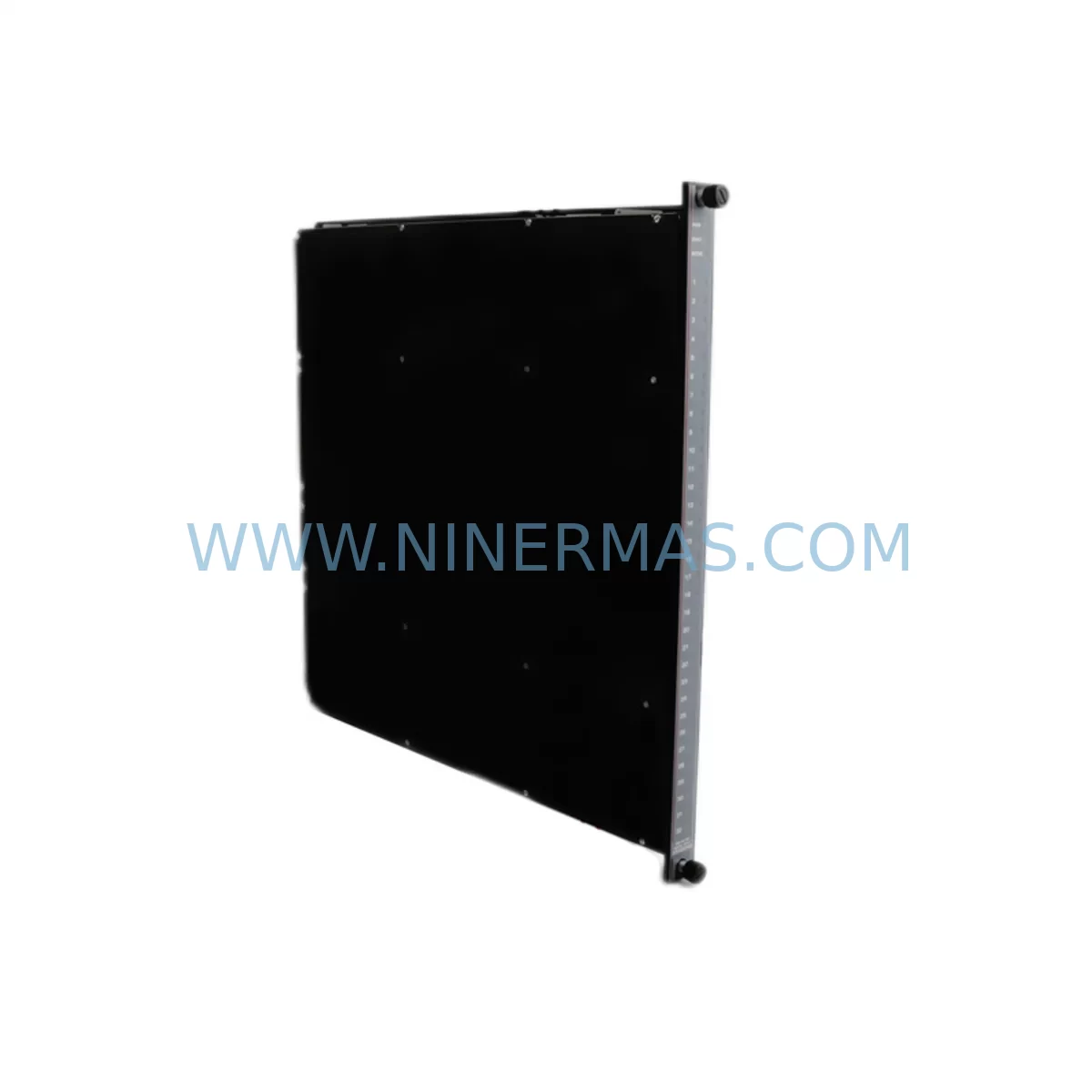

The Triconex 3502EN2 is an original digital input module engineered for the Tricon Series Safety Instrumented System (SIS). Designed to meet the rigorous demands of process safety and industrial automation environments, this module serves as a critical spare part for facilities operating Triconex TMR (Triple Modular Redundancy) architectures in oil & gas, petrochemical, power generation, and chemical processing industries. Maintaining a service-ready 3502EN2 in your spare parts inventory is a proven strategy for minimizing unplanned downtime, accelerating fault recovery, and sustaining SIL-rated system integrity across the full lifecycle of your safety control system.

Whether you are responding to a field fault, executing a planned annual turnaround, or building a strategic spare parts buffer for aging Tricon infrastructure, the 3502EN2 provides a direct, compatible replacement that preserves your system’s validated configuration without requiring re-engineering or firmware migration. Each unit shipped by NINERMAS undergoes pre-shipment functional verification to confirm signal integrity, channel isolation, and communication handshake with the Tricon main chassis before dispatch.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a Triconex 3502EN2 digital input module triggers a diagnostic fault or channel failure alarm in your Tricon SIS, the replacement workflow extends beyond the module itself. A disciplined maintenance engineer will treat this event as a trigger for a broader cabinet inspection to prevent cascading failures and ensure the entire safety loop remains validated.

Begin by verifying the 24 VDC field power supply feeding the input circuits — a degraded or fluctuating supply voltage is a common root cause of spurious input faults that are misdiagnosed as module failures. Inspect the Tricon power module (e.g., 8312) and confirm output voltage stability under load before condemning the 3502EN2.

Next, audit the field wiring terminations at the associated terminal assembly or marshalling panel. Loose, corroded, or thermally stressed terminations on the input side can introduce resistance that mimics a failed channel. If your installation uses a Triconex termination assembly (TA) such as the 3703E or 3721, inspect the ribbon cable connector and terminal block integrity simultaneously.

For facilities running mixed I/O configurations, also inspect adjacent digital output modules (e.g., 3603E or 3625) in the same chassis slot group, as shared backplane power rails can propagate faults across modules. Review the Tricon communication module (e.g., 4351B or 4119A) event log for any backplane communication errors that preceded the input fault — this can distinguish a module hardware failure from a systemic backplane issue.

If your Tricon system interfaces with a Triconex Enhanced Intelligent Communication Module (EICM) or a Modbus/HART gateway for field device integration, verify that the signal chain from the 3502EN2 input channels through to the DCS or historian remains intact after module replacement. Signal isolation barriers and intrinsic safety barriers in the field junction box should also be tested for drift, particularly in hazardous area installations.

For sites performing annual SIS proof tests, the 3502EN2 replacement is an ideal opportunity to simultaneously verify the Tricon main processor module (e.g., 3008 or 3006) diagnostic coverage, confirm the chassis backplane (e.g., 3700A series) slot integrity, and update the system’s spare parts register. Procurement engineers should note that maintaining at least one 3502EN2 — alongside spares for the 3503E analog input module, 3601E digital output module, and the relevant power modules — provides a minimum viable spare parts kit for Tricon TMR systems facing end-of-life support from the OEM.

Long-term supply continuity is a growing concern for facilities running legacy Triconex hardware. NINERMAS maintains ongoing stock of Tricon Series modules to support extended plant lifecycles beyond OEM discontinuation, with each unit tested and shipped under a 12-month warranty.

Site Replacement Workflow

Step 1 — Fault Confirmation: Acknowledge the diagnostic alarm in the Triconex TriStation 1131 programming environment. Identify the specific channel(s) reporting fault status on the 3502EN2. Cross-reference with field device status to confirm the fault is module-side, not field-side.

Step 2 — Safety Authorization: Obtain a Management of Change (MOC) permit and, where required, a hot-work or bypass authorization. In TMR systems, a single-leg module replacement can typically be performed online without a full system shutdown, but site safety procedures must be followed.

Step 3 — Module Extraction: With the appropriate ESD precautions in place, extract the faulted 3502EN2 from its chassis slot. Note the slot address and leg assignment for re-insertion reference.

Step 4 — Replacement Installation: Insert the service-ready 3502EN2 replacement into the same slot. The Tricon system will automatically detect the new module, perform a self-test, and re-synchronize the leg within the TMR voting architecture — no manual firmware loading is required for a like-for-like replacement.

Step 5 — Verification: Confirm all 32 input channels return to healthy status in TriStation. Perform a channel-by-channel field signal verification with the process team before closing the bypass and restoring the safety function to its fully armed state.

Step 6 — Documentation: Update the maintenance management system (CMMS), spare parts register, and SIS proof test record. Reorder a replacement 3502EN2 to restore your spare parts buffer immediately.
