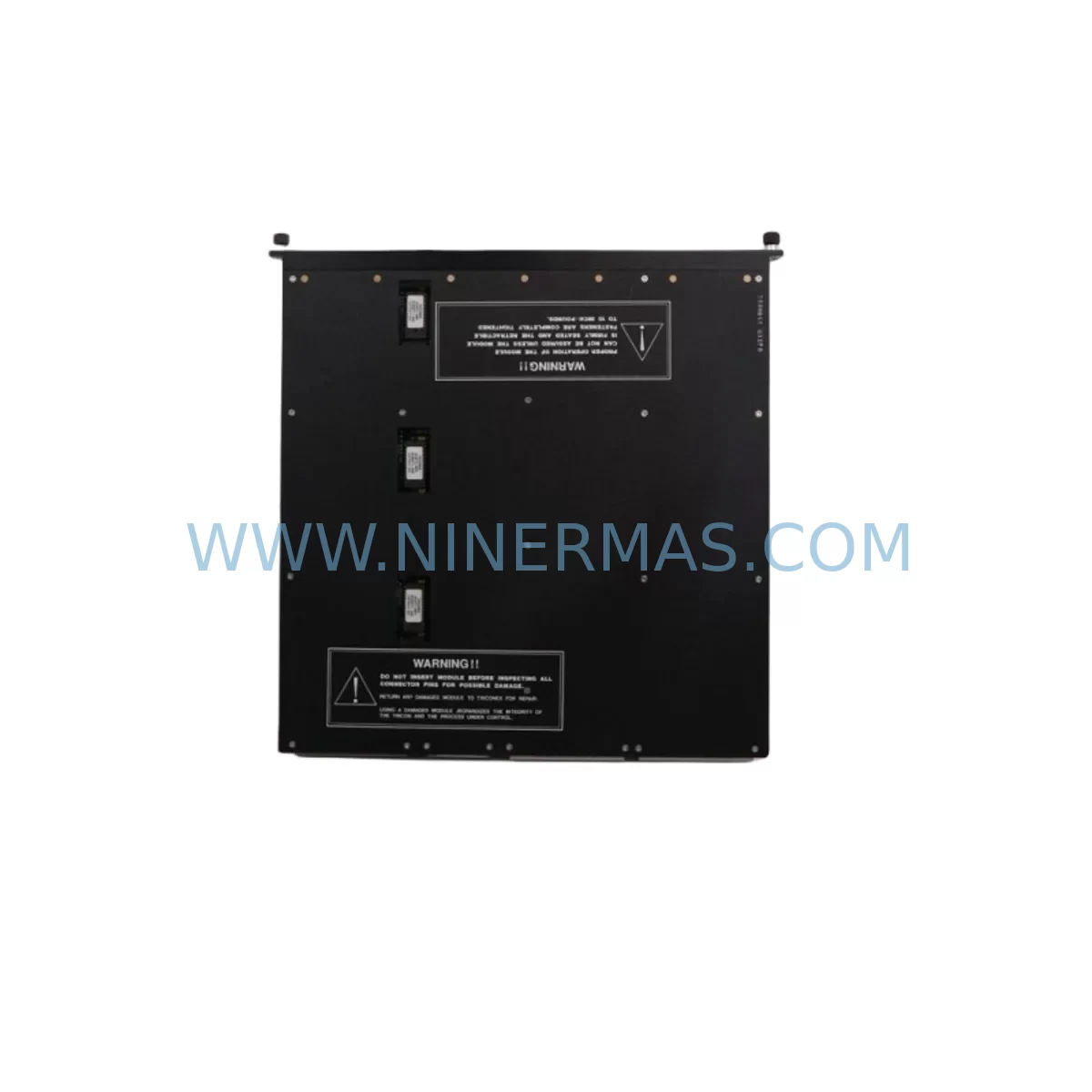

The Triconex D03401 is a ruggedized digital output module engineered for deployment within Triconex Triple Modular Redundant (TMR) safety instrumented systems. Designed to meet the rigorous demands of process and discrete manufacturing environments — including oil & gas, petrochemical, power generation, and chemical processing — the D03401 delivers reliable field-side output switching with the fault-tolerant architecture that safety-critical control cabinets require. When a D03401 fails or reaches end-of-service life, rapid replacement is essential to restore SIS loop integrity and prevent unplanned production shutdowns.

At NINERMAS, every D03401 unit is sourced as an original Triconex spare part, subjected to pre-shipment functional testing, and dispatched with full documentation. Our long-term supply program ensures continued availability for legacy Tricon and Trident platform users who depend on this module for lifecycle extension beyond OEM support windows.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing a Triconex D03401 digital output module is rarely an isolated task. In a TMR safety system, the output module interfaces directly with field actuators — shutdown valves, motor starters, and interlock relays — meaning that a degraded or failed D03401 can compromise the entire SIS output leg. Maintenance engineers performing a D03401 swap should treat the event as a structured cabinet inspection, not a single-component replacement.

Begin by verifying the Tricon main chassis backplane for signs of corrosion, bent connector pins, or intermittent seating that may have contributed to the module fault. A faulty backplane connection is a common root cause of DO module alarms that are misdiagnosed as module failure. Alongside the backplane, inspect the Tricon power supply module (such as the 8310 or 8311 series) to confirm that field-side 24 VDC supply rails are within tolerance — undervoltage conditions accelerate output driver degradation in digital output modules.

Field wiring termination should be audited at the Tricon I/O terminal panel or marshalling cabinet. Loose terminations, corroded field terminals, or undersized cable cross-sections introduce resistance that can cause false output diagnostics. If the site uses Triconex EICM or ACM communication modules for remote I/O or DCS integration, confirm that the communication path to the replaced module is re-established and that the system controller recognises the new module without configuration mismatch.

For sites running Tricon v9 or v10 main processors (MP3008, MP3007), verify that the firmware revision of the replacement D03401 is compatible with the installed main processor version. Mismatched firmware can cause the TMR voter to flag the new module as a non-conforming leg, triggering spurious trips. The Triconex TriStation 1131 programming and diagnostic workstation should be used to confirm module recognition and output channel status after installation.

Procurement engineers building annual spare parts kits for Tricon-based SIS panels should consider stocking the D03401 alongside complementary modules: Triconex DO3401 field termination assemblies, digital input modules (DI3401 or DI3801) for paired I/O loop coverage, analog output modules (AO3481) for modulating control loops in the same cabinet, and Tricon communication modules (TCM) for network redundancy. A well-structured spare parts inventory reduces mean time to repair (MTTR) and supports the site’s functional safety management system (FSMS) audit requirements.

For aging Tricon installations approaching or beyond OEM end-of-support, NINERMAS offers a long-term supply program with committed stock, fixed lead times, and documented traceability — enabling maintenance teams to plan multi-year lifecycle extensions without exposure to spot-market counterfeit risk.

Site Replacement Workflow

Step 1 — Isolation & Permit: Obtain a valid work permit and confirm the SIS loop is in manual/bypass mode per the site’s management of change (MOC) procedure. Never remove a D03401 under live TMR voting without authorised bypass.

Step 2 — Module Extraction: Power down the affected chassis slot if required by site procedure. Disengage the module locking lever and withdraw the D03401 carefully to avoid backplane pin damage. Label the removed module with fault date and symptom for RCA records.

Step 3 — Visual Inspection: Before inserting the replacement unit, inspect the chassis slot backplane connector for debris or bent pins. Clean with approved electronics-grade contact cleaner if necessary.

Step 4 — Module Insertion: Seat the new D03401 firmly until the locking lever engages. Restore field-side power and observe the module status LEDs — all three TMR legs should indicate healthy within the system’s configured startup timeout.

Step 5 — TriStation Verification: Connect the TriStation 1131 workstation and confirm the replacement module is recognised in the I/O map. Verify output channel states match the controller’s commanded outputs. Run a partial stroke or output function test per the site’s SIS test procedure.

Step 6 — Return to Service: Remove the bypass, restore the SIS loop to automatic mode, and update the maintenance management system (CMMS) with the replacement record, module serial number, and next scheduled inspection date.

This structured workflow minimises downtime, preserves TMR system integrity, and satisfies IEC 61511 proof-test documentation requirements.
