SIEMENS 6ES7312-1AE14-0AB0 Retrofit-Compatible CPU for Legacy Systems

SIEMENS 6ES7312-1AE14-0AB0 Retrofit-Compatible CPU for Legacy Systems

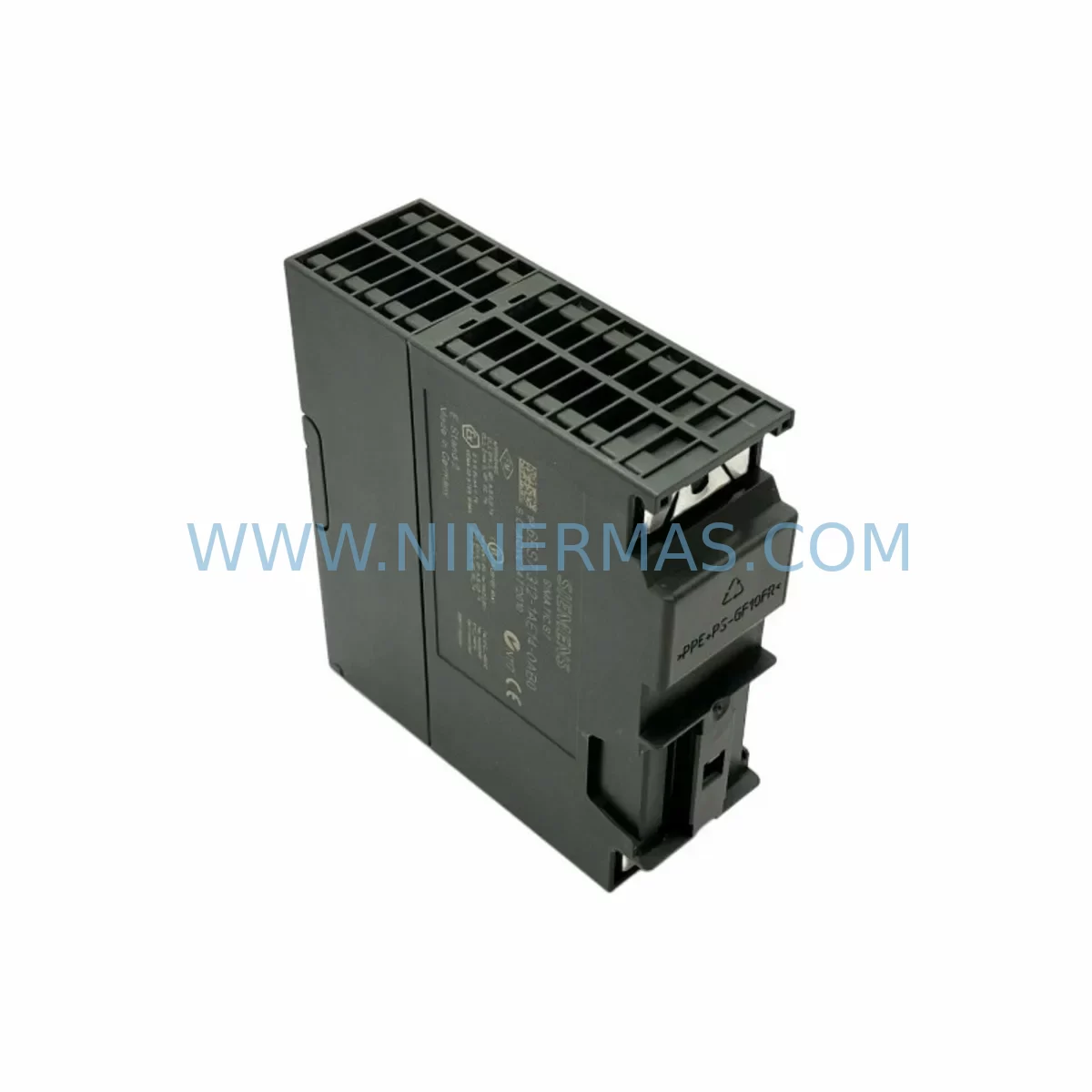

The SIEMENS 6ES7312-1AE14-0AB0 is a SIMATIC S7-300 series CPU 312 module designed for seamless integration into existing legacy automation infrastructures. As industrial facilities face increasing pressure to modernize aging control systems while minimizing production disruption, this CPU module serves as a proven retrofit solution for plants still operating on first- and second-generation S7-300 platforms. Whether you are replacing a discontinued CPU 312 variant, upgrading a control cabinet, or migrating from an obsolete communication protocol, the 6ES7312-1AE14-0AB0 provides a reliable, drop-in compatible path forward.

Engineered for harsh industrial environments, this module supports standard DIN rail mounting and integrates directly into existing S7-300 racks and backplanes without requiring structural modifications to the control cabinet. Its compact form factor makes it particularly well-suited for space-constrained retrofit scenarios where panel real estate is limited and installation time must be kept to a minimum.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful retrofit of the 6ES7312-1AE14-0AB0 into a legacy S7-300 system begins well before the physical swap. Engineers must first audit the existing rack configuration, documenting the slot assignments of all installed modules — including digital input/output modules such as the SM 321 (6ES7321-1BH02-0AA0) and SM 322 (6ES7322-1BH01-0AA0), analog I/O modules like the SM 331 and SM 332, and any installed CP 342 or CP 343 communication processors handling PROFIBUS DP or Industrial Ethernet links.

Power budget verification is a critical pre-retrofit step. The existing PS 307 power supply must be confirmed capable of supporting the full current draw of the new CPU alongside all installed I/O and communication modules. In many legacy installations, the power supply is already operating near capacity, and a replacement or supplementary unit may be required before the CPU swap can proceed safely.

Terminal wiring on field-side I/O modules typically does not require modification during a CPU-only replacement, which significantly reduces retrofit labor time. However, engineers should verify that module addresses configured in the original STEP 7 project match the physical slot positions in the rack. Any discrepancies between the hardware configuration stored in the CPU and the actual installed modules will generate diagnostic faults during startup and must be resolved before the system can enter RUN mode.

For systems using IM 360 and IM 361 interface modules to expand across multiple racks, the 6ES7312-1AE14-0AB0 maintains full compatibility with the existing multi-rack topology. No changes to the inter-rack cabling or expansion bus are required. Similarly, if the legacy system includes a CP 342-5 PROFIBUS DP master module managing distributed I/O nodes such as ET 200M or ET 200S remote stations, the communication configuration can be retained and re-downloaded to the new CPU without modification.

HMI integration is another area requiring careful attention. Panels connected via MPI — including older TP 177, OP 177, or MP 277 operator panels — must have their communication parameters verified against the new CPU’s MPI address settings. In most cases, the MPI address can be set to match the original CPU, allowing the HMI project to remain unchanged. Where SCADA systems are connected via OPC or S7 protocol drivers, the connection configuration should be tested in simulation before live cutover.

Signal isolators and marshalling panels between field instruments and the S7-300 I/O modules are unaffected by the CPU replacement and require no modification, further simplifying the retrofit scope.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern for any production facility undertaking a CPU retrofit. A structured migration approach for the 6ES7312-1AE14-0AB0 replacement should include the following steps to protect program logic and maintain field control continuity:

1. Full Program Backup: Before powering down the existing CPU, upload the complete program — including all OBs, FBs, FCs, DBs, and system data blocks — to a programming device running STEP 7. Store a verified backup on both the programming device and a SIMATIC memory card (e.g., 6ES7954-8LC02-0AA0) to ensure rapid recovery in the event of any commissioning issue.

2. Hardware Configuration Export: Export the hardware configuration (HW Config) from the existing project. This file documents all module types, slot assignments, I/O addresses, and communication settings. It serves as the reference document for verifying the new CPU’s configuration after installation.

3. Controlled Shutdown: Execute a controlled process shutdown following site-specific safe operating procedures. Place the CPU in STOP mode before removing power. Document the state of all output modules to facilitate rapid recommissioning.

4. Physical Replacement: Remove the existing CPU module and install the 6ES7312-1AE14-0AB0 in the same rack slot. Connect the MPI programming cable (e.g., PC Adapter USB 6ES7972-0CB20-0XA0) to assign the correct MPI address before downloading the program.

5. Program Download and I/O Verification: Download the backed-up program and hardware configuration to the new CPU. Perform a systematic I/O force test to verify that all digital and analog signals are correctly mapped and responding as expected before returning the system to automatic control.

6. HMI and Communication Link Verification: Confirm that all MPI-connected HMI panels and any PROFIBUS DP or Industrial Ethernet communication links are active and error-free. Check diagnostic buffers in STEP 7 for any residual faults before releasing the system to production.

With proper pre-planning, the physical swap and recommissioning of the 6ES7312-1AE14-0AB0 can typically be completed within a single planned maintenance window, significantly reducing the risk of extended unplanned outages.

Retrofit Support FAQ

Q: Is the 6ES7312-1AE14-0AB0 a direct drop-in replacement for earlier CPU 312 variants such as the 6ES7312-1AD10-0AB0?
A: Yes, the 6ES7312-1AE14-0AB0 is physically and functionally compatible with earlier CPU 312 variants and installs in the same rack slot without modification. The existing program can be downloaded directly after verifying the hardware configuration matches the installed I/O modules.

Q: Will my existing STEP 7 program run on the 6ES7312-1AE14-0AB0 without modification?
A: In most cases, yes. Programs written in STL, LAD, or FBD for earlier CPU 312 variants are compatible. Engineers should verify I/O address assignments and confirm that any special function blocks used in the original program are supported by the firmware version of the replacement CPU.

Q: What pre-shipment testing is performed on the 6ES7312-1AE14-0AB0?
A: Each unit undergoes functional power-on testing and diagnostic verification prior to shipment. Units are supplied with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions.

Q: Is stock available for immediate shipment?
A: Yes, the 6ES7312-1AE14-0AB0 is maintained in inventory for prompt dispatch. Lead times and current stock levels can be confirmed by contacting our sales team directly. Emergency orders for critical production line recovery are prioritized.
