Siemens 6EP1333-3BA10 Service-Ready Spare Part for Industrial Maintenance

Siemens 6EP1333-3BA10 Service-Ready Spare Part for Industrial Maintenance

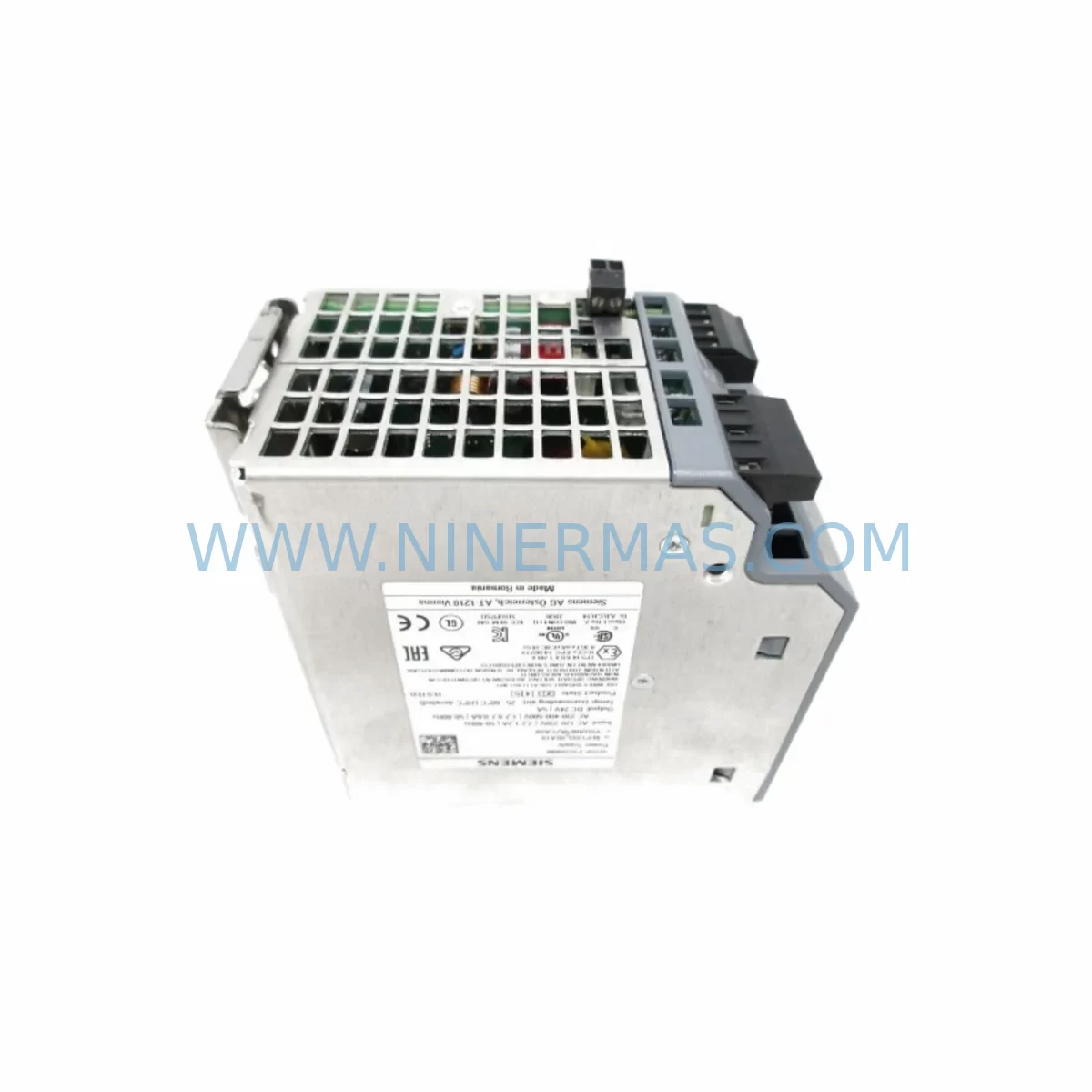

The Siemens 6EP1333-3BA10 is a SITOP PSU200M series stabilized power supply unit designed for demanding industrial automation environments. Rated at 24 VDC output with a robust 5 A continuous current capacity, this module is a critical component in PLC control cabinets, distributed I/O panels, and process automation systems across manufacturing, energy, water treatment, and heavy industry sectors. When this unit fails or degrades, the downstream consequences — loss of 24 VDC bus voltage, I/O module dropout, PLC CPU faults, and unplanned line stoppages — can be immediate and severe. Maintaining a service-ready replacement in your spare parts inventory is one of the most cost-effective strategies for minimizing mean time to repair (MTTR) and protecting production continuity.

At NINERMAS, every 6EP1333-3BA10 unit is sourced from verified supply channels, functionally tested prior to shipment, and backed by a 12-month warranty. Whether you are responding to an emergency breakdown, executing a planned annual overhaul, or building out a strategic spare parts buffer for aging Siemens SITOP infrastructure, this unit ships ready for immediate installation.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 6EP1333-3BA10 in a live control cabinet is rarely an isolated task. Maintenance engineers and procurement teams who have managed Siemens SITOP-based panels know that a power supply failure is often a symptom of broader electrical stress in the cabinet. A thorough replacement workflow should include inspection of the surrounding components to prevent repeat failures and ensure the restored system operates reliably through the next maintenance cycle.

Begin with the input side: verify that the upstream circuit breaker or miniature circuit breaker (MCB) — often a Siemens 5SY or equivalent — has not been weakened by repeated overload events. Check the AC input wiring for loose terminals, insulation degradation, or signs of arcing at the terminal block connections. If the cabinet uses a Siemens SITOP SEL1400 or similar selectivity module downstream of the PSU, confirm that its trip thresholds are still correctly calibrated and that its internal contacts are clean.

On the DC output side, inspect the 24 VDC bus bar and distribution terminal strips — such as Weidmüller or Phoenix Contact power distribution terminals — for signs of oxidation or thermal stress. Overloaded or corroded terminals are a common cause of premature PSU failure. If the cabinet feeds a Siemens S7-300 or S7-400 PLC rack, check the CPU module’s power consumption against the PSU’s rated output; aging I/O modules, particularly SM 321 digital input or SM 322 digital output cards, can develop increased leakage currents that cumulatively stress the supply.

For systems using ET 200S or ET 200M distributed I/O connected via PROFIBUS DP or PROFINET, verify that the IM 151 or IM 153 interface modules are receiving stable 24 VDC and that their communication status LEDs indicate normal operation after the PSU swap. Communication dropouts during or after a PSU replacement are often traced to momentary voltage dips that corrupt module parameters — a controlled power-down sequence before replacement prevents this.

If the panel includes relay output modules or standalone relay bases — such as Siemens 3TX7 or PHOENIX CONTACT PLC-RSC series — inspect coil voltage ratings and contact wear. A degraded PSU operating below nominal output voltage can cause relay chatter, which accelerates contact erosion and introduces intermittent faults that are difficult to diagnose. Similarly, any signal isolators or loop-powered transmitter barriers in the cabinet should be checked for correct supply voltage after the new PSU is commissioned.

For cabinets with an integrated HMI panel — such as a Siemens SIMATIC HMI KTP700 or TP900 — confirm that the panel boots correctly and that its project runtime loads without communication errors after the PSU replacement. HMI panels are sensitive to supply voltage transients during startup, and a fresh PSU with clean output regulation will often resolve intermittent HMI lockup issues that were previously attributed to software faults.

Finally, if the system includes a UPS module such as the Siemens SITOP UPS1600 or a third-party 24 VDC buffer module, verify that the buffer capacitors or battery pack are still within service life and that the UPS transitions correctly to battery mode under a simulated mains loss. A new PSU paired with an end-of-life UPS module provides false confidence in system resilience.

Site Replacement Workflow

The 6EP1333-3BA10 is a direct form-fit-function replacement for earlier SITOP PSU200M 5 A variants and can also serve as a functional substitute in applications previously served by the legacy 6EP1333-1SL11 or similar 24 V / 5 A SITOP units, subject to physical mounting and wiring verification.

Step 1 — Isolation: De-energize the cabinet using the main isolator. Lock out / tag out (LOTO) per site safety procedures. Confirm zero voltage on the AC input terminals of the existing PSU using a calibrated multimeter.

Step 2 — Documentation: Photograph the existing wiring configuration, terminal assignments, and DIN rail position before removal. Note any jumper or DIP switch settings if present on the existing unit.

Step 3 — Removal: Disconnect AC input wiring and DC output wiring from the terminal blocks. Release the DIN rail locking tab and slide the unit off the rail.

Step 4 — Installation: Clip the 6EP1333-3BA10 onto the DIN rail. Reconnect AC input and DC output wiring per the documented terminal assignments. Torque terminal screws to the manufacturer’s specified value (typically 0.5–0.6 Nm for this class of terminal).

Step 5 — Commissioning: Re-energize the cabinet. Measure DC output voltage at the PSU terminals and at the load end of the 24 VDC bus. Confirm output is within 24 V ±1% under load. Verify all downstream modules — PLC CPU, I/O cards, HMI, relays — return to normal operating status. Clear any fault logs in the PLC and HMI before returning the system to production.

Step 6 — Documentation closure: Record the replacement in the equipment maintenance log, including the new unit’s serial number, installation date, and post-commissioning voltage readings. Update the spare parts inventory to trigger reorder of a replacement buffer unit.

Spare Parts Support FAQ

Q1: Is the 6EP1333-3BA10 still in production, and can NINERMAS guarantee long-term supply?
The SITOP PSU200M series has been a long-running Siemens product line, and NINERMAS maintains ongoing sourcing relationships to support customers with aging installed bases. Even as Siemens transitions to newer SITOP series variants, we work to maintain stock availability for the 6EP1333-3BA10 and can advise on compatible successor models when direct stock is constrained. Contact our team for long-term supply agreements if you manage a large fleet of SITOP-based panels.

Q2: What testing does NINERMAS perform before shipping the 6EP1333-3BA10?
Every unit undergoes functional verification prior to dispatch: output voltage accuracy under rated load, current limiting behavior, overload protection response, and visual inspection for physical integrity. Units that do not meet specification are quarantined and not shipped. A 12-month warranty covers defects in materials and workmanship from the date of delivery.

Q3: Can this unit replace a 6EP1333-1SL11 or other legacy SITOP 24 V / 5 A models?
In most applications, yes — the 6EP1333-3BA10 shares the same output rating (24 VDC, 5 A) and DIN rail form factor as earlier SITOP 5 A variants. However, customers should verify physical width, terminal block layout, and any application-specific approval requirements before committing to a cross-model replacement. NINERMAS technical support can assist with compatibility confirmation prior to purchase.

Q4: What is the recommended spare parts strategy for SITOP PSU200M units in a multi-line facility?
For facilities operating more than five SITOP PSU200M-based control panels, we recommend maintaining a minimum buffer of two 6EP1333-3BA10 units in on-site inventory, with a reorder trigger set at one unit remaining. Annual inspection of installed units — checking output voltage under load, thermal performance, and enclosure integrity — allows proactive replacement before failure occurs. Pairing this PSU with a SITOP UPS buffer module further reduces unplanned downtime risk during mains disturbances.
