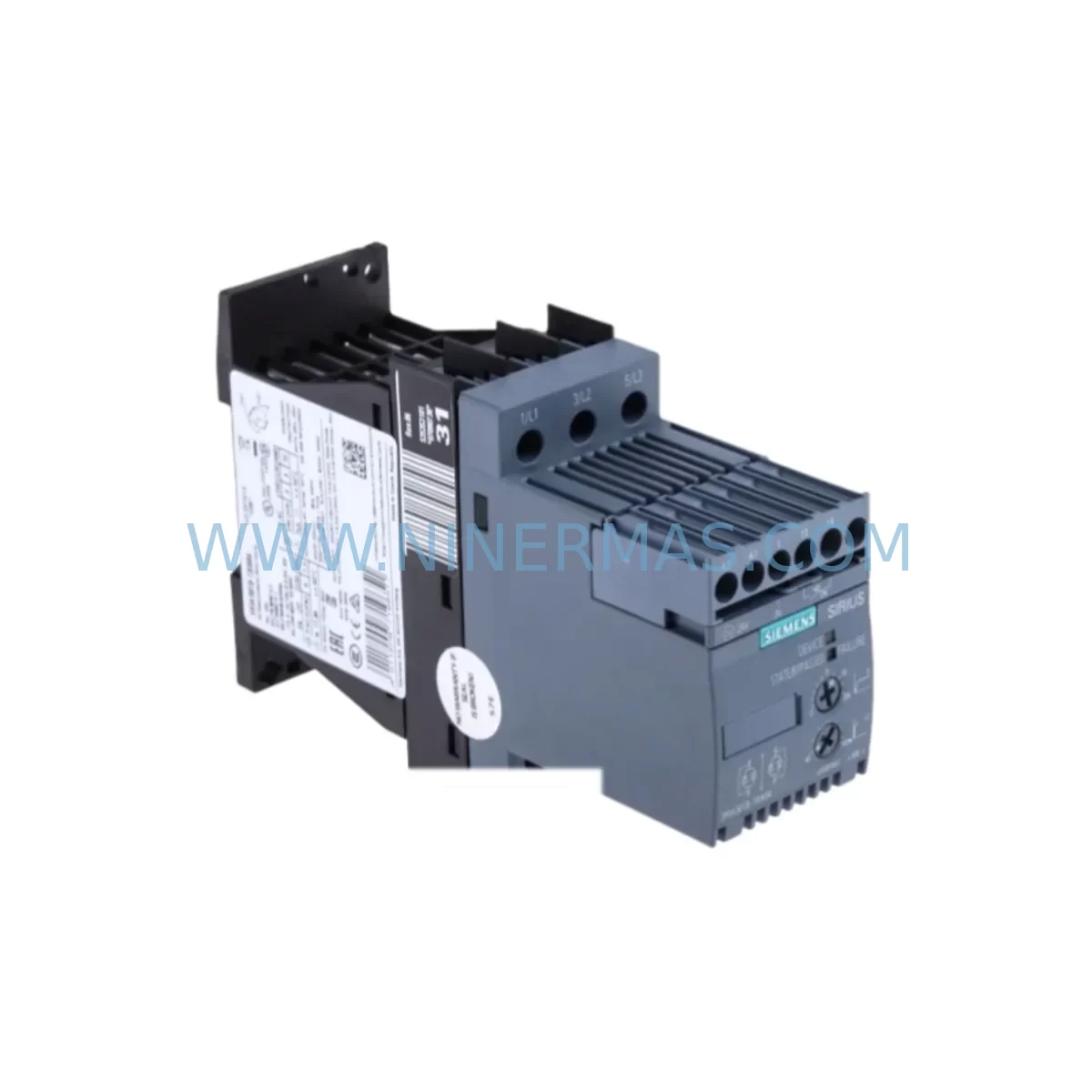

The Siemens 3RW3018-1BB04 is a service-ready soft starter spare part from the SIRIUS 3RW30 series, engineered for direct-on-line motor starting applications in industrial automation environments. Designed for three-phase induction motors up to 4 kW at 400 V, this unit delivers controlled voltage ramp-up to reduce mechanical shock and inrush current during motor start sequences. For maintenance engineers managing aging control cabinets, conveyor lines, pump stations, or HVAC systems, the 3RW3018-1BB04 represents a reliable, drop-in replacement that restores system availability with minimal downtime.

At NINERMAS, every 3RW3018-1BB04 unit is sourced from verified supply channels, functionally tested prior to dispatch, and backed by a 12-month warranty. Whether you are responding to an unplanned motor trip, executing a scheduled annual overhaul, or building a strategic spare parts inventory for a critical production line, this component is stocked and ready for rapid deployment.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 3RW3018-1BB04 in a live industrial environment requires more than a simple unit swap. Experienced maintenance engineers understand that a soft starter failure is rarely an isolated event — it is often a symptom of broader stress within the motor control circuit. A thorough site inspection during replacement significantly reduces the risk of repeat failures and unplanned downtime.

When servicing a control cabinet housing the 3RW3018-1BB04, begin by inspecting the 24 V DC control power supply — voltage instability or ripple can cause erratic soft starter behavior and premature failure. Verify that the input fuses or circuit breakers upstream of the soft starter are rated correctly and show no signs of thermal stress or contact erosion. Check the main contactor (such as the Siemens 3RT20 series) for contact wear, as soft starters are frequently used in conjunction with bypass contactors that absorb the full load current after the ramp-up phase.

Inspect all terminal blocks and power wiring connected to the L1/L2/L3 input and T1/T2/T3 motor output terminals. Loose connections at these points generate heat and can cause intermittent faults that are difficult to diagnose remotely. If the installation includes a motor protection relay such as the Siemens 3RU21 series, verify that the overload trip class and current setting are correctly matched to the motor nameplate data.

For systems integrated into a SIMATIC S7-300 or S7-1200 PLC, confirm that the digital output card driving the soft starter enable signal is functioning correctly and that the 24 V DC common reference is properly grounded. If the cabinet includes a PROFIBUS DP or PROFINET communication module, check for bus termination integrity and cable shielding continuity — communication faults can mask motor control issues and delay fault diagnosis.

Where signal isolators are used to interface the soft starter status outputs with the control system, verify isolation barrier integrity and output signal levels. In older installations, 24 V DC relay modules (such as the Siemens 3RQ30 or Phoenix Contact PLC-RSC series) used for auxiliary contact multiplication should be inspected for coil resistance and contact bounce. Additionally, review the condition of any surge suppressors or RC snubber circuits fitted across contactor coils in the same cabinet — degraded suppressors can inject noise into the control circuit and trigger nuisance trips.

If the motor driven by the 3RW3018-1BB04 operates in a dusty, humid, or chemically aggressive environment, inspect the motor terminal box and cable glands for ingress and verify insulation resistance with a megohmmeter before re-energizing. For pump applications, also confirm that the pressure transmitter or flow switch providing process feedback to the PLC is calibrated and responding correctly — a failed sensor can cause the control system to command repeated motor starts, accelerating soft starter wear.

Site Replacement Workflow

Step 1 — Isolation and Lockout: De-energize the motor circuit at the upstream circuit breaker and apply lockout/tagout (LOTO) per site safety procedures. Verify absence of voltage on all three phases at the soft starter input terminals using a calibrated multimeter.

Step 2 — Documentation: Photograph the existing wiring configuration, terminal labeling, and DIN rail position before removal. Record the parameter settings if the outgoing unit has a display or if settings were programmed via a handheld tool.

Step 3 — Removal: Disconnect control wiring (24 V DC enable, fault output, bypass contactor signal) and power wiring (L1/L2/L3 and T1/T2/T3) from the defective 3RW3018-1BB04. Release the DIN rail locking tab and remove the unit.

Step 4 — Installation: Mount the replacement 3RW3018-1BB04 on the DIN rail. Reconnect power and control wiring per the original documentation. Torque all terminals to the manufacturer’s specified values to prevent thermal loosening under load cycling.

Step 5 — Parameter Verification: Confirm that ramp-up time, ramp-down time, and current limit settings match the application requirements. For the 3RW30 series, these are typically set via the front-panel rotary switches — no programming tool is required.

Step 6 — Functional Test: Re-energize the circuit and perform a no-load test start, monitoring for correct ramp behavior and absence of fault indicators. Then perform a loaded test start and verify motor current during ramp-up does not exceed the set current limit.

Step 7 — Return to Service: Confirm stable operation, update the maintenance log with the replacement date, new unit serial number, and any parameter changes. Replenish the spare parts inventory to maintain site readiness for future events.

This workflow is applicable whether the 3RW3018-1BB04 is replacing a failed unit on an emergency basis or being installed as part of a planned preventive maintenance cycle. The 3RW30 series design philosophy — fixed parameter setting via rotary switches, compact DIN rail footprint, and no external bypass contactor requirement for motors up to 4 kW — makes site replacement straightforward even for technicians unfamiliar with the specific installation.

Spare Parts Support FAQ

Q1: Is the 3RW3018-1BB04 a direct replacement for an existing SIRIUS 3RW30 series unit?
Yes. The 3RW3018-1BB04 is a standard catalog part within the Siemens SIRIUS 3RW30 soft starter family. It is dimensionally and electrically compatible with existing 3RW30 installations rated for 4 kW / 8.5 A at 400 V. No wiring modifications or parameter reprogramming tools are required for a like-for-like replacement.

Q2: What pre-shipment testing does NINERMAS perform on the 3RW3018-1BB04?
Each unit undergoes functional verification prior to dispatch, including power-on self-test confirmation and visual inspection for physical damage. Units are packaged in anti-static, shock-resistant packaging suitable for international air and express freight. A 12-month warranty is provided from the date of shipment.

Q3: Can NINERMAS support long-term or recurring procurement of the 3RW3018-1BB04?
Yes. NINERMAS maintains stock of the 3RW3018-1BB04 and related SIRIUS 3RW30 series components to support both emergency single-unit orders and scheduled bulk procurement for MRO inventory programs. Customers managing multi-site operations or annual maintenance contracts are encouraged to contact our team to discuss volume pricing and reserved stock arrangements.

Q4: How do I verify compatibility before ordering if my existing unit has been modified or relabeled?
Cross-reference the part number on the unit’s nameplate with the Siemens SIRIUS 3RW30 catalog. Key compatibility parameters are rated motor power (4 kW), supply voltage range (200–480 V AC), control voltage (24 V DC), and rated current (8.5 A). If you are uncertain, contact NINERMAS with your motor nameplate data and existing wiring diagram — our technical team will confirm compatibility before order confirmation.
