Siemens 6DR5013-0FN00-0AA3 Retrofit-Compatible Positioner: Legacy System Compatibility & Smooth Upgrade

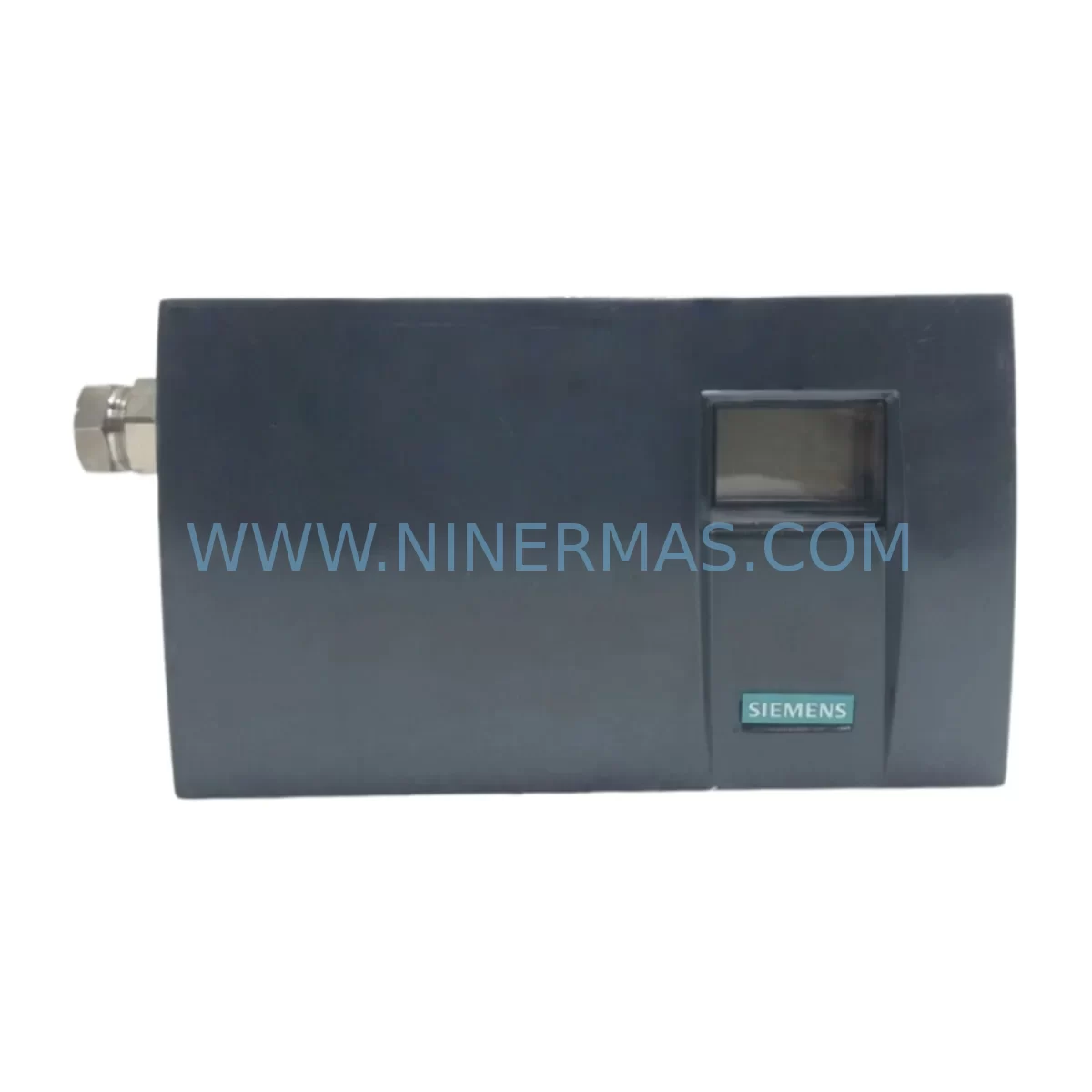

The Siemens 6DR5013-0FN00-0AA3 is a ruggedized electropneumatic positioner from the SIPART PS2 series, engineered for precise valve positioning in demanding industrial environments. As legacy automation systems age and original equipment reaches end-of-life, the 6DR5013-0FN00-0AA3 has become a critical retrofit solution for engineers managing aging control loops, upgrading control cabinets, and extending the operational life of existing process lines. NINERMAS maintains verified stock of this unit with a 12-month warranty, ready for immediate dispatch and field deployment.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

When integrating the 6DR5013-0FN00-0AA3 into an existing process control system, a structured retrofit plan is essential to minimize risk and ensure seamless transition. The first step is verifying the existing control loop architecture — particularly whether the upstream controller is a Siemens S7-300 or S7-400 PLC, as these platforms commonly drive 4–20 mA analog output signals directly to positioners of this type. Engineers should confirm that the analog output module — such as a Siemens SM 332 or equivalent AO card — is correctly ranged and that the loop impedance is within the positioner’s specified input resistance.

Terminal wiring adaptation is a frequent challenge during positioner replacement. The 6DR5013-0FN00-0AA3 uses a standard M20 cable entry and clearly labeled terminal blocks for signal, supply, and feedback connections. When replacing older units such as the 6DR2010-series positioners, technicians should map existing terminal assignments carefully, particularly if the legacy unit used a non-standard feedback potentiometer or limit switch wiring. The integrated HART communication capability of the 6DR5013-0FN00-0AA3 allows loop diagnostics without breaking the 4–20 mA signal, which is invaluable during live commissioning.

Backplane and rack considerations apply when the positioner is part of a larger valve island or manifold assembly. In systems using Siemens ET 200M distributed I/O racks or DP/PA segment couplers, the positioner’s HART signal can be read via a HART multiplexer connected to the existing PROFIBUS DP backbone, avoiding the need for a full fieldbus migration. This approach preserves the existing PROFIBUS DP communication architecture while adding diagnostic transparency at the field device level.

For installations where the legacy positioner was mounted on a rotary actuator, confirm that the existing VDI/VDE 3845 bracket and feedback shaft coupler are compatible with the 6DR5013-0FN00-0AA3’s mechanical interface. In many cases, the original NAMUR mounting plate can be reused, significantly reducing installation time. Where custom bracket fabrication is required, the positioner’s dimensional drawings should be referenced against the actuator’s yoke geometry before ordering.

Power supply capacity should be reviewed at the control cabinet level. The 6DR5013-0FN00-0AA3 draws minimal electrical power from the 4–20 mA loop, but the pneumatic supply — typically sourced from an instrument air manifold or a dedicated Siemens SITRANS P pressure regulator — must be clean, dry, and regulated to within the 1.4–7 bar operating range. Any moisture contamination in the pneumatic supply line will degrade positioner performance and should be addressed with an inline coalescing filter prior to commissioning.

HMI screen updates are often overlooked during positioner retrofits. If the plant uses a Siemens SIMATIC HMI TP700 or similar panel connected to the S7 controller, valve position feedback tags should be verified against the new positioner’s analog feedback signal range. Where the legacy positioner provided a discrete open/close feedback via limit switches, and the new unit provides a continuous 4–20 mA position feedback, the HMI logic and alarm setpoints may require adjustment in WinCC or TIA Portal.

Downtime Control During System Migration

Minimizing production downtime during a positioner retrofit requires careful pre-staging and a clear cutover sequence. Before the scheduled maintenance window, the replacement 6DR5013-0FN00-0AA3 should be bench-tested and pre-configured using the integrated auto-calibration routine, with travel limits and setpoint response verified against the actuator’s mechanical stroke. This eliminates the need for extended on-site calibration during the cutover.

The existing PLC program logic — particularly the PID loop parameters, valve interlocks, and manual override sequences — should be documented and backed up from the S7-300 or S7-400 controller before any field work begins. If the control strategy uses a Siemens FM 355 closed-loop control module or a software PID block in the CPU, the loop tuning parameters should be recorded so they can be restored or retuned quickly after the new positioner is installed.

During the physical swap, isolating the pneumatic supply and venting the actuator before disconnecting the positioner prevents uncontrolled valve movement. The 4–20 mA signal loop should be opened at the field junction box rather than at the control cabinet to avoid disturbing other loops on the same analog output card. Once the 6DR5013-0FN00-0AA3 is mechanically installed and wired, the auto-calibration sequence can be initiated locally via the positioner’s integrated keypad, with the valve stroked through its full range to establish travel endpoints.

Post-installation verification should include a loop check from the control room, confirming that the valve position displayed on the HMI matches the physical valve position, and that the HART diagnostic data — accessible via a handheld HART communicator or through the asset management system — shows no active faults. With proper pre-staging, the total cutover time for a single positioner replacement can typically be held to under two hours, maintaining field control continuity and minimizing process disruption.

Retrofit Support FAQ

Q1: Is the 6DR5013-0FN00-0AA3 a direct replacement for older SIPART PS2 models?
A: Yes. The 6DR5013-0FN00-0AA3 is mechanically and electrically compatible with earlier SIPART PS2 variants including the 6DR5010 and 6DR5020 series in single-acting configurations. The NAMUR mounting interface and 4–20 mA input signal are consistent across the product family, allowing direct substitution in most installations without bracket modification.

Q2: What commissioning steps are required after installation?
A: The positioner features an integrated auto-calibration routine that automatically determines valve travel limits and optimizes control response. Commissioning requires only that the pneumatic supply is connected, the 4–20 mA signal loop is live, and the auto-calibration mode is initiated via the local keypad. No external programming device or laptop is required for basic setup.

Q3: Can the unit communicate with existing HART-capable asset management systems?
A: Yes. The 6DR5013-0FN00-0AA3 supports HART protocol, allowing full integration with HART-capable asset management platforms. Diagnostic data including valve position, travel deviation, and fault codes can be read over the existing 4–20 mA wiring without interrupting the control signal.

Q4: What warranty and supply assurance does NINERMAS provide?
