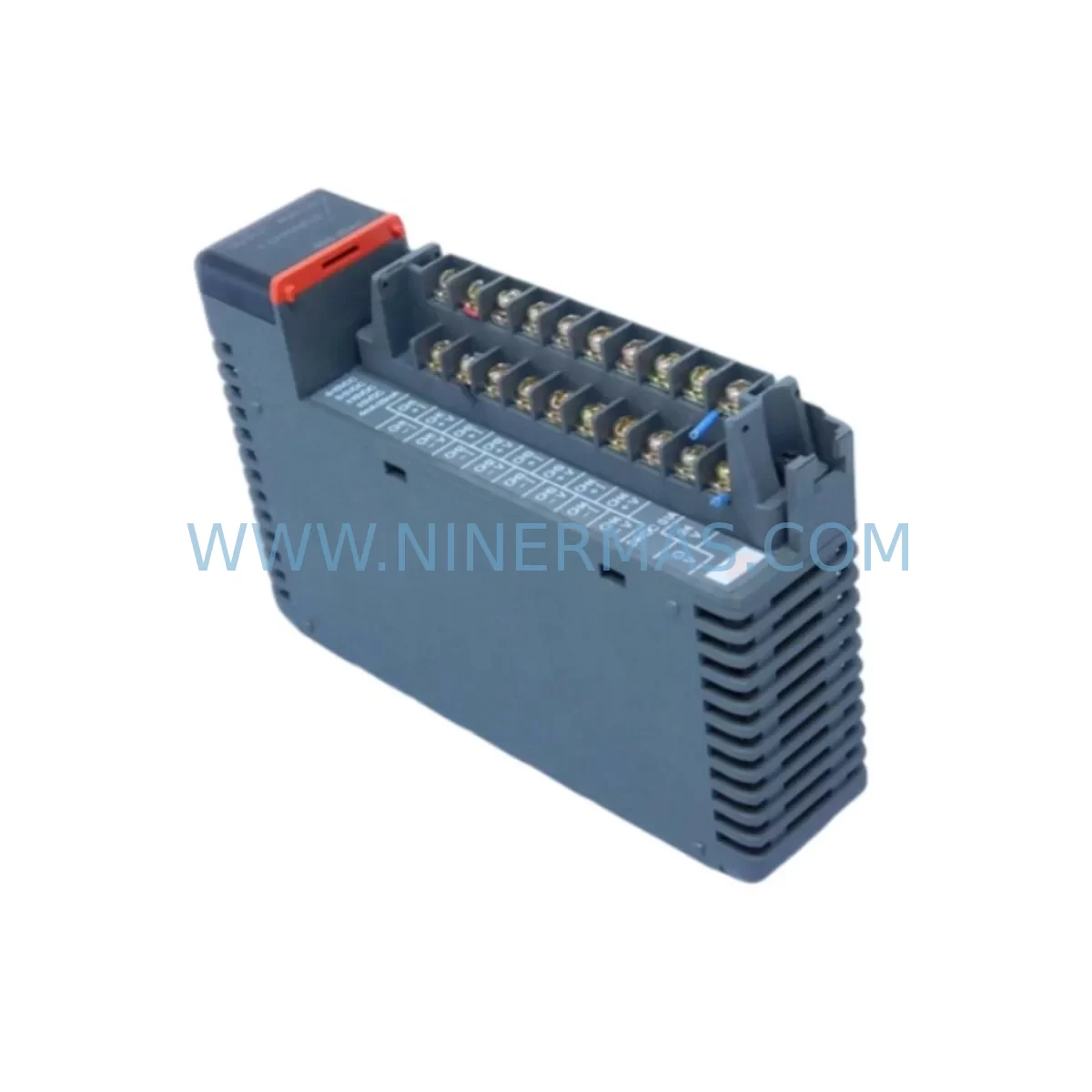

The Siemens 405-4DAC-1 is a 4-channel analog output module designed for the SIMATIC S7-400 series programmable logic controller platform — one of the most widely deployed DCS/PLC architectures in heavy industry, process automation, and critical manufacturing environments. As production lines age and OEM support windows close, maintaining a verified, service-ready stock of the 405-4DAC-1 becomes a cornerstone of any responsible maintenance strategy. Whether you are managing a petrochemical plant, an automotive body shop, a power generation facility, or a discrete manufacturing line, unplanned downtime caused by a failed analog output module can cascade into hours or days of lost production. NINERMAS supplies the 405-4DAC-1 as a fully tested, original-specification spare part, shipped with a 12-month warranty and pre-delivery functional verification.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance or procurement engineer identifies the 405-4DAC-1 as a replacement candidate — whether during a scheduled annual shutdown, a corrective maintenance event, or a proactive spare parts audit — the replacement scope should never be limited to the module alone. The S7-400 platform integrates tightly across its rack architecture, and a failed or degraded analog output module is frequently a symptom of broader electrical stress in the control cabinet.

Begin by inspecting the PS 407 or PS 405 power supply module that feeds the rack. Voltage ripple or transient spikes from an aging power supply are a leading cause of premature analog module failure. If the power supply has not been replaced within the last five years, it should be evaluated alongside the 405-4DAC-1. Next, examine the IM 460 / IM 461 interface modules if the 405-4DAC-1 is installed in an expansion rack — communication errors between the central rack and expansion rack can manifest as erratic analog output behavior that is incorrectly attributed to the output module itself.

The CPU 414 or CPU 416 that governs the S7-400 rack should be checked for firmware consistency and memory card integrity. An outdated firmware version can cause incorrect scaling of analog output values, leading engineers to replace a perfectly functional 405-4DAC-1 when the root cause lies upstream. Similarly, the SM 431 analog input modules in the same rack should be verified — if a closed-loop PID control circuit is involved, a drifting input signal will produce unstable output behavior regardless of the output module’s condition.

At the field wiring level, inspect the terminal blocks and signal cables connected to the 405-4DAC-1’s front connector. Corroded terminals, loose ferrules, or shielding failures in the 4–20 mA signal cables running to valve positioners or variable frequency drives are common sources of output signal noise. If the plant uses signal isolators or signal conditioners between the module and field devices, these should be tested for drift — a failing isolator can introduce offset errors that appear to originate from the analog output module.

For facilities running PROFIBUS DP communication alongside the S7-400 rack, the CP 443-5 communication processor and associated PROFIBUS connectors should be inspected during the same maintenance window. A degraded bus termination resistor or a failing DP connector can cause intermittent communication faults that affect the entire rack’s output behavior. Additionally, if the control cabinet houses 24 V DC relay modules or solid-state relays that are driven by the analog output signals, these should be tested for contact wear or leakage current that could back-feed into the module’s output terminals.

Finally, for older S7-400 installations where the backplane rack itself has accumulated years of thermal cycling, a visual inspection of the backplane bus connector contacts is warranted. Oxidized or mechanically stressed backplane contacts are a known failure mode in long-running S7-400 systems and can cause intermittent module recognition errors that are difficult to diagnose without physical inspection.

Site Replacement Workflow

Replacing the Siemens 405-4DAC-1 on-site is a straightforward procedure when the correct preparation steps are followed, and a well-executed replacement can restore full analog output functionality within a single maintenance shift — minimizing production downtime and avoiding the extended delays associated with OEM repair cycles.

Step 1 — Pre-Replacement Verification: Before removing the existing module, use the SIMATIC Manager or TIA Portal to read the current output values and confirm which channels are active. Document the engineering unit scaling (e.g., 4–20 mA = 0–100% valve opening) for each channel so that post-replacement calibration can be verified against known reference points.

Step 2 — Safe Isolation: Place the CPU in STOP mode and de-energize the front connector’s field wiring. Do not remove the module while the rack is powered unless the installation is designed for hot-swap operation. For standard S7-400 racks, power-down the affected rack segment before extraction.

Step 3 — Module Extraction and Inspection: Remove the front connector (which retains all field wiring) before extracting the module from the backplane slot. Inspect the backplane connector on the extracted module for bent pins or contamination. Inspect the rack slot’s backplane contacts for oxidation before inserting the replacement 405-4DAC-1.

Step 4 — Replacement Installation: Insert the new 405-4DAC-1 into the correct slot position. The S7-400 backplane uses a keyed mechanical coding system — verify that the slot coding matches the module type before applying insertion force. Reattach the front connector with field wiring intact.

Step 5 — Post-Replacement Commissioning: Power up the rack and place the CPU back into RUN mode. Monitor the analog output channels using the SIMATIC diagnostic buffer and confirm that all four channels are producing the expected output values. Perform a loop check on each channel by verifying the signal at the field device (valve positioner, drive reference input, or measurement transmitter) against the commanded output value from the PLC program.

Step 6 — Documentation and Spare Parts Replenishment: Record the replacement date, module serial number, and post-replacement test results in the plant’s maintenance management system. Immediately initiate a procurement request to replenish the consumed spare — maintaining at least one 405-4DAC-1 in stock at all times is recommended for facilities where this module is installed in critical process control loops.
