Allen-Bradley 1746SC-NO8I Spare Part for Industrial Maintenance

Allen-Bradley 1746SC-NO8I Spare Part for Industrial Maintenance: Minimizing Downtime with Reliable Analog Output Replacement

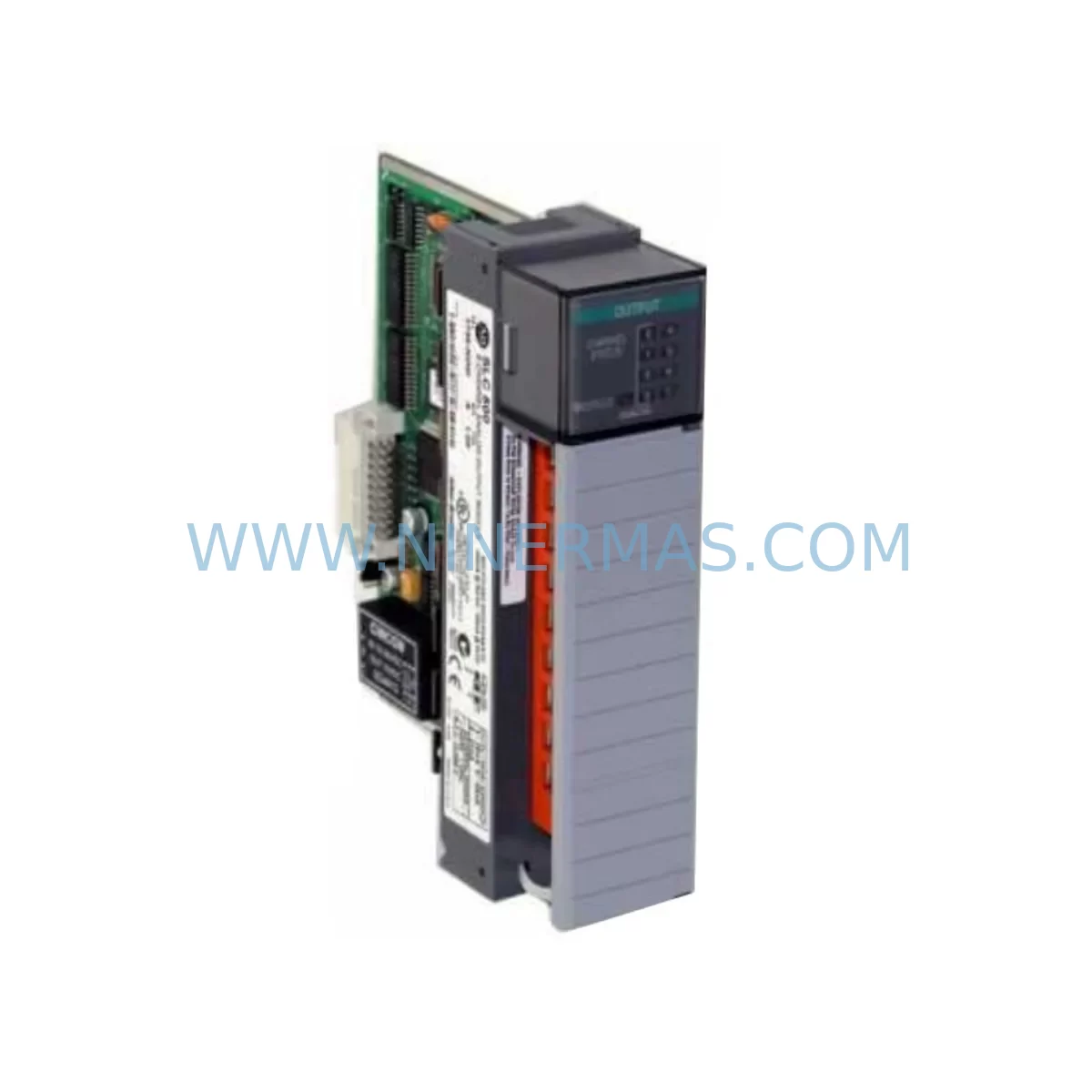

The Allen-Bradley 1746SC-NO8I is a ruggedized 8-channel analog current output module designed for the SLC 500 series programmable logic controller platform. Built to operate in harsh industrial environments — including those with elevated vibration, temperature extremes, and high electromagnetic interference — this module delivers stable 4–20 mA current output signals critical to process control loops, valve positioners, variable frequency drives, and field instrumentation. When this module fails or degrades, the consequences extend far beyond a single I/O channel: entire production lines, batch processes, and safety-critical control loops can be compromised. Maintaining a service-ready 1746SC-NO8I in your spare parts inventory is a fundamental risk mitigation strategy for any facility running SLC 500-based automation.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 1746SC-NO8I in a live SLC 500 system is rarely an isolated task. Maintenance engineers and procurement teams should treat this module replacement as an opportunity to audit the surrounding control architecture and pre-empt secondary failures that often accompany analog output degradation.

Begin with the SLC 500 power supply module (such as the 1746-P4 or 1746-P7). Analog output modules are particularly sensitive to power rail instability; a marginal power supply that has not been replaced in several years may be the root cause of erratic output behavior rather than the module itself. Verify output voltage under load before condemning the 1746SC-NO8I.

Next, inspect the 1746-A chassis backplane. Ruggedized environments subject backplane connectors to thermal cycling and vibration stress. Bent or oxidized backplane pins can cause intermittent module communication errors that mimic analog output faults. A chassis inspection should accompany any module swap.

Review the SLC 500 processor module — whether a 1747-L532, 1747-L542, or 1747-L553 — for firmware currency and battery status. An aging processor battery can corrupt program memory and produce unexpected analog output behavior during power cycling events. Replace the processor battery as part of the same maintenance window.

Examine the 1746-IB16 or 1746-OB16 digital I/O modules installed in adjacent chassis slots. In mixed analog/digital control cabinets, digital output switching transients can couple into analog signal wiring if shielding is compromised. Verify that all analog output field wiring uses shielded twisted-pair cable with shields grounded at a single point.

For facilities using 1747-SDN DeviceNet Scanner modules or 1747-KFC15 ControlNet interface cards, confirm that network communication remains stable after the module replacement. Analog output modules that share a chassis with communication modules can occasionally cause bus contention issues if the replacement module has a different firmware revision.

Inspect terminal blocks and field wiring at the analog output termination points. Corroded or loose terminals are a leading cause of 4–20 mA signal drift in harsh environments. Replace any suspect terminal blocks — such as Phoenix Contact or Weidmüller screw-clamp types — during the same maintenance window to avoid repeat call-outs.

If the 1746SC-NO8I drives signal isolators or loop-powered transmitter barriers, verify that isolator output ranges are correctly configured for 4–20 mA and that isolation barriers have not degraded. A failed signal isolator can load the analog output channel and produce non-linear output behavior that is incorrectly attributed to the module.

Finally, for systems where the SLC 500 communicates upstream to a PanelView or PanelView Plus HMI via DH+ or DF1, confirm that HMI analog display tags are correctly mapped after the module replacement. Incorrect slot addressing in the HMI tag database is a common post-replacement commissioning error that can delay production restart.

Procurement engineers should consider stocking at least one 1746SC-NO8I alongside complementary spares including the 1746-NI8 analog input module, 1746-P4 power supply, and 1747-L543 processor to cover the most common SLC 500 failure modes in a single purchase order. This consolidated spare parts strategy reduces lead time risk and simplifies annual maintenance budgeting.

Site Replacement Workflow

Step 1 — Pre-replacement documentation: Before removing the 1746SC-NO8I, record all channel output values from the SLC 500 processor data file (Output Image Table, O:slot.data). Photograph the field wiring terminations and label each wire if labels are absent or illegible. This documentation prevents wiring errors during reinstallation and accelerates recommissioning.

Step 2 — Safe isolation: Place the SLC 500 processor in Program mode via the key switch or RSLogix 500 software. Confirm that all field devices driven by the analog outputs are in a safe state — valve positioners at fail-safe position, VFDs at zero speed command. Do not rely solely on software inhibit; physically verify field device status before proceeding.

Step 3 — Module removal: Disconnect field wiring from the module’s terminal block. If the module uses a removable terminal block (RTB), the RTB can remain wired and be transferred directly to the replacement module, significantly reducing reconnection time and eliminating wiring errors. Slide the module out of the chassis slot.

Step 4 — Replacement module installation: Verify that the replacement 1746SC-NO8I carries the same catalog number and series letter as the removed module. Differences in series revision can occasionally affect calibration offsets or output behavior. Slide the replacement module into the same chassis slot. If using an RTB, transfer it directly from the old module to the new one.

Step 5 — Recommissioning and verification: Return the processor to Run mode. Using RSLogix 500 or a handheld loop calibrator, verify that each of the 8 output channels produces the correct 4–20 mA signal corresponding to the commanded output value. Check for any fault bits in the processor fault table. Confirm field device response — valve position, drive speed reference, or transmitter setpoint — matches expected values before releasing the system to production.

Step 6 — Documentation update: Record the replacement in the equipment maintenance log, including the date, replaced module serial number, technician name, and post-replacement test results. Update the spare parts inventory to trigger reorder of a replacement 1746SC-NO8I to restore buffer stock.

Spare Parts Support FAQ

Q1: Is the 1746SC-NO8I compatible with all SLC 500 chassis and processors?
The 1746SC-NO8I is designed for the 1746 series SLC 500 chassis and is compatible with SLC 5/01 through SLC 5/05 processors. The ruggedized SC designation indicates enhanced environmental tolerance compared to the standard 1746-NO8I. Always verify the chassis slot count and power supply capacity before installation, particularly in fully populated chassis where power budget margins may be tight.

Q2: How is the 1746SC-NO8I tested before shipment?
Each unit supplied by NINERMAS undergoes functional verification prior to dispatch, including backplane communication check and analog output channel verification across the 4–20 mA range. Units are shipped with protective packaging appropriate for international freight. A 12-month warranty covers defects in materials and workmanship from the date of shipment.

Q3: What is the recommended spare parts stocking strategy for SLC 500 systems?
For facilities with multiple SLC 500 racks, we recommend maintaining at minimum one spare analog output module (1746SC-NO8I), one analog input module (1746-NI8), one power supply (1746-P4 or equivalent), and one processor module matched to your installed base. For critical production lines, a complete hot-spare chassis pre-loaded with configured modules can reduce unplanned downtime from hours to minutes.

Q4: Can NINERMAS support long-term supply of the 1746SC-NO8I for legacy system maintenance?
Yes. NINERMAS specializes in long-term supply of industrial automation spare parts including discontinued and hard-to-source modules. We maintain stock of SLC 500 series components to support facilities extending the operational life of legacy control systems. Contact our team to discuss volume pricing, consignment stock arrangements, or annual supply agreements tailored to your maintenance schedule.
