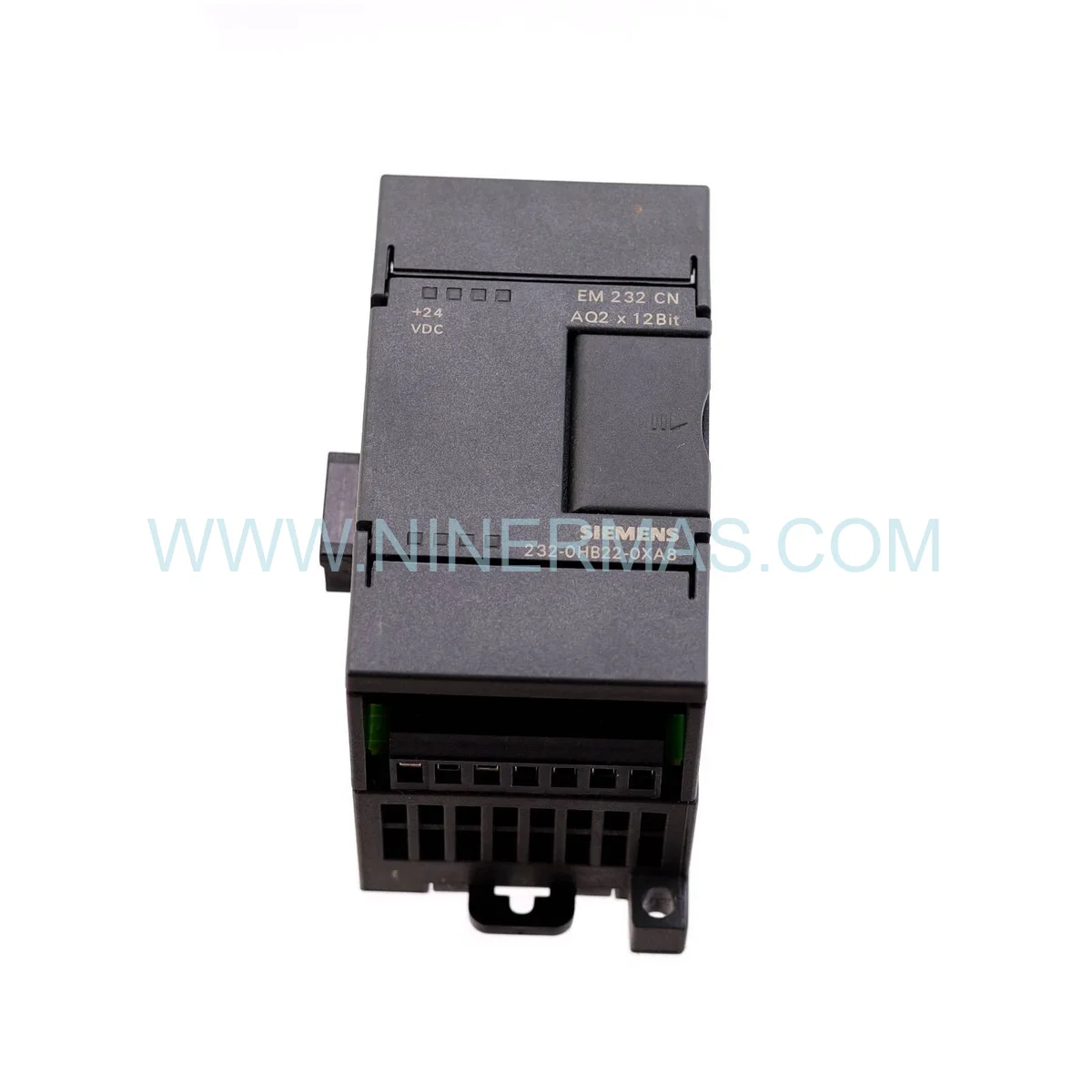

Siemens EM 232 6ES7232-0HB22-0XA8 Analog Output Module — New & Original

Siemens EM 232 Analog Output Module 6ES7232-0HB22-0XA8 | Reliable Automation Component

Field Application & Operational Analysis

From the perspective of a Site Reliability Engineer managing mission-critical production environments, the Siemens 6ES7232-0HB22-0XA8 stands as a cornerstone expansion module for SIMATIC S7-200 PLC systems. Engineered to deliver two precision analog output channels with 12-bit resolution, the 6ES7232-0HB22-0XA8 directly elevates system availability by enabling seamless, high-fidelity signal transmission to actuators, variable-speed drives, and process transmitters — eliminating the signal degradation that triggers unplanned downtime in continuous-process industries.

Deployed across environments ranging from chemical processing floors to automotive assembly lines, this EM 232 module demonstrates exceptional durability under sustained thermal and electrical stress. Operating reliably across a 0-60°C ambient range with 500 V AC isolation between output and logic circuits, it withstands the electromagnetic interference and voltage transients endemic to heavy industrial installations. Field engineers should note that proper shielded-cable routing (up to 500 m) and DIN-rail snap-on mounting to the S7-200 backplane are critical for sustaining signal integrity over extended operational cycles.

For maintenance planners and procurement specialists, stocking the 6ES7232-0HB22-0XA8 as a certified spare is a non-negotiable element of any robust asset management strategy. As a legacy-compatible module within the SIMATIC S7-200 ecosystem — a platform with an extensive installed base globally — securing verified original units ensures rapid mean-time-to-repair (MTTR) and protects against the cascading costs of extended production stoppages.

Key Operational Features

Dual Analog Output Channels — Provides 2 independent ±10 V DC outputs for precise, simultaneous control of multiple field devices, supporting process optimization across complex automation architectures.
12-Bit Resolution — Delivers high-accuracy signal conversion (±0.5% full-scale accuracy), ensuring operational excellence in closed-loop control applications where output fidelity is paramount.
Seamless System Integration — Snap-on DIN-rail mounting and direct backplane power (5 V DC, 40 mA) enable plug-and-play compatibility with all S7-22X CPUs, minimizing integration complexity.
High Availability Design — Synchronized update rate with the CPU scan cycle eliminates output latency, supporting high-speed process control loops critical to mission-critical applications.
Robust Electrical Isolation — 500 V AC output-to-logic isolation provides inherent redundancy against ground faults and surge events, protecting both the module and connected field instrumentation.
Compact Industrial Form Factor — At 80 — 40 — 21 mm and IP20 protection, the module integrates efficiently into space-constrained control panels without compromising accessibility for maintenance personnel.

Maintenance & Performance Benchmarks

The 6ES7232-0HB22-0XA8 is architected to perform consistently across diverse industrial network scales — from standalone machine controllers to distributed multi-node SIMATIC S7-200 networks. Its synchronized scan-cycle update mechanism ensures deterministic output behavior regardless of network load, a critical benchmark for process optimization in time-sensitive manufacturing cells.

In multi-module configurations, the EM 232 draws only 40 mA from the S7-200 backplane bus, preserving power budget headroom for additional I/O modules and ensuring stable system integration without requiring supplementary power supplies in standard deployments. Compliance with IEC 61131-2, CE, UL, and CSA standards confirms its suitability for global installations and simplifies regulatory documentation for site commissioning engineers.

Preventive maintenance intervals for this module class typically align with annual PLC system audits. Key inspection points include terminal block torque verification, cable shield continuity checks, and firmware version compatibility confirmation with the host CPU — all of which contribute to sustaining automation components at peak performance benchmarks throughout their service life.

Comprehensive Data Sheet

Professional Logistics & Sourcing Excellence

Every unit of the 6ES7232-0HB22-0XA8 dispatched from our inventory is sourced directly from authorized distribution channels and ships in original factory packaging — complete with manufacturer labels, anti-static protection, and serialized traceability documentation. This guarantees authenticity verification and full warranty activation upon receipt.

For procurement teams operating under tight maintenance windows, same-day dispatch is available for in-stock units confirmed before the daily logistics cutoff. Our global supply network is specifically structured to support end-of-life (EOL) and legacy module sourcing, ensuring that facilities running long-lifecycle SIMATIC S7-200 installations can secure verified automation components without compromising on quality or lead time.

Worldwide express logistics partnerships enable delivery to major industrial hubs across Asia-Pacific, Europe, the Americas, and the Middle East — with full shipment tracking and customs documentation support provided as standard. A 1-year warranty covers all supplied modules against manufacturing defects, backed by our dedicated technical after-sales team.

Engineering Support & FAQ

Q1: How do I install the 6ES7232-0HB22-0XA8 onto an existing S7-200 system?
Snap the module onto the S7-200 DIN rail immediately adjacent to the CPU or existing expansion modules. Connect the I/O bus cable between the CPU and the EM 232, then wire your analog output field devices to the module’s terminal block. Power the system and configure the analog output addresses in STEP 7-Micro/WIN software.

Q2: Which S7-200 CPU firmware versions are compatible with this module?
The 6ES7232-0HB22-0XA8 is compatible with all S7-22X CPU variants running firmware V2.0 and above. For legacy CPUs on earlier firmware, a firmware update via STEP 7-Micro/WIN is recommended prior to module integration to ensure full I/O module recognition and scan-cycle synchronization.

Q3: Can this module output current signals (4-20 mA) in addition to voltage?
The 6ES7232-0HB22-0XA8 is configured exclusively for ±10 V DC voltage output. For applications requiring 4-20 mA current output, the Siemens EM 232 current output variant (6ES7232-0HB22-0XA0) should be specified. Confirm your field device input requirements before procurement.

Q4: What is the warranty claim process for this module?
All modules supplied carry a 1-year warranty from the date of dispatch. To initiate a warranty claim, contact our technical support team at sale@ninermas.com with your order reference, module serial number, and a description of the observed fault. Replacement or repair will be processed within 5-7 business days upon fault verification.

Q5: How should the module be stored if not immediately installed?
Store the 6ES7232-0HB22-0XA8 in its original anti-static packaging in a dry environment at 0-40°C with relative humidity below 95% (non-condensing). Avoid proximity to strong electromagnetic fields or corrosive atmospheres. Proper storage preserves module integrity for extended spare-part holding periods.

Q6: Is this module suitable for use in safety-instrumented systems (SIS)?
The EM 232 6ES7232-0HB22-0XA8 is a standard automation output module and is not SIL-rated for use in IEC 61511-compliant safety-instrumented systems. For safety system applications, Siemens SIMATIC Safety series modules with dedicated SIL certification should be specified.
