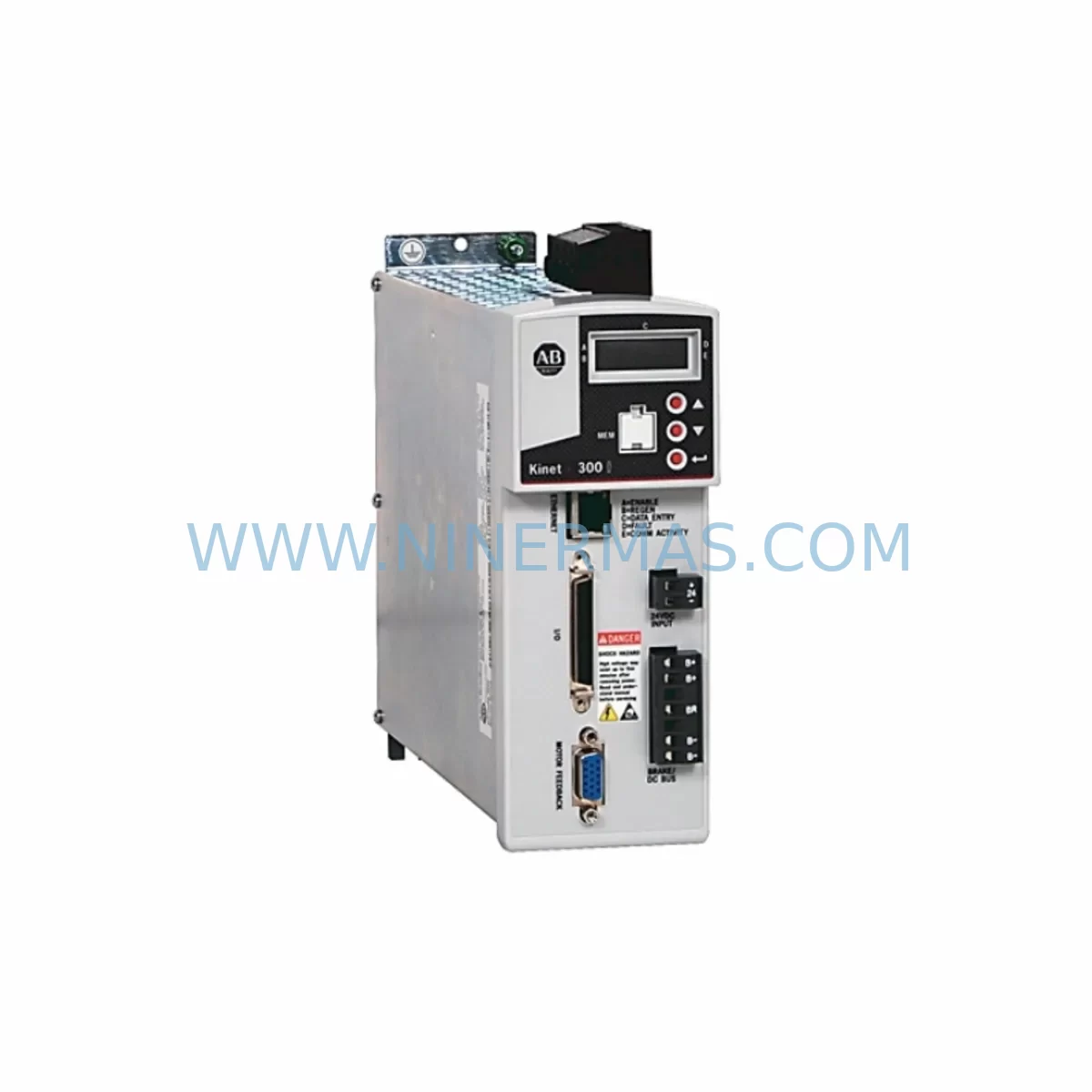

Allen-Bradley 2097-V34PR5-LM Retrofit Servo Drive

Allen-Bradley 2097-V34PR5-LM Retrofit-Compatible Servo Drive for Legacy Motion Systems

The Allen-Bradley 2097-V34PR5-LM is a Kinetix 300 series single-axis EtherNet/IP servo drive rated at 2.0 kW, designed for 400–480V AC three-phase input. As a ruggedized variant with an LM suffix indicating an extended environmental rating, this drive is engineered for demanding industrial environments where temperature variation, vibration, and contamination are ongoing concerns. For maintenance engineers managing aging motion control infrastructure, the 2097-V34PR5-LM represents a direct retrofit path that preserves existing servo motor wiring, encoder feedback connections, and EtherNet/IP network topology without requiring a full system redesign.

In legacy Kinetix 300 installations, the 2097-V34PR5-LM slots into the same DIN rail or panel footprint as earlier Kinetix 300 variants, making it a preferred choice for controlled downtime replacement during scheduled maintenance windows. The drive communicates natively over EtherNet/IP using the CIP Motion protocol, which means existing Studio 5000 Logix Designer programs, axis configuration parameters, and motion task sequences can be retained with minimal re-commissioning effort. This compatibility is critical for production lines where reprogramming from scratch would introduce unacceptable risk and extended downtime.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful 2097-V34PR5-LM retrofit begins well before the drive is physically installed. Maintenance and procurement engineers should audit the full motion control cabinet to identify components that may require simultaneous attention. The 2097-V34PR5-LM shares its power bus architecture with other Kinetix 300 drives in multi-axis configurations, so verifying the shared DC bus capacitor condition and the 2097-FA02H shunt module rating is an essential first step. If the existing shunt module is undersized for the regenerative load profile of the application, replacing it alongside the drive prevents nuisance faults during acceleration and deceleration cycles.

The EtherNet/IP network infrastructure feeding the drive should also be reviewed. Managed switches such as the Stratix 2000 or Stratix 5700 series provide the deterministic network performance that CIP Motion requires; unmanaged switches can introduce latency that degrades servo loop performance. If the existing network uses an older unmanaged switch, this retrofit is an appropriate time to upgrade the switch alongside the drive.

On the motor side, the 2097-V34PR5-LM is compatible with the full Allen-Bradley MPL (Medium Power Low Inertia) and MPM servo motor families. Before installation, verify that the motor feedback cable — typically a 2090-XXNFMF-Sxx series cable — is undamaged and that the connector shell is not corroding. Feedback cable degradation is a common root cause of encoder fault codes that are incorrectly attributed to drive failure. Similarly, the motor power cable (2090-XXNPMF-16Sxx or equivalent) should be inspected for insulation integrity, particularly at the motor junction box where thermal cycling causes accelerated wear.

For installations where the 2097-V34PR5-LM is integrated with a CompactLogix L33ER or L36ERM controller, confirm that the controller firmware is at revision 20.011 or later to ensure full CIP Motion axis attribute compatibility. If the application uses a 1769-L33ER CompactLogix with an existing 1769-IQ16 digital input module for home switch and overtravel limit inputs, these I/O connections remain unchanged during the drive swap. The 1492-AIFM8-F-5 analog interface module, if used for analog reference signals in legacy configurations, should be verified for signal integrity before commissioning the replacement drive.

In cabinet environments where the 2097-V34PR5-LM is mounted alongside 1606-XLP power supplies or 1783-US5T Stratix unmanaged switches, ensure adequate thermal clearance above and below the drive. The ruggedized LM variant has a wider operating temperature range, but convective airflow paths must remain unobstructed. If the cabinet uses a 1492-J4 terminal block rail for control wiring, verify that all 24VDC enable and fault reset signal wires are correctly landed before applying power.

Downtime Control During System Migration

Minimizing production downtime during a 2097-V34PR5-LM swap requires a structured pre-outage preparation protocol. Before the maintenance window begins, export the existing axis configuration from Studio 5000 using the “Save to Drive” function so that all tuning parameters — position loop gain, velocity loop gain, acceleration feedforward, and friction compensation — are preserved offline. This export takes less than two minutes and eliminates the risk of losing tuning data if the original drive fails completely before the replacement is installed.

During the physical swap, the EtherNet/IP cable, motor power cable, and feedback cable should be labeled and photographed before disconnection. The 2097-V34PR5-LM uses the same connector pinout as the standard 2097-V34PR5, so no rewiring is required. After installation, restore the axis configuration using the “Load from File” function in Studio 5000, then perform a controlled jog test at 10% speed before returning the axis to automatic mode. This sequence typically allows a complete drive replacement to be completed within a 45-minute maintenance window by a single qualified technician.

For applications where the servo axis is part of a coordinated multi-axis motion group, ensure that the replacement drive’s node address and axis number match the original configuration exactly. A mismatch will cause the controller to generate a connection fault on all axes in the motion group, not just the replaced axis, which can extend the recovery time significantly. Documenting the original EtherNet/IP IP address assignment and verifying it against the replacement drive’s configuration before closing the cabinet is a simple step that prevents this common commissioning error.

Retrofit Support FAQ

Q1: Is the 2097-V34PR5-LM a direct drop-in replacement for the standard 2097-V34PR5?
Yes. The LM suffix denotes the ruggedized environmental variant. The electrical interface, connector pinout, EtherNet/IP communication profile, and Studio 5000 axis configuration are identical to the standard 2097-V34PR5. No program changes or wiring modifications are required for a direct swap.

Q2: What pre-shipment testing is performed before dispatch?
Each 2097-V34PR5-LM unit undergoes a full power-on functional test including DC bus charge verification, communication link establishment, and output stage integrity check before shipment. A test report is available upon request. All units are shipped with a 12-month warranty from the date of dispatch.

Q3: Can you supply the 2097-V34PR5-LM for long-term maintenance contracts or blanket purchase orders?
Yes. We maintain reserved inventory for critical Kinetix 300 series components to support planned maintenance schedules and emergency replacement requirements. Contact our team to discuss long-term supply agreements, lead time commitments, and volume pricing for multi-unit procurement.

Q4: What if my application requires a different power rating within the Kinetix 300 family?
The Kinetix 300 series covers a range of power ratings from 0.4 kW to 7.5 kW. If the 2097-V34PR5-LM at 2.0 kW does not match your motor’s continuous power requirement, we can source alternative Kinetix 300 variants. Provide your motor nameplate data and we will confirm the correct drive catalog number for your application.
