SEW MC07B0022-5A3-4-00 Retrofit-Compatible Drive for Legacy Systems

SEW MC07B0022-5A3-4-00 Retrofit-Compatible Drive for Legacy Systems: Seamless Upgrade for Aging Automation Infrastructure

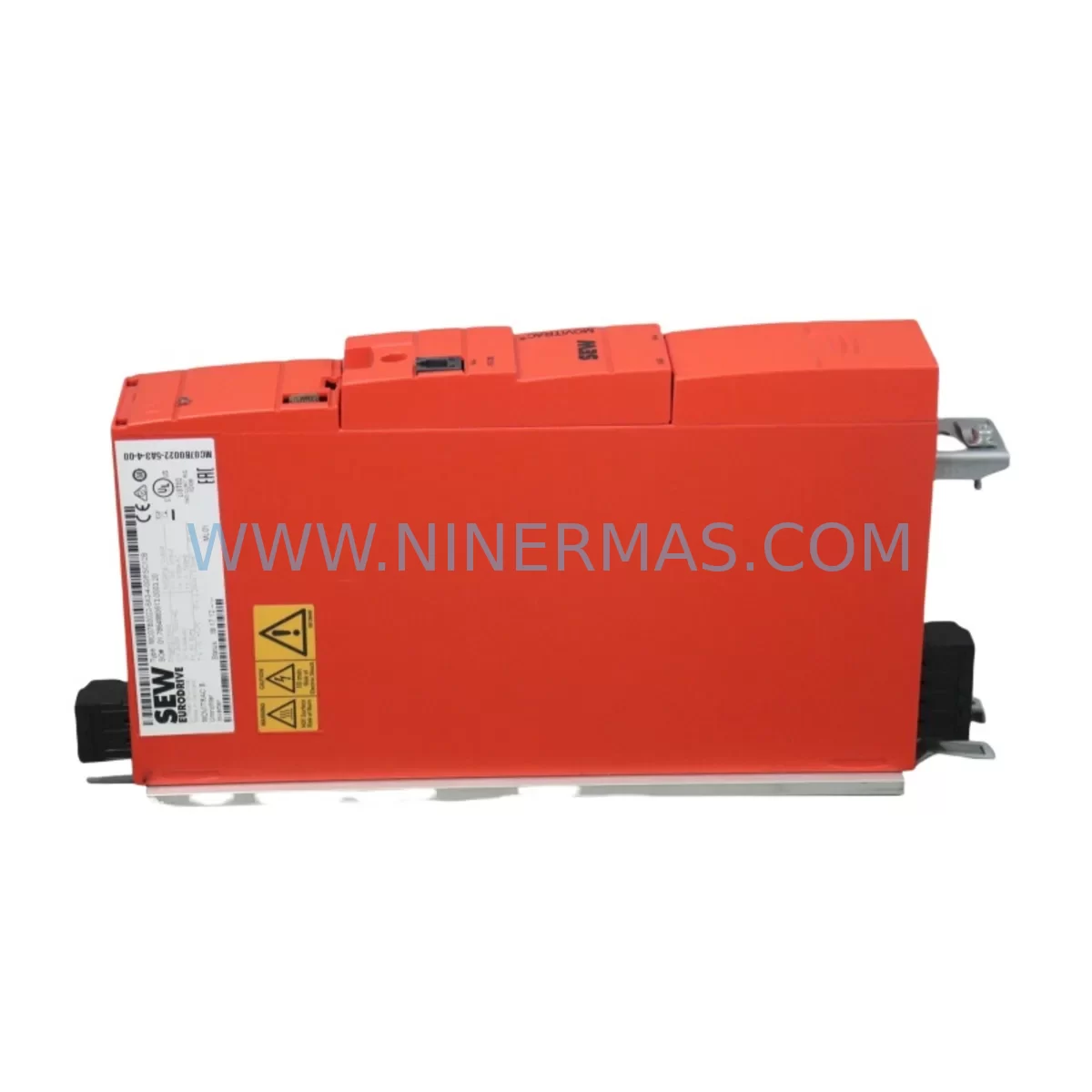

The SEW MC07B0022-5A3-4-00 is a MOVITRAC series variable frequency drive (VFD) manufactured by SEW-EURODRIVE, designed for three-phase motor control in industrial automation environments. With a rated output of 2.2 kW at 400–480 V (3-phase), this unit serves as a direct retrofit replacement for discontinued or end-of-life drives across a wide range of legacy production lines, control cabinets, and automated material handling systems.

For facilities still operating older MOVITRAC B-series or MC07 platform installations, sourcing a verified replacement unit is often the critical path item in any unplanned downtime event. The MC07B0022-5A3-4-00 maintains full compatibility with the established MOVITRAC parameter structure, meaning existing motor data sets, ramp profiles, and process control configurations can typically be transferred or re-entered without requiring a full system redesign. This significantly reduces commissioning time and minimizes the risk of introducing new faults during the changeover.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the MC07B0022-5A3-4-00 into an existing control system begins well before the unit arrives on site. Engineers should start by auditing the control cabinet layout to confirm available mounting space, since the MC07B series has specific dimensional requirements that may differ from older MOVITRAC 31C or third-party VFDs previously installed in the same slot. Adequate clearance above and below the drive is essential for convection cooling; forced-air configurations may require repositioning adjacent components such as terminal blocks, power supply modules, or I/O expansion racks.

Terminal wiring is a common source of commissioning delays. The MC07B0022-5A3-4-00 uses a defined terminal layout for power input (L1/L2/L3), motor output (U/V/W), braking resistor connection, and control signal wiring. When replacing a legacy unit, technicians should photograph and document all existing wiring before disconnection. Pay particular attention to the 24 V DC control supply, enable signal (DIØØ), setpoint input (AI1), and any relay output wiring connected to the machine’s safety or status circuits. If the original installation used a DBG60B operator keypad for local speed reference or fault reset, verify that the keypad connector pinout is compatible with the replacement unit.

For systems integrated into a PROFIBUS DP or DeviceNet network, the fieldbus option card must be confirmed before ordering. The DFP21B PROFIBUS option card and DFE21B EtherNet/IP option card are common additions in networked MOVITRAC installations. If the existing drive carried a specific GSD file configuration or node address assignment, these settings must be replicated on the new unit to avoid communication faults at the PLC level — typically a Siemens S7-300/400 or Allen-Bradley ControlLogix acting as the network master.

I/O mapping is another critical checkpoint. Many legacy lines use the MOVITRAC’s onboard digital inputs for multi-speed selection, direction control, and fault acknowledgment. If the original application used parameter set switching (P100–P130 range) to manage multiple speed profiles — common in conveyor, hoist, and pump applications — these parameter blocks must be re-entered or cloned from a backup. The MOVITOOLS MotionStudio software provides a parameter upload/download function that can significantly accelerate this process when a laptop with a USB11A or UWS21A interface adapter is available on site.

Power supply capacity in the control cabinet should also be reviewed. If the cabinet houses a SITOP PSU100S 24 V DC power supply or equivalent, confirm that the additional inrush current from the new drive during startup does not exceed the supply’s rated output. In multi-drive cabinets, this is particularly relevant when several MC07B units share a common DC bus or are powered from the same transformer secondary. Similarly, if a braking resistor module (such as the BW100-006 or BW072-003) is part of the existing installation for dynamic braking on vertical or high-inertia loads, verify that the resistor’s power rating and duty cycle remain appropriate for the replacement drive’s braking chopper threshold.

HMI screen updates are often overlooked during drive replacements. If the facility uses a SEW MOVIVISION visualization layer or a third-party SCADA/HMI (such as a Siemens TP700 or Weintek cMT panel) with drive-specific diagnostic screens, the new drive’s parameter addresses and fault code mappings should be verified against the HMI project. Minor differences between firmware revisions can cause status word bit mismatches that appear as spurious alarms on the operator panel.

Downtime Control During System Migration

Minimizing production downtime during a drive replacement requires a structured approach that begins before the maintenance window opens. The most effective strategy is to pre-configure the replacement MC07B0022-5A3-4-00 on a bench using MOVITOOLS MotionStudio, loading all motor parameters, speed references, ramp times, and I/O assignments from a previously saved parameter file. If no backup exists, the parameters should be manually recorded from the original drive’s keypad display before shutdown — a process that typically takes 20–40 minutes depending on the complexity of the application.

During the physical swap, the original drive’s control wiring should be transferred terminal by terminal using the documented wiring diagram. Power wiring (L1/L2/L3 and U/V/W) should be checked for correct phase sequence after reconnection, as incorrect motor rotation direction is a common post-replacement fault that can damage mechanical loads. Once wiring is complete, a no-load motor run at low speed (5–10 Hz) should be performed to verify rotation direction and confirm that no overcurrent or earth fault conditions are present before returning the drive to full production speed.

For networked installations, the PLC program should be placed in stop mode before the drive is powered down to prevent the network master from generating cascading fault responses across other nodes. After the replacement drive is online and communicating, the PLC can be restarted in a controlled sequence. If the application uses a MOVI-PLC advanced motion controller or a coordinated multi-axis setup with other SEW drives such as the MOVIDRIVE MDX61B, the restart sequence must follow the system’s defined initialization order to avoid axis synchronization errors.

Pre-shipment functional testing of the MC07B0022-5A3-4-00 is performed before dispatch, covering power-on self-test, output voltage balance, and control I/O verification. This reduces the risk of receiving a non-functional unit and supports the goal of completing the replacement within a single planned maintenance shift. Combined with the 12-month warranty coverage, this provides a reliable foundation for retrofit projects where schedule certainty is critical.

Retrofit Support FAQ

Q1: Is the MC07B0022-5A3-4-00 a direct drop-in replacement for the older MOVITRAC 31C series?
The MC07B0022-5A3-4-00 is functionally compatible with MOVITRAC 31C applications in terms of motor control capability, but it is not a mechanical drop-in — the physical dimensions and terminal layouts differ. Mounting bracket adapters and terminal rewiring are typically required. Parameter migration must be performed manually, as the two platforms use different parameter numbering schemes. We recommend reviewing the MC07B hardware manual alongside the original 31C documentation before beginning the retrofit.

Q2: Can I transfer parameters from the failed drive to the MC07B0022-5A3-4-00 without a PC?
If the original drive is still partially functional, the DBG60B operator keypad supports parameter copying between compatible MC07B units via its memory function. If the original drive is completely non-functional, parameters must be re-entered manually or restored from a MOVITOOLS MotionStudio backup file. For critical applications, we recommend maintaining a parameter backup on file as part of standard preventive maintenance practice.

Q3: What fieldbus options are available, and how do I confirm compatibility with my existing PLC network?
The MC07B0022-5A3-4-00 supports RS-485 (USS/MOVILINK) natively. PROFIBUS DP, DeviceNet, CANopen, and EtherNet/IP are available via plug-in option cards (DFP21B, DFD21B, DFC21B, DFE21B respectively). To confirm compatibility, identify the fieldbus option card installed in the original drive and order the same card for the replacement unit. The node address and baud rate settings from the original installation must be replicated during commissioning.

Q4: What does the 12-month warranty cover, and is stock available for immediate shipment?
The 12-month warranty covers manufacturing defects and component failures under normal operating conditions. Each unit undergoes a pre-shipment functional test before dispatch. Stock availability is maintained for the MC07B0022-5A3-4-00 to support urgent retrofit and breakdown replacement requirements. Lead times and current stock levels can be confirmed by contacting our sales team directly.
