SEW MDX60A0110-5A3-4-00 Service-Ready Spare Part

SEW MDX60A0110-5A3-4-00 Service-Ready Spare Part for Industrial Maintenance

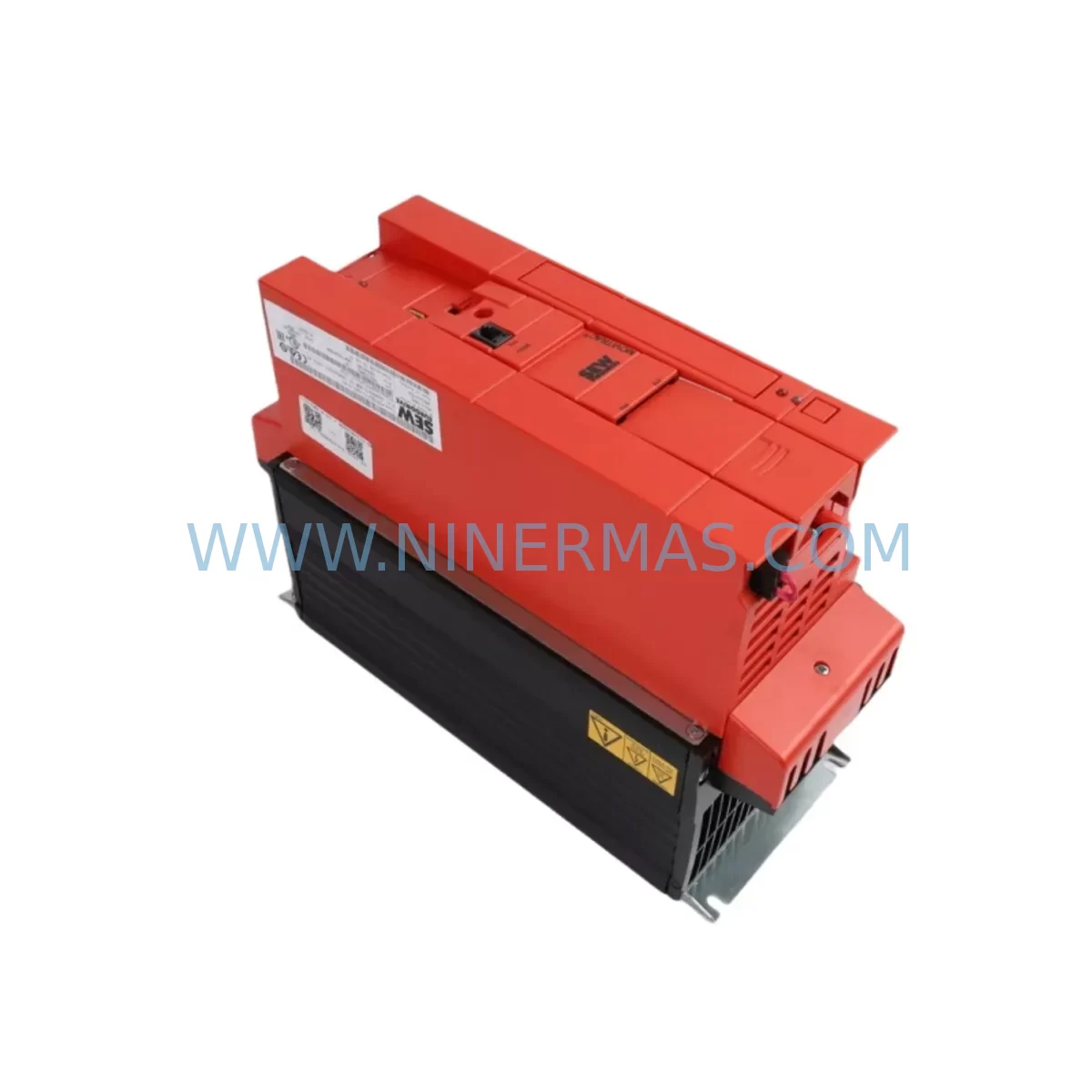

The SEW MDX60A0110-5A3-4-00 is a ruggedized inverter drive module from SEW-EURODRIVE’s MOVIDRIVE MDX60B series, engineered for demanding industrial environments where uptime is non-negotiable. As a service-ready spare part, this unit is stocked, tested, and ready for immediate dispatch to support emergency replacement, planned maintenance shutdowns, and long-term spare parts inventory programs. Whether you are managing a conveyor system, a hoist application, a pump drive, or a multi-axis production line, the MDX60A0110-5A3-4-00 delivers the performance and compatibility your maintenance team depends on.

For maintenance engineers and procurement engineers alike, sourcing a verified replacement for the MDX60A0110-5A3-4-00 is a critical step in reducing mean time to repair (MTTR) and protecting production continuity. This module supports 11.0 kW output power at 400–500 V AC three-phase input, making it a direct fit for a wide range of SEW-EURODRIVE MOVIDRIVE MDX60B and MDX61B system configurations. Its ruggedized design ensures reliable operation in environments with elevated vibration, dust, and temperature variation — conditions common in steel mills, automotive plants, material handling facilities, and process industries.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the MDX60A0110-5A3-4-00 in the field, a thorough inspection of the surrounding control cabinet components is essential to prevent repeat failures and ensure a stable return to operation. Maintenance engineers should begin by verifying the integrity of the 24 V DC control power supply feeding the drive’s logic board — a degraded or undersized power supply is a common root cause of drive faults that are often misattributed to the drive module itself.

Next, inspect the input line filter (EMC filter) and line reactor upstream of the drive. These components protect the MDX60A0110-5A3-4-00 from voltage spikes and harmonic disturbances on the supply network. If the original drive failed due to overvoltage or input transient events, replacing the drive without servicing the line filter will likely result in premature failure of the new unit.

The braking resistor and braking chopper module should also be tested during any MDX60A0110-5A3-4-00 replacement. In hoist, crane, and conveyor applications with frequent deceleration cycles, a failed braking resistor can cause DC bus overvoltage faults that damage the drive’s IGBT power stage. Verify resistance values and thermal condition before commissioning the replacement unit.

For systems using the MOVIDRIVE MDX61B option card slots, check the condition of installed fieldbus communication cards such as the DFP21B (PROFIBUS-DP), DFE24B (EtherNet/IP), or DFC11B (DeviceNet). A faulty option card can prevent the drive from initializing correctly after replacement, leading to unnecessary diagnostic delays. Similarly, inspect the encoder feedback card (DEH21B or DEU21B) if the application uses closed-loop speed or position control.

Terminal wiring at the X1 (power terminals) and X13 (control terminals) should be inspected for signs of overheating, loose connections, or insulation degradation. Torque all terminals to specification and verify that the motor cable shielding is properly grounded at the drive end. For multi-drive installations sharing a common DC bus, inspect the DC bus connection bars and regenerative feedback modules for continuity and thermal damage.

If the system includes a MOVIAXIS MX multi-axis servo inverter or a MOVIPRO SDC decentralized drive controller in the same control architecture, verify that the system bus (SBus) communication between axes is intact after the drive replacement. A single failed node on the SBus can disrupt coordinated motion across the entire production line.

Procurement engineers building a spare parts inventory for MOVIDRIVE MDX60B/MDX61B systems should also consider stocking the MDX60A0075-5A3-4-00 (7.5 kW variant) and MDX60A0150-5A3-4-00 (15 kW variant) as adjacent power class spares, along with the MXR31A-0003-503-4-00 regenerative power supply module for systems with active front-end configurations. Keeping a UOH11B operator panel or DBG60B keypad on hand also accelerates on-site diagnostics and parameter recovery after a drive swap.

Site Replacement Workflow

Replacing the MDX60A0110-5A3-4-00 on-site follows a structured sequence to minimize downtime and ensure system compatibility. Begin by documenting all drive parameters using the MOVITOOLS MotionStudio software or the DBG60B handheld keypad before powering down the system. Export the parameter set to a PC or USB device so it can be uploaded to the replacement unit immediately after installation.

After isolating and locking out the power supply, allow a minimum of 5 minutes for the DC bus capacitors to discharge before opening the drive enclosure. Verify zero voltage at the DC bus terminals using a calibrated multimeter. Remove the motor cables, control wiring, and option cards in sequence, labeling each connection for accurate reinstallation.

Install the MDX60A0110-5A3-4-00 replacement unit into the mounting position, reconnect all wiring per the original schematic, and reinstall option cards. Upload the saved parameter set via MOVITOOLS or the keypad. Perform a no-load test run to verify correct rotation direction, speed reference tracking, and fault-free operation before reconnecting the mechanical load. Document the replacement in the maintenance log with the date, technician name, and new unit serial number.

This workflow is compatible with both direct replacement of identical units and cross-replacement from legacy MDX60A series to current MDX61B series hardware, provided firmware and option card compatibility is confirmed in advance. The MDX60A0110-5A3-4-00 is a direct form-fit-function replacement that requires no hardware modification to the control cabinet, reducing replacement time to under two hours in most installations.

Spare Parts Support FAQ

Q1: Is the MDX60A0110-5A3-4-00 compatible with both MDX60B and MDX61B series cabinets?
Yes. The MDX60A0110-5A3-4-00 is designed for the MOVIDRIVE MDX60B platform and is also compatible with MDX61B series installations at the same power class. Option card slots and SBus communication interfaces are consistent across both generations. Always verify firmware version compatibility when integrating into an existing multi-drive system.

Q2: What pre-shipment testing is performed on this spare part?
Each MDX60A0110-5A3-4-00 unit undergoes functional power-on testing and parameter initialization verification before shipment. Units are inspected for physical integrity, connector condition, and firmware version. A test report is available upon request. All units ship with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions.

Q3: How should I manage long-term spare parts inventory for MOVIDRIVE MDX60B systems?
For critical production lines, we recommend maintaining at least one MDX60A0110-5A3-4-00 unit on-site as a hot spare, particularly for systems running 24/7 or in single-point-of-failure configurations. For multi-drive installations, a shared spare strategy covering the most common power classes (7.5 kW, 11 kW, 15 kW) is cost-effective. Store units in original packaging in a dry, temperature-controlled environment away from direct sunlight and electromagnetic interference sources.

Q4: Can you support long-term or repeat procurement for this part number?
Yes. NINERMAS maintains ongoing stock and sourcing relationships for SEW-EURODRIVE MOVIDRIVE spare parts, including the MDX60A0110-5A3-4-00 and related series components. We support blanket purchase orders, scheduled delivery programs, and emergency same-day dispatch for critical downtime situations. Contact our team to discuss volume pricing, lead time commitments, and consignment stock arrangements.
