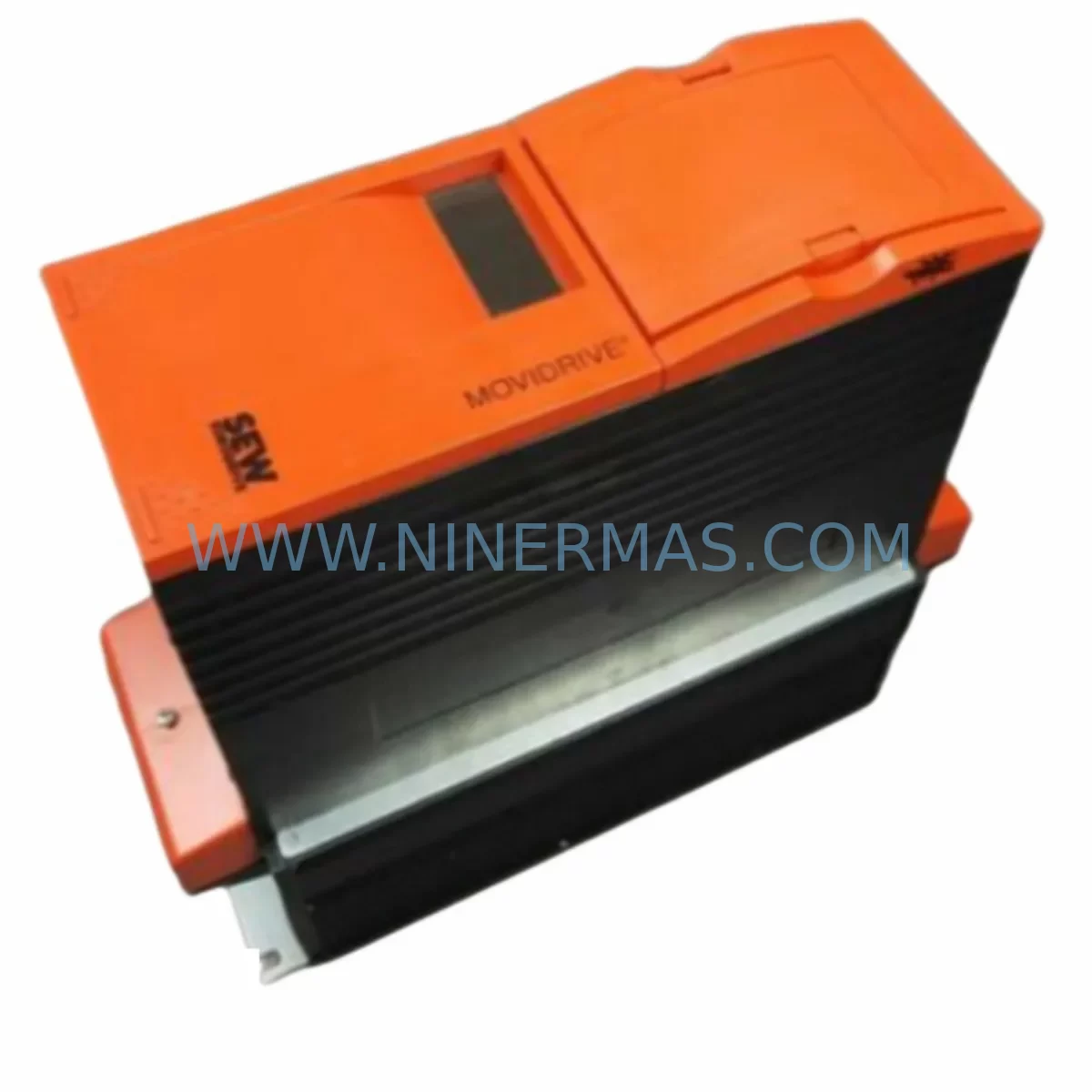

SEW MDV60A0110-5A3-4-00 Safety-Reliable Servo Drive

SEW MDV60A0110-5A3-4-00 Safety-Reliable Servo Drive for Critical Industrial Control Sites

The SEW MDV60A0110-5A3-4-00 is a ruggedized servo drive module from SEW-EURODRIVE’s MOVIDRIVE® MDX60B/61B series, engineered for demanding continuous production environments where control interruption is not an option. Designed to operate reliably under high electromagnetic interference, mechanical vibration, thermal stress, and dusty or humid field conditions, this unit delivers the motion control precision and safety assurance that critical industrial sites require.

In petrochemical processing, power generation, metallurgical plants, mining operations, water treatment facilities, and continuous manufacturing lines, servo drive failures translate directly into unplanned downtime, safety incidents, and costly production losses. The MDV60A0110-5A3-4-00 addresses these risks through its robust hardware architecture, integrated safety logic, and proven compatibility with SEW-EURODRIVE’s broader drive and control ecosystem.

This unit supports 3-phase 400–500 V AC input with a continuous output current rating suitable for mid-range servo axis applications. Its ruggedized enclosure and internal thermal management allow stable operation across wide ambient temperature ranges, making it suitable for installation in heavy-duty control cabinets exposed to radiated heat from adjacent power components. The drive’s internal EMC filtering and shielded signal architecture suppress conducted and radiated interference, protecting encoder feedback signals, fieldbus communications, and safety relay circuits from noise-induced drift or false triggering.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a well-engineered industrial control cabinet, the MDV60A0110-5A3-4-00 does not operate in isolation — it functions as part of a coordinated protection and control architecture. Upstream power quality directly affects drive longevity and control accuracy. Pairing this servo drive with a SEW-EURODRIVE MOVIDRIVE® MDX61B line filter module and a dedicated SEW input choke (HD series) significantly reduces harmonic distortion and voltage surge exposure at the drive’s DC bus, protecting the internal IGBT bridge from premature failure caused by utility-side transients.

For safety interlock circuits, the MDV60A0110-5A3-4-00’s STO (Safe Torque Off) input is typically wired through a Pilz PNOZ safety relay or a Siemens 3SK1 safety relay module, ensuring that emergency stop commands are executed within the required SIL 2 response time without relying on the drive’s internal software. This hardware-level safety path eliminates the risk of a software fault masking a genuine emergency stop condition.

Communication integrity is maintained through the drive’s fieldbus option card — commonly a SEW DFP21B PROFIBUS DP option card or a DFE33B EtherCAT option card — which provides deterministic, low-latency process data exchange with the host PLC. In high-EMI environments such as arc furnace control rooms or variable-speed pump stations, using shielded PROFIBUS cables terminated with Siemens 6ES7 PROFIBUS bus connectors and proper cable segregation prevents signal degradation that could cause axis position errors or communication timeouts.

For encoder feedback protection, the resolver or SIN/COS encoder connected to this drive should be routed through dedicated shielded cable with single-point grounding at the drive end. In applications where the motor is located far from the control cabinet — such as in a large gantry crane or a rolling mill drive stand — an SEW encoder extension module (EG series) or a signal repeater may be required to maintain signal integrity over long cable runs.

Power supply stability for the control section is equally critical. A Phoenix Contact QUINT-PS 24 VDC power supply or equivalent DIN-rail unit with active power boost and diagnostic output provides the stable 24 V control voltage that the drive’s logic board and safety relay circuits depend on. Voltage dips below the drive’s control supply threshold can cause unexpected drive trips, axis position loss, and safety relay de-energization — all of which represent unacceptable risks in continuous process control applications.

Finally, for thermal management within the control cabinet, ensuring adequate forced-air cooling or heat exchanger capacity prevents the MDV60A0110-5A3-4-00 from operating near its thermal derating threshold. Cabinet-mounted Rittal SK series cooling units or filtered fan-and-filter assemblies maintain the internal ambient temperature within the drive’s rated operating range, extending service life and reducing the frequency of thermal-protection trips during peak production loads.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In continuous catalytic cracking units, compressor trains, and pump stations, servo drives must maintain precise speed and torque control under fluctuating load conditions. The MDV60A0110-5A3-4-00 supports closed-loop vector control with fast current limiting, preventing motor overcurrent events that could trigger process safety system shutdowns. Its STO function integrates directly with the plant’s emergency shutdown (ESD) system, ensuring that drive-controlled actuators respond correctly to safety instrumented system (SIS) commands.

Power Generation and Utilities: In coal handling systems, cooling water pump drives, and turbine auxiliary systems, drive reliability directly affects plant availability. The ruggedized design of the MDV60A0110-5A3-4-00 tolerates the vibration and electrical noise generated by large rotating machinery, maintaining stable fieldbus communication with the DCS even during generator synchronization events that produce significant voltage transients on the plant’s internal power distribution network.

Mining and Mineral Processing: Conveyor drives, crusher feed systems, and flotation cell agitators in underground and surface mining operations are exposed to extreme dust loading, humidity, and mechanical shock. The MDV60A0110-5A3-4-00’s IP20 panel-mount design, when installed in a properly sealed and pressurized control enclosure, provides reliable servo axis control in these harsh environments. Its integrated braking resistor interface supports controlled deceleration of high-inertia loads, preventing mechanical damage during emergency stops.

Water and Wastewater Treatment: Variable-speed pump and blower drives in water treatment plants must operate continuously with minimal maintenance intervention. The MDV60A0110-5A3-4-00 supports energy-efficient speed control across the full operating range, reducing mechanical wear on pump seals and impellers while maintaining the precise flow rates required for chemical dosing and biological treatment processes.

Metallurgy and Steel Production: In rolling mill drives, ladle transfer cars, and continuous casting machines, servo drives are subjected to extreme thermal cycling, heavy electrical loading, and frequent emergency stop events. The MDV60A0110-5A3-4-00’s robust DC bus design and fast current control response make it suitable for these high-dynamic applications, where rapid torque reversal and precise position control are essential for product quality and equipment protection.

Safety and Quality FAQ

Q1: What warranty coverage is provided for the MDV60A0110-5A3-4-00?
All units supplied by NINERMAS carry a 12-month warranty from the date of shipment. This covers manufacturing defects, component failures under normal operating conditions, and any faults identified during the warranty period. Warranty claims are supported by our technical team, and replacement units are dispatched promptly to minimize your site downtime.

Q2: What pre-shipment testing is performed on this servo drive?
Every MDV60A0110-5A3-4-00 unit undergoes a comprehensive functional test and load verification prior to dispatch. This includes power-on self-test, control board diagnostics, output current verification, encoder interface check, and fieldbus communication validation where applicable. A test report is available upon request for quality-critical procurement processes.

Q3: Is this unit compatible with existing SEW-EURODRIVE MOVIDRIVE® installations?
Yes. The MDV60A0110-5A3-4-00 is a direct form-fit-function replacement for the corresponding position in the MOVIDRIVE® MDX60B/61B series. It is compatible with existing SEW option cards, encoder cables, fieldbus configurations, and parameter sets stored in the MOVITOOLS® MotionStudio software environment. No hardware modifications to the control cabinet are required for a like-for-like replacement.

Q4: Can NINERMAS support long-term spare parts supply for this drive?
Yes. NINERMAS maintains stock of the MDV60A0110-5A3-4-00 and related SEW-EURODRIVE MOVIDRIVE® components to support planned maintenance programs, emergency replacements, and long-term spare parts agreements. We can provide scheduled delivery commitments, consignment stock arrangements, and technical documentation support for sites managing aging drive fleets across multiple production lines.
