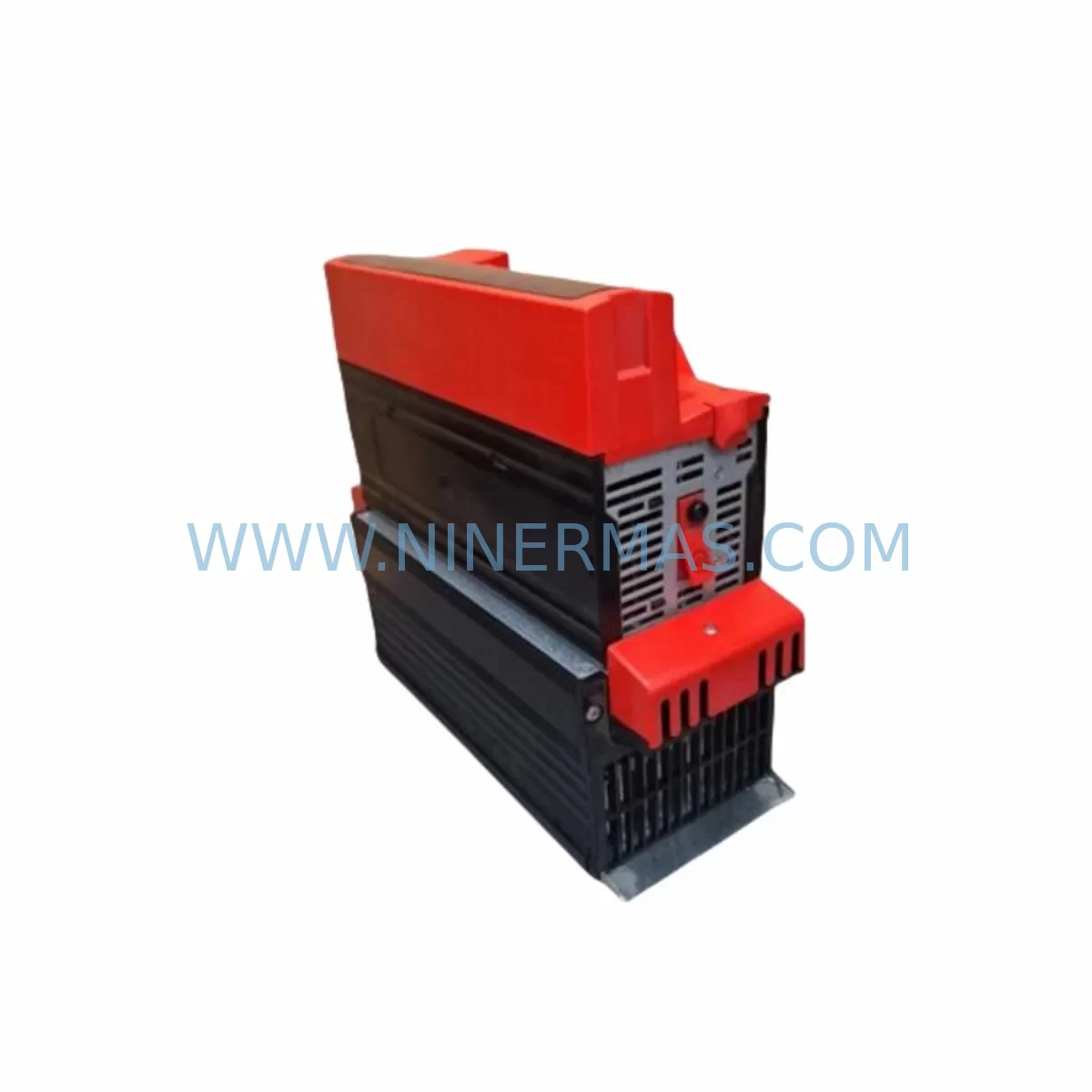

The SEW Eurodrive MDX61B0110-5A3-4-0T is a service-ready spare part from the Movidrive B series, designed to support rapid replacement and minimize unplanned downtime in industrial automation environments. Rated at 11 kW (400V, 3-phase), this variable frequency drive is a critical component in conveyor systems, material handling lines, pump stations, and general-purpose motor control applications. Maintenance engineers and procurement teams managing aging SEW Eurodrive installations rely on this unit to restore production continuity with minimal disruption.

Whether you are responding to an emergency fault, executing a scheduled annual overhaul, or building a strategic spare parts inventory, the MDX61B0110-5A3-4-0T delivers the original performance specifications required for seamless drop-in replacement within existing Movidrive B control cabinets. Each unit is pre-tested before shipment and backed by a 12-month warranty, giving procurement engineers confidence in long-term supply reliability.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the MDX61B0110-5A3-4-0T in a live production environment, a structured inspection of the surrounding control cabinet is essential to prevent repeat failures and ensure long-term system stability. Maintenance engineers should begin by verifying the SEW Eurodrive power supply module feeding the drive — confirm that input voltage is within the 380–500 V tolerance and that upstream fusing (typically class gG or aR semiconductor fuses) is correctly rated for the drive’s inrush and continuous current demands.

Next, inspect the Movidrive B option card slots: if the installation uses a DFP21B PROFIBUS-DP option card or a DFE32B EtherNet/IP card, verify that the fieldbus address settings and baud rate configurations are documented before removal, as these parameters must be restored identically on the replacement unit. Similarly, if the system uses an MXR21B braking resistor module, check the resistor’s thermal condition and connection integrity — a degraded braking resistor is a common root cause of drive overcurrent faults that can accelerate drive failure.

Terminal wiring should be carefully mapped prior to disconnection. The MDX61B0110-5A3-4-0T uses standard Movidrive B terminal layouts, but aging installations may have field modifications. Document all X1 (power), X2 (motor), X3 (brake), and X10/X11 (control signal) terminal connections. If the control circuit uses a SEW Eurodrive DWI11A incremental encoder interface or an EI7C encoder for closed-loop speed control, verify encoder cable shielding and connector integrity during the replacement window.

For installations where the Movidrive B communicates with a higher-level PLC — such as a Siemens S7-300 or S7-400 series controller via PROFIBUS, or a Rockwell ControlLogix system via EtherNet/IP — confirm that the PLC program’s drive parameter block (acyclic read/write via DP-V1 or explicit messaging) is compatible with the replacement unit’s firmware version. Firmware mismatches between the drive and the PLC’s GSD/EDS file can cause communication faults that delay restart.

Procurement engineers building a strategic spare parts inventory for Movidrive B installations should also consider stocking the MDX61B0075-5A3-4-0T (7.5 kW variant) and MDX61B0150-5A3-4-0T (15 kW variant) to cover adjacent power ratings on the same production line. Additionally, Movidrive B keypad operator panels (DBG60B) and SBus communication cables are frequently required during commissioning and should be included in the maintenance kit. Keeping a UOH11A USB-RS485 interface adapter on hand enables engineers to connect a laptop running SEW’s MOVITOOLS MotionStudio software for rapid parameter upload and fault diagnostics without requiring a dedicated programming terminal.

Site Replacement Workflow

A disciplined on-site replacement procedure for the MDX61B0110-5A3-4-0T minimizes downtime and reduces the risk of commissioning errors. Follow this sequence to ensure a safe and efficient swap:

Step 1 — Parameter Backup: Before powering down, connect the DBG60B keypad or a laptop via the UOH11A adapter and export the complete parameter set from the faulty drive using MOVITOOLS MotionStudio. Save the parameter file with the machine ID and date for traceability.

Step 2 — Safe Isolation: Isolate the drive from the mains supply using the upstream isolator or circuit breaker. Wait a minimum of 5 minutes for the DC bus capacitors to discharge before opening the cabinet door. Verify zero voltage on the DC bus terminals using a calibrated multimeter.

Step 3 — Terminal Documentation and Disconnection: Photograph or sketch all terminal connections on X1, X2, X3, X10, and X11. Disconnect power, motor, brake, and control wiring in sequence. Label all conductors if not already marked.

Step 4 — Mechanical Removal and Installation: Remove the faulty unit from the DIN rail or panel mount. Install the replacement MDX61B0110-5A3-4-0T, ensuring the mounting torque on terminal screws meets SEW’s specification (typically 0.5–0.6 Nm for control terminals, 2.5–3 Nm for power terminals).

Step 5 — Parameter Restore and Commissioning: Reconnect all wiring per the documented layout. Power up the drive and upload the saved parameter file. Verify motor rotation direction, speed reference scaling, and fieldbus communication status before releasing the machine to production.

This workflow is compatible with both direct replacement of a failed MDX61B0110-5A3-4-0T and substitution of an older MDX60B or MDX61A series unit, provided that terminal mapping and parameter migration are handled carefully. Ninermas ships each unit with a pre-test report, reducing the risk of receiving a non-functional spare during a critical downtime event.

Spare Parts Support FAQ

Q1: Is the MDX61B0110-5A3-4-0T a direct replacement for older Movidrive B units of the same power rating?
Yes. The MDX61B0110-5A3-4-0T is a direct form-fit-function replacement within the Movidrive B series for the same 11 kW power class. Terminal layouts, mounting dimensions, and parameter structures are consistent across the Movidrive B generation. If replacing an MDX60B unit (Movidrive compact), verify terminal mapping differences before installation.

Q2: What pre-shipment testing is performed on each unit?
Every MDX61B0110-5A3-4-0T dispatched by Ninermas undergoes a functional power-on test to verify DC bus charging, control board communication, and output stage integrity. A test report is included with each shipment. Units that do not pass testing are not dispatched.

Q3: What is the warranty coverage and what does it include?
All units carry a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage events, or environmental conditions outside the rated specification. Ninermas provides long-term supply support for Movidrive B series components, including units that SEW Eurodrive has discontinued from active production.

Q4: How should procurement engineers manage Movidrive B spare inventory for multi-line facilities?
For facilities operating multiple Movidrive B drives across different power ratings, we recommend maintaining at least one spare unit per critical power class (7.5 kW, 11 kW, 15 kW, 22 kW) and one spare DBG60B keypad per facility. Consolidating spare procurement through a single supplier with confirmed long-term stock — such as Ninermas — reduces lead time risk and ensures consistent firmware versions across replacement units. Contact sale@ninermas.com to discuss volume pricing and reserved stock arrangements.
