Schneider TSXP57303MR Retrofit-Compatible CPU for Legacy Systems

Schneider TSXP57303MR Retrofit-Compatible CPU for Legacy Systems

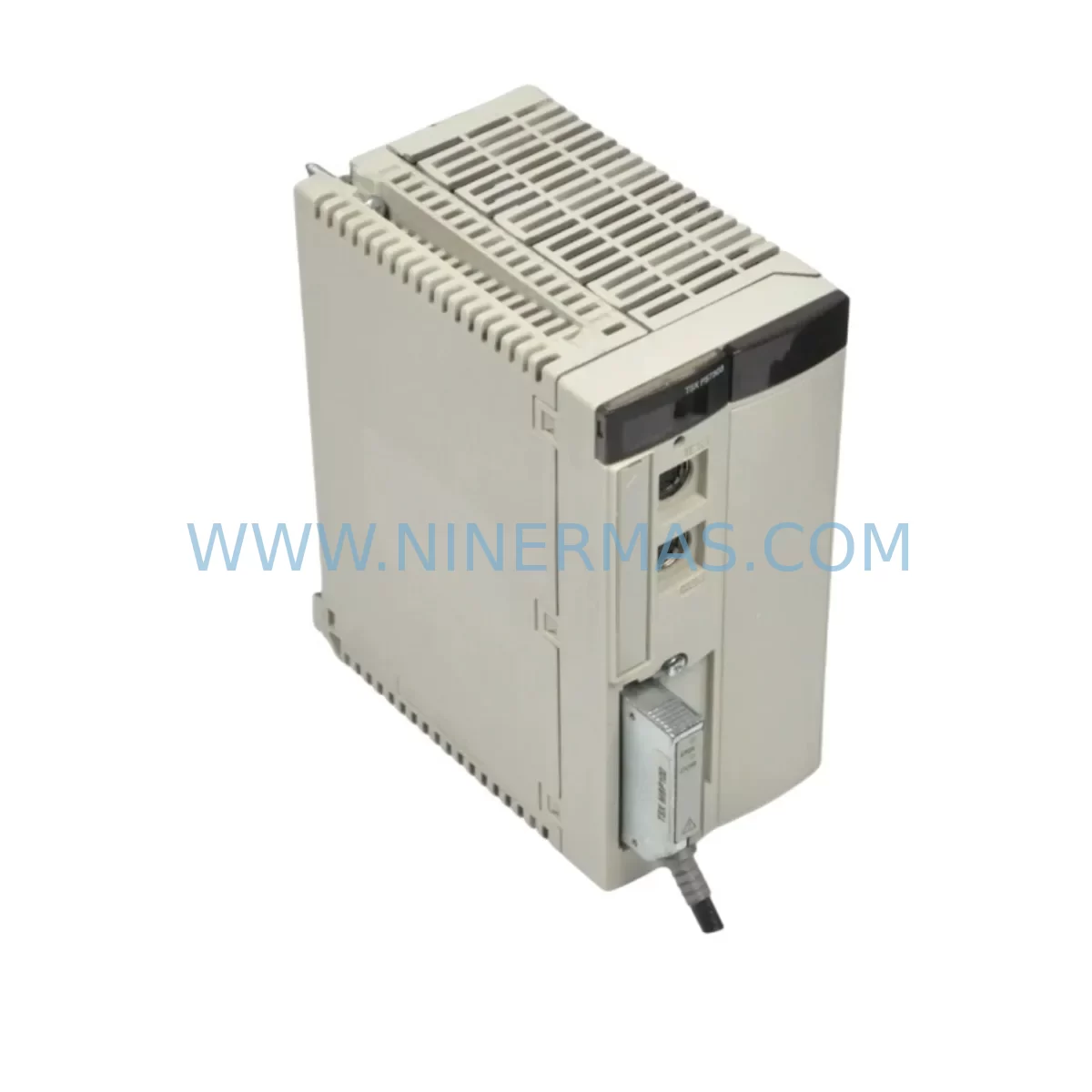

The Schneider Electric TSXP57303MR is a high-performance CPU module designed for the TSX Premium series, widely deployed across manufacturing, utilities, water treatment, and process automation industries. As legacy control systems age and original spare parts become increasingly difficult to source, the TSXP57303MR has become a critical retrofit and replacement component for engineers tasked with extending the operational life of existing automation infrastructure. Whether you are replacing a failed unit, upgrading processing capacity, or migrating from an end-of-life controller platform, the TSXP57303MR offers a reliable, drop-in compatible solution that minimizes engineering rework and reduces total downtime.

This module operates within the TSX Premium rack architecture, supporting standard TSX Premium backplanes such as the TSXRKY4, TSXRKY6, TSXRKY8, and TSXRKY12. It communicates natively over Uni-Telway and Modbus protocols and supports Ethernet connectivity through compatible network modules such as the TSXETY110WS or TSXETY5103, making it suitable for both legacy serial-based control networks and modern Ethernet-integrated SCADA environments. Engineers migrating from older TSX 57 series CPUs will find the TSXP57303MR a straightforward upgrade path, preserving existing rack layouts, I/O addressing, and Unity Pro or PL7 Pro program structures.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the TSXP57303MR into an existing control cabinet begins with a thorough pre-retrofit audit. Engineers should document the current rack configuration, noting the positions of all installed modules including discrete input/output cards, analog signal modules, and any specialty function modules such as counter or motion control cards. The existing power supply — typically a TSXPSY2600M or TSXPSY5500M — must be evaluated to confirm it can support the TSXP57303MR’s power draw alongside all co-installed modules. Insufficient power budget is one of the most common causes of instability after a CPU swap.

Terminal wiring on I/O modules does not require modification when replacing a same-generation TSX Premium CPU, as the TSXP57303MR maintains full backward compatibility with the TSX Premium I/O bus. However, if the retrofit involves consolidating multiple racks or replacing older TSXP57103M or TSXP57203M units with the higher-capacity TSXP57303MR, engineers should verify module addressing in the Unity Pro or PL7 Pro hardware configuration to ensure I/O channel assignments remain consistent with the existing application program.

Communication infrastructure is another key consideration. Sites running Uni-Telway networks connecting Magelis HMI panels — such as the XBTGT2330 or XBTGK2120 — should confirm that the HMI driver version supports the TSXP57303MR’s communication parameters. For sites transitioning to Ethernet-based supervision, adding a TSXETY5103 Ethernet module to the rack alongside the TSXP57303MR enables Modbus TCP/IP connectivity to SCADA systems and remote I/O without replacing the existing field wiring infrastructure.

Where the retrofit involves I/O expansion — for example, adding new sensor inputs or actuator outputs to an upgraded production line — the TSXP57303MR’s extended memory and processing capacity supports additional TSXDEY16D2 discrete input modules or TSXAEY414 analog input modules without requiring a rack change in most standard configurations. Signal isolators should be considered at field terminal interfaces where legacy wiring may introduce ground loops or signal noise that could affect analog measurement accuracy.

Programming cable connectivity during commissioning typically uses a TSXPCX1031 or TSXPCX3030 USB-to-serial adapter for PL7 Pro environments, while Unity Pro users can connect directly via the onboard Ethernet port if a TSXETY module is installed. Pre-loading and verifying the application program on a bench test rack before site installation is strongly recommended to reduce on-site commissioning time and minimize production interruption.

Downtime Control During System Migration

Minimizing production downtime during a CPU replacement is a primary concern for maintenance engineers and plant managers alike. The TSXP57303MR retrofit process is designed to support rapid changeover when proper preparation has been completed in advance. The most effective strategy is to perform a full program backup from the existing CPU using Unity Pro or PL7 Pro before any hardware is removed. This backup should be stored on at least two independent media — typically a laptop and a USB drive — and verified by performing a compare operation against the live controller prior to shutdown.

During the physical swap, the rack power supply should be de-energized and locked out following site safety procedures. The existing CPU module is removed from slot 0, and the TSXP57303MR is installed in its place. All other modules — I/O cards, communication modules, and function modules — remain in position, preserving their wiring and configuration. Once power is restored, the program is downloaded to the new CPU, and I/O forcing can be used to verify individual channel operation before returning the system to automatic mode.

For sites where continuous operation is critical, a parallel commissioning approach is recommended: the new TSXP57303MR is configured and tested on a temporary bench rack using a copy of the production program, with all I/O addresses and communication parameters verified before the live system is touched. This approach can reduce the actual on-site changeover window to under two hours in most standard TSX Premium installations, significantly reducing the risk of extended unplanned downtime.

HMI screens connected via Uni-Telway or Ethernet do not require modification when the CPU is replaced with a same-series TSXP57303MR, as the communication driver and variable mapping remain unchanged. SCADA system tags referencing Modbus register addresses are similarly unaffected, provided the application program structure is preserved during the download process.

Retrofit Support FAQ

Q: Is the TSXP57303MR a direct drop-in replacement for the TSXP57303M?
A: Yes. The TSXP57303MR is the current production variant of the TSXP57303M and is fully compatible with the same rack slot, backplane connector, and application program. No hardware or software modifications are required for a direct swap in an existing TSX Premium installation.

Q: Will my existing PL7 Pro or Unity Pro program run on the TSXP57303MR without modification?
A: In the vast majority of cases, yes. Programs developed for earlier TSX Premium CPUs such as the TSXP57203M or TSXP57253M are compatible with the TSXP57303MR. We recommend performing a hardware configuration update in your programming software to reflect the new CPU reference, then verifying the program compiles without errors before downloading to the replacement unit.

Q: What pre-shipment testing is performed on the TSXP57303MR?
A: Each TSXP57303MR unit undergoes functional power-on testing and communication verification before dispatch. Units are inspected for physical condition, connector integrity, and firmware version compatibility. A 12-month warranty is provided from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions.

Q: What is the typical lead time and stock availability?
A: We maintain ready stock of the TSXP57303MR to support urgent retrofit and breakdown replacement requirements. Standard orders are dispatched within 1–3 business days. For large-quantity or project-based requirements, please contact our sales team to confirm availability and arrange priority allocation.
