Schneider TSXDSY32T2K Service-Ready Spare Part for Industrial

Schneider TSXDSY32T2K Service-Ready Spare Part for Industrial Maintenance

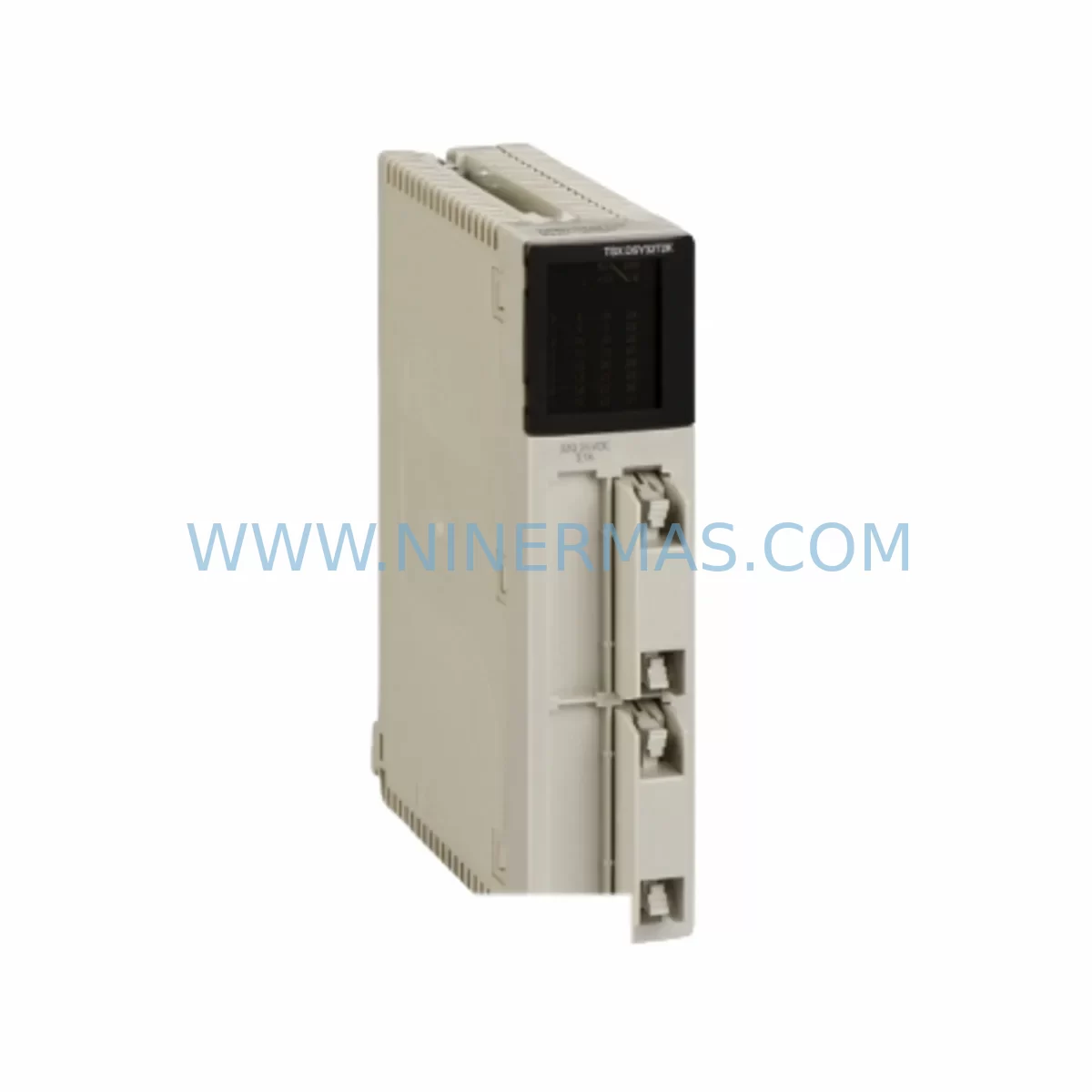

The Schneider Electric TSXDSY32T2K is a synchronization module designed for the TSX Premium series PLC platform — one of Schneider’s most widely deployed control architectures in process automation, discrete manufacturing, and utility infrastructure. As legacy TSX Premium systems continue to operate well beyond their original design life, maintaining a verified stock of original spare parts such as the TSXDSY32T2K is a critical element of any plant-level maintenance strategy. Downtime caused by a failed synchronization module can cascade across redundant CPU configurations, halting production lines and triggering costly emergency procurement cycles. Sourcing a service-ready, original TSXDSY32T2K in advance eliminates that risk entirely.

At NINERMAS, every TSXDSY32T2K unit is sourced from authorized industrial supply channels, inspected prior to dispatch, and covered by a 12-month warranty. We support maintenance engineers and procurement teams across global facilities who require fast, reliable access to end-of-life and long-lead Schneider components — without compromising on authenticity or traceability.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a TSXDSY32T2K synchronization module is flagged for replacement during a scheduled inspection or after a fault event, experienced maintenance engineers know that the module rarely fails in isolation. A thorough site assessment should accompany any TSXDSY32T2K swap to prevent repeat failures and ensure the restored system operates reliably through the next maintenance window.

Begin by verifying the TSX Premium backplane (TSX RKY series rack) for physical damage, oxidized bus connectors, or intermittent slot contact — a degraded backplane can stress replacement modules and shorten their service life. Inspect the TSX P57 or TSX P47 CPU module for firmware currency and memory integrity; a synchronization fault sometimes originates from CPU-side configuration drift rather than the module itself. Check the TSXPSY2600M or TSXPSY5500M power supply module for output voltage stability under load — undervoltage conditions are a leading cause of premature synchronization module failure in TSX Premium racks.

On the I/O side, audit adjacent TSX DEY and TSX DSY digital I/O modules for blown output transistors or input filter degradation, particularly in high-cycle applications. If the control cabinet includes TSX SCY series communication modules (Modbus, Ethernet, or Profibus), verify that bus termination resistors are intact and that communication cycle times have not drifted — a communication overload can mask synchronization errors. For systems with TSX AEY analog input modules, confirm signal shielding continuity and check for ground loop conditions that may introduce noise into the synchronization timing chain.

Inspect all terminal blocks and wiring harnesses connected to the module’s I/O connectors for insulation fatigue, loose ferrules, or corrosion — particularly in humid or chemically aggressive environments. Verify that 24 VDC field power distribution to the module is within tolerance using a calibrated multimeter. If the cabinet includes signal isolators or relay output modules downstream of the TSXDSY32T2K, test their switching thresholds and coil resistance to confirm they remain within specification. Finally, review the HMI (Magelis or equivalent) for any latent alarm history that may indicate prior synchronization faults not captured in the maintenance log.

Maintaining a minimum one-unit buffer stock of the TSXDSY32T2K — alongside critical companion modules such as the TSX P57 CPU, TSXPSY2600M power supply, and TSX SCY communication module — is strongly recommended for facilities operating TSX Premium systems beyond their published end-of-life date. NINERMAS supports long-term supply agreements for multi-unit procurement, ensuring your spare parts inventory remains current without repeated spot-market sourcing.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Download and archive the current PLC program from the TSX P57 or TSX P47 CPU using Unity Pro or PL7 Pro software before any hardware intervention. Confirm the replacement TSXDSY32T2K part number matches the installed unit exactly — do not substitute with TSXDSY16T2K or other channel-count variants without engineering sign-off.

Step 2 — Safe isolation: Place the PLC in STOP mode via the CPU keyswitch or software command. De-energize the rack power supply (TSXPSY2600M or equivalent) and lock out the cabinet supply breaker per site LOTO procedures. Allow 30 seconds for capacitor discharge before handling modules.

Step 3 — Module extraction and inspection: Release the module locking tab and extract the TSXDSY32T2K from its rack slot. Inspect the backplane connector pins for deformation or contamination. Clean the slot with dry compressed air if debris is present.

Step 4 — Replacement installation: Insert the new TSXDSY32T2K firmly until the locking tab engages. Reconnect all I/O wiring connectors, verifying correct terminal assignments against the as-built wiring diagram. Restore rack power and observe the module’s LED status indicators — a solid green RUN LED confirms successful initialization.

Step 5 — Functional validation: Return the CPU to RUN mode and execute a full I/O diagnostic scan. Verify synchronization status via the Unity Pro or PL7 Pro diagnostic browser. Document the replacement in the site maintenance register, including the new module’s serial number and installation date for warranty tracking.

This workflow minimizes mean time to repair (MTTR) and ensures the replaced TSXDSY32T2K is fully validated before the system is returned to production — reducing the risk of a secondary fault event during the post-maintenance run-in period.

Spare Parts Support FAQ

Q1: Is the TSXDSY32T2K still available as a new original part, or only as refurbished stock?
NINERMAS maintains access to both new original and tested refurbished TSXDSY32T2K units sourced from verified industrial supply channels. Each unit’s condition is confirmed and documented prior to dispatch. New original stock is prioritized where available; tested refurbished units undergo full functional verification and carry the same 12-month warranty.

Q2: How do I confirm compatibility between the TSXDSY32T2K and my existing TSX Premium rack configuration?
The TSXDSY32T2K is compatible with all TSX Premium series racks (TSX RKY4, RKY6, RKY8, RKY12) and is supported by TSX P57 and TSX P47 CPU families. Compatibility can be verified against your system’s hardware configuration file in Unity Pro or PL7 Pro. If you require pre-purchase compatibility confirmation, contact NINERMAS with your rack reference and CPU part number.

Q3: What testing is performed on TSXDSY32T2K units before shipment?
All TSXDSY32T2K units dispatched by NINERMAS undergo pre-shipment inspection covering visual integrity, connector condition, and where applicable, powered functional testing on a compatible TSX Premium test rack. A test report is available upon request for refurbished units. Units are packed in anti-static ESD-safe packaging with humidity indicator cards for international shipments.

Q4: Can NINERMAS support long-term or blanket purchase orders for the TSXDSY32T2K?
Yes. NINERMAS supports long-term supply agreements, blanket POs, and annual maintenance contract procurement for the TSXDSY32T2K and associated TSX Premium spare parts. This is particularly valuable for facilities managing multiple TSX Premium installations or planning multi-year system life extensions. Contact our sales team to discuss volume pricing, lead time commitments, and inventory reservation options.
