Schneider TSXDEY16D2 Retrofit-Compatible DEY Input for Legacy Systems

Schneider TSXDEY16D2 Retrofit-Compatible DEY Input Module for Legacy Modicon Premium Systems

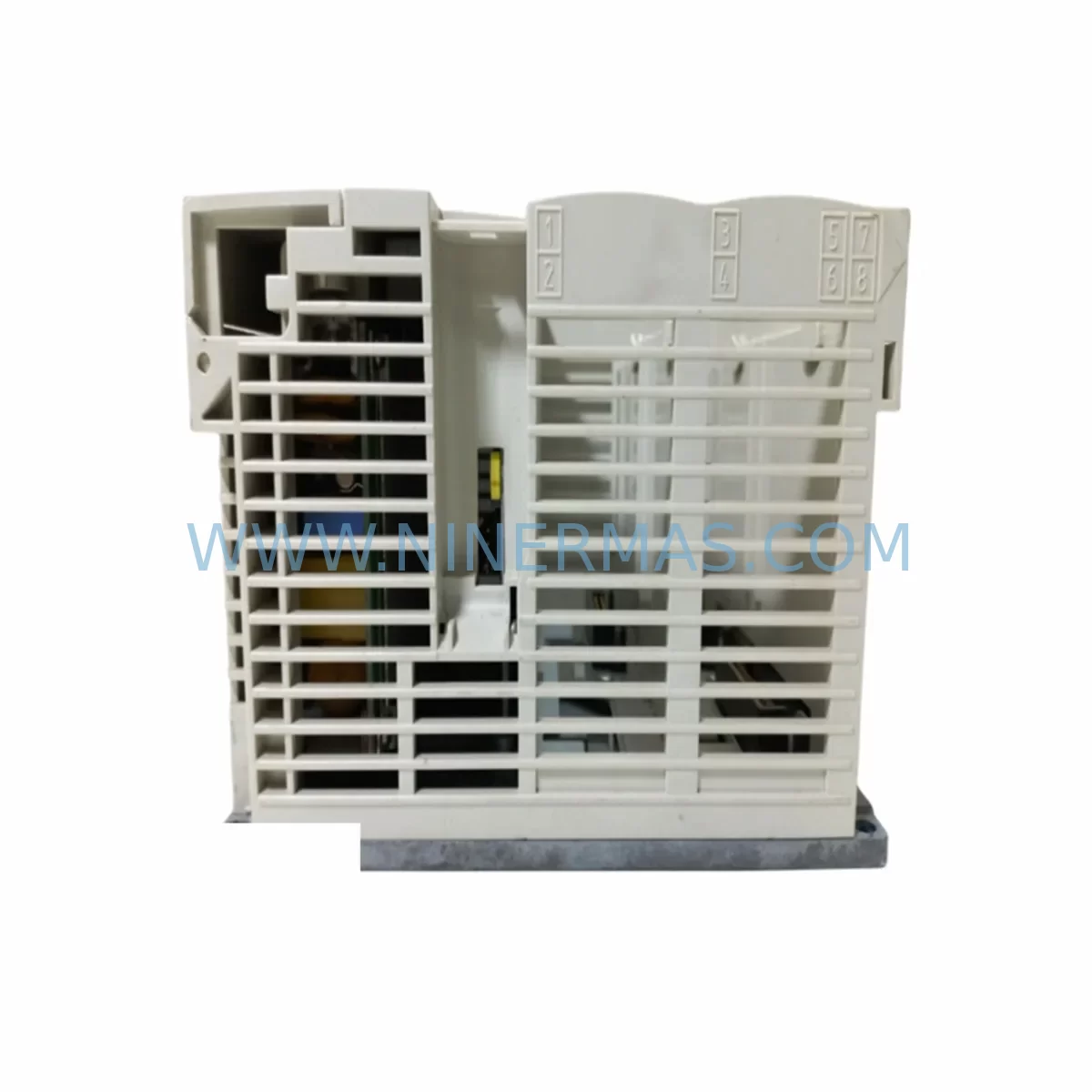

The Schneider Electric TSXDEY16D2 is a 16-channel 24 VDC digital input module designed for the Modicon Premium automation platform. As legacy TSX Premium racks approach end-of-life and original spare parts become increasingly scarce, the TSXDEY16D2 remains one of the most sought-after retrofit components for engineers managing aging production lines, control cabinet upgrades, and I/O expansion projects across manufacturing, utilities, and process industries.

NINERMAS maintains verified stock of the TSXDEY16D2 with full functional testing prior to shipment, backed by a 12-month warranty. Whether you are executing a planned system migration, responding to an unplanned module failure, or building a long-term spare parts inventory for a critical production asset, this module is available for immediate dispatch.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing a failed or end-of-life TSXDEY16D2 within a running Modicon Premium system requires careful pre-work to avoid extended downtime. Before the maintenance window opens, engineers should audit the existing rack configuration using Unity Pro or PL7 Pro to export the current I/O map and confirm the module’s rack address. The TSXPSY2600M or TSXPSY5500M rack power supply should be checked for available current headroom — adding or replacing a 16-channel input module draws minimal additional load, but aging power supplies in legacy cabinets may already be operating near capacity.

The HE10 wiring harness connected to the TSXDEY16D2 should be labelled and photographed before removal. Many legacy installations use custom-crimped cables that are no longer documented in current engineering drawings. Retaining the original harness eliminates re-wiring risk entirely. If the harness shows wear or corrosion, a replacement HE10 pre-wired cable assembly should be sourced alongside the module.

For systems where the TSXDEY16D2 feeds signals into a TSXDMZ28DTK mixed I/O module or shares a rack with output modules such as the TSXDSY08T2, the program logic referencing those input addresses must be verified to remain intact after the module swap. Unity Pro’s I/O browser allows engineers to cross-reference all rungs and function blocks that read from the affected input addresses before the physical replacement takes place.

Where the Premium platform communicates upstream via a TSXETY110 Ethernet TCP/IP module or a TSXSCP114 serial communications module, these fieldbus links remain unaffected by a local rack I/O module replacement. However, SCADA and DCS systems polling the Premium CPU — such as those connected via Modbus TCP or Uni-Telway — should be monitored during the first post-replacement scan cycle to confirm that all input tags resolve correctly.

In multi-rack configurations using a TSXRKY12EX extended rack connected via a TSXCBY100K rack extension cable, the module address offset must be confirmed in the Unity Pro hardware configuration before the replacement module is inserted. Mismatched addressing is the most common commissioning error in multi-rack Premium installations and can cause the CPU to flag a configuration mismatch fault on startup.

For sites running Magelis XBTGT or XBTGK HMI panels connected to the Premium CPU, input status displays and alarm triggers linked to the TSXDEY16D2 channels should be validated against live field signals immediately after the module is brought online. This step is particularly important in process applications where input state changes drive interlock logic or safety-related sequences.

NINERMAS recommends maintaining a minimum of one spare TSXDEY16D2 per rack installation as part of a structured spare parts lifecycle program. Given that Schneider Electric has discontinued active production of many Modicon Premium series modules, securing verified stock now significantly reduces the risk of extended production outages caused by future module failures.

Downtime Control During System Migration

Minimizing downtime during a TSXDEY16D2 replacement begins with preparation, not execution. The physical swap of a single-slot input module in a Modicon Premium rack typically takes under 15 minutes for an experienced automation technician — the majority of migration risk lies in software configuration, field wiring verification, and post-replacement validation.

Before the maintenance window, export and archive the full Unity Pro or PL7 Pro project file, including the hardware configuration and all application program sections. This backup ensures that if a configuration mismatch occurs after module insertion, the system can be restored to its last known good state without delay. Store the backup on both the engineering workstation and an offline medium.

During the replacement, the Premium CPU should be placed in STOP mode before the module is removed. Hot-swapping I/O modules in a Premium rack without stopping the CPU risks generating spurious input transitions that may trigger downstream output actions or interlock trips — particularly in safety-adjacent applications. Once the TSXDEY16D2 is seated and the HE10 harness reconnected, the CPU can be returned to RUN mode and the I/O forced scan initiated.

Post-replacement validation should include a channel-by-channel input state check against known field device states, confirmation that all HMI displays reflect correct input values, and a review of the diagnostic buffer in Unity Pro for any module fault codes. If the system uses a TSXSCP114 or similar communications module for remote monitoring, verify that the upstream SCADA system is receiving correct input data before releasing the line back to production.

For planned migrations from the Modicon Premium platform to a newer architecture such as Modicon M340 or M580, the TSXDEY16D2 serves as a bridge component — maintaining production continuity on the legacy system while the migration project is engineered, validated, and staged. NINERMAS can support multi-unit procurement for phased migration programs, with consistent batch testing and documentation to support FAT and SAT requirements.

Retrofit Support FAQ

Q1: Is the TSXDEY16D2 a direct replacement for the TSXDEY16A2?
No — the TSXDEY16D2 accepts 24 VDC inputs, while the TSXDEY16A2 is rated for 120 VAC inputs. Both are 16-channel modules for the Modicon Premium platform and occupy the same rack slot, but field wiring voltage must match the module variant. Confirm your field device output voltage before ordering.

Q2: Can the TSXDEY16D2 be used in both TSX RKY4 and TSX RKY12 racks?
Yes. The TSXDEY16D2 is compatible with all standard Modicon Premium rack sizes (RKY4, RKY6, RKY8, RKY12) and extended racks (TSXRKY12EX). Slot position must be declared in the Unity Pro or PL7 Pro hardware configuration to match the physical installation.

Q3: What commissioning steps are required after installing the TSXDEY16D2?
After physical installation and HE10 harness reconnection: (1) Place CPU in STOP, insert module, return to RUN; (2) Initiate an I/O forced scan in Unity Pro; (3) Verify all 16 input channels reflect correct field states; (4) Check the Unity Pro diagnostic buffer for module fault codes; (5) Validate HMI displays and SCADA tag values. Total commissioning time is typically under 30 minutes for a prepared technician.

Q4: Does NINERMAS provide a warranty and pre-shipment testing for the TSXDEY16D2?
Yes. All TSXDEY16D2 units supplied by NINERMAS are functionally tested prior to shipment and covered by a 12-month warranty from the date of delivery. In-stock units are available for same-day or next-business-day dispatch. For bulk procurement or long-term spare parts programs, contact our team directly to discuss pricing, lead times, and stocking agreements.
