Schneider TSXDEY16A4 Safety-Reliable Discrete Input Module

Schneider TSXDEY16A4 Safety-Reliable Discrete Input Module for Critical Control Sites

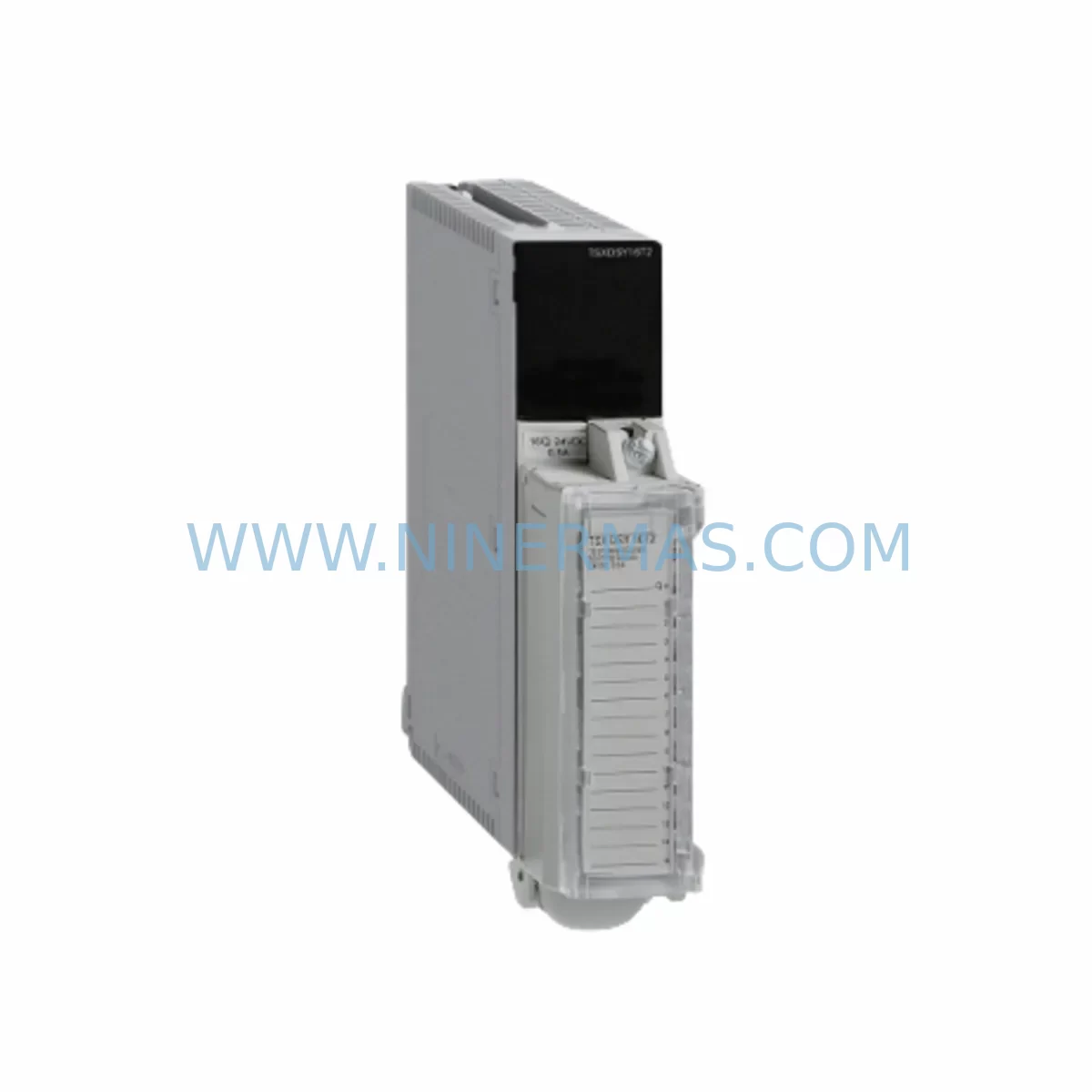

The Schneider Electric TSXDEY16A4 is a 16-channel 24 VDC discrete input module engineered for the TSX Premium PLC platform — one of Schneider Electric’s most widely deployed automation architectures in continuous process industries. Designed to operate reliably in demanding industrial environments, the TSXDEY16A4 delivers consistent signal acquisition performance across high-electromagnetic-interference (EMI) zones, dusty and humid enclosures, high-vibration machinery bases, and thermally stressed control cabinets. For plant engineers and automation safety consultants managing critical interlock loops, redundant shutdown circuits, or high-density I/O racks, this module represents a proven, field-tested solution with a documented track record in safety-critical applications.

At NINERMAS, every TSXDEY16A4 unit is pre-shipment tested under simulated field conditions before dispatch. Our quality assurance process verifies channel-by-channel input response, backplane communication integrity, and LED diagnostic accuracy. Each unit ships with a 12-month warranty and is supported by our long-term spare parts supply program — ensuring you can source replacement modules years after the original production run.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a fully integrated TSX Premium control cabinet, the TSXDEY16A4 does not operate in isolation — it functions as part of a coordinated safety and control architecture. Signal integrity at the input stage directly determines the reliability of every downstream control action. A degraded or intermittent discrete input can propagate false states through the PLC scan cycle, triggering nuisance trips, missed interlocks, or — in worst-case scenarios — undetected process deviations in safety-critical loops.

To mitigate these risks, the TSXDEY16A4 is typically deployed alongside complementary modules and components within the same rack or cabinet. The TSXDEY16D2 (24 VDC / 48 VDC dual-voltage discrete input module) is often used in parallel racks where mixed voltage field devices are present, ensuring consistent input acquisition across heterogeneous sensor networks. For output-side control, the TSXDSY16T2 transistor discrete output module provides the fast-switching, solid-state response required for high-cycle actuator control without relay wear degradation.

Power supply stability is foundational to input module reliability. Voltage sags, micro-interruptions, and conducted EMI from variable frequency drives (VFDs) or large motor starters are among the most common causes of spurious input state changes. Pairing the TSXDEY16A4 with a TSXPSY2600M or TSXPSY5500M rack power supply module — both engineered for the TSX Premium backplane — ensures regulated, filtered 24 VDC delivery to all I/O modules, eliminating power-induced signal drift. For sites with unstable mains supply, an upstream Schneider Electric APC Smart-UPS or equivalent industrial UPS provides ride-through capability during grid transients.

Communication integrity between the CPU and I/O racks is maintained through the TSX Premium’s integrated X-Bus backplane. In extended rack configurations or remote I/O architectures, the TSXETY110 Ethernet TCP/IP communication module or TSXSCP114 serial link module may be used to extend the control network — both of which must be correctly configured to avoid scan-time overruns that could mask input state changes. For safety interlock applications requiring deterministic response, the TSXDMZ28DTK compact base controller with integrated I/O offers an alternative architecture where input latency must be minimized.

Surge protection at the field wiring terminals is equally critical. Inductive loads, long cable runs through electrically noisy environments, and proximity to high-voltage switchgear all introduce transient voltages that can damage input optocouplers over time. Installing Schneider Electric Acti9 iSW-NA surge protective devices or equivalent DIN-rail SPDs on the 24 VDC field supply lines upstream of the TSXDEY16A4 terminal block significantly extends module service life and reduces unplanned replacement cycles. Proper cable segregation — separating signal cables from power cables using Schneider Electric Canalis or equivalent cable management systems — further reduces capacitive and inductive coupling that degrades input signal quality.

For cabinet thermal management, ensuring adequate airflow around the TSX Premium rack prevents the cumulative thermal stress that accelerates component aging in input module optocouplers and filter capacitors. Where ambient temperatures exceed 45°C, supplementary cooling via Schneider Electric ClimaSys cabinet air conditioners or heat exchangers is recommended to maintain the TSXDEY16A4 within its rated 0–60°C operating envelope.

Critical Industrial Safety Applications

The TSXDEY16A4 has established a strong field record across industries where control system reliability is directly linked to personnel safety, environmental compliance, and production continuity.

Petrochemical and Refinery Plants: In hydrocarbon processing facilities, discrete input modules are embedded in emergency shutdown (ESD) systems, fire and gas detection panels, and high-integrity pressure protection systems (HIPPS). The TSXDEY16A4’s optical isolation and IEC 61131-2 surge immunity make it suitable for acquiring signals from pressure switches, level switches, and flame detectors in Zone 2 classified areas (when installed in appropriately rated enclosures). Its fast response time supports the sub-second interlock response requirements common in SIL-rated safety loops.

Electric Power Generation and Substation Automation: Power plant auxiliary control systems — governing cooling water pumps, fuel oil transfer systems, and turbine lube oil circuits — rely on discrete input modules to monitor motor run/stop status, valve open/close feedback, and protection relay trip signals. The TSXDEY16A4’s EMI immunity is particularly valuable in substations where high-frequency switching transients from circuit breakers and disconnect switches can corrupt input signals on less robust modules.

Mining and Mineral Processing: Conveyor interlock systems, crusher protection circuits, and ventilation safety controls in underground and surface mining operations demand input modules that maintain signal integrity despite heavy vibration, coal dust ingress, and wide temperature swings. The TSXDEY16A4’s compliance with IEC 60068-2-6 vibration standards and its sealed module body make it a reliable choice for these environments when housed in IP54 or higher-rated control enclosures.

Water and Wastewater Treatment: Municipal and industrial water treatment facilities use TSX Premium-based control systems to manage pump stations, chemical dosing systems, and UV disinfection units. The TSXDEY16A4 acquires discrete signals from flow switches, level sensors, and motor protection relays across geographically distributed pump stations — environments characterized by high humidity, condensation risk, and variable ambient temperatures.

Metallurgy and Steel Production: In electric arc furnace (EAF) control systems, rolling mill automation, and continuous casting lines, discrete input modules must withstand intense electromagnetic fields generated by high-current bus bars and induction heating equipment. The TSXDEY16A4’s optically isolated inputs provide the galvanic separation necessary to prevent ground loop currents from corrupting input states in these electrically aggressive environments.

Port and Marine Automation: Ship-to-shore crane control systems, automated stacking cranes, and vessel engine room automation panels increasingly rely on TSX Premium architecture for its proven reliability in salt-air, high-humidity marine environments. The TSXDEY16A4 supports limit switch monitoring, safety gate interlocks, and emergency stop circuit acquisition in these applications.

Safety and Quality FAQ

Q1: What warranty does NINERMAS provide for the TSXDEY16A4?
Every TSXDEY16A4 supplied by NINERMAS carries a 12-month warranty from the date of shipment. This covers manufacturing defects and functional failures under normal operating conditions. Our warranty process includes direct replacement support without requiring return-to-manufacturer authorization delays.

Q2: How is each unit tested before shipment?
All TSXDEY16A4 modules undergo pre-shipment functional testing at NINERMAS. This includes channel-by-channel input response verification, backplane connector integrity inspection, LED diagnostic confirmation, and visual inspection for physical damage. Test records are available upon request for quality-critical procurement processes.

Q3: Is the TSXDEY16A4 compatible with all TSX Premium CPU models?
The TSXDEY16A4 is compatible with the full TSX P57 CPU family, including TSX P57 103, 203, 303, 453, 554, and 634 processors, when installed in standard TSX Premium racks (TSXRKY4 through TSXRKY12). It is not compatible with TSX Micro or Modicon M340/M580 platforms without an appropriate adapter or migration strategy.

Q4: Can NINERMAS guarantee long-term supply of the TSXDEY16A4?
Yes. NINERMAS operates a committed spare parts stock program specifically for long-lifecycle industrial automation components, including TSX Premium I/O modules. We maintain buffer inventory and can support scheduled procurement agreements for customers requiring guaranteed availability over multi-year maintenance contracts. Contact our team at sale@ninermas.com to discuss volume and lead-time commitments.
