Schneider LC1D245M7C Retrofit-Compatible Contactor for Legacy Systems

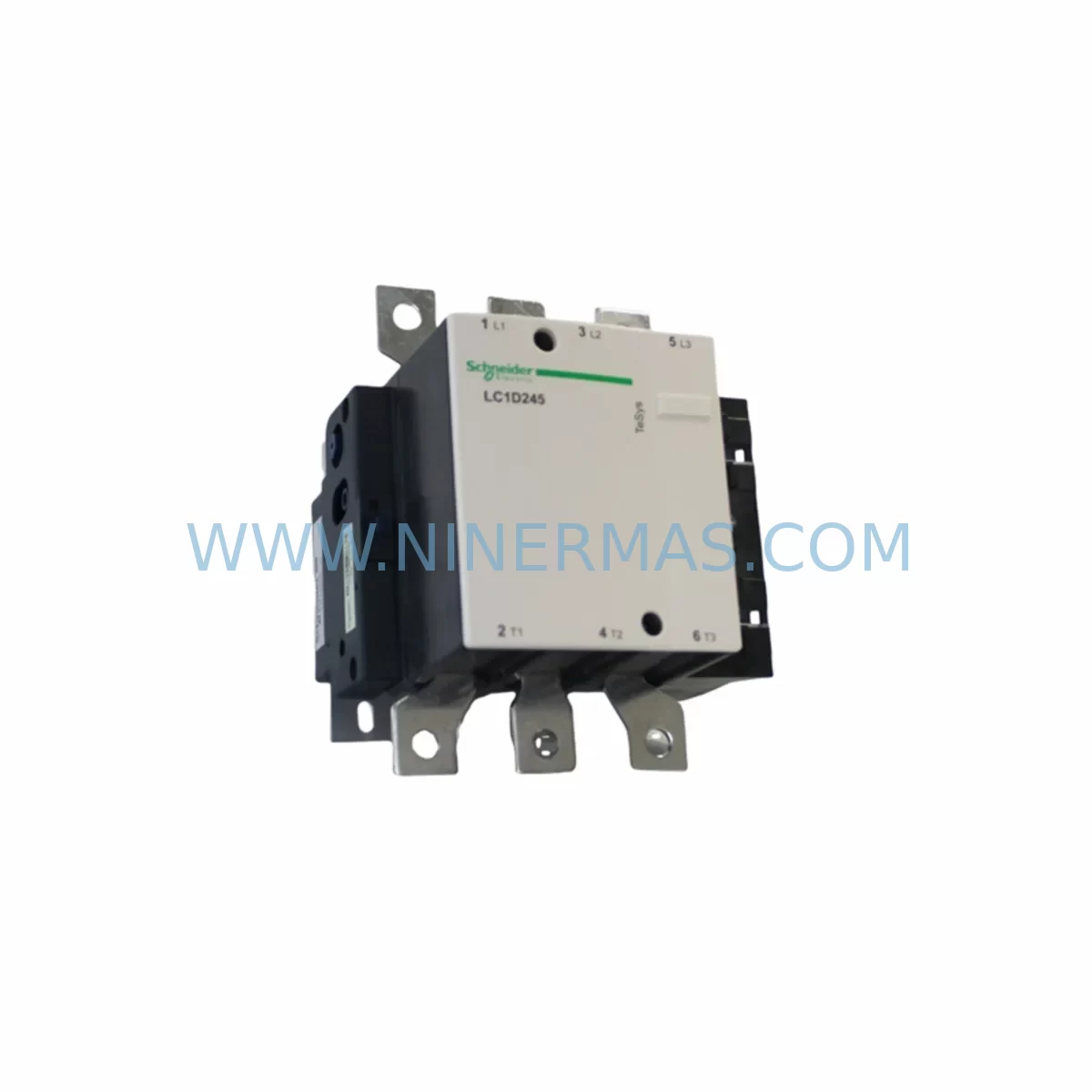

The Schneider Electric LC1D245M7C is a high-capacity AC contactor from the TeSys D Series, engineered for demanding industrial motor control applications. Rated at 245A with a 220V AC coil (M7 designation), this contactor is a proven retrofit solution for aging automation systems where the original contactor has been discontinued, is no longer available through standard distribution channels, or has reached end-of-life. NINERMAS maintains verified stock of the LC1D245M7C to support planned maintenance shutdowns, emergency replacements, and long-term spare parts programs across global industrial facilities.

In legacy motor control centers (MCCs), the LC1D245M7C is frequently used to replace older Schneider LC1F-series and LC1D-series contactors that share the same IEC frame geometry and terminal pitch. Engineers retrofitting Schneider Altivar 61 or Altivar 71 variable frequency drive panels often specify the LC1D245M7C as the upstream isolation contactor, ensuring the drive’s input circuit remains protected during maintenance isolation. The contactor’s 3-pole main circuit configuration and auxiliary contact compatibility with LA1DN and LA1DK add-on contact blocks make it straightforward to replicate the original control logic without rewiring the PLC I/O module or modifying the SCADA tag database.

When integrating the LC1D245M7C into an existing Schneider Modicon M340 or Modicon Premium PLC-controlled system, the coil control signal is typically sourced from a discrete output module such as the BMX DDO 3202K or TSX DSY 16T2. Verifying the output module’s current sourcing capacity against the LC1D245M7C coil inrush current is a critical pre-installation step. For 24VDC coil variants, the LC1D245B7C is the equivalent model and draws approximately 70–200 mA inrush, well within the capacity of standard Modicon digital output cards.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful LC1D245M7C retrofit begins well before the maintenance window opens. The first step is a thorough audit of the existing motor control cabinet: photograph the original contactor’s nameplate, document the terminal wiring layout, and confirm the coil voltage against the control transformer’s secondary output. In many legacy installations, the control voltage is 220V AC derived from a step-down transformer mounted inside the MCC panel. If the facility has since standardized on 24VDC control circuits — common in newer Schneider Harmony or Preventa safety relay installations — the LC1D245B7C (24VDC coil) should be specified instead.

For systems where the LC1D245M7C controls a large induction motor fed through a Schneider Altivar Process ATV630 or ATV930 drive, the contactor is typically wired on the line side as a bypass or isolation device. In this topology, the drive’s internal bypass relay and the external LC1D245M7C must be interlocked to prevent simultaneous closure. This interlock logic is usually implemented in the Modicon M580 PLC program using function blocks from the Control Expert (formerly Unity Pro) library. Confirm that the existing program logic references the correct I/O addresses before swapping the contactor, as address mapping errors can cause nuisance trips or, in worst cases, motor damage.

The LC1D245M7C is also commonly encountered in legacy pump control panels alongside Schneider Zelio Logic SR3B261FU smart relays, where the smart relay provides the timing and sequencing logic and the contactor handles the power switching. When replacing the contactor in this configuration, verify that the Zelio relay’s output relay contacts are rated for the coil inrush current of the LC1D245M7C. If the existing Zelio output is marginal, interpose a Schneider RXM4AB2P7 plug-in relay to buffer the coil drive signal.

In control cabinets where space is constrained, the LC1D245M7C’s compact TeSys D frame allows it to be mounted alongside Schneider NSX250 or NSX400 circuit breakers without requiring cabinet expansion. Confirm busbar spacing and phase clearance distances comply with IEC 61439 requirements for the rated current. For high-ambient-temperature environments — common in foundries, cement plants, and offshore platforms — derate the contactor per Schneider’s published thermal derating curves and consider adding forced ventilation to the cabinet.

Spare parts planning should also account for associated components: the LC1D245M7C is typically installed with a matching LRD thermal overload relay (LRD3361 or LRD3363 for the 245A frame), and both should be replaced together during a major retrofit to ensure coordinated protection. Additionally, inspect the existing wiring for cable sizing compliance with IEC 60364-5-52 — undersized cables are a common finding in aging installations and represent a safety risk independent of the contactor condition.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern for any maintenance team executing a contactor replacement on a running production line. NINERMAS recommends a structured pre-outage preparation protocol: receive and inspect the LC1D245M7C at least 48 hours before the scheduled maintenance window, verify the coil voltage and auxiliary contact configuration against the site documentation, and perform a bench test of the coil energization using a portable 220V AC test source before the unit enters the cabinet.

During the outage, follow a defined isolation sequence: open the upstream NSX circuit breaker, apply LOTO (Lockout/Tagout) per site safety procedures, discharge any capacitor banks in the drive system, and verify zero voltage at the contactor terminals with a calibrated multimeter before touching any wiring. The LC1D245M7C’s screw terminal design allows the main power cables to be transferred from the old unit to the new one without cutting — simply loosen, transfer, and re-torque to the manufacturer’s specified torque value (typically 14–20 Nm for 245A terminals).

For systems controlled by a Modicon M340 or M580 PLC, preserve the existing program by uploading a backup to the programming terminal running Control Expert before the outage begins. This ensures that if any I/O configuration changes are required during commissioning, the original program can be restored quickly. After the LC1D245M7C is installed and wired, perform a no-load energization test: command the contactor closed from the PLC or local control station and verify that all three main poles close simultaneously and the auxiliary contact feedback signal is received correctly by the PLC input module.

For critical processes where even a brief interruption is unacceptable, consider a hot-standby approach: install the new LC1D245M7C in parallel with the existing unit using a changeover switch, verify operation under load, then transfer and remove the old contactor during a brief planned pause. This technique is particularly effective in water treatment, pharmaceutical, and food processing facilities where continuous operation is a regulatory requirement.

Retrofit Support FAQ

Q1: Is the LC1D245M7C a direct drop-in replacement for the LC1F265 or older LC1D-series contactors?
In most cases, yes — the TeSys D frame dimensions and terminal pitch are consistent across the LC1D245 range, and the LC1D245M7C shares the same mounting footprint as many legacy LC1F and LC1D models. However, always verify the coil voltage, auxiliary contact configuration, and cable lug compatibility against the original unit’s nameplate before installation. NINERMAS technical support can assist with cross-reference verification prior to shipment.

Q2: What commissioning checks are required after installing the LC1D245M7C?
Key commissioning steps include: (1) verify coil energization and de-energization at rated voltage, (2) confirm main contact closure and auxiliary contact feedback via PLC I/O, (3) check terminal torque values per Schneider’s installation guide, (4) perform a loaded test run at reduced speed if a VFD is present, and (5) verify thermal overload relay (LRD) setpoint matches the motor nameplate FLA. Document all test results for the site maintenance record.

Q3: Does NINERMAS provide pre-shipment testing and what does the 12-month warranty cover?
Yes. Every LC1D245M7C unit shipped by NINERMAS undergoes pre-shipment functional testing including coil energization verification and contact resistance measurement. The 12-month warranty covers manufacturing defects and premature failure under normal operating conditions from the date of delivery. Warranty claims are processed via sale@ninermas.com with supporting documentation.

Q4: What is the typical lead time and do you maintain stock for emergency orders?
NINERMAS maintains buffer stock of the LC1D245M7C to support both planned procurement and emergency replacement scenarios. Standard orders are processed within 1–2 business days. For urgent requirements, contact our team directly at +0086 187 5021 5667 to confirm real-time availability and expedited shipping options to your region.
