Schneider BMXP3420302 Retrofit-Compatible Processor for Legacy M340 Systems

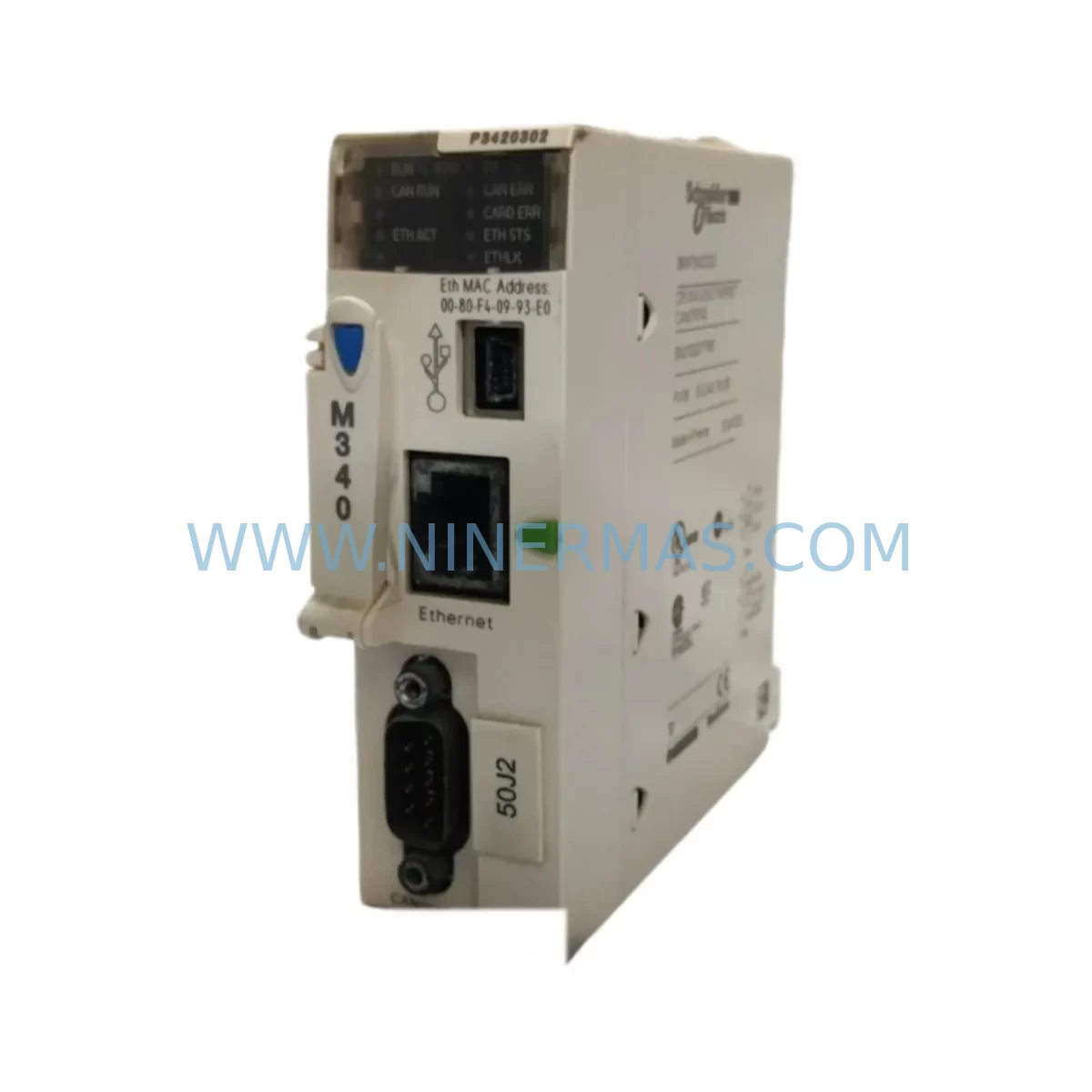

The Schneider Electric BMXP3420302 is a high-performance processor module designed for the Modicon M340 programmable logic controller platform. As industrial facilities face the growing challenge of maintaining aging automation infrastructure, the BMXP3420302 has become a critical component in legacy system modernization projects — offering a reliable, drop-in compatible upgrade path for plants still operating on earlier M340 configurations or transitioning from discontinued Modicon Quantum and Modicon Premium platforms.

Whether your facility is undertaking a full control cabinet overhaul, a partial I/O expansion, or a targeted processor swap to restore system performance, the BMXP3420302 delivers the processing power and communication flexibility required to keep production lines running with minimal disruption. Its compatibility with the BMX backplane architecture means existing rack infrastructure, terminal wiring, and field device connections can often be retained, significantly reducing retrofit labor costs and downtime exposure.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the BMXP3420302 into an existing control system begins well before the physical swap. Engineers must first audit the current rack configuration, confirming that the installed BMXCPS3500 or BMXCPS2000 power supply module can support the processor’s power draw alongside all co-installed I/O modules. In dense configurations — particularly those using analog input modules such as the BMXAMI0810 or high-density digital output modules like the BMXDDO1602 — power budget calculations are essential to avoid nuisance trips or processor resets after commissioning.

Terminal wiring and field device connections are typically unaffected by a processor swap within the same M340 rack, as the BMXP3420302 does not alter the physical I/O module slots. However, engineers should document all module addresses and verify that the Unity Pro or EcoStruxure Control Expert project file correctly maps each BMXDAI1602 digital input module and BMXAMO0410 analog output module to its expected rack slot. Any slot reassignment during the retrofit — for example, adding a BMXNOM0200 serial communication module for legacy Modbus RTU device connectivity — must be reflected in the application program before download.

For facilities migrating from Modicon Premium TSX P57 series controllers, the BMXP3420302 retrofit typically involves a parallel migration strategy: the new M340 rack is built and tested offline using EcoStruxure Control Expert, with I/O wiring transferred in phases during scheduled maintenance windows. Communication links to SCADA systems, HMI terminals (such as Magelis HMIGTO series panels), and remote I/O drops via BMXNOE0100 Ethernet communication modules must be re-established and verified against the original network topology before the legacy controller is decommissioned.

Where the existing control cabinet includes a BMXNOE0110 Ethernet module for EtherNet/IP scanner functionality, engineers should confirm that the BMXP3420302’s onboard Ethernet port can absorb those scanner tasks, potentially eliminating the need for a separate communication module and freeing a rack slot for future I/O expansion. This consolidation is a common efficiency gain in M340 retrofit projects and can extend the useful life of the control cabinet by five to ten years without requiring a full platform migration.

Downtime Control During System Migration

Minimizing production downtime is the primary concern in any live system retrofit. For BMXP3420302 replacement projects, the recommended approach is to pre-configure and bench-test the new processor module with a copy of the validated application program before scheduling the cutover. EcoStruxure Control Expert’s offline simulation mode allows engineers to verify program logic, I/O mapping, and communication configurations without connecting to live field devices.

During the physical cutover, the sequence should follow a structured lockout/tagout procedure: power down the rack via the BMXCPS power supply, remove the existing processor, install the BMXP3420302, restore power, and perform a controlled program download via the USB programming port before re-enabling Ethernet communication links. This approach protects the original program logic stored in the processor’s flash memory and ensures that HMI display pages — particularly those referencing specific data register addresses — continue to function correctly without requiring HMI reprogramming.

For systems where continuous process control is critical, a hot standby configuration using a paired BMXP3420302H processor and BMXCRA312•0 remote I/O adapter may be appropriate. In standard single-processor retrofits, scheduling the cutover during a planned maintenance shutdown and pre-staging all replacement components — including spare BMXDDI1602 digital input modules and terminal block connectors — ensures that the total outage window remains predictable and controlled. NINERMAS maintains ready stock of the BMXP3420302 to support urgent retrofit timelines, with same-day dispatch available for verified orders.

Retrofit Support FAQ

Q1: Is the BMXP3420302 a direct drop-in replacement for the BMXP342020?
A: The BMXP3420302 is physically and electrically compatible with the same BMX rack slots used by the BMXP342020 and installs in the same single-slot position. The primary difference is expanded memory and enhanced Ethernet communication capabilities. The existing application program can be downloaded to the BMXP3420302 after a compatibility check in EcoStruxure Control Expert, and in most cases no program modifications are required for standard I/O and communication configurations.

Q2: What commissioning steps are required after installing the BMXP3420302?
A: After physical installation, connect a programming laptop via the USB port and open the validated project file in EcoStruxure Control Expert. Perform a full program download, verify all I/O module status indicators, confirm Ethernet IP address settings, and test communication links to any connected HMI panels or SCADA systems. Check that all analog and digital I/O channels are reading correctly before returning the system to automatic mode.

Q3: Has the BMXP3420302 been tested before shipment?
A: Yes. All units supplied by NINERMAS COMPANY LIMITED undergo pre-shipment functional verification, including power-on testing and communication port checks. Each unit is supplied with a 12-month warranty covering manufacturing defects and operational failures under normal industrial operating conditions. Documentation of the test results is available upon request.

Q4: What is the lead time and stock availability for the BMXP3420302?
A: NINERMAS maintains active inventory of the BMXP3420302 to support both planned retrofit projects and urgent breakdown replacements. Standard orders are dispatched within 1–3 business days. For large-quantity orders or long-term supply agreements supporting multi-site retrofit programs, please contact our sales team directly to discuss availability and pricing.

—
