Allen-Bradley 1785-L60L Service-Ready Industrial Spare Part

Allen-Bradley 1785-L60L Service-Ready Industrial Spare Part: Spare Replacement and Downtime Risk Control

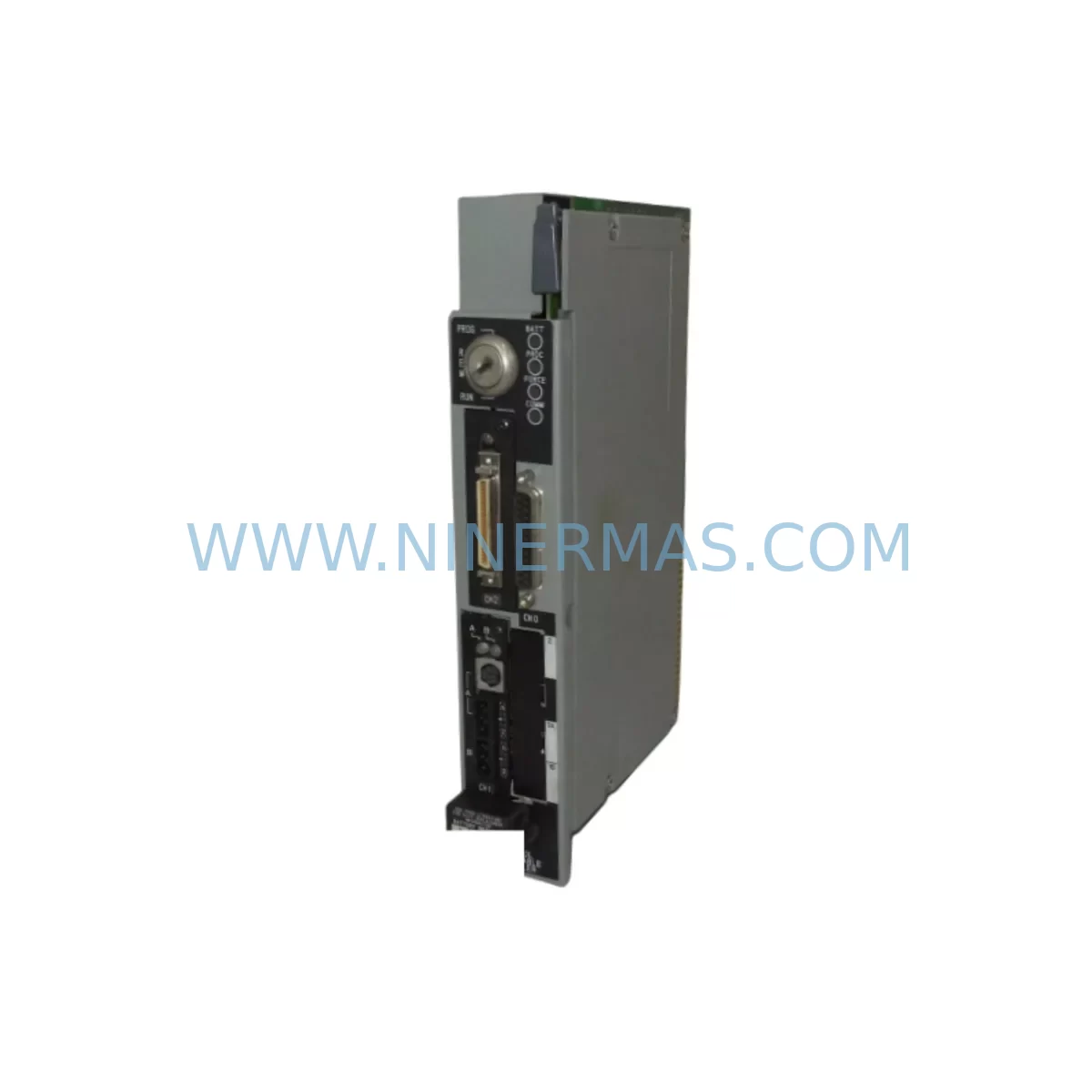

The Allen-Bradley 1785-L60L is the enhanced processor module for the PLC-5/60 platform — one of Rockwell Automation’s most widely deployed large-scale programmable logic controllers in continuous process, discrete manufacturing, and hybrid automation environments. As legacy PLC-5 systems approach or exceed their original design life, maintaining a verified, service-ready 1785-L60L in your spare parts inventory is a critical risk mitigation strategy. Unplanned processor failure in a PLC-5/60 system can halt an entire production line, trigger cascading safety shutdowns, and result in costly unplanned downtime that far exceeds the cost of a proactive spare procurement strategy.

At NINERMAS, every 1785-L60L unit is sourced, inspected, and pre-shipment tested before dispatch. Our service-ready stock supports maintenance engineers and procurement teams who need a reliable, long-term supply partner for end-of-life and legacy automation components. With a 12-month warranty on every unit and global logistics capability, we are positioned to support your planned maintenance cycles, emergency replacement events, and annual shutdown overhauls.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 1785-L60L processor is flagged for replacement during a scheduled inspection or emergency fault isolation, the replacement event should be treated as a full control cabinet audit — not a single-component swap. Experienced maintenance engineers understand that a processor failure is rarely an isolated event; it is often preceded or accompanied by degradation in adjacent components that share the same power rail, backplane, or communication bus.

Begin by verifying the condition of the 1771-P7 power supply module, which provides regulated DC power to the 1771-A Series I/O chassis. A failing or under-spec power supply is a common root cause of intermittent processor faults and memory corruption events. If the 1771-P7 has not been replaced within the last five years of continuous operation, include it in your replacement BOM alongside the 1785-L60L.

Next, inspect the 1771-A4B I/O chassis backplane for signs of oxidation, loose card guides, or damaged backplane connectors. The 1785-L60L seats directly into the backplane, and poor backplane contact can cause erratic I/O behavior that is misdiagnosed as a processor fault. While the chassis is open, verify the seating and condition of all installed I/O modules — particularly the 1771-IAD AC input modules and 1771-OAD AC output modules, which are high-wear components in high-cycle discrete applications.

For systems using Data Highway Plus (DH+) communication, inspect the 1770-KF2 DH+ to RS-232 interface cable and all DH+ termination resistors. A degraded DH+ network can cause the 1785-L60L to generate communication fault codes that are incorrectly attributed to the processor itself. If your system includes a 1785-ENET Ethernet communication module for supervisory SCADA or MES connectivity, verify its firmware version and network configuration before and after the processor swap to ensure seamless reconnection.

In multi-processor or redundant configurations, also review the status of the 1785-BCM Backup Communication Module, which manages processor-to-processor synchronization. A faulty BCM can prevent a replacement 1785-L60L from achieving hot-standby status, leaving the system without redundancy protection during the post-replacement commissioning window.

For sites running mixed PLC-5 processor generations — such as a 1785-L40L (PLC-5/40) or 1785-L20B (PLC-5/20) alongside the PLC-5/60 — ensure that your spare parts inventory covers the processor variants actually installed in your facility. A single-SKU spare strategy is a common procurement gap that leads to extended downtime when the wrong processor variant is pulled from the shelf during an emergency.

Finally, inspect all 1771-IBD DC input modules in the chassis. DC input modules in high-frequency switching environments accumulate wear faster than AC modules and are a frequent source of nuisance faults that can mask underlying processor issues. Replacing worn I/O modules at the same time as the processor ensures a clean baseline for post-maintenance diagnostics.

Site Replacement Workflow

Step 1 — Pre-Replacement Preparation: Before removing the 1785-L60L, perform a full program backup via RSLogix 5 or PLC-5 programming software. Save the backup to at least two independent storage locations. Document the current processor revision, firmware version, and all DH+ node addresses. Photograph the front panel status indicators and record any active fault codes.

Step 2 — Power-Down Sequence: Follow your site’s lockout/tagout (LOTO) procedure. De-energize the 1771-P7 power supply and verify zero-energy state before opening the chassis. Allow the backplane capacitors to discharge for a minimum of 60 seconds before handling the processor module.

Step 3 — Module Removal and Inspection: Remove the 1785-L60L by releasing the top and bottom locking tabs and sliding the module straight out of the backplane slot. Inspect the backplane connector pins for damage or oxidation. Clean the slot with dry compressed air if contamination is present.

Step 4 — Replacement Module Installation: Insert the service-ready 1785-L60L replacement unit into the same backplane slot. Ensure the module is fully seated and the locking tabs are engaged. Restore power via the 1771-P7 and observe the processor status LEDs during the boot sequence.

Step 5 — Program Restore and Verification: Download the backed-up program to the replacement processor. Verify all I/O module status, DH+ communication links, and SCADA/HMI connectivity before returning the system to automatic mode. Document the replacement event in your maintenance management system (CMMS) with the new unit’s serial number and warranty start date.

This structured workflow minimizes total downtime, ensures system compatibility, and provides a traceable maintenance record that supports warranty claims and future audits.

Spare Parts Support FAQ

Q1: Is the 1785-L60L still available as a new original spare, and what is its supply outlook?
The Allen-Bradley 1785-L60L has been discontinued by Rockwell Automation, but original surplus and refurbished units remain available through specialist industrial spare parts suppliers. NINERMAS maintains a dedicated inventory of pre-tested 1785-L60L units to support long-term maintenance requirements. We recommend procuring at least one verified spare per installed PLC-5/60 system to protect against extended lead times as global surplus stock diminishes.

Q2: How do I verify compatibility between a replacement 1785-L60L and my existing PLC-5/60 system?
Compatibility is determined by the processor series designation (PLC-5/60 Enhanced), the I/O chassis type (1771-A Series), and the firmware revision of the replacement unit. NINERMAS provides full part number and revision documentation with every shipment. If your application requires a specific firmware revision for compatibility with existing RSLogix 5 project files or DH+ network configurations, please specify this requirement at the time of inquiry.

Q3: What pre-shipment testing does NINERMAS perform on the 1785-L60L before dispatch?
Every 1785-L60L unit undergoes a functional power-on test, processor boot sequence verification, and communication port check prior to shipment. Units that fail any test parameter are quarantined and not dispatched. A test report is available upon request. All units are shipped with ESD-protective packaging and are covered by a 12-month warranty from the date of shipment.

Q4: What is the recommended spare parts inventory strategy for a facility with multiple PLC-5/60 systems?
For facilities operating two or more PLC-5/60 systems, we recommend maintaining a minimum of one 1785-L60L spare per two installed processors, with a review cycle aligned to your annual maintenance shutdown. For critical or continuous-process applications where unplanned downtime carries significant financial or safety consequences, a one-to-one spare ratio is advisable. Combine the processor spare with a 1771-P7 power supply spare and a set of high-wear I/O modules to create a complete emergency response kit for your PLC-5/60 control cabinets.
