Schneider BMXNOC0401 Retrofit-Compatible Ethernet Module

Schneider BMXNOC0401 Retrofit-Compatible Ethernet Module for Legacy Systems

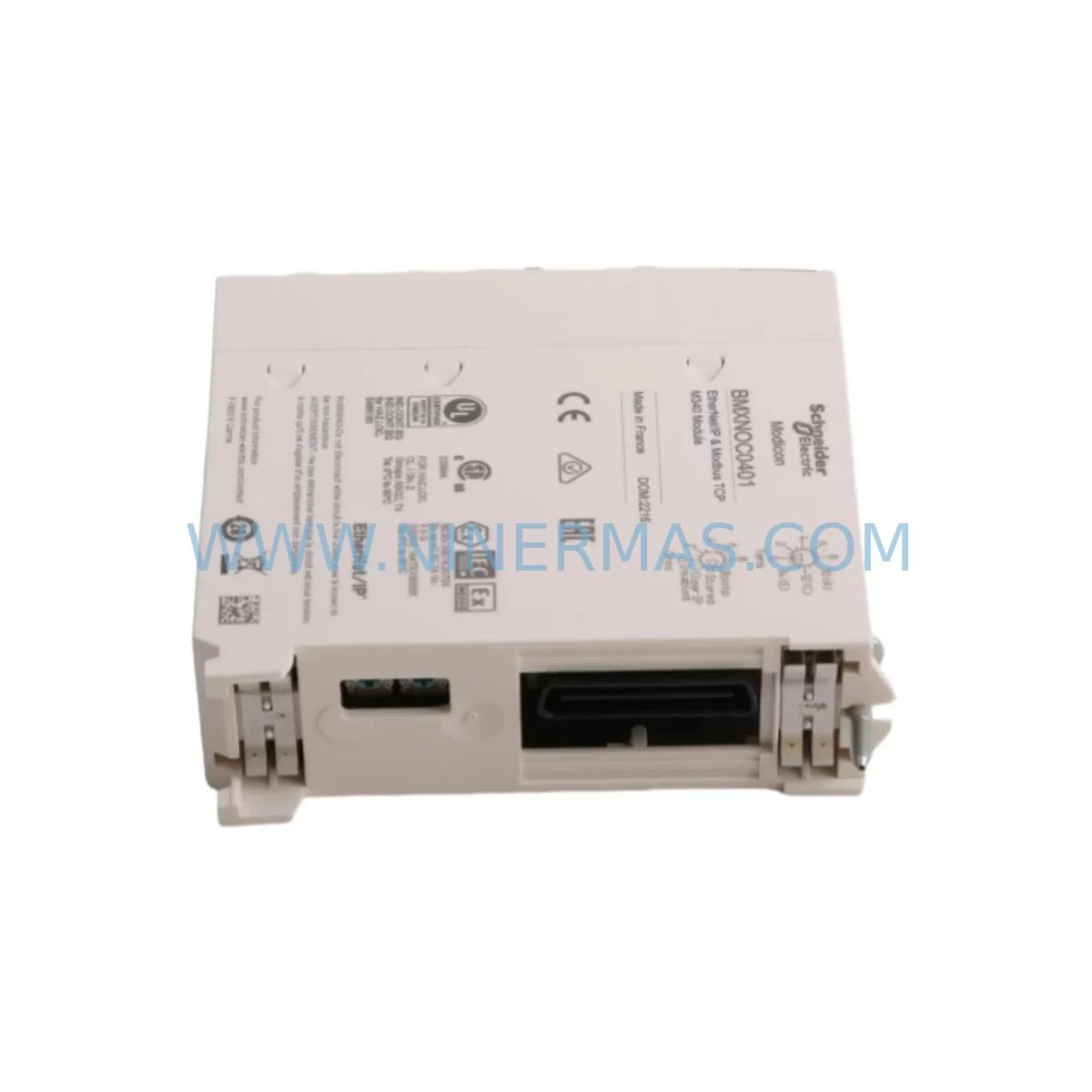

The Schneider Electric BMXNOC0401 is an Ethernet communication module designed for the Modicon M340 PLC platform — one of the most widely deployed mid-range automation controllers in process, manufacturing, and infrastructure applications. As legacy M340 systems age and original modules reach end-of-availability, the BMXNOC0401 remains a critical retrofit component for engineers tasked with maintaining network connectivity, restoring SCADA links, and extending the operational life of existing control architectures without full platform migration.

For maintenance and procurement engineers managing aging automation infrastructure, sourcing a verified original BMXNOC0401 is often the fastest path to restoring Ethernet-based communication — whether that means re-establishing Modbus TCP/IP links to a SCADA server, reconnecting to a distributed I/O network, or resuming EtherNet/IP-based data exchange with upstream MES systems. The module slots directly into the Modicon M340 backplane (BMX XBP series racks), requires no firmware re-flashing in most standard replacement scenarios, and supports dual-port Ethernet for flexible network topology.

When planning a retrofit or emergency replacement involving the BMXNOC0401, engineers should systematically verify several interdependent components. The BMX P34 series CPU modules must be confirmed compatible with the installed Unity Pro or EcoStruxure Control Expert project version, as communication object configurations are tightly coupled to the processor firmware. The BMX XBP backplane rack should be inspected for slot integrity and bus connector condition before re-seating the replacement module. Power supply modules such as the BMX CPS 2000 or BMX CPS 3500 should be load-checked to confirm they can sustain the additional current draw of the communication module alongside existing I/O cards.

On the network side, the replacement BMXNOC0401 must be assigned the correct IP address, subnet mask, and gateway parameters — either via the rotary switches on the module face or through the Unity Pro network configuration tool. If the original module’s IP was set via software, the new unit will default to a hardware-defined address until reconfigured. Ethernet cabling, patch panels, and managed switches connected to the module should be verified for auto-negotiation compatibility at 10/100 Mbps. In installations using RSTP or redundant Ethernet ring topologies, the network configuration must be re-validated after module swap to prevent communication loops.

For sites running distributed I/O via Advantys STB or Telefast ABE series terminal blocks connected through the M340 Ethernet backbone, the BMXNOC0401 replacement must be followed by a full I/O address scan and device table refresh in the PLC project. Any BMX EIA 0100 or BMX NRP 0200 fiber optic repeater modules in the communication chain should also be inspected for signal integrity. HMI panels — particularly Magelis HMIGTO or HMISCU series — connected via Ethernet to the M340 CPU should be tested for screen refresh and alarm communication after the module is replaced and the PLC is restarted.

In retrofit scenarios where the BMXNOC0401 is being introduced to replace an older BMX NOE 0100 or NOE 0110 Ethernet module, engineers must account for differences in supported communication services. The BMXNOC0401 supports both Modbus TCP/IP and EtherNet/IP simultaneously, whereas earlier NOE variants may have been configured for Modbus TCP only. This expanded protocol support can simplify integration with newer SCADA platforms or third-party devices without requiring CPU-level program changes, making the BMXNOC0401 a preferred upgrade path in mixed-protocol environments.

Procurement teams sourcing the BMXNOC0401 for planned maintenance or emergency stock should confirm the module’s hardware revision against the installed Unity Pro project to avoid compatibility gaps. All units supplied by NINERMAS are sourced from verified industrial channels, individually tested for communication function prior to dispatch, and covered by a 12-month warranty. Long-term supply availability is maintained to support multi-year maintenance contracts and annual inspection cycles.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful BMXNOC0401 retrofit begins well before the module arrives on site. Engineers should pull the existing Unity Pro or EcoStruxure Control Expert project file and document all Ethernet device table entries, IP address assignments, and communication object bindings associated with the current NOE or NOC module. This baseline ensures that the replacement module can be configured to match the original network parameters without requiring program modifications.

The BMX XBP 0400, BMX XBP 0800, or BMX XBP 1200 backplane rack should be visually inspected and the target slot cleaned before installation. The BMX CPS power supply should be verified for available current headroom — the BMXNOC0401 draws power from the backplane bus, and an undersized or aging power supply can cause intermittent communication faults after installation. If the site uses BMX NRP 0200 fiber repeater modules to extend the M340 backplane across cabinet distances, these should be tested independently before the new communication module is introduced.

For sites with Advantys STB distributed I/O islands or Telefast ABE wiring systems connected via Ethernet, the device table in the PLC project must be refreshed after the BMXNOC0401 is installed and the CPU restarted. Magelis HMI panels (HMIGTO, HMISCU, or HMIGXU series) connected via Ethernet should be tested for full screen navigation and alarm acknowledgment. Any BMX EIA 0100 serial communication modules in the same rack used for legacy RS-232 or RS-485 device links should be confirmed unaffected by the backplane restart sequence.

Programming cables (USB or serial) and a laptop with EcoStruxure Control Expert should be on hand during commissioning to allow real-time diagnostics, IP address verification, and communication object status monitoring. If the site uses a managed Ethernet switch with port security or MAC address filtering, the switch configuration must be updated to allow the new module’s MAC address before network communication can be established.

Downtime Control During System Migration

Minimizing downtime during a BMXNOC0401 replacement requires a structured pre-outage preparation protocol. Before the planned maintenance window, engineers should export the full Unity Pro project, document all active Ethernet connections, and prepare the replacement module with the correct IP address pre-configured via rotary switches where possible. This allows the module swap to proceed without requiring a laptop connection for basic network restoration.

During the outage window, the sequence should follow: controlled PLC stop → power down the rack → module swap → rack power-up → CPU restart → communication verification. The entire sequence for a straightforward replacement typically takes 15–30 minutes. If the site uses redundant Ethernet ring topology with RSTP, an additional 5–10 minutes should be allocated for ring convergence verification before declaring the system restored.

For sites where the BMXNOC0401 supports critical SCADA or MES communication links, a parallel test using a temporary laptop-based Modbus TCP/IP client can confirm module communication before the full SCADA system is reconnected. This staged verification approach reduces the risk of cascading faults caused by premature reconnection of upstream systems. Once communication is confirmed stable, the HMI panels and SCADA server connections can be restored in sequence, and the system returned to automatic operation.

Maintaining a pre-configured spare BMXNOC0401 in the site’s critical spare parts inventory — with IP address set and firmware verified — is the single most effective measure for reducing unplanned downtime risk on M340-based control systems. NINERMAS supports long-term supply agreements to ensure ongoing availability of this module for multi-site maintenance programs.

Retrofit Support FAQ

Q1: Is the BMXNOC0401 a direct drop-in replacement for the BMX NOE 0100 or NOE 0110?
The BMXNOC0401 is physically compatible with the same M340 backplane slots and supports a superset of the communication protocols available on the NOE 0100/0110. However, engineers should verify that the Unity Pro or EcoStruxure Control Expert project is updated to reference the correct module type in the hardware configuration, as the device object parameters differ between NOE and NOC module families. In most cases, a project update and download is required before full communication is restored.

Q2: How is the IP address configured on the replacement BMXNOC0401?
The BMXNOC0401 supports two IP configuration methods: hardware-based (via rotary switches on the module face, which set the last two octets of the IP address) and software-based (via Unity Pro / EcoStruxure Control Expert network configuration). If the original module was configured via software, the replacement unit will use its hardware-defined address until the project is downloaded. Engineers should confirm the intended configuration method before the maintenance window to avoid network conflicts.

Q3: What pre-shipment testing is performed on BMXNOC0401 units supplied by NINERMAS?
All BMXNOC0401 units are individually tested for Ethernet port function, backplane communication, and protocol response before dispatch. Units are supplied with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Test records are available upon request for quality-critical procurement processes.

Q4: Can NINERMAS support long-term supply of the BMXNOC0401 for multi-year maintenance contracts?
Yes. NINERMAS maintains ongoing sourcing relationships to support long-term supply of the BMXNOC0401 and related Modicon M340 components. Blanket purchase orders and scheduled delivery agreements are available for facilities management teams and EPC contractors requiring guaranteed availability across multi-year maintenance programs. Contact sale@ninermas.com to discuss supply terms.
