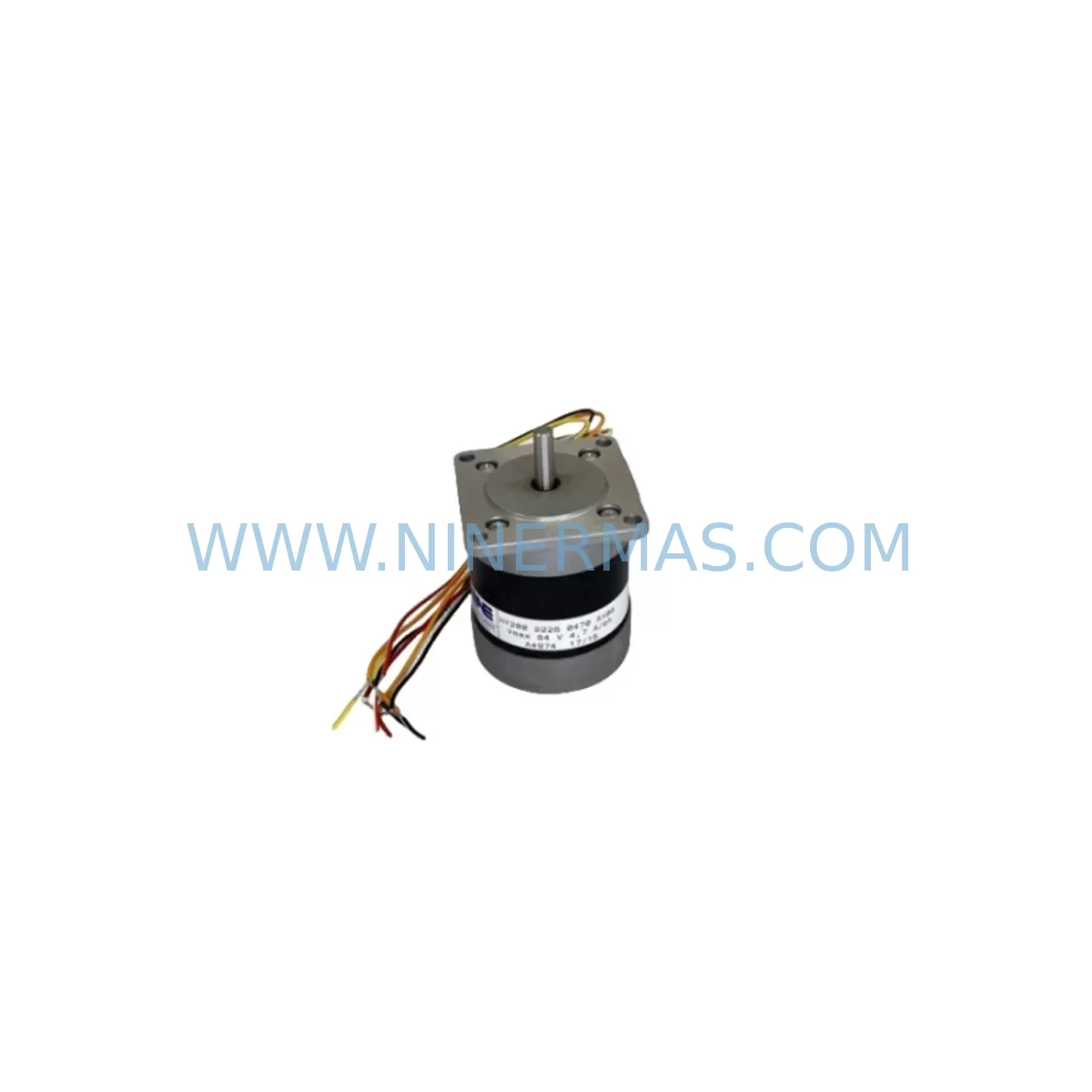

AMETEK MAE HY2004270900A8 Retrofit-Compatible Hybrid Stepper Motor

AMETEK MAE HY2004270900A8 Retrofit-Compatible Hybrid Stepper Motor for Legacy Systems

The AMETEK MAE HY2004270900A8 is a precision hybrid stepper motor engineered for demanding industrial automation environments. As legacy motion control systems reach end-of-life, the HY2004270900A8 serves as a proven retrofit-compatible replacement, enabling engineers and maintenance teams to modernize aging production lines without redesigning the entire control architecture. Whether you are upgrading a CNC positioning stage, a packaging line indexer, or a legacy robotic axis, this motor delivers the torque consistency, step resolution, and dimensional compatibility required for a smooth, low-risk migration.

AMETEK MAE has long been recognized for producing high-reliability stepper motors used across semiconductor handling, medical device manufacturing, precision metrology, and industrial automation. The HY2004270900A8 continues this tradition, offering a mechanically and electrically compatible drop-in solution for systems originally built around discontinued AMETEK MAE motor variants or equivalent third-party hybrid steppers. Its standardized NEMA frame geometry, consistent winding impedance, and robust shaft tolerances make it a preferred choice for retrofit engineers who need to minimize downtime and avoid costly mechanical rework.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the HY2004270900A8 into a legacy automation system begins well before the motor arrives on-site. A structured retrofit plan reduces risk, protects existing program logic, and ensures the replacement motor performs identically to the original unit from the first power-on cycle.

Start by auditing the existing stepper drive — commonly a unit such as an AMETEK MAE stepper drive module, a Leadshine DM542, or a legacy Parker Compumotor OEM drive — to confirm rated output current, supply voltage range, and microstepping configuration. The HY2004270900A8 winding resistance and inductance must fall within the drive’s operating envelope. If the original drive is also obsolete, consider pairing the replacement motor with a modern Leadshine EM542S or Applied Motion STR4 digital stepper drive, both of which support auto-tuning and anti-resonance algorithms that improve positioning accuracy over legacy analog drives.

Next, inspect the mechanical interface. Confirm the motor flange bolt circle, shaft diameter, and body length against the existing motor bracket. In many legacy systems, the motor is mounted to a NEMA 23 or NEMA 34 adapter plate; verify that the HY2004270900A8 frame matches the installed plate without requiring new machining. If a flexible jaw coupling or bellows coupling connects the motor shaft to the lead screw or gearbox, measure the bore and keyway dimensions before ordering a replacement coupling.

On the electrical side, document the existing terminal block wiring before disconnecting the old motor. Hybrid stepper motors use color-coded phase leads (A+, A−, B+, B−), and reversing a phase pair will cause the motor to run in the opposite direction or exhibit erratic stepping behavior. If the legacy system uses an I/O expansion module — such as a Beckhoff EL7041 stepper terminal or a Siemens SIMATIC ET 200SP stepper output module — verify that the new motor’s inductance profile is compatible with the terminal’s current regulation loop.

For systems that include a PLC controller — whether a Mitsubishi MELSEC FX5U, an Omron CP1H, or a Schneider Electric Modicon M221 — the pulse output frequency and acceleration ramp parameters stored in the motion program must be reviewed. The HY2004270900A8 may have a slightly different rotor inertia than the original motor, which can affect settling time and overshoot at high acceleration rates. Adjust the acceleration/deceleration ramp in the PLC motion instruction block accordingly and run a dry-cycle test before resuming production.

If the system includes an HMI panel — such as a Weintek MT8071iP or a Proface GP4301TW — no screen modifications are typically required for a direct motor swap, as the HMI communicates with the PLC rather than the motor directly. However, if the HMI displays motor status via a drive fault relay or encoder feedback signal, verify that the new drive’s fault output wiring matches the original terminal assignment.

Finally, confirm that the control cabinet has adequate space and thermal headroom. Stepper motors generate heat during holding and high-duty-cycle operation; ensure the motor body has at least 20 mm of clearance from adjacent components and that cabinet ventilation is sufficient to maintain ambient temperature within the motor’s rated operating range.

Downtime Control During System Migration

Minimizing production downtime during a stepper motor replacement is a primary concern for maintenance engineers. With the AMETEK MAE HY2004270900A8, the retrofit process is designed to be completed within a single planned maintenance window when proper preparation is followed.

Before beginning the swap, back up the PLC program to a laptop or USB memory using the manufacturer’s programming software — for example, GX Works3 for Mitsubishi, CX-Programmer for Omron, or SoMachine Basic for Schneider. Store the backup off-machine so that the original logic can be restored immediately if any issue arises during commissioning. Document all drive parameter settings — including running current, holding current, microstepping divisor, and fault response behavior — before powering down the drive.

During the physical swap, label all motor leads before disconnecting them and photograph the terminal block wiring for reference. Mechanical removal of the old motor typically takes 15–30 minutes; installation of the HY2004270900A8 follows the same sequence in reverse. Once the motor is mounted and wired, power up the drive in a reduced-current test mode and command a slow, low-speed jog to verify correct rotation direction and smooth stepping behavior before restoring full operating parameters.

After confirming basic motion, run the machine through its full motion profile at reduced speed to verify positioning accuracy, end-of-travel limit switch behavior, and home sensor triggering. Gradually increase speed to the production setpoint while monitoring motor temperature and drive fault indicators. A properly matched HY2004270900A8 installation will reach stable thermal equilibrium within 30–60 minutes of continuous operation, confirming that the retrofit is complete and the system is ready to return to full production.

All units supplied by NINERMAS are pre-shipment tested under load conditions and ship with documented QA records. In-stock inventory ensures rapid dispatch, and our 12-month warranty covers manufacturing defects and premature failure under normal operating conditions, giving your maintenance team confidence throughout the post-retrofit stabilization period.

Retrofit Support FAQ

Q1: Is the HY2004270900A8 a direct drop-in replacement for my existing AMETEK MAE stepper motor?
In most cases, yes — provided the original motor shares the same NEMA frame size and winding configuration. Confirm shaft diameter, body length, and lead wire count before installation. If your original motor used a different step angle (e.g., 0.9° instead of 1.8°), update the steps-per-unit parameter in your PLC or motion controller accordingly.

Q2: What wiring checks should I perform before powering up the replacement motor?
Verify phase polarity (A+/A−, B+/B−) against the drive’s terminal labeling. Use a multimeter to confirm winding continuity and resistance balance between phase pairs. Ensure the motor earth/ground lead is connected to the drive chassis ground to prevent EMI-induced positioning errors.

Q3: How do I confirm compatibility with my existing stepper drive?
Compare the HY2004270900A8 rated current, winding resistance, and inductance against the drive’s output current range and minimum load inductance specification. Most modern digital stepper drives — including units from Leadshine, Applied Motion, and Gecko Drive — include auto-setup routines that measure motor parameters automatically on first power-up, simplifying compatibility verification.

Q4: What does the 12-month warranty cover, and what is the lead time for in-stock units?
The 12-month warranty covers manufacturing defects and component failures under normal operating conditions from the date of shipment. In-stock units are dispatched within 1–3 business days. Each unit is pre-shipment tested and ships with a QA inspection record. For urgent requirements or bulk procurement, contact our team directly to confirm available inventory and expedited shipping options.
