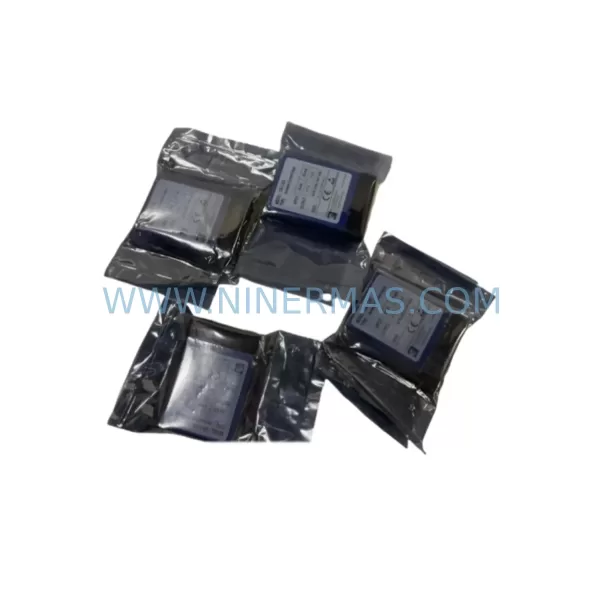

The Compressor Controls Corporation (CCC) CM-1-335 Control Module is a critical spare part for industrial compressor control systems. Designed for service-ready deployment, this original replacement module supports rapid restoration of compressor control loops, anti-surge protection circuits, and performance control architectures found across oil & gas, petrochemical, power generation, and industrial gas processing facilities. Maintaining a stocked CM-1-335 in your spare parts inventory is a proven strategy to minimize unplanned downtime and protect production continuity.

For maintenance engineers managing CCC-based control cabinets, the CM-1-335 represents a foundational component in the control module rack. Its failure — whether due to aging capacitors, firmware corruption, or field wiring faults — can immediately disable compressor surge protection, triggering emergency shutdowns and costly production losses. Procurement engineers sourcing this module should prioritize verified original parts with documented compatibility, factory-level testing, and a minimum 12-month warranty to reduce lifecycle risk.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a CM-1-335 control module is flagged for replacement during a scheduled turnaround or emergency callout, experienced maintenance engineers know that the module rarely fails in isolation. A thorough site inspection should accompany any CM-1-335 swap to prevent repeat failures and ensure the restored system operates reliably through the next maintenance interval.

Begin by inspecting the CCC power supply module feeding the control rack — voltage ripple or under-voltage conditions are a leading cause of premature control module failure. Verify that the 24VDC or 48VDC rail (depending on cabinet configuration) is within specification using a calibrated multimeter before installing the replacement CM-1-335. Simultaneously, check the backplane connector and rack chassis for corrosion, bent pins, or mechanical damage that could cause intermittent communication faults after reinstallation.

Review the I/O wiring terminations on the associated terminal blocks and marshalling panels. Loose or corroded field wiring connections on analog input channels — particularly 4–20 mA process signals from pressure transmitters and flow elements — can generate spurious readings that stress the control module. Inspect signal isolators and barriers in the field wiring loop; a degraded isolator can inject noise that mimics a module fault.

For systems using CCC communication modules (such as Modbus RTU or proprietary CCC network interfaces), confirm that the communication bus is stable and that no address conflicts exist after the module replacement. If the cabinet includes a CCC HMI or operator interface panel, verify that the display correctly reflects the new module’s status after power-up and that all alarm setpoints are retained or re-entered per the site’s configuration baseline.

Don’t overlook relay output modules and digital output cards in the same rack — these components share the backplane power bus and are subject to the same environmental stresses. Inspect fuse holders and circuit protection devices on the module power feeds; a blown fuse on the CM-1-335 supply rail is sometimes the root cause of what appears to be a module failure. Finally, review the condition of surge protection devices (SPDs) on field cable entries to the cabinet, as transient overvoltages from nearby motor starts are a common cause of control module damage in compressor stations.

Building a structured spare parts kit around the CM-1-335 — including a spare power supply module, a set of I/O terminal blocks, signal isolators, and communication interface cards — is the most cost-effective way to reduce mean time to repair (MTTR) for CCC-based compressor control systems.

Site Replacement Workflow

Step 1 — Preparation & Isolation: Obtain the site’s approved maintenance procedure and P&ID for the compressor train. Confirm the compressor is safely isolated, depressurized, and locked out per site LOTO procedures. Retrieve the CM-1-335 replacement module from the spare parts store and verify the part number and revision level against the installed unit.

Step 2 — Configuration Backup: Before removing the existing module, use the CCC engineering workstation or portable configuration tool to export the current module configuration, setpoints, and calibration data. Store this backup on a secure, site-approved medium. This step is critical for systems where module parameters are not centrally managed by a DCS historian.

Step 3 — Module Removal: Power down the control rack following the CCC cabinet shutdown sequence. Disconnect field wiring connectors in the correct order per the wiring diagram. Remove the CM-1-335 by releasing the module locking mechanism and sliding it from the rack. Inspect the vacated slot for debris, moisture, or connector damage.

Step 4 — Installation & Restoration: Insert the replacement CM-1-335 into the rack slot, ensuring full backplane engagement. Reconnect field wiring connectors and verify torque on terminal screws. Restore power to the rack and observe the module’s self-test sequence. Load the saved configuration using the engineering workstation and verify all I/O channels, setpoints, and communication links are correctly restored.

Step 5 — Functional Verification: Perform a loop check on all analog and digital I/O channels associated with the CM-1-335. Confirm anti-surge and performance control logic is active and responding correctly to simulated process inputs. Document the replacement in the site’s maintenance management system (CMMS) and update the spare parts inventory record.

This structured workflow minimizes the risk of configuration errors, reduces total downtime, and ensures the replacement CM-1-335 is fully commissioned before the compressor is returned to service — a critical requirement in facilities where compressor availability directly impacts production revenue.

Spare Parts Support FAQ

Q1: Is the CM-1-335 compatible with all CCC CM-1 Series cabinets?
The CM-1-335 is designed for use within the CCC CM-1 Series control architecture. Compatibility depends on the specific cabinet revision, backplane version, and firmware baseline installed at your site. We recommend providing your cabinet serial number and existing module revision when placing an order so our technical team can confirm compatibility before shipment.

Q2: What testing is performed before the CM-1-335 is shipped?
Every CM-1-335 unit undergoes functional testing prior to dispatch. This includes power-up self-test verification, I/O channel continuity checks, and communication interface validation where applicable. A test report is available upon request. Our 12-month warranty covers defects in materials and workmanship from the date of shipment.

Q3: How should the CM-1-335 be stored as a long-term spare?
Store the CM-1-335 in its original anti-static packaging in a climate-controlled environment with temperature between 0°C and 40°C and relative humidity below 85% non-condensing. Avoid storage near strong electromagnetic fields or corrosive atmospheres. Inspect the module annually and rotate stock to ensure the oldest unit is used first. Long-term storage beyond 3 years may require re-testing before installation.

Q4: Can NINERMAS support long-term supply of the CM-1-335 for multi-year maintenance contracts?
Yes. NINERMAS maintains sourcing relationships that support long-term supply commitments for the CM-1-335 and related CCC spare parts. We can work with your procurement team to establish a blanket order, consignment stock arrangement, or annual supply agreement to ensure parts availability aligns with your planned maintenance schedule and turnaround calendar.

—
