KTRON 9184-60118-D Service-Ready Spare Part for Industrial Maintenance

KTRON 9184-60118-D Service-Ready Spare Part for Industrial Maintenance

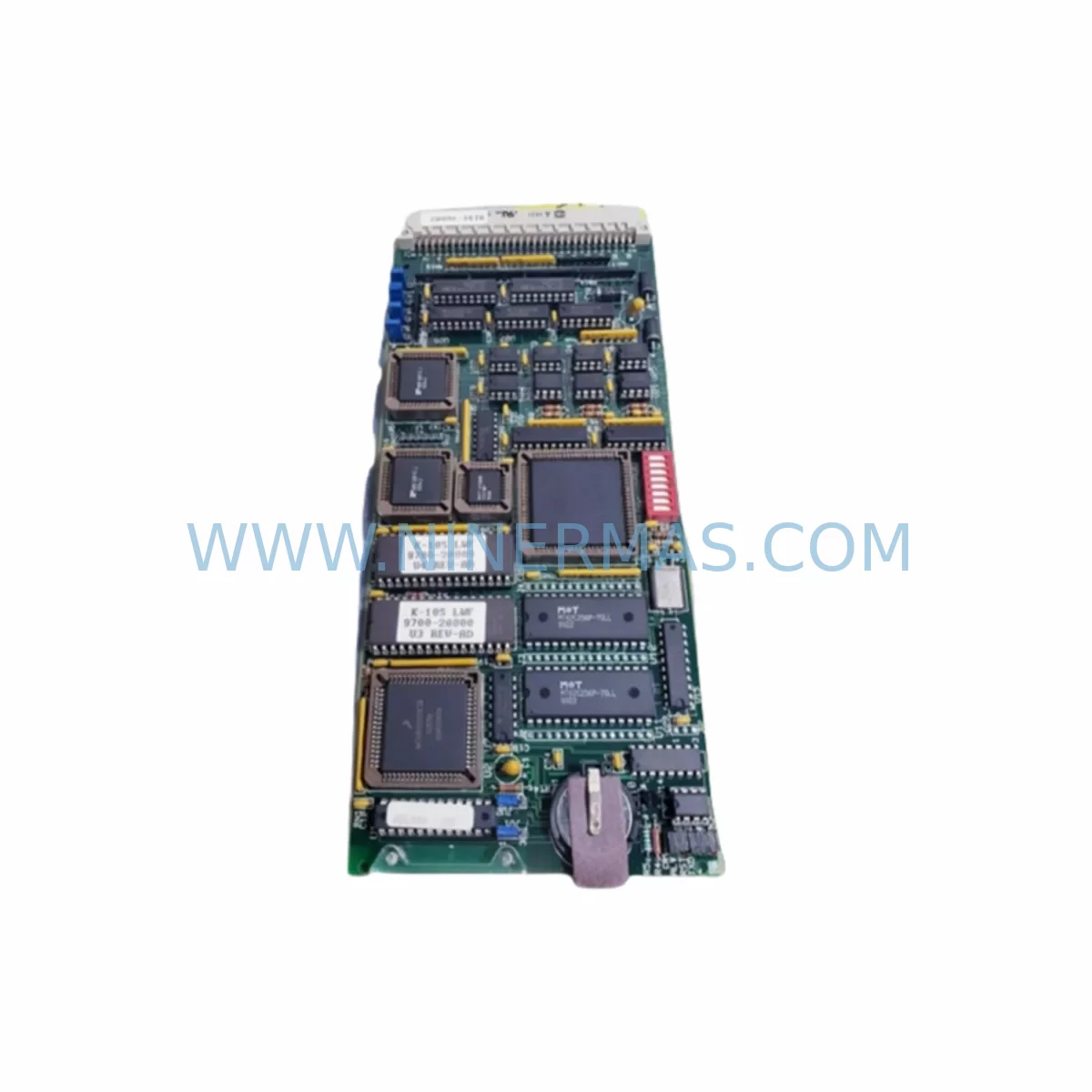

The KTRON 9184-60118-D is a ruggedized PC board module engineered for continuous operation in harsh industrial environments. As a critical spare part within K-Tron’s industrial control architecture, this board module supports reliable signal processing, control logic execution, and system communication in demanding automation and process control applications. Whether you are managing a scheduled annual overhaul, responding to an unplanned line stoppage, or building a proactive spare parts inventory, the 9184-60118-D delivers the original-specification performance required to restore and sustain system uptime.

Maintenance engineers and procurement teams working with K-Tron gravimetric feeders, loss-in-weight systems, and bulk material handling controllers recognize the 9184-60118-D as a foundational board-level component. Its ruggedized construction — designed to withstand vibration, temperature cycling, and industrial EMI — makes it a preferred replacement for aging or failed control boards in both legacy and current-generation K-Tron controller enclosures. Stocking this module as part of your critical spare parts program significantly reduces mean time to repair (MTTR) and protects production continuity.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the KTRON 9184-60118-D board module, a thorough site inspection of the surrounding control cabinet is essential to prevent repeat failures and ensure full system restoration. Maintenance engineers should treat a board-level replacement as an opportunity to audit the entire electrical environment in which the module operates.

Begin by inspecting the 24VDC or 5VDC power supply rails feeding the controller backplane — voltage ripple or transient spikes are a leading cause of premature board failure. Check the K-Tron controller backplane itself for bent connector pins, oxidation, or mechanical damage that could compromise the new board’s seating. If the system uses a K-Tron KCM (K-Tron Control Module) or a dedicated weighing controller interface board, verify that communication between the replaced board and the controller CPU is re-established after installation.

Inspect all I/O terminal blocks and field wiring connected to the controller — loose terminations or corroded contacts on analog input channels (4–20 mA load cell signals, for example) can introduce measurement errors that mimic board faults. Review the condition of any signal isolators or signal conditioners in the load cell or sensor circuit; a failed isolator can damage a replacement board if not identified before power-up.

For systems with RS-232, RS-485, or Profibus communication modules linking the K-Tron controller to a host PLC or DCS, confirm that communication parameters (baud rate, node address, termination resistors) are correctly configured after the board swap. If the installation includes a K-Tron operator panel or HMI display, verify that the display re-establishes communication with the controller and that all recipe and calibration data is intact.

Additionally, check fuse holders and circuit protection devices within the control cabinet — a blown fuse or tripped thermal overload is often the first indicator of a board-level fault and should be replaced as part of the corrective maintenance cycle. Inspect relay output modules driving feeders, conveyors, or discharge gates; worn relay contacts can cause intermittent faults that are incorrectly attributed to the control board. Finally, review the condition of cable harnesses and ribbon cables connecting the board to peripheral devices — cracked insulation or strained connectors are common failure points in high-vibration environments.

Site Replacement Workflow

Step 1 — Isolation and Safety: De-energize the control cabinet following your site LOTO (Lockout/Tagout) procedure. Confirm zero-energy state on all power rails before opening the enclosure.

Step 2 — Documentation: Photograph the existing board installation, cable routing, and connector positions before removal. Record any DIP switch or jumper settings on the outgoing board — these must be replicated on the replacement 9184-60118-D to maintain system compatibility.

Step 3 — ESD Protection: Use a grounded ESD wrist strap and anti-static mat when handling the board. The 9184-60118-D contains sensitive CMOS and analog components that are susceptible to electrostatic discharge damage.

Step 4 — Board Removal and Inspection: Carefully disconnect all cable harnesses and ribbon connectors. Remove the board from the backplane or mounting rail. Inspect the backplane connector and enclosure interior for contamination, moisture ingress, or physical damage before installing the replacement.

Step 5 — Replacement Installation: Configure DIP switches and jumpers on the new 9184-60118-D to match the documented settings. Seat the board firmly into the backplane connector, ensuring full engagement. Reconnect all cable harnesses in the correct orientation.

Step 6 — Power-Up and Verification: Re-energize the system and monitor for fault indicators. Verify that the controller initializes correctly, communication links are restored, and all I/O channels respond as expected. Perform a calibration check on the weighing or feeding system to confirm measurement accuracy.

Step 7 — Documentation and Spare Parts Replenishment: Update your maintenance log with the replacement date, board revision, and post-installation test results. Initiate a replenishment order for the consumed spare to maintain your critical stock level.

Spare Parts Support FAQ

Q1: Is the KTRON 9184-60118-D a direct drop-in replacement for earlier board revisions?
The 9184-60118-D revision is designed to maintain backward compatibility within the K-Tron 9184-series board family. However, we recommend verifying DIP switch and jumper configurations against your system documentation before installation, as minor revision changes may affect default settings. Our technical team can assist with compatibility confirmation prior to shipment.

Q2: What pre-shipment testing is performed on this spare part?
Every KTRON 9184-60118-D dispatched from NINERMAS undergoes functional verification and electrical continuity testing before packaging. This ensures that the board arrives in service-ready condition and reduces the risk of DOA (dead-on-arrival) failures during critical maintenance windows. A 12-month warranty covers manufacturing defects and functional failures under normal operating conditions.

Q3: Can NINERMAS support long-term or blanket purchase orders for this spare part?
Yes. NINERMAS specializes in long-term spare parts supply programs for industrial automation components, including legacy and end-of-life K-Tron modules. We can support annual blanket orders, consignment stock arrangements, and multi-site procurement programs to ensure your maintenance team always has access to critical spares without lead-time risk.

Q4: What should I do if the replacement board does not resolve the system fault?
If installing the 9184-60118-D does not restore normal operation, the fault may originate in an upstream or downstream component — such as the power supply, backplane, communication module, or field wiring. We recommend a systematic fault isolation process starting with power rail verification, followed by communication link diagnostics and I/O channel testing. Our technical support team is available to assist with fault analysis and can recommend additional spare components based on your system configuration.
