Schneider ATS48C 16250850112A08 Retrofit Power Supply Board

Schneider ATS48C 16250850112A08 Retrofit Power Supply Board: Legacy System Compatibility & Smooth Upgrade

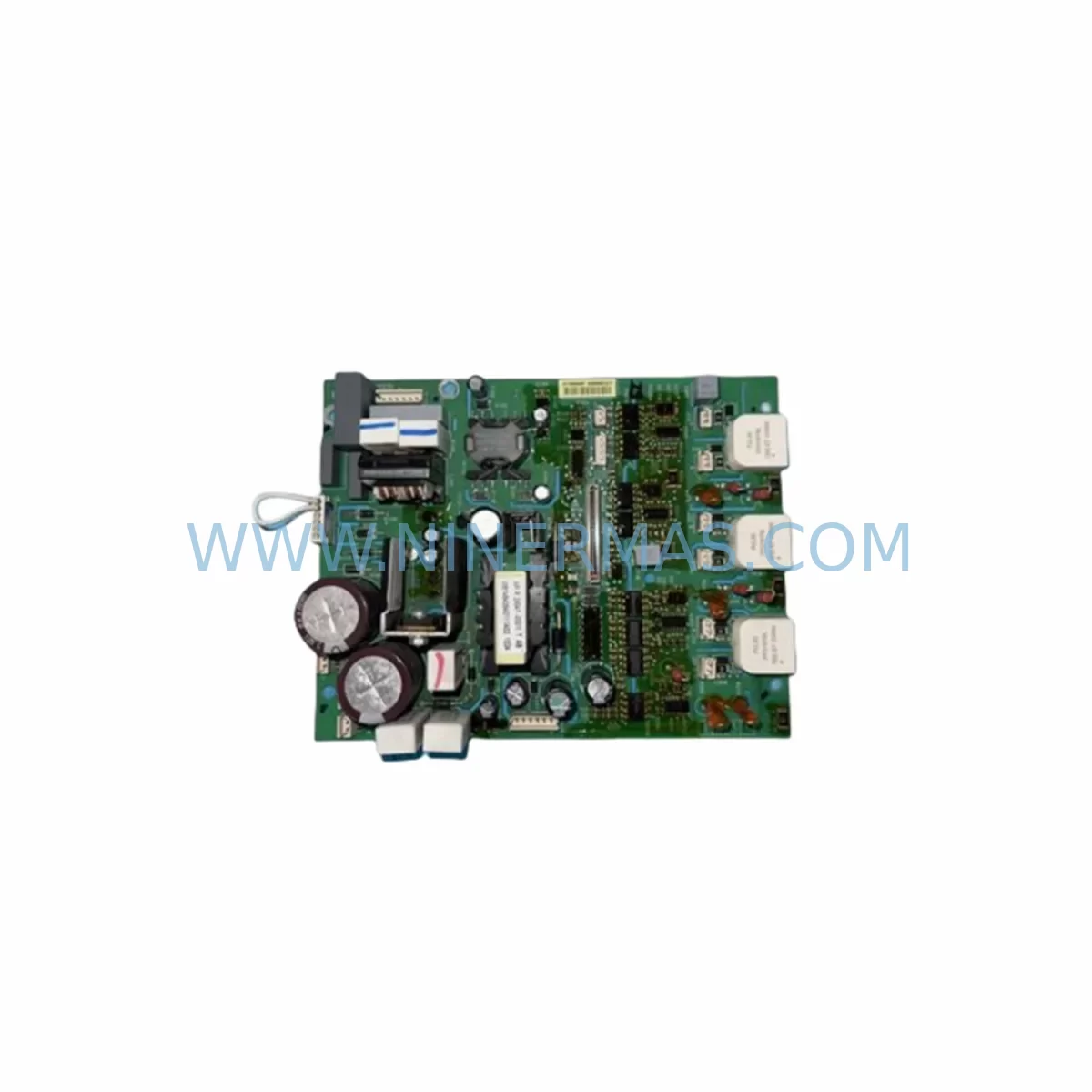

The Schneider Electric ATS48C 16250850112A08 is the internal power supply board designed for the Altistart 48 (ATS48) series soft starter range — one of the most widely deployed motor soft-starting platforms in process and discrete manufacturing environments worldwide. As the ATS48 series transitions toward end-of-life and spare parts availability tightens, this board has become a critical retrofit component for facilities seeking to extend the operational life of existing motor control centers (MCCs), control cabinets, and drive panels without committing to a full system replacement.

Whether you are managing a planned maintenance window, responding to an unplanned soft starter failure, or executing a phased modernization of legacy automation infrastructure, the ATS48C 16250850112A08 power supply board provides a verified, pre-shipment tested solution that restores full soft starter functionality with minimal downtime and no requirement to re-engineer surrounding control architecture.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the ATS48C 16250850112A08 power supply board is rarely an isolated task. In most retrofit scenarios, the board failure is symptomatic of broader aging within the soft starter assembly or the surrounding control cabinet. A structured retrofit plan should account for the full scope of components that interact with the ATS48 platform.

Before initiating the board swap, engineers should back up all soft starter parameters using Schneider’s SoMove configuration software or the PowerSuite commissioning tool. Parameter sets including motor rated current, starting ramp time, stopping ramp time, current limit threshold, and thermal protection class must be documented and ready for re-entry or automatic restoration after the replacement board is seated.

In cabinets where the ATS48 soft starter is integrated with a Schneider Tesys D contactor (LC1D series) for bypass or isolation duty, the contactor wiring and auxiliary contact logic should be verified against the original schematic before powering up the restored unit. Similarly, if the installation includes a Schneider Zelio Logic smart relay or a Modicon M340 PLC managing the start/stop command sequence, the I/O wiring to the ATS48 control terminals (terminals 1, 2, 3, 4, CL1, CL2) must be confirmed intact and correctly mapped.

For systems using the ATS48 Profibus DP communication module (VW3A48310) or the CANopen module (VW3A48320), the fieldbus node address and baud rate settings stored in the communication module are typically retained independently of the power supply board. However, it is good practice to document these settings before the swap and verify communication link restoration after commissioning. In Modbus RTU environments, confirm that the RS-485 wiring to the RJ45 port on the ATS48 front face remains correctly terminated.

Where the ATS48 is mounted in a multi-drive panel alongside Altivar ATV312 or ATV630 variable frequency drives, the shared DC bus or common control power rail configuration must be isolated before board removal to prevent cross-contamination of fault conditions. The installation space within the enclosure should also be confirmed — the ATS48C frame size requires adequate clearance for heat dissipation, and the replacement board must be seated without mechanical stress on the backplane connector.

In I/O-intensive applications where the ATS48 interfaces with a Schneider Advantys STB distributed I/O island or a Modicon Premium rack-based I/O system, the signal integrity of analog feedback channels (motor current, thermal state) should be verified post-replacement using a calibrated clamp meter and the soft starter’s built-in display or remote HMI. If the site uses a Magelis HMIGTO or XBTGT HMI panel for soft starter monitoring, the HMI screen variables linked to ATS48 Modbus registers should be tested for correct readback after the board is restored to service.

For facilities operating under IEC 61511 or IEC 62061 functional safety frameworks, any modification to the soft starter assembly — including internal board replacement — should be documented in the site’s management of change (MOC) procedure and reviewed against the safety instrumented system (SIS) boundary conditions before return to service.

Downtime Control During System Migration

Minimizing production downtime during an ATS48C power supply board replacement requires preparation that begins well before the maintenance window opens. The following approach has been validated across multiple industrial retrofit projects and is recommended for facilities where the affected motor drives a critical process load such as a pump, compressor, conveyor, or fan.

Pre-Shutdown Preparation: Complete parameter backup via SoMove or PowerSuite. Print or export the full parameter list including motor data, protection thresholds, and ramp profiles. Photograph the existing terminal wiring on the ATS48 control terminal block before disconnection. Confirm that the replacement ATS48C 16250850112A08 board has been received, inspected, and pre-tested. Prepare ESD wrist strap, anti-static mat, and appropriate torque screwdriver for PCB handling.

During the Maintenance Window: Isolate the soft starter from mains supply using the upstream circuit breaker or disconnector. Verify absence of voltage on all power terminals (L1, L2, L3, T1, T2, T3) using a calibrated voltage tester. Open the ATS48 enclosure following the manufacturer’s disassembly procedure. Remove the faulty power supply board by releasing the PCB retention clips and disconnecting the internal ribbon or connector harness. Seat the replacement board, ensuring full connector engagement without lateral stress. Reassemble the enclosure and restore control wiring per the documented terminal photograph.

Post-Restoration Commissioning: Apply control power first and verify LED status indicators on the ATS48 front panel. Restore motor parameters from the saved configuration file. Perform a no-load test start to confirm ramp profile and current limit behavior. Verify communication link restoration if fieldbus modules are installed. Confirm HMI readback of motor current and thermal state. Log the replacement in the site maintenance management system (CMMS) and attach the 12-month warranty documentation.

With adequate preparation, the total maintenance window for an ATS48C power supply board replacement can typically be contained within two to four hours, preserving process continuity and reducing the risk of extended unplanned outages.

Retrofit Support FAQ

Q1: Is the ATS48C 16250850112A08 a direct replacement for the original board in my ATS48 soft starter?
A: Yes, the 16250850112A08 is the OEM-referenced power supply board for the ATS48C frame. It is designed as a direct internal replacement. Before installation, confirm the frame size designation on your soft starter nameplate matches the ATS48C series and verify the board part number against your unit’s internal wiring diagram or service manual. No firmware modification is required in standard configurations.

Q2: What pre-shipment testing is performed on this board?
A: Each ATS48C 16250850112A08 board undergoes a functional power-on test prior to dispatch. The test verifies control voltage output, internal power rail stability, and absence of short-circuit or open-circuit faults on the board’s primary supply paths. A test record is maintained and available upon request. The board is shipped in anti-static packaging with physical protection against transit damage.

Q3: Can I install this board without re-entering all soft starter parameters?
A: In most cases, the motor parameters stored in the ATS48’s non-volatile memory (EEPROM) are retained independently of the power supply board and will be restored automatically when the replacement board is seated and control power is applied. However, NINERMAS strongly recommends performing a full parameter backup using SoMove or PowerSuite before any internal board replacement, as a precautionary measure against data loss in units with aged or marginal memory components.

Q4: What is the warranty coverage and what does it include?
A: The ATS48C 16250850112A08 power supply board is covered by a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, physical impact, or operation outside the ATS48’s rated environmental specifications. For warranty claims or technical support, contact NINERMAS at sale@ninermas.com or +0086 187 5021 5667.
