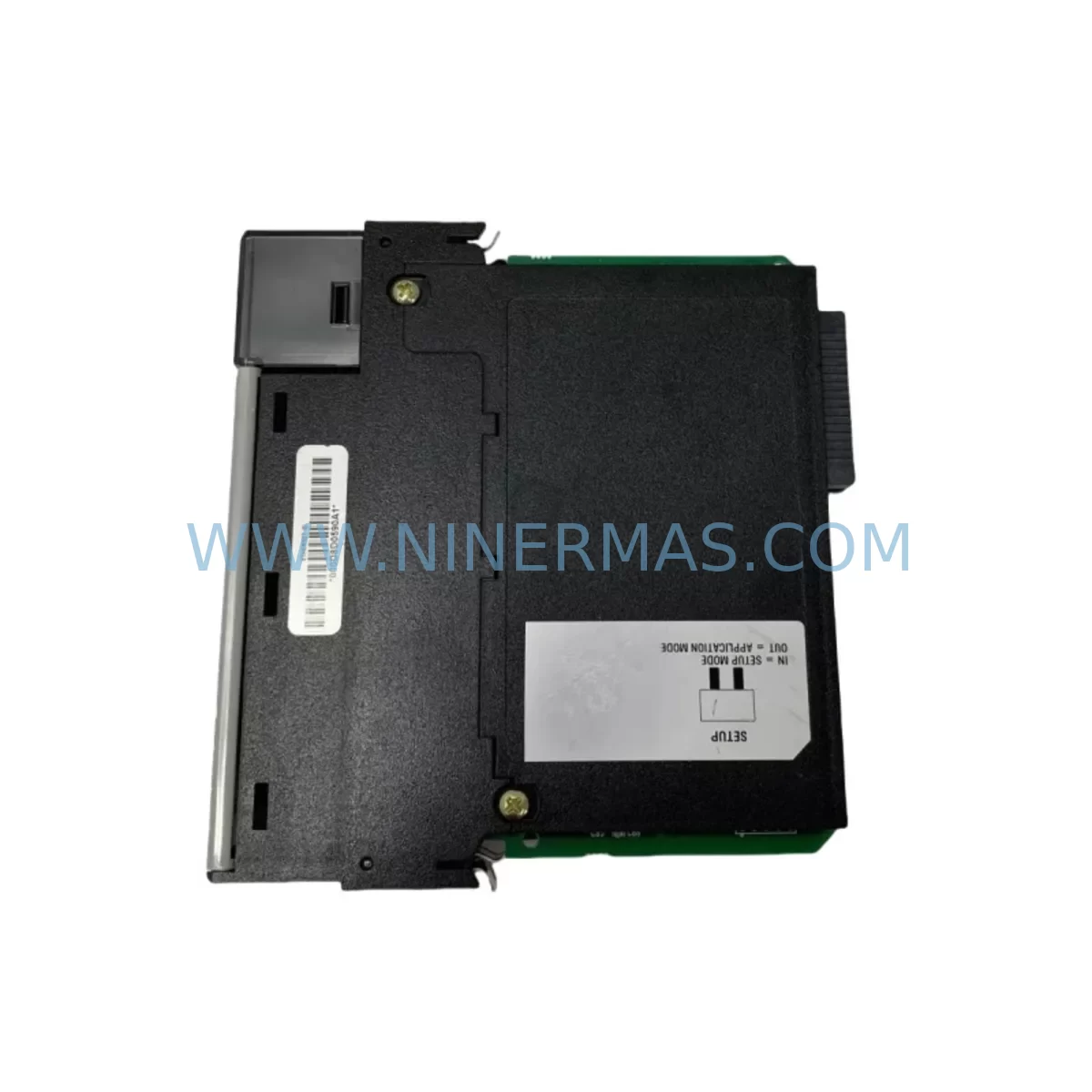

The ProSoft MVI56-ADMNET is an ADMNET (Allen-Bradley Data Highway/DH+) communication gateway module designed for installation in the Allen-Bradley ControlLogix 1756 backplane. As legacy automation systems age and original spare parts become increasingly difficult to source, the MVI56-ADMNET has emerged as a critical component in retrofit and modernization projects across manufacturing, oil & gas, water treatment, and discrete process industries. NINERMAS maintains verified stock of the MVI56-ADMNET to support customers undertaking planned upgrades, emergency replacements, and phased system migrations — with a 12-month warranty on every unit shipped.

Whether you are replacing a failed module in an existing ControlLogix rack, migrating a legacy PLC-5 or SLC 500 network to a ControlLogix platform, or extending the service life of a DH+ communication backbone, the MVI56-ADMNET provides a proven, field-tested solution. Our pre-shipment testing protocol verifies firmware version, communication port integrity, and backplane interface function before dispatch, minimizing the risk of commissioning delays on your site.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the MVI56-ADMNET into an existing or upgraded control system requires careful pre-engineering. The following considerations apply to the most common retrofit scenarios encountered in the field.

Backplane and Chassis Verification: Before ordering, confirm the target chassis model — whether a 1756-A4, 1756-A7, 1756-A10, or larger 1756-A13 / 1756-A17 rack — has a free single-width slot available adjacent to or within communication range of the ControlLogix controller, such as the 1756-L71, 1756-L73, or 1756-L85E. The MVI56-ADMNET occupies one slot and draws 800 mA from the 5 VDC backplane rail; verify that the installed 1756-PA72 or 1756-PB72 power supply has sufficient remaining capacity after accounting for all other installed modules including analog I/O cards, digital I/O modules, and any co-installed ProSoft MVI56-MCM or MVI56-MNET communication modules.

Terminal Wiring and DH+ Network Cabling: The MVI56-ADMNET connects to the existing DH+ trunk via its RS-422 port using Belden 9463 or equivalent shielded twisted-pair cable. During retrofit, technicians must verify termination resistor placement at both ends of the DH+ segment, confirm node addressing does not conflict with remaining legacy devices such as PLC-5/40 or SLC 5/04 controllers still active on the network, and document all existing node addresses before any hardware changes. Where the DH+ segment also carries traffic to legacy Panel View 550 or Panel View 900 HMI terminals, communication continuity must be maintained throughout the cutover window.

Program Compatibility and MSG Instruction Configuration: In Studio 5000 Logix Designer, the MVI56-ADMNET is configured through a combination of the ProSoft Configuration Builder utility and ladder logic MSG instructions that map data between the module’s internal memory and the ControlLogix controller tags. Engineers migrating from a PLC-5 program must convert RSLogix 5 ladder files to Studio 5000 format, remapping all integer file references (N7, F8, B3) to controller-scoped or program-scoped tags. Where the original program used PLC-5 typed read/write MSG instructions over DH+, these must be reconfigured as CIP Generic or PCCC-encapsulated messages routed through the MVI56-ADMNET. Thorough offline simulation in RSLogix Emulate 5000 before live commissioning is strongly recommended.

HMI Screen and Communication Link Updates: Legacy FactoryTalk View SE or ME applications connected to PLC-5 or SLC 500 controllers via DH+ will require tag database updates to reflect the new ControlLogix tag structure. Where FactoryTalk Linx or RSLinx Classic is used as the communication server, the device shortcut must be updated to point to the ControlLogix controller’s Ethernet IP address if the migration also introduces a 1756-EN2T or 1756-EN3TR Ethernet/IP bridge module. In parallel, any third-party SCADA systems communicating via OPC-DA or OPC-UA should be retested against the updated tag paths after the MVI56-ADMNET is commissioned.

I/O Module Address Verification: Where the retrofit involves adding new 1756-IB16 digital input, 1756-OB16 digital output, 1756-IF8 analog input, or 1756-OF8 analog output modules to the same chassis, module slot addresses in the I/O tree must be confirmed and the controller’s I/O configuration updated in Studio 5000 before going live. Slot conflicts between the MVI56-ADMNET and newly added I/O modules are a common source of commissioning delays and should be resolved during the engineering phase.

Downtime Control During System Migration

Minimizing production downtime is the primary concern in any live system retrofit. For MVI56-ADMNET installations, the following approach has proven effective across multiple site deployments.

Where the existing DH+ network supports multiple controllers, a phased migration strategy allows the MVI56-ADMNET to be installed and configured in the ControlLogix chassis while the legacy PLC-5 or SLC 500 remains online and controlling the process. The new ControlLogix controller can be placed in Program mode with the MVI56-ADMNET active on the DH+ segment, allowing engineers to verify communication link establishment, node response, and data integrity against the live network without interrupting production. Only when full data integrity is confirmed across all mapped tags should the cutover to ControlLogix control be executed.

For single-controller systems where a hard cutover is unavoidable, pre-staging the ControlLogix chassis with the MVI56-ADMNET fully configured, the Studio 5000 program downloaded and verified offline, and all wiring pre-terminated to a temporary terminal strip significantly reduces the live cutover window. Experienced teams routinely achieve sub-four-hour cutovers using this approach, including DH+ cable transfer, program go-live, and initial HMI verification. A full backup of the original PLC-5 or SLC 500 program using RSLogix 5 or RSLogix 500 must be archived before any hardware is disturbed. Post-cutover, the original controller should be retained on-site for a minimum 30-day parallel observation period before decommissioning.

NINERMAS ships the MVI56-ADMNET with a completed pre-shipment test report confirming backplane communication, port configuration, and firmware version. Units are available from stock for same-day or next-business-day dispatch, supporting tight project schedules where procurement lead time is a critical path item.

Retrofit Support FAQ

Q: Is the MVI56-ADMNET a direct drop-in replacement for a failed unit in an existing ControlLogix rack?
A: Yes. The MVI56-ADMNET is a single-slot ControlLogix module. A replacement unit installs into the same chassis slot, and the existing ProSoft Configuration Builder project file can be reloaded directly. Verify that the firmware version of the replacement unit matches or is compatible with the version specified in your existing PCB project to avoid configuration mismatches.

Q: Can the MVI56-ADMNET bridge communication between a ControlLogix controller and legacy PLC-5 or SLC 500 devices still active on a DH+ network?
A: Yes. This is one of the primary use cases for the MVI56-ADMNET. The module acts as a DH+ network node, allowing the ControlLogix controller to read from and write to PLC-5 data files or SLC 500 data files using PCCC-encapsulated MSG instructions. Node addressing and data file mapping must be configured in ProSoft Configuration Builder and the corresponding ladder logic.

Q: What does the 12-month warranty cover, and what is the process for a warranty claim?
A: The 12-month warranty provided by NINERMAS covers manufacturing defects and module failure under normal operating conditions. Each unit ships with a pre-shipment test report. In the event of a warranty claim, contact NINERMAS at sale@ninermas.com with the original invoice number and a description of the fault. A replacement or repair will be arranged with priority handling to minimize your system downtime.

Q: What information should I prepare before placing an order to ensure the MVI56-ADMNET is the correct module for my application?
A: Please confirm the following before ordering: (1) ControlLogix chassis model and available slot count; (2) existing DH+ network node map including all active devices; (3) current firmware version of any existing MVI56-ADMNET being replaced; (4) Studio 5000 / RSLogix 5000 version in use; (5) power supply model and available 5 VDC current budget. Our technical team at sale@ninermas.com can assist with compatibility verification at no charge.

—
