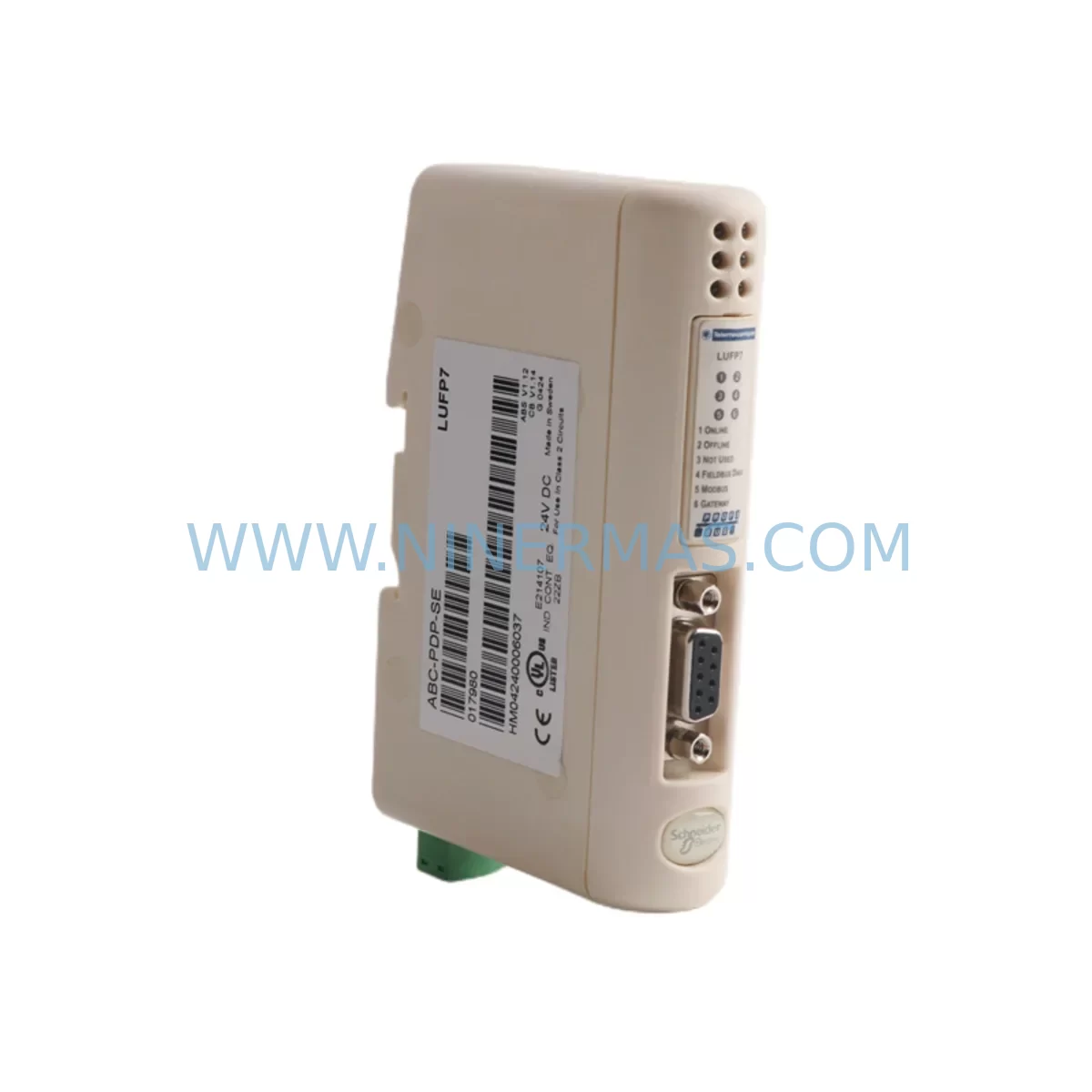

Schneider LUFP7 ABC-PDP-SE Service-Ready Spare Part

Schneider LUFP7 ABC-PDP-SE Service-Ready Spare Part for Industrial Maintenance

The Schneider Electric LUFP7 ABC-PDP-SE is a PROFIBUS DP fieldbus communication module designed for the TeSys U motor starter and controller platform. As a critical interface between the motor protection unit and the plant-level PROFIBUS DP network, this module enables real-time monitoring, remote control, and diagnostic data exchange across continuous production environments. For maintenance engineers managing aging control systems, motor control centers (MCCs), or distributed automation architectures, keeping a verified spare of the LUFP7 ABC-PDP-SE in stock is a fundamental risk-reduction strategy.

NINERMAS supplies this module as a service-ready original spare part, fully tested prior to shipment, with a 12-month warranty and long-term inventory support. Whether you are executing a planned annual overhaul, responding to an unplanned motor trip, or building a strategic spare parts inventory for a critical production line, this module ships ready for immediate installation.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a PROFIBUS DP communication fault is traced to the LUFP7 ABC-PDP-SE module, experienced maintenance engineers know that the fault rarely exists in isolation. A systematic inspection of the surrounding control architecture is essential before and after replacement to prevent repeat failures and ensure stable network recovery.

Begin by verifying the TeSys U base controller — typically a LUCA12BL or LUCB12BL — for any residual fault codes or thermal stress indicators. The LUFP7 module interfaces directly with the base unit’s communication slot, and a damaged connector or corrupted firmware state in the base controller can cause a new module to fail prematurely. Alongside this, inspect the PROFIBUS DP cable termination resistors and bus connectors at both ends of the segment; a missing or degraded termination is one of the most common causes of intermittent communication loss that is incorrectly attributed to the module itself.

For the power supply side of the motor control cabinet, confirm that the 24VDC control power supply — such as a Schneider Electric ABLP1A24100 or equivalent regulated DIN-rail PSU — is delivering stable voltage within ±1% tolerance. Voltage sag during motor start transients can corrupt PROFIBUS DP frame transmission and trigger spurious node dropouts. If the cabinet houses multiple TeSys U starters on the same PROFIBUS segment, also check the PROFIBUS DP repeater for signal integrity, particularly in long cable runs exceeding 100 meters at high baud rates.

During the replacement procedure, inspect the TeSys U wiring base (such as the LUCBX6 or LUCBX10) for contact wear, loose terminal screws, and insulation condition on the control wiring. Loose connections in the 24VDC logic circuit are a frequent source of intermittent faults that mimic communication module failures. If the installation is in a high-vibration environment — such as a compressor room, pump station, or heavy press line — consider applying thread-locking compound to terminal screws and verifying that the module’s plug-in connector is fully seated and latched.

For sites running Schneider Electric Modicon M340 or Premium PLCs as the PROFIBUS DP master, verify the GSD file version loaded in the PLC configuration matches the LUFP7 module’s firmware generation. A mismatch between the GSD file and the physical module can prevent the node from being recognized on the network even after a successful hardware replacement. Maintenance teams should also confirm that the TSXPBY100 or equivalent PROFIBUS DP master card is operating without bus error flags before closing out the work order.

Finally, for sites with signal isolation requirements between the PROFIBUS segment and the motor control circuit — common in petrochemical and water treatment applications — verify that any installed PROFIBUS DP optical isolators or galvanic isolators are functioning correctly. These components are often overlooked during module replacement but are critical for protecting the fieldbus network from ground loop interference generated by large motor loads.

Site Replacement Workflow

Replacing the LUFP7 ABC-PDP-SE on a live production site requires a structured approach to minimize downtime and avoid secondary faults. The following workflow reflects best practices for TeSys U PROFIBUS DP module replacement in industrial environments:

Step 1 — Isolation and Lockout: Place the affected motor starter in local manual mode and apply LOTO (Lockout/Tagout) to the control power circuit. Confirm that the PROFIBUS DP master has been notified of the planned node removal to prevent alarm flooding at the SCADA or DCS level.

Step 2 — Module Removal: With control power isolated, press the release tab on the LUFP7 module and withdraw it from the TeSys U base controller slot. Inspect the connector pins on both the module and the base for corrosion, bent contacts, or debris. Clean with dry compressed air if necessary.

Step 3 — Address Verification: Before installing the replacement LUFP7 ABC-PDP-SE, confirm the PROFIBUS DP node address setting. The address is configured via the rotary switches on the module face. Match the address to the original configuration documented in the site’s electrical drawings or PLC configuration file.

Step 4 — Installation and Power-Up: Insert the new module firmly until the latch clicks. Restore control power and observe the module’s LED status indicators. A steady green RUN LED confirms successful network integration. A flashing or red LED indicates a bus fault, address conflict, or GSD mismatch requiring further investigation.

Step 5 — Functional Verification: From the SCADA or PLC engineering workstation, confirm that the motor starter node is online, all I/O data is being exchanged correctly, and no diagnostic alarms are active. Perform a test start/stop sequence under supervision before returning the motor to automatic control.

This structured replacement approach, combined with a pre-tested spare module from NINERMAS, typically reduces unplanned downtime from several hours to under 30 minutes for experienced maintenance teams.

Spare Parts Support FAQ

Q1: Does the LUFP7 ABC-PDP-SE come with a warranty, and what does it cover?
Yes. Every LUFP7 ABC-PDP-SE supplied by NINERMAS carries a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Each unit undergoes a full functional test before shipment. If a module fails within the warranty period under normal use, NINERMAS will provide a replacement unit. Contact sale@ninermas.com with your order reference and fault description to initiate a warranty claim.

Q2: How do I confirm compatibility between the LUFP7 ABC-PDP-SE and my existing TeSys U installation?
The LUFP7 ABC-PDP-SE is compatible with all TeSys U base controllers in the LUCA, LUCB, LUCC, and LUCD families. Compatibility is determined by the base controller’s communication slot type, not the motor rating. Provide NINERMAS with your existing base controller part number and we will confirm compatibility before shipment. For Modicon PLC masters, also verify that the correct GSD file version is available for your PLC configuration software.

Q3: Can NINERMAS guarantee long-term supply of the LUFP7 ABC-PDP-SE for multi-year maintenance contracts?
Yes. NINERMAS maintains strategic inventory of the LUFP7 ABC-PDP-SE and other TeSys U series spare parts to support customers with long-term maintenance contracts, annual overhaul schedules, and multi-site spare parts programs. For volume requirements or scheduled delivery agreements, contact our sales team at sale@ninermas.com or +0086 187 5021 5667 to discuss a supply arrangement tailored to your maintenance cycle.

Q4: What pre-shipment testing is performed on each LUFP7 ABC-PDP-SE unit?
Each unit supplied by NINERMAS is tested for PROFIBUS DP communication functionality, correct node address switching operation, LED indicator response, and connector integrity before dispatch. Units that do not pass the full test protocol are not shipped. A test record is available upon request for quality-critical procurement processes in regulated industries such as petrochemical, pharmaceutical, or power generation.
