ProSoft MVI56-MNETC Retrofit-Compatible Modbus TCP/IP Module

ProSoft MVI56-MNETC Retrofit-Compatible Modbus TCP/IP Module: Legacy System Compatibility and Smooth Upgrade

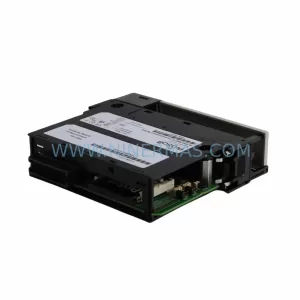

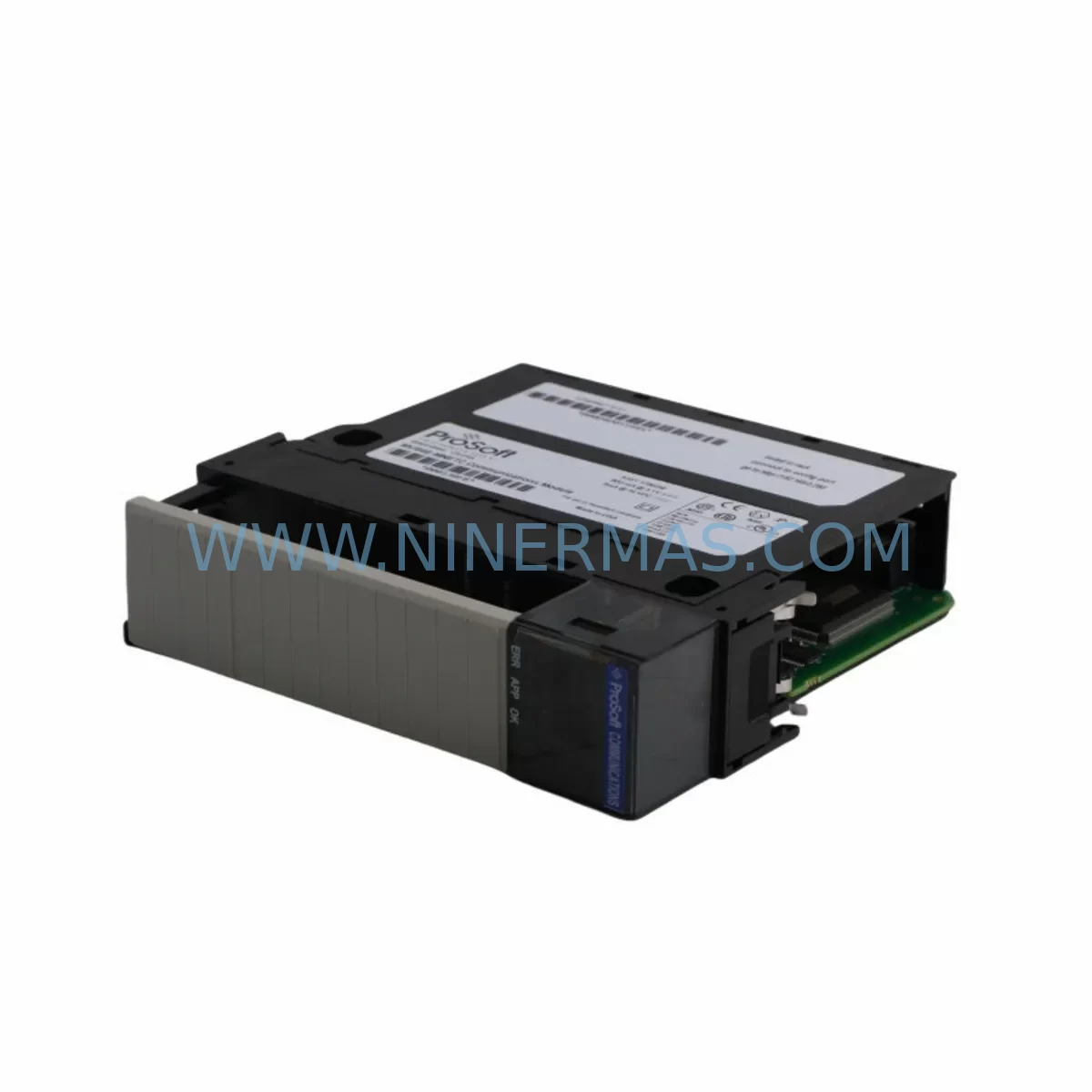

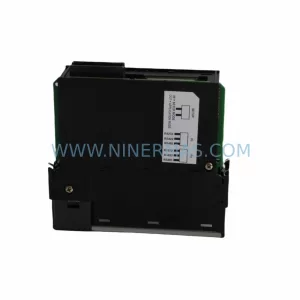

The ProSoft MVI56-MNETC is a Modbus TCP/IP client/server communication module designed for the Allen-Bradley ControlLogix platform. As industrial facilities face the challenge of aging automation infrastructure, the MVI56-MNETC has become a critical component in retrofit projects that bridge legacy Modbus RTU networks with modern Ethernet-based control architectures. Whether you are replacing an end-of-life communication card, upgrading a control cabinet, or migrating from an older SLC 500 or PLC-5 platform to ControlLogix, the MVI56-MNETC provides a reliable, field-proven path forward with minimal disruption to existing operations.

The module installs directly into a 1756 ControlLogix chassis, occupying a single slot alongside the 1756-L7x or 1756-L8x series controllers. It supports up to 100 Modbus TCP/IP connections simultaneously, making it suitable for facilities that operate multiple field devices — including variable frequency drives, energy meters, remote I/O adapters, and third-party PLCs — over a shared Ethernet network. The module communicates with the ControlLogix processor via the backplane using the standard 1756 backplane interface, and configuration is handled through ProSoft’s PCB (ProSoft Configuration Builder) software, which connects via the module’s Ethernet port or through the ControlLogix backplane using RSLinx Classic or Studio 5000 Logix Designer.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

When planning a retrofit involving the MVI56-MNETC, the first step is a thorough audit of the existing control cabinet and backplane configuration. In many legacy installations, the communication slot may currently be occupied by an older MVI56-MCM serial Modbus module or a third-party serial-to-Ethernet converter. Replacing these with the MVI56-MNETC requires verifying available backplane current budget — the module draws 800 mA at 5 VDC, and the 1756-PA72 or 1756-PB72 power supply must have sufficient headroom after accounting for the controller, 1756-EN2T Ethernet bridge module, and any 1756-IB16 or 1756-OB16 digital I/O modules already installed in the chassis.

Terminal wiring changes are typically minimal since the MVI56-MNETC is backplane-powered and communicates over Ethernet rather than through field wiring terminals. However, if the legacy system used a dedicated serial RS-232 or RS-485 port for Modbus RTU communication, the retrofit plan must include a protocol migration strategy. Field devices that only support Modbus RTU — such as older energy analyzers, motor protection relays, or flow computers — may require a separate Modbus RTU-to-TCP/IP gateway or a ProSoft MVI56-MCM module to remain in service alongside the MVI56-MNETC during a phased migration.

Backplane slot addressing must be confirmed before installation. The ControlLogix controller references the MVI56-MNETC by its chassis slot number, and the add-on instruction (AOI) or ladder logic routine in Studio 5000 Logix Designer must be updated to reflect the correct slot assignment. If the module is replacing a unit in an existing slot, the slot number in the MSG instruction and the module definition in the I/O tree must match exactly to avoid communication faults at startup. ProSoft provides a pre-built sample program and AOI that can be imported directly into Studio 5000, significantly reducing programming time during the retrofit.

For systems that include a PanelView Plus 7 or PanelView Plus 6 HMI, the Modbus data tags mapped through the MVI56-MNETC will need to be verified against the existing HMI screen tag database. If the legacy system used indirect addressing or custom tag structures, the HMI project may require updates in FactoryTalk View Studio to align with the new module’s data map. This is a common source of commissioning delays and should be addressed during the pre-retrofit engineering phase rather than on the day of cutover.

Communication link integrity is another critical checkpoint. The MVI56-MNETC connects to the plant Ethernet network via a standard RJ-45 port, and the module’s IP address must be configured to avoid conflicts with existing devices on the subnet. In facilities running a flat network shared between office and control systems, it is strongly recommended to place the module on a dedicated industrial Ethernet VLAN alongside the 1756-EN2T or 1756-EN3TR Ethernet bridge modules to ensure deterministic communication performance.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern in any live production environment retrofit. For installations where the MVI56-MNETC is replacing an active communication module, the recommended approach is a parallel commissioning strategy: install and configure the new module in a spare chassis slot or a test rack before the scheduled maintenance window, validate all Modbus TCP/IP connections and data map integrity offline, and then perform the physical swap during a planned shutdown.

ProSoft’s PCB software allows the module configuration to be fully prepared, saved, and downloaded before the module is placed in the production chassis. This means the configuration file — including all client command lists, server data table definitions, IP address settings, and error handling parameters — can be validated against the actual field device responses in a staging environment. When the production cutover occurs, the pre-loaded configuration reduces live commissioning time to minutes rather than hours.

Protecting the original program logic is equally important. Before any hardware change, a full backup of the Studio 5000 project file (.ACD) should be archived, along with the existing RSLogix 5000 or Studio 5000 online backup. If the controller is a 1756-L71 or later with SD card support, an on-controller backup should also be saved. This ensures that if the retrofit encounters an unexpected compatibility issue, the system can be restored to its previous state without data loss.

For facilities that cannot tolerate any interruption to critical control loops — such as continuous process lines or safety-instrumented systems — a hot-standby approach using a redundant ControlLogix chassis with 1756-RM2 redundancy modules may be appropriate. In this configuration, the MVI56-MNETC can be introduced into the secondary chassis first, validated, and then promoted to primary without interrupting the running process.

Retrofit Support FAQ

Q: Can the MVI56-MNETC directly replace an MVI56-MCM or MVI56-MNET module without program changes?
A: The MVI56-MNETC is not a direct drop-in replacement for the MVI56-MCM (which handles Modbus RTU over serial) or the older MVI56-MNET. The data map structure and AOI are different, so the Studio 5000 program will require updates to the module definition, MSG instruction parameters, and tag mappings. ProSoft provides migration guides and sample code to streamline this process. In most cases, the logic changes are straightforward and can be completed within a few hours by a qualified controls engineer.

Q: What wiring changes are required when installing the MVI56-MNETC?
A: The MVI56-MNETC is backplane-powered and communicates over Ethernet, so no field wiring terminals are involved. The only physical connection required is a standard Cat5e or Cat6 Ethernet cable from the module’s RJ-45 port to the plant network switch or directly to the 1756-EN2T Ethernet bridge. If the legacy system used serial Modbus RTU wiring to field devices, those devices will need to be migrated to Ethernet or connected through a separate RTU gateway.

Q: Is pre-shipment testing performed on the MVI56-MNETC before delivery?
A: Yes. Every MVI56-MNETC unit supplied by NINERMAS undergoes functional verification testing prior to shipment, including power-on self-test, backplane communication check, and Ethernet port validation. Units are shipped with original ProSoft firmware and include a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions. Expedited shipping options are available for urgent retrofit and breakdown situations.

Q: What is the typical lead time and inventory availability?
A: NINERMAS maintains stock of the MVI56-MNETC to support urgent retrofit and replacement requirements. Standard orders are processed and shipped within 1-3 business days. For large-quantity orders or projects requiring multiple units — for example, a multi-chassis upgrade involving several 1756-A10 racks across a plant — please contact our sales team to confirm availability and arrange consolidated shipment. All units are covered by a 12-month warranty from the date of shipment.
