MOXA EDS-518E-4GTXSFP-T Retrofit-Compatible Managed Switch

MOXA EDS-518E-4GTXSFP-T Retrofit-Compatible Managed Switch: Seamless Legacy System Upgrade

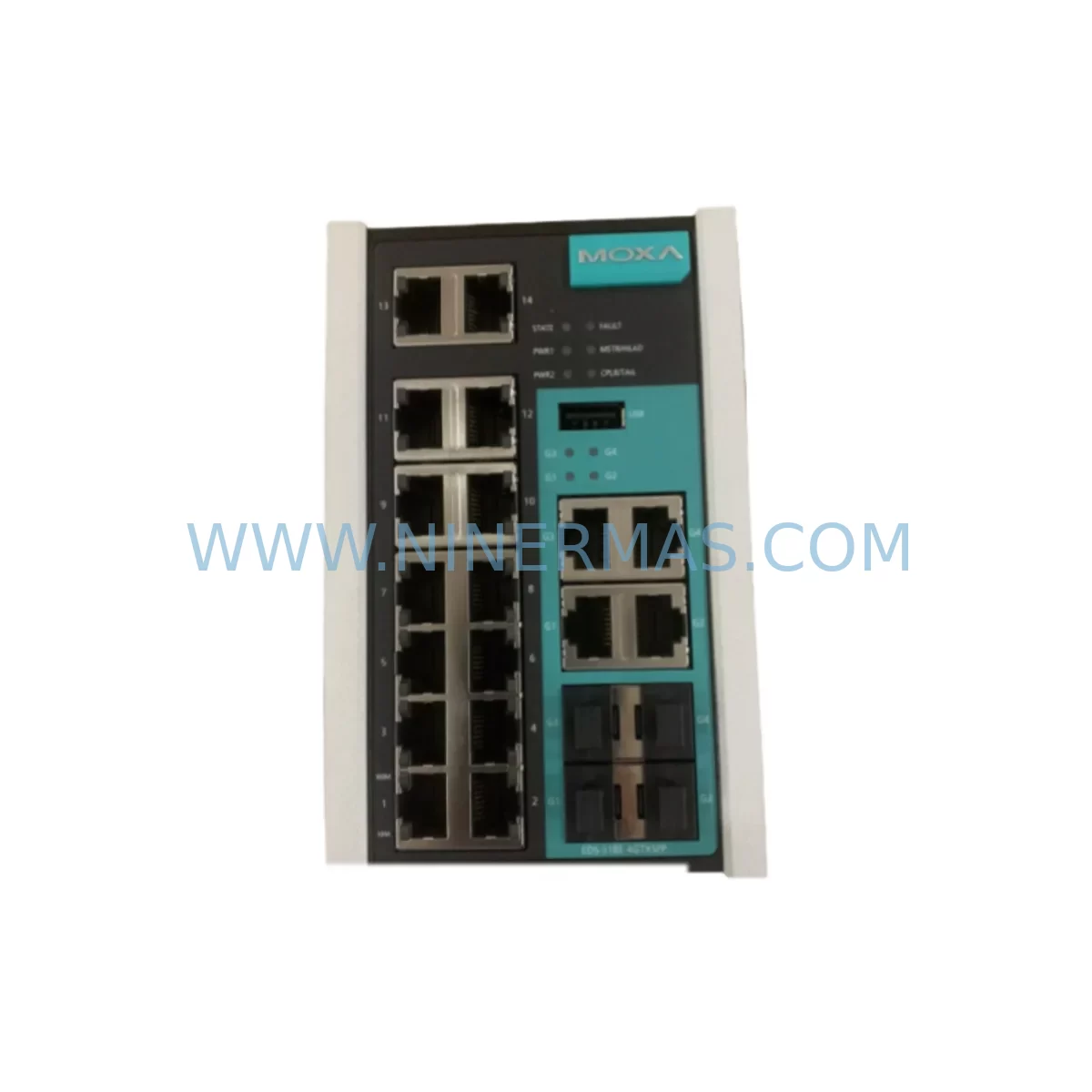

The MOXA EDS-518E-4GTXSFP-T is an industrial-grade managed Ethernet switch engineered for mission-critical automation environments where legacy system continuity and smooth migration paths are non-negotiable. Designed as a direct retrofit solution for aging EDS-500 series deployments, this unit delivers the port density, SFP flexibility, and MOXA EtherDevice management features your control engineers rely on — without forcing a full network redesign or extended production shutdown.

Whether you are replacing an end-of-life EDS-516A, decommissioning an EDS-508A in a DIN-rail control cabinet, or expanding an existing EDS-518A backbone to support additional I/O nodes, the EDS-518E-4GTXSFP-T slots into your existing rack footprint and communicates natively over the same RSTP/Turbo Ring topology your SCADA and DCS systems already depend on.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the EDS-518E-4GTXSFP-T into a running production line begins well before the physical swap. Start by auditing the existing network topology: document every node connected to the outgoing switch, including MOXA NPort 5650 serial device servers, MOXA ioLogik E1214 remote I/O modules, and any third-party Modbus TCP gateways sharing the same subnet. Cross-reference each port assignment against your PLC I/O map — particularly if the upstream controller is a Siemens S7-300 or an Allen-Bradley ControlLogix rack where the Ethernet module’s ARP table may need to be cleared after the switch replacement.

Power budget is the first hard constraint. The EDS-518E-4GTXSFP-T draws up to 9.6 W under full load. Verify that the 24 VDC rail feeding the control cabinet — typically sourced from a MOXA DR-75-24 or equivalent DIN-rail power supply — has sufficient headroom after accounting for all connected field devices. If the cabinet also houses a MOXA AWK-3131A industrial wireless AP or a MOXA MGate 5105-MB-EIP protocol gateway, recalculate the total current draw before committing to the swap.

Terminal block wiring on the EDS-518E-4GTXSFP-T follows the same PWR1/PWR2 redundant input convention as earlier EDS-500 models, so existing 24 VDC field wiring can typically be reused without modification. However, confirm polarity markings on the terminal block — some older EDS-508A installations used reversed polarity conventions in non-standard cabinet builds. For fiber uplinks, the four SFP slots accept standard LC-connector single-mode or multi-mode modules; if the existing backbone runs MOXA SFP-1G20ALC or SFP-1G10MLC transceivers, these are directly compatible.

Before powering down the legacy switch, export the full running configuration via CLI or the MOXA EtherDevice Configurator. Pay particular attention to VLAN assignments, Turbo Ring role (master or slave), IGMP snooping settings, and any static MAC address entries tied to SCADA polling stations or HMI terminals running MOXA MXview or a third-party SCADA platform. These settings can be imported into the EDS-518E-4GTXSFP-T with minimal editing, reducing commissioning time significantly.

If the control system includes a MOXA EDS-G509 or EDS-G512 as the ring master, verify that the Turbo Ring v2 protocol is enabled on both ends before closing the ring after the swap. Mismatched ring protocol versions are the most common cause of unexpected loop formation during retrofit commissioning.

Downtime Control During System Migration

Minimizing production downtime during an Ethernet switch retrofit requires a structured hot-swap procedure. Begin by pre-configuring the EDS-518E-4GTXSFP-T on a bench using the exported configuration file from the outgoing unit. Validate VLAN membership, ring topology role, and SNMP community strings against your network documentation before the switch ever enters the cabinet.

Schedule the physical swap during a planned maintenance window — ideally aligned with a shift change or scheduled PLC program backup cycle. Notify the SCADA operator to place the affected control loop in manual mode and acknowledge any active alarms on the HMI. If the HMI is a MOXA MPC-2070 or a third-party panel PC communicating via Ethernet, expect a brief loss of live data during the 30–90 second Turbo Ring convergence period after the new switch is inserted into the ring.

Label every cable before disconnection. Use port-numbered cable tags that match your network diagram. Reconnect in the same port order on the EDS-518E-4GTXSFP-T to preserve IP-to-port associations without requiring ARP table updates on connected PLCs or remote I/O modules. After power-up, confirm ring convergence via the front-panel Ring LED and verify that all MOXA NPort device servers and ioLogik modules re-establish their Modbus TCP or EtherNet/IP sessions within the expected timeout window.

Retain the original EDS-516A or EDS-518A as a cold standby for at least one full production cycle. This preserves your fallback option if an unexpected compatibility issue surfaces during the first week of operation — a standard precaution in any ICS retrofit project where process continuity carries higher priority than hardware cost.

Retrofit Support FAQ

Q1: Is the EDS-518E-4GTXSFP-T a direct drop-in replacement for the EDS-518A?
A: Yes, in the vast majority of installations. The physical DIN-rail footprint, power terminal layout, and Turbo Ring v2 protocol are fully compatible. The primary difference is the addition of four Gigabit SFP combo ports, which replace four of the fixed 10/100 copper ports on the EDS-518A. Verify your port utilization map to confirm no copper-only devices are currently connected to those four positions.

Q2: What pre-shipment testing is performed on each unit?
A: Every EDS-518E-4GTXSFP-T shipped by NINERMAS undergoes a full functional test covering power-on self-test, all port link negotiation (copper and SFP), VLAN configuration, Turbo Ring convergence, and SNMP polling verification. A test report is available upon request. All units carry a 12-month warranty from the date of shipment.

Q3: Can I reuse my existing fiber SFP transceivers from the legacy switch?
A: In most cases, yes. The EDS-518E-4GTXSFP-T SFP slots are compatible with standard IEEE 802.3 compliant 1G SFP modules. MOXA-branded SFP-1G20ALC (single-mode, 20 km) and SFP-1G10MLC (multi-mode, 550 m) modules are confirmed compatible. Third-party SFP modules should be validated against the MOXA compatibility list before deployment in a live ring topology.

Q4: What is the lead time and do you maintain stock?
A: NINERMAS maintains ready stock of the EDS-518E-4GTXSFP-T to support urgent retrofit and emergency replacement requirements. Standard lead time for in-stock units is 3–5 business days to most destinations. Contact our team for expedited shipping options if your production line is at risk of extended downtime.
