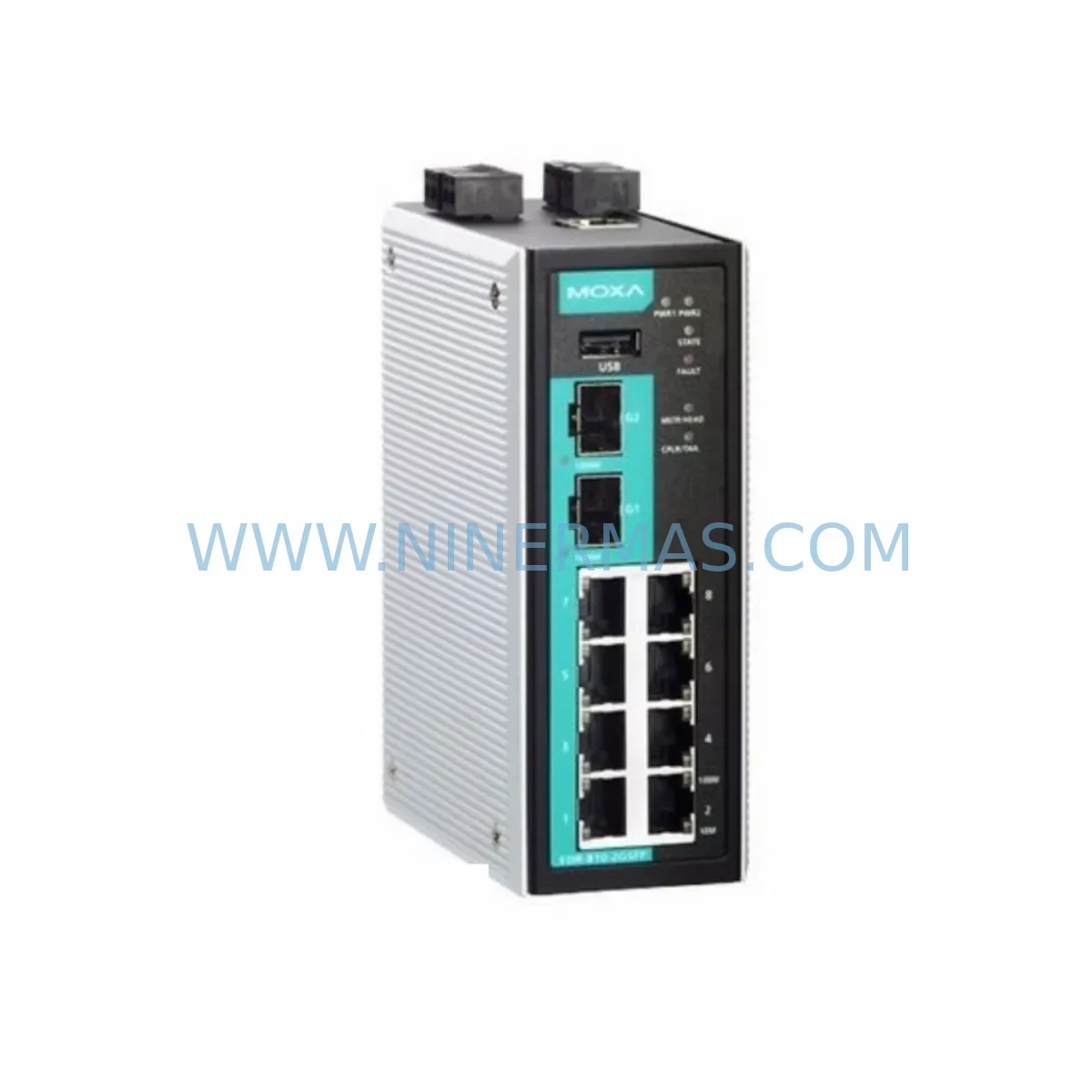

The MOXA EDR-810-2GSFP-T is an original, service-ready spare part from MOXA’s EDR Series — a line of industrial secure routers and managed Ethernet switches engineered for mission-critical automation networks. Designed for DIN-rail mounting in harsh industrial environments, the EDR-810-2GSFP-T integrates firewall, NAT, VPN, and Layer 2/Layer 3 switching into a single ruggedized unit, making it a cornerstone component in modern ICS/SCADA network architectures. For maintenance engineers managing aging control systems, having a verified original replacement unit in stock is the single most effective strategy to minimize unplanned downtime and protect production continuity.

At NINERMAS, every EDR-810-2GSFP-T unit is sourced as an original MOXA component, pre-shipment tested, and backed by a 12-month warranty. We support long-term supply commitments for facilities running multi-year maintenance contracts or managing end-of-life network infrastructure.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

The EDR-810-2GSFP-T sits at the network boundary of industrial control cabinets, segmenting OT traffic from IT infrastructure and enforcing zone-based security policies. When this unit fails or reaches end-of-service life, the consequences extend well beyond network connectivity — SCADA polling, PLC remote I/O communication, and HMI data feeds can all be interrupted simultaneously. Proactive spare parts planning is therefore essential.

During a scheduled replacement of the EDR-810-2GSFP-T, maintenance engineers should conduct a concurrent inspection of the surrounding network and power infrastructure. The SFP fiber transceivers installed in the two Gigabit SFP slots — commonly MOXA SFP-1GLXLC or SFP-1GZXLC modules — should be tested for optical power margin and replaced if degraded. The 24 VDC DIN-rail power supply feeding the switch (typically a MOXA DR-4524 or equivalent industrial PSU) should be load-tested, as power supply aging is a leading cause of intermittent switch resets in cold-start environments.

Downstream from the EDR-810-2GSFP-T, verify the integrity of MOXA EDS-408A or EDS-510E managed switches that distribute traffic to field devices. These units share the same DIN-rail cabinet space and are subject to the same thermal cycling stress. Check port link statistics and error counters before returning the system to service. If the control cabinet includes a MOXA AWK-3131A industrial Wi-Fi access point for mobile HMI or handheld terminal connectivity, confirm its uplink configuration after the router replacement, as NAT and firewall rule sets may need to be re-applied.

For facilities using MOXA MGate 5105-MB-EIP or similar protocol gateways to bridge Modbus RTU field instruments into EtherNet/IP or PROFINET networks, confirm that the gateway’s IP routing path through the EDR-810-2GSFP-T is restored and that firewall pass-through rules are correctly re-applied post-replacement. Similarly, any MOXA NPort 5650 serial device servers tunneling legacy RS-232/RS-485 instruments over TCP/IP will require connectivity verification after the network boundary device is swapped.

Inspect terminal blocks and DIN-rail power distribution modules within the same cabinet section. Loose or corroded terminal connections on the 24 VDC bus are a common secondary fault that surfaces during switch replacement work. Check miniature circuit breakers (MCBs) and 24 VDC fuse holders protecting the switch power feed. If the installation includes a signal isolator or surge protection device on the Ethernet lines — such as a Phoenix Contact or Weidmuller Ethernet surge arrester — inspect for clamping degradation, particularly in outdoor or exposed cabinet installations.

For sites running redundant ring topologies using MOXA’s Turbo Ring or MRP protocols, confirm that the ring redundancy role (master/slave) is correctly reassigned after the EDR-810-2GSFP-T is brought online. Failure to restore ring configuration is a common post-maintenance oversight that leaves the network operating in a degraded, non-redundant state.

Site Replacement Workflow

Step 1 — Pre-Replacement Backup: Export the full configuration from the existing EDR-810-2GSFP-T via the MOXA Device Manager or CLI (config export to USB or TFTP server). Document all firewall rules, NAT mappings, VPN tunnels, VLAN assignments, and port security policies.

Step 2 — Power Isolation: De-energize the switch using the dedicated MCB on the 24 VDC distribution rail. Do not rely on hot-swap assumptions — the EDR-810-2GSFP-T requires a clean power cycle for configuration import.

Step 3 — Physical Swap: Remove the failed unit from the DIN rail. Transfer SFP transceivers to the replacement unit if they are confirmed serviceable. Re-seat all RJ45 patch cables and verify cable labeling matches the port map documented in Step 1.

Step 4 — Configuration Restore: Power on the replacement unit. Import the saved configuration file. Verify firmware version compatibility — if the replacement unit ships with a newer firmware, review the MOXA release notes for any configuration schema changes before importing.

Step 5 — Functional Verification: Confirm SCADA polling resumes on all PLC nodes. Verify HMI connectivity. Test VPN tunnel re-establishment if remote access is in use. Confirm ring redundancy status if applicable. Log the replacement in the site maintenance record with the new unit’s serial number and warranty start date.

This workflow is designed to reduce mean time to restore (MTTR) to under 60 minutes for a trained maintenance technician, provided the replacement unit and configuration backup are available on-site in advance.

Spare Parts Support FAQ

Q1: Is the EDR-810-2GSFP-T a direct drop-in replacement for the EDR-810-2GSFP (non-T variant)?
A: Functionally yes — the -T suffix denotes the wide-temperature (-40°C to 75°C) rating. The hardware form factor, port layout, DIN-rail mounting, and configuration interface are identical. If your installation environment operates within the standard temperature range, the -T variant is fully compatible and is the preferred replacement due to its broader thermal tolerance.

Q2: How does NINERMAS verify the EDR-810-2GSFP-T before shipment?
A: Each unit undergoes a pre-shipment functional test covering power-on self-test, port link verification on all 8 RJ45 and 2 SFP ports, and basic firewall/NAT rule application. Units are shipped with original MOXA packaging where available, and each shipment includes a test record. The 12-month warranty covers manufacturing defects and functional failure under rated operating conditions.

Q3: Can NINERMAS support long-term supply for multi-year maintenance contracts?
A: Yes. NINERMAS maintains sourcing relationships across authorized and secondary market channels to support long-term supply of EDR Series components, including end-of-life and last-time-buy scenarios. Contact sale@ninermas.com to discuss blanket order arrangements, consignment stock, or annual supply agreements for your facility’s spare parts program.

Q4: What is the recommended spare parts holding strategy for the EDR-810-2GSFP-T?
A: For facilities with a single EDR-810-2GSFP-T in a critical network path, we recommend holding a minimum of one cold-spare unit on-site with a pre-loaded configuration backup. For multi-site operations or facilities with more than three units deployed, a 10–15% spare ratio is standard practice. Given the lead time variability for industrial network components, maintaining at least one pre-configured spare eliminates the risk of extended downtime while awaiting procurement.

—
