MOXA EDS-316-SS-SC-T Retrofit Fiber Ethernet Switch

MOXA EDS-316-SS-SC-T Retrofit Fiber Ethernet Switch: Legacy System Compatible Upgrade

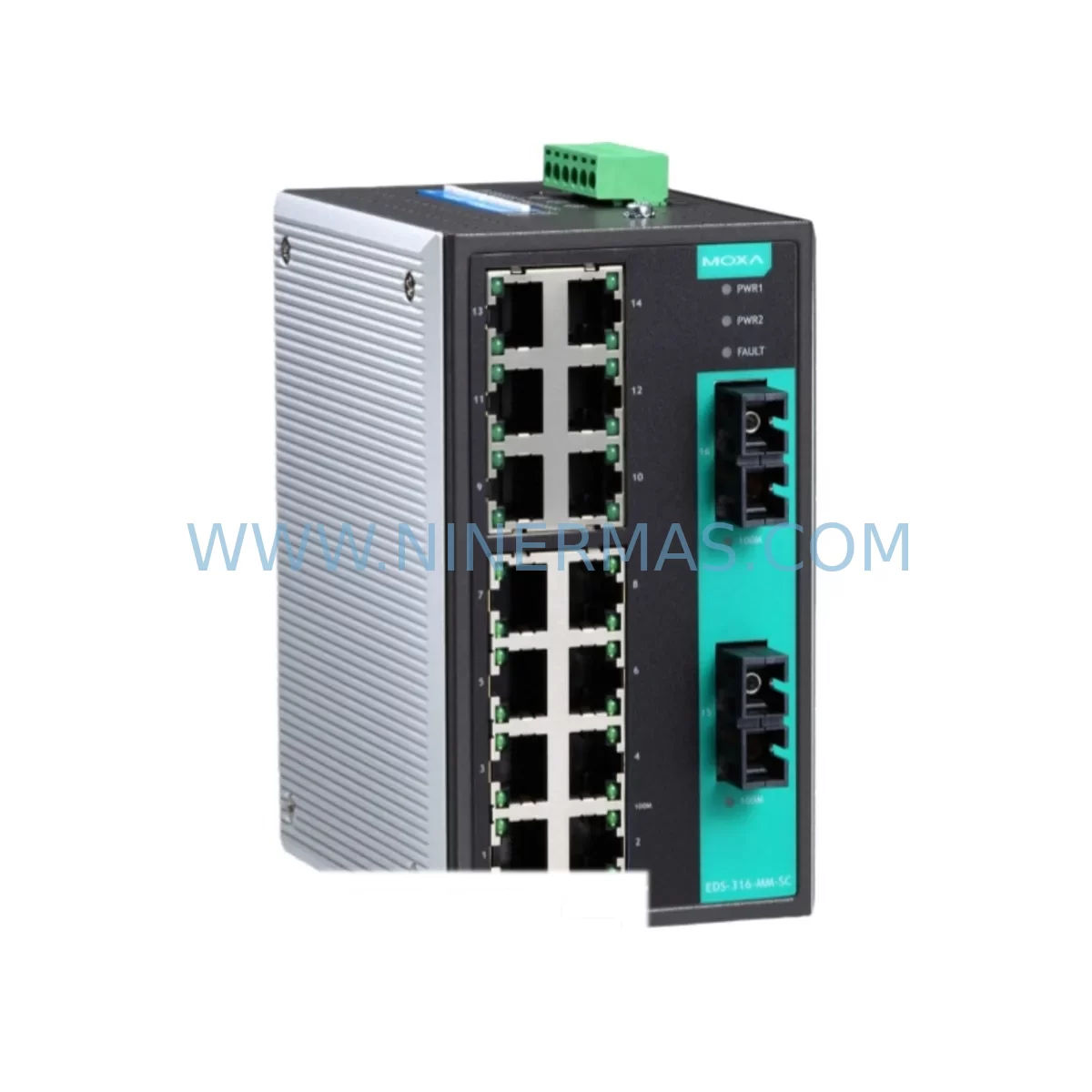

The MOXA EDS-316-SS-SC-T is a ruggedized, DIN-rail-mounted industrial Ethernet switch engineered for mission-critical automation environments where fiber optic connectivity, electromagnetic immunity, and long-term operational continuity are non-negotiable. As a retrofit-compatible replacement for aging or discontinued Ethernet switching modules in legacy SCADA, DCS, and PLC-based control architectures, the EDS-316-SS-SC-T delivers a smooth, low-risk migration path without requiring wholesale infrastructure redesign.

Designed to operate across a wide temperature range and hardened against vibration, surge, and EMI, this switch is purpose-built for process industries including oil & gas, power generation, water treatment, and heavy manufacturing. Its single-mode SC fiber ports provide long-distance, noise-immune data transmission — a critical requirement when replacing copper-based legacy switches in electrically noisy control cabinets or across plant-floor distances exceeding standard copper limits.

When planning a retrofit around the EDS-316-SS-SC-T, engineers must verify several key parameters before cutover: available DIN-rail space and cabinet depth, 24 VDC or 48 VDC power supply capacity (the unit draws from redundant power inputs), existing fiber patch cable connector types (SC vs. ST vs. LC), and whether the upstream PLC or DCS — such as a Siemens S7-300 or GE Fanuc Series 90-30 controller — supports the switch’s managed or unmanaged Ethernet topology. In many legacy installations, the original switch was unmanaged; migrating to the EDS-316-SS-SC-T’s managed feature set allows VLAN segmentation and RSTP ring redundancy that were previously unavailable.

For installations where the EDS-316-SS-SC-T replaces an older MOXA EDS-308 or EDS-205A, the physical footprint and DIN-rail mounting pattern are compatible, significantly reducing mechanical rework. Terminal block wiring for power input follows the same two-terminal V+/V− convention, allowing existing power harnesses to be reused. However, engineers should confirm that the existing MOXA DR-4524 or equivalent DIN-rail power supply can sustain the inrush current during switch initialization, particularly in cold-start scenarios in outdoor enclosures.

In multi-switch topologies — common in large-scale distributed I/O architectures using Beckhoff EtherCAT terminals or Phoenix Contact Axioline I/O modules — the EDS-316-SS-SC-T can be integrated as a backbone fiber switch, with copper downlinks feeding remote I/O drops. This eliminates the need to replace field-level copper wiring while upgrading the backbone to fiber. RSTP convergence times under 50 ms ensure that ring-topology redundancy meets the availability requirements of most SIL-rated safety systems.

Communication protocol compatibility is a frequent concern during legacy migrations. The EDS-316-SS-SC-T is transparent to Layer 2 protocols including PROFINET, EtherNet/IP, Modbus TCP, and IEC 61850 GOOSE messaging, making it suitable for mixed-protocol environments where a Siemens ET 200SP distributed I/O station communicates alongside an ABB AC500 PLC or an Emerson DeltaV I/O subsystem on the same network segment. No protocol gateway or converter is required.

HMI continuity is another critical consideration. When the legacy switch is replaced, the HMI — whether a Siemens TP700 Comfort panel or a Weintek cMT series touchscreen — must retain its IP address reachability to the PLC. The EDS-316-SS-SC-T’s port-based VLAN and static routing capabilities allow network administrators to preserve existing IP addressing schemes without reconfiguring HMI communication drivers or PLC Ethernet module parameters.

Pre-shipment testing is standard for all NINERMAS-supplied units. Each EDS-316-SS-SC-T is powered on, port-loopback tested across all fiber and copper interfaces, and verified for management access via CLI and web interface before dispatch. Units are shipped with factory default configuration and a test report. A 12-month warranty covers all hardware defects from the date of shipment.

Stock is maintained for rapid dispatch. For urgent maintenance shutdowns or unplanned failures, same-week shipment is available for in-stock units. Contact our team to confirm current inventory levels and lead times for your specific quantity requirement.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit begins with a thorough site survey of the existing control cabinet. Before removing the legacy switch, document all port assignments, IP addresses, VLAN configurations (if any), and fiber cable routing. In installations where the legacy switch feeds a Siemens S7-400H redundant controller pair or an ABB Freelance DCS I/O bus, maintaining network continuity during the swap is critical — even a brief interruption can trigger process alarms or safety system responses.

Power wiring should be verified against the EDS-316-SS-SC-T’s input voltage range. Most legacy 24 VDC panel power supplies — including the MOXA DR-4524, Phoenix Contact QUINT-PS, or Siemens SITOP PSU100S — are compatible. If the existing supply is marginal, adding a second redundant power feed to the EDS-316-SS-SC-T’s V2 input provides failover protection at minimal cost.

For installations using Belden Hirschmann SPIDER or Westermo Lynx switches as the legacy device, the EDS-316-SS-SC-T’s RSTP implementation is interoperable, allowing mixed-vendor ring topologies during phased migration. This is particularly valuable in large plants where not all switches can be replaced simultaneously.

I/O module address assignments in the PLC program do not need to change when replacing only the network switch — the EDS-316-SS-SC-T is fully transparent at Layer 2. However, if the migration also involves replacing GE Fanuc IC693CMM321 Ethernet interface modules or Emerson DeltaV M-Series I/O cards, program re-addressing and I/O mapping verification will be required before restart.

Fiber cable routing should be inspected for bend radius compliance and connector cleanliness. SC connectors on single-mode fiber are sensitive to contamination; cleaning with an appropriate fiber optic cleaning tool before mating is strongly recommended to avoid insertion loss that could degrade link quality over the long fiber spans typical in plant-wide backbone installations.

Downtime Control During System Migration

Minimizing downtime during a switch replacement requires pre-staging the EDS-316-SS-SC-T with the correct configuration before the maintenance window begins. Using the switch’s web management interface or CLI, pre-configure VLANs, port assignments, RSTP priority, and SNMP community strings to mirror the outgoing device’s logical topology. Export the configuration file for documentation and rollback purposes.

Where process continuity is paramount — such as in continuous chemical processing or power generation — coordinate the cutover with the control room operator. Confirm that the DCS or SCADA system is in manual override mode for affected loops before disconnecting the legacy switch. This prevents automatic control actions from responding to transient communication losses during the swap.

The physical swap of a DIN-rail-mounted switch typically takes under 15 minutes for an experienced technician: release the DIN-rail clip, disconnect power terminals and patch cables (labelled in advance), mount the EDS-316-SS-SC-T, reconnect in reverse order, and apply power. The switch boots in under 30 seconds. Verify all port link LEDs are active and confirm PLC-to-HMI communication is restored before returning the process to automatic control.

Post-cutover, use the EDS-316-SS-SC-T’s port statistics and event log to confirm no CRC errors, packet loss, or link flaps are present. SNMP traps can be configured to alert the control room SCADA system of any future link-state changes, providing proactive network health monitoring that was unavailable with the legacy unmanaged switch.

Retrofit Support FAQ

Q1: Is the MOXA EDS-316-SS-SC-T a direct drop-in replacement for the EDS-308 or EDS-205A?
A: Mechanically and electrically, yes — DIN-rail mounting, 24 VDC power input, and RJ45 copper port wiring are compatible. The EDS-316-SS-SC-T adds fiber ports and management features not present on the EDS-205A. No re-wiring of copper downlinks is required. Fiber patch cables must use SC connectors.

Q2: Will replacing the switch affect my PLC program or I/O module addressing?
A: No. The EDS-316-SS-SC-T operates transparently at Layer 2. PLC program logic, I/O module addresses, and HMI communication driver settings remain unchanged. Only network management parameters (VLAN, RSTP, SNMP) need to be configured on the new switch.

Q3: What pre-shipment testing is performed, and what documentation is provided?
A: Every unit supplied by NINERMAS undergoes power-on testing, full port loopback verification across all fiber and copper interfaces, and management access confirmation via web UI and CLI. A test report is included with each shipment. Units are dispatched in original or equivalent protective packaging.

Q4: What warranty and stock availability can I expect?
A: All NINERMAS-supplied EDS-316-SS-SC-T units carry a 12-month hardware warranty from the date of shipment, covering manufacturing defects and component failures under normal operating conditions. Stock is maintained for rapid dispatch; same-week shipment is available for standard quantities. Contact us for volume pricing and long-term spare parts program arrangements.
