Moxa EDR-810-2GSFP Safety-Reliable Router for Critical Sites

Moxa EDR-810-2GSFP Safety-Reliable Router for Critical Control Sites

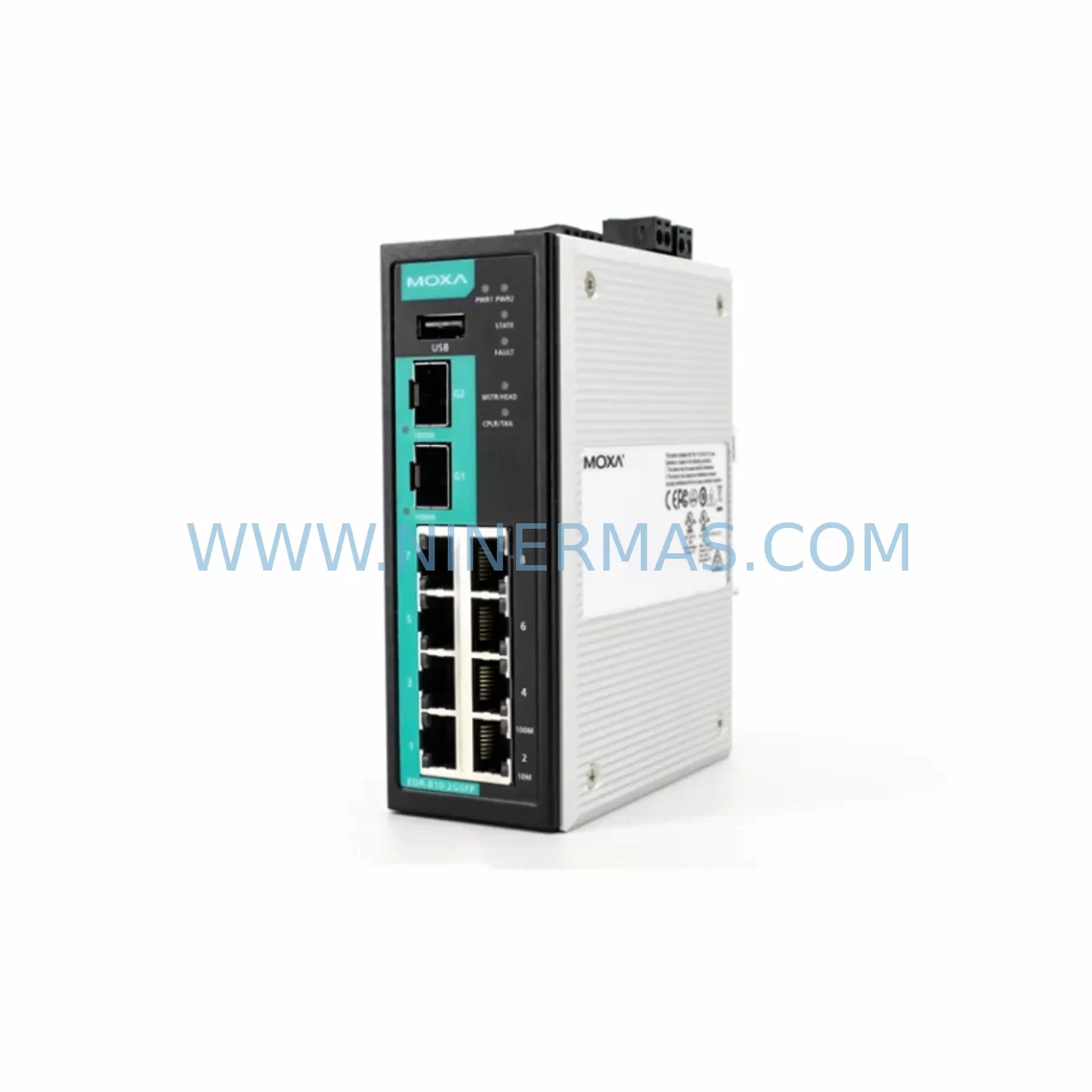

The Moxa EDR-810-2GSFP is an industrial-grade secure router engineered for mission-critical automation networks where control interruption, signal drift, and unauthorized access carry unacceptable operational and safety consequences. Combining a hardware firewall, NAT, VPN gateway, and managed switching in a single DIN-rail-mountable enclosure, the EDR-810-2GSFP delivers deterministic, interference-resistant network segmentation across continuous production lines, critical interlock loops, heavy-duty control cabinets, and hazardous-area installations. Its dual Gigabit SFP uplink ports enable fiber-based backbone connectivity that eliminates copper-induced EMI coupling — a decisive advantage in high-voltage switchgear rooms, variable-frequency drive (VFD) enclosures, and arc-flash-risk environments.

Designed to IEC 62443 industrial cybersecurity principles, the EDR-810-2GSFP enforces zone-and-conduit network architecture, ensuring that a fault or intrusion in one process segment cannot propagate to adjacent safety instrumented systems (SIS) or emergency shutdown (ESD) circuits. For plant engineers managing end-of-life control infrastructure, this router provides a direct, validated replacement path within the Moxa EDR-810 series, preserving existing wiring topology while upgrading network security posture without a full panel redesign.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a well-engineered industrial control cabinet, network security is inseparable from electrical safety. The EDR-810-2GSFP anchors the communication layer of the cabinet by enforcing strict traffic policies between the field device network and the supervisory SCADA or DCS backbone. When deployed alongside a Moxa EDS-508A managed Ethernet switch — which handles local device-level switching for PLCs, HMIs, and I/O modules — the EDR-810-2GSFP acts as the security gateway, blocking unauthorized lateral movement while maintaining sub-millisecond forwarding latency for time-critical control telegrams.

Power integrity is equally critical. The EDR-810-2GSFP’s dual redundant 12–48 VDC inputs are designed to accept feed from a Moxa DR-75-24 DIN-rail power supply, which provides regulated, filtered DC power with built-in surge absorption. This combination eliminates the risk of router brownout or reboot during grid transients — a common cause of unplanned network downtime in heavy industrial environments. For cabinets where copper-to-fiber media conversion is required at the field level, the Moxa IMC-21-M-SC industrial media converter integrates cleanly into the same DIN-rail assembly, extending the fiber segment to remote junction boxes without introducing additional EMI-susceptible copper runs.

Serial-to-Ethernet migration is another frequent requirement in legacy retrofit projects. The Moxa NPort 5110 serial device server connects legacy RS-232/422/485 instruments — such as older Modbus RTU analyzers or relay protection units — to the EDR-810-2GSFP’s LAN segment, enabling centralized monitoring without replacing field instruments. For wireless extension into areas where cable routing is impractical, the Moxa AWK-3131A industrial wireless access point can be zoned behind the EDR-810-2GSFP’s firewall, ensuring that wireless traffic is subject to the same stateful inspection as wired connections.

In substations and power distribution applications governed by IEC 61850, the Moxa PT-7528 rackmount managed switch provides the high-port-density backbone switching layer, while the EDR-810-2GSFP enforces inter-zone security between the station bus and the process bus. For remote I/O expansion in distributed control architectures, the Moxa ioLogik E1210 Ethernet remote I/O module communicates through the EDR-810-2GSFP’s protected LAN, with firewall rules preventing unauthorized polling from outside the authorized SCADA server IP range. Where higher-throughput VPN aggregation is required at the site level, the Moxa EDR-G903 industrial firewall/router serves as the upstream concentrator, with the EDR-810-2GSFP handling zone-level segmentation downstream — a layered defense architecture that significantly reduces the attack surface of the entire control network.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In continuous process environments where a network fault can trigger emergency shutdown sequences, the EDR-810-2GSFP provides deterministic zone isolation between the basic process control system (BPCS) and the safety instrumented system (SIS). Its stateful firewall prevents unauthorized commands from crossing the safety boundary, while the dual SFP uplinks maintain fiber-based connectivity to the control room even during high-EMI events caused by large motor starts or arc flash incidents.

Power Generation & Electrical Substations: Substations operating under NERC CIP or IEC 62351 cybersecurity mandates require strict network segmentation between operational technology (OT) and corporate IT networks. The EDR-810-2GSFP enforces this boundary with hardware-level firewall rules, VPN-encrypted remote access for maintenance engineers, and DoS attack prevention that protects protection relays and RTUs from network flooding.

Mining & Mineral Processing: Underground and open-pit mining operations expose network equipment to extreme vibration, dust ingress, and wide temperature swings. The EDR-810-2GSFP’s IEC 60068-2-6 vibration rating and IP30 enclosure, combined with its -40°C cold-start capability, ensure reliable operation in conveyor control rooms, crusher stations, and ventilation control panels where ambient conditions routinely exceed commercial-grade equipment tolerances.

Water & Wastewater Treatment: SCADA networks in water treatment facilities span geographically distributed pump stations and chemical dosing points. The EDR-810-2GSFP’s IPsec VPN capability enables encrypted, authenticated tunnels between remote outstations and the central SCADA server, eliminating the risk of man-in-the-middle attacks on unencrypted Modbus TCP or DNP3 traffic traversing public or shared network infrastructure.

Metallurgy & Steel Manufacturing: Rolling mills and electric arc furnace (EAF) environments generate severe conducted and radiated EMI. The EDR-810-2GSFP’s IEC 61000-4-5 surge immunity rating (2 kV power, 1 kV signal) and fiber SFP uplinks provide galvanic isolation and EMI immunity that copper-based routers cannot match, preventing signal drift and communication timeouts that would otherwise force manual intervention on automated rolling sequences.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the Moxa EDR-810-2GSFP?
The 12-month warranty covers all manufacturing defects and functional failures occurring under rated operating conditions (voltage, temperature, humidity, and vibration as specified in the datasheet). It includes repair or replacement at no charge. Failures caused by incorrect installation, overvoltage beyond rated input, or physical damage are excluded. NINERMAS provides warranty support documentation and RMA coordination for all supplied units.

Q2: What pre-shipment testing is performed on each unit?
Each EDR-810-2GSFP unit undergoes functional verification prior to dispatch, including power-on self-test, port connectivity check across all LAN and SFP interfaces, firewall rule enforcement validation, and VPN tunnel establishment test. Units that fail any test criterion are quarantined and not shipped. A test record is available upon request for quality-critical procurement processes.

Q3: Is the EDR-810-2GSFP compatible with existing EDR-810 series configurations?
Yes. The EDR-810-2GSFP is a direct form-factor and firmware-compatible variant within the EDR-810 series. Existing firewall rule sets, NAT tables, VPN profiles, and VLAN configurations exported from other EDR-810 variants can be imported without modification. The 2GSFP designation indicates the addition of two Gigabit SFP uplink ports, which are additive to the standard port complement and do not affect backward compatibility with existing LAN-side device configurations.

Q4: Can long-term supply be guaranteed for critical spare parts programs?
NINERMAS maintains dedicated stock of the EDR-810-2GSFP and related EDR-810 series components to support long-term maintenance contracts and critical spare parts programs. For plant operators managing end-of-life control systems where the original equipment manufacturer has discontinued active production, NINERMAS provides sourcing continuity assurance, with lead-time commitments available upon inquiry. Multi-unit blanket orders with phased delivery scheduling are supported to align with planned maintenance windows and capital expenditure cycles.
