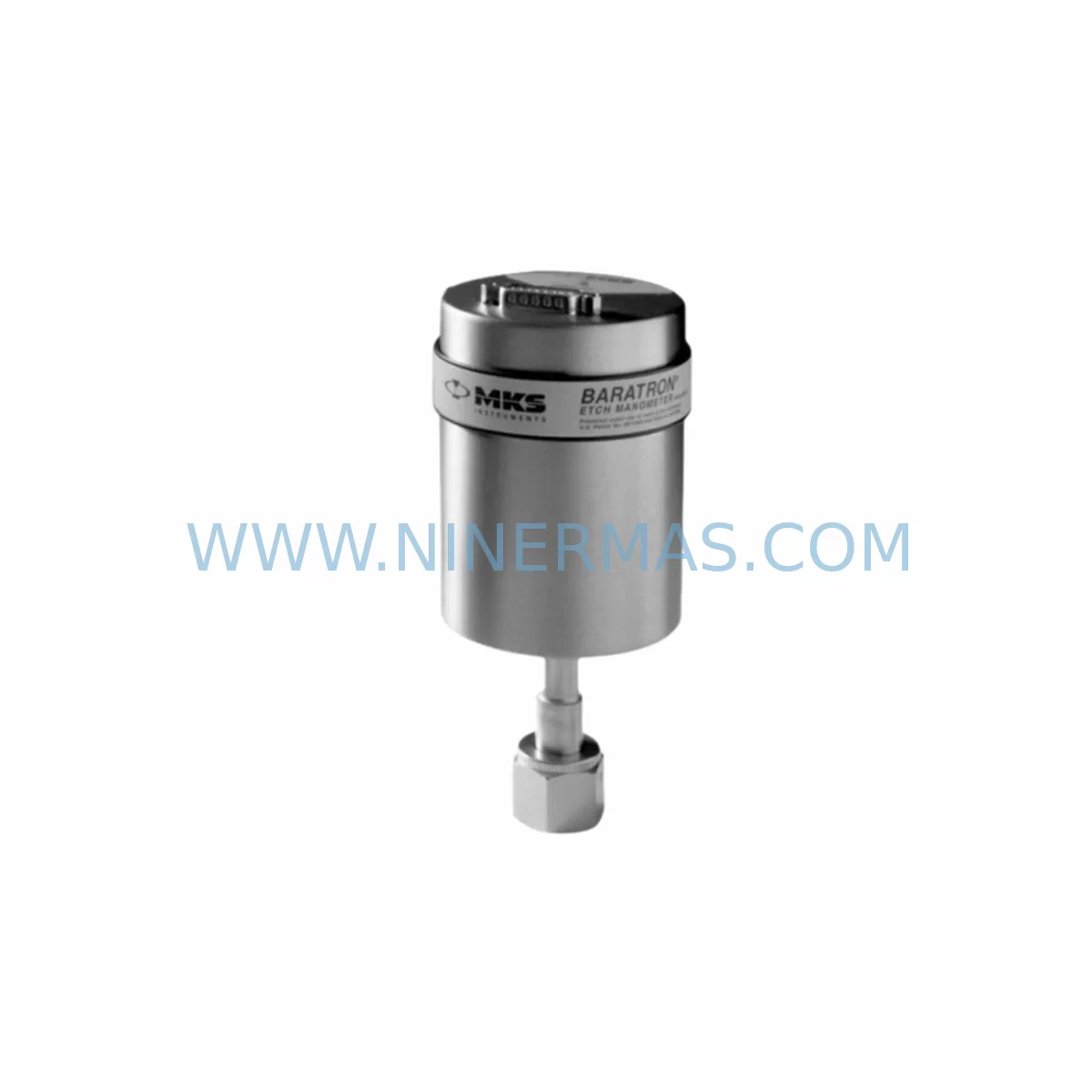

The MKS 627D11TBC1B is a high-accuracy capacitance manometer from MKS Instruments’ renowned 627 Series, engineered for precise absolute pressure measurement in demanding semiconductor fabrication, chemical vapor deposition (CVD), and industrial process control environments. When a pressure transducer fails in a vacuum or process gas line, the downstream impact on yield, throughput, and safety can be severe. Sourcing a verified, service-ready replacement unit — pre-tested and backed by a 12-month warranty — is the fastest path to restoring controlled process conditions and minimizing unplanned downtime.

Maintenance engineers managing MKS-equipped process chambers, vacuum systems, or gas delivery panels rely on the 627D11TBC1B as a direct drop-in replacement for aging or drift-affected units. The “D” designation indicates a Inconel sensor diaphragm suitable for corrosive or reactive gas compatibility, while the “11” range code and “TBC1B” suffix define the full-scale pressure range, output signal type, and connector configuration — ensuring pin-for-pin, signal-for-signal compatibility with existing wiring harnesses and controller inputs without requiring recalibration of the host system.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A capacitance manometer like the 627D11TBC1B does not operate in isolation — it is one node in a tightly integrated pressure measurement and gas control loop. When scheduling a replacement or conducting an annual control cabinet inspection, maintenance and procurement engineers should simultaneously evaluate the condition and stock status of all interdependent components to prevent secondary failures from extending downtime beyond the initial repair window.

Begin with the MKS 670 Signal Conditioner or MKS PR4000B Multi-Channel Power Supply and Readout, which provides the regulated excitation voltage and reads the analog output of the 627D11TBC1B. A degraded power supply rail or noisy signal conditioner can mimic sensor drift, leading to misdiagnosis. Verify output voltage stability at the conditioner before condemning the transducer itself.

Inspect the 15-pin D-sub signal cable connecting the manometer to the readout unit — cable insulation breakdown, bent pins, or intermittent continuity are common causes of erratic pressure readings in high-temperature process environments. Keep a spare cable assembly in your maintenance kit alongside the transducer.

For systems using the MKS Type 247 Four-Channel Readout or MKS 651C Pressure Controller, confirm that the controller’s input channel assignment and full-scale range setting match the 627D11TBC1B’s output configuration after installation. A mismatch in range scaling will produce systematic measurement error even with a fully functional new sensor.

In gas delivery panels, the 627D11TBC1B is often installed upstream or downstream of MKS 1179 or 2179 Series Mass Flow Controllers (MFCs). If the pressure transducer is replaced due to contamination from process byproducts, inspect the adjacent MFC for similar contamination — particularly the flow body and valve seat — as both components share the same gas stream. Stocking a spare MFC alongside the manometer is a prudent procurement strategy for high-utilization process lines.

Additionally, review the condition of isolation valves, VCR fittings, and ConFlat flange gaskets at the transducer port. Micro-leaks at the vacuum interface will cause persistent zero offset that no amount of sensor replacement will resolve. A residual gas analyzer (RGA) port check or helium leak test at the fitting should be part of the replacement workflow for any vacuum-side pressure transducer.

For control cabinet integrity, verify that the 24 VDC instrument power supply feeding the MKS readout unit is within regulation, and that signal isolation modules on shared analog input cards are not introducing ground loops that corrupt the 0–10 V output signal. In multi-zone systems, a single noisy ground reference can affect all pressure channels simultaneously.

Site Replacement Workflow

Step 1 — Isolate and Vent: Close the upstream isolation valve and vent the process line to atmosphere or safe purge gas. Confirm pressure at zero on an independent gauge before breaking the vacuum fitting.

Step 2 — Document Baseline: Record the existing zero offset, span reading, and any alarm history from the MKS readout unit. This baseline helps verify that the replacement unit restores expected performance and is not masking a systemic process issue.

Step 3 — Remove and Inspect: Disconnect the 15-pin D-sub cable and unbolt the flange. Inspect the removed 627D11TBC1B for diaphragm discoloration, contamination deposits, or physical damage. This informs root cause analysis and future PM intervals.

Step 4 — Install Replacement: Mount the new 627D11TBC1B, torque flange bolts to specification, and reconnect the signal cable. Ensure the heated body reaches operating temperature (typically 45°C) before taking readings — cold-start zero offset is normal and will stabilize within 15–30 minutes.

Step 5 — Verify and Commission: Perform a zero calibration at base pressure and a span check at a known reference pressure using the MKS readout unit’s calibration menu. Confirm the reading matches the process setpoint within the specified accuracy band before returning the system to production.

Step 6 — Update Records: Log the replacement in your CMMS with the new unit’s serial number, installation date, and next scheduled inspection interval. Update your spare parts inventory to trigger reorder of the consumed 627D11TBC1B unit.

Spare Parts Support FAQ

Q1: Is the 627D11TBC1B a direct replacement for older MKS 627 Series units without recalibration?
A: In most cases, yes. The 627D11TBC1B is designed as a drop-in replacement within the 627 Series family, sharing the same output signal range, connector pinout, and flange interface. However, we recommend performing a zero and span verification on the host readout unit after installation, as individual unit tolerances may require a minor offset adjustment via the controller’s calibration function.

Q2: What is the recommended spare parts stocking strategy for the 627D11TBC1B?
A: For process-critical applications with a single point of failure, maintain a minimum of one unit on-site at all times. For multi-chamber facilities, a 1:4 ratio (one spare per four installed units) is a common procurement benchmark. NINERMAS supports long-term supply agreements to lock in pricing and ensure availability for extended production lifecycles.

Q3: How is each unit tested before shipment?
A: Every 627D11TBC1B supplied by NINERMAS undergoes functional verification including output signal check, zero offset measurement, and physical inspection prior to packaging. Units are shipped with protective caps on all process ports and connectors to prevent contamination in transit. A 12-month warranty from the shipment date covers manufacturing defects and functional failures under normal operating conditions.

Q4: Can NINERMAS support long-term supply for legacy MKS 627 Series components?
A: Yes. NINERMAS specializes in long-lifecycle spare parts support for industrial automation and semiconductor process equipment. We maintain stock and sourcing channels for MKS 627 Series variants including the 627D11TBC1B and related models, and can provide multi-year supply commitments to support your planned maintenance and capital equipment lifecycle programs.
