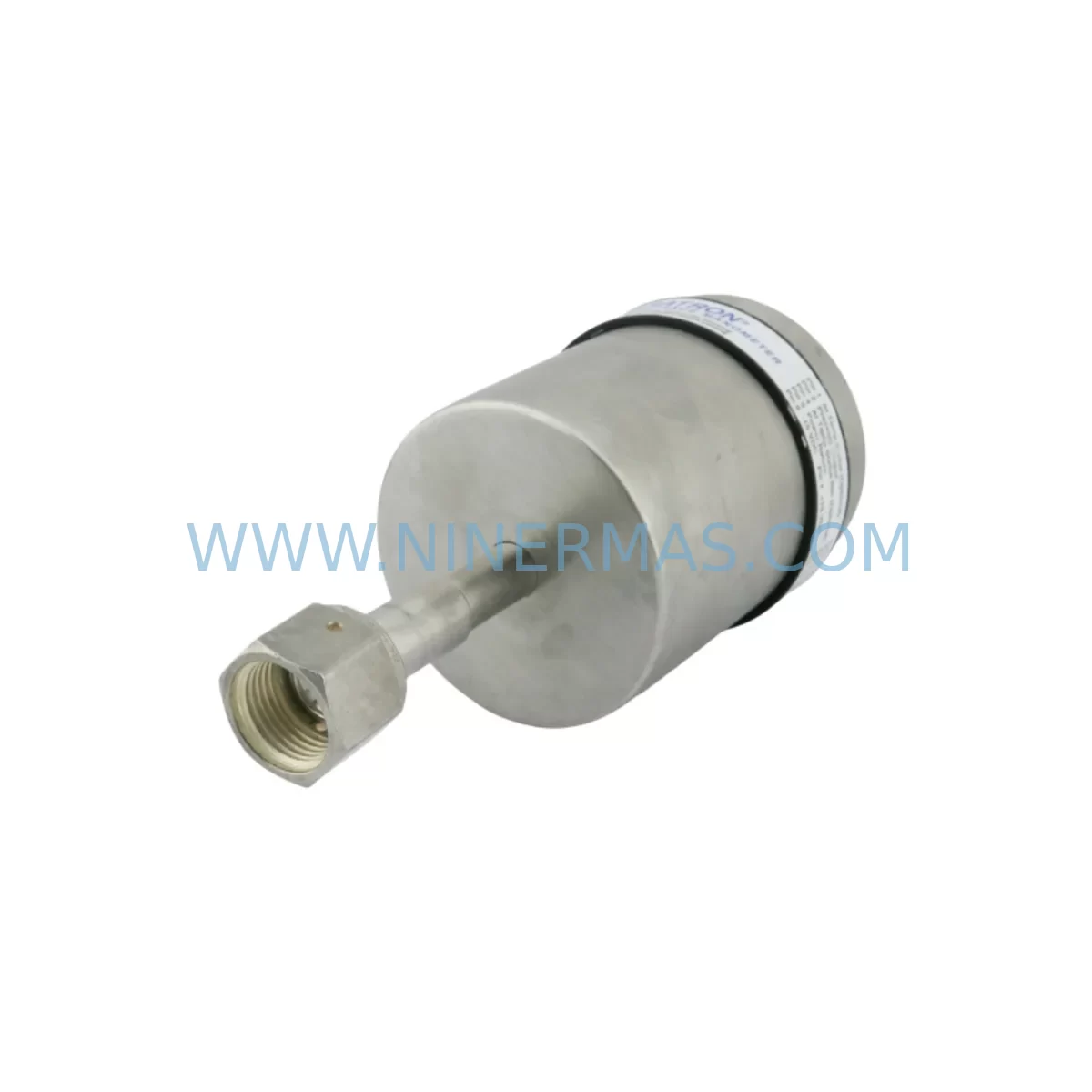

The MKS 627D11TBC1B is a ruggedized capacitance manometer from MKS Instruments’ Baratron 627D series, engineered for high-accuracy pressure measurement in demanding semiconductor and industrial vacuum environments. As CVD chambers, etch tools, and legacy vacuum systems age beyond their original service windows, the 627D11TBC1B has become a critical retrofit component for maintenance engineers and system integrators seeking to extend platform life without full-system replacement. With in-stock availability, pre-shipment functional testing, and a 12-month warranty, this unit is a proven solution for controlled, low-risk system modernization.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

When integrating the MKS 627D11TBC1B into a legacy CVD or PVD platform, a structured retrofit plan significantly reduces risk and unplanned downtime. The first step is a full audit of the existing pressure measurement loop: identify the signal conditioner in use — typically an MKS 670 Signal Conditioner or an integrated channel within an MKS 651C Pressure Controller — and confirm that the 0–10 VDC output of the 627D11TBC1B is within the accepted input range of the downstream controller.

Next, inspect the process connection. Many older tools use KF (NW) flanges or early ConFlat configurations that may not directly accept the VCR fitting on the 627D11TBC1B. Stainless steel adapter fittings are available and should be leak-checked with a helium mass spectrometer before returning the chamber to process. If the chamber also uses an MKS 600 Series Throttle Valve for pressure regulation, confirm that the valve’s control loop setpoint scaling remains valid after replacing the manometer — a recalibration of the pressure control loop is recommended.

For tools running multi-zone pressure control, the 627D11TBC1B is often installed alongside companion sensors such as the MKS 627D01TDC1B (a lower-range variant for process zones requiring sub-Torr resolution) or the MKS 628B Baratron for higher-pressure zones in the same chamber. Ensuring consistent sensor families across zones simplifies calibration and reduces cross-zone measurement error.

On the electrical side, verify the cable harness pinout against the 15-pin D-sub connector of the 627D11TBC1B. Legacy 627B installations may use a different pin assignment for the heater supply and sensor excitation lines. If the tool’s I/O rack uses analog input cards from a third-party PLC or DCS, confirm the input impedance is compatible with the manometer’s output driver. For systems using MKS 946 Vacuum System Controllers, the 627D11TBC1B integrates natively into the controller’s analog measurement channels without additional signal conditioning hardware.

Where the legacy tool uses an HMI panel for pressure display and alarm management, update the engineering unit scaling in the HMI configuration to reflect the new sensor’s full-scale range. If the HMI communicates with a PLC over a serial or Ethernet link, no protocol migration is required — the 627D11TBC1B’s analog output is transparent to the communication layer. However, if the tool is being upgraded to a digital pressure management architecture using the MKS PDR900 Digital Pressure Gauge or a networked MKS 651C, a firmware update to the controller may be necessary to enable digital readback alongside the analog loop.

For mass flow control integration, confirm that the MKS 1179A Mass Flow Controllers or equivalent units on the gas panel are not affected by the pressure loop recalibration. In CVD processes, pressure and flow are tightly coupled; a change in the pressure sensor’s zero offset can shift the effective process pressure setpoint and alter deposition rates. A short process qualification run — typically 3–5 wafers — is recommended after any manometer replacement to verify process stability before returning to full production.

Downtime Control During System Migration

Minimizing downtime during a manometer replacement requires preparation before the tool is taken offline. Begin by documenting the current pressure controller setpoints, alarm thresholds, and PID parameters from the MKS 651C or equivalent controller. Export or photograph the HMI screen configurations and any recipe-level pressure targets stored in the tool’s process controller. This documentation ensures that if the replacement unit requires a zero-offset correction, the process recipes can be updated quickly without re-engineering the control loop from scratch.

During the physical swap, isolate the chamber from the process gas supply and pump down to rough vacuum before venting to nitrogen. Remove the legacy manometer, inspect the port for contamination or corrosion, and clean with isopropyl alcohol before installing the 627D11TBC1B. Torque the VCR fitting to the manufacturer’s specification — typically 1/8 turn past finger-tight for stainless VCR — and perform a static leak check before reconnecting the pump.

After installation, power the manometer through the MKS 670 Signal Conditioner or the tool’s existing power supply and allow a minimum 30-minute warm-up period for the heated sensor to stabilize. Perform a zero calibration at base pressure (below 1×10⁻³ Torr) before running the pressure control loop. For tools with automated recipe execution, a manual pressure step test — ramping from base pressure to full-scale in 10% increments — confirms linearity and loop stability before returning the tool to production. Total planned downtime for a well-prepared manometer swap is typically 4–8 hours, including leak check and process qualification.

Retrofit Support FAQ

Q: Is the MKS 627D11TBC1B a direct drop-in replacement for the MKS 627B series?
A: In most cases, yes — the 627D series shares the same Baratron body envelope and process connection options as the 627B. However, the electrical connector pinout and heater voltage may differ between generations. Always compare the suffix codes of the legacy unit and the replacement before installation, and verify the cable harness pinout against the 627D11TBC1B datasheet.

Q: What pre-shipment testing is performed on the 627D11TBC1B?
A: Every unit shipped by NINERMAS undergoes functional verification including zero offset measurement, span accuracy check across the full-scale range, heater continuity test, and static leak integrity check. A test report is available upon request. All units are covered by a 12-month warranty from the date of shipment.

Q: Can the 627D11TBC1B be used with a digital pressure controller, or is it analog-only?
A: The 627D11TBC1B provides a 0–10 VDC analog output and is designed for use with analog-input pressure controllers such as the MKS 651C. It does not natively support digital communication protocols such as RS-232 or DeviceNet. For digital integration, a signal conditioner such as the MKS 670 with digital output capability, or an analog-to-digital I/O module in the PLC rack, is required.

Q: What is the lead time and stock availability?
A: NINERMAS maintains reserved inventory of the MKS 627D11TBC1B to support urgent maintenance and unplanned downtime scenarios. Standard lead time for in-stock units is 3–7 business days for international shipment. Contact our team for current stock levels and expedited shipping options.
