MKS 624A12TBC Service-Ready Spare Part for Industrial Maintenance

MKS 624A12TBC Service-Ready Spare Part for Industrial Maintenance

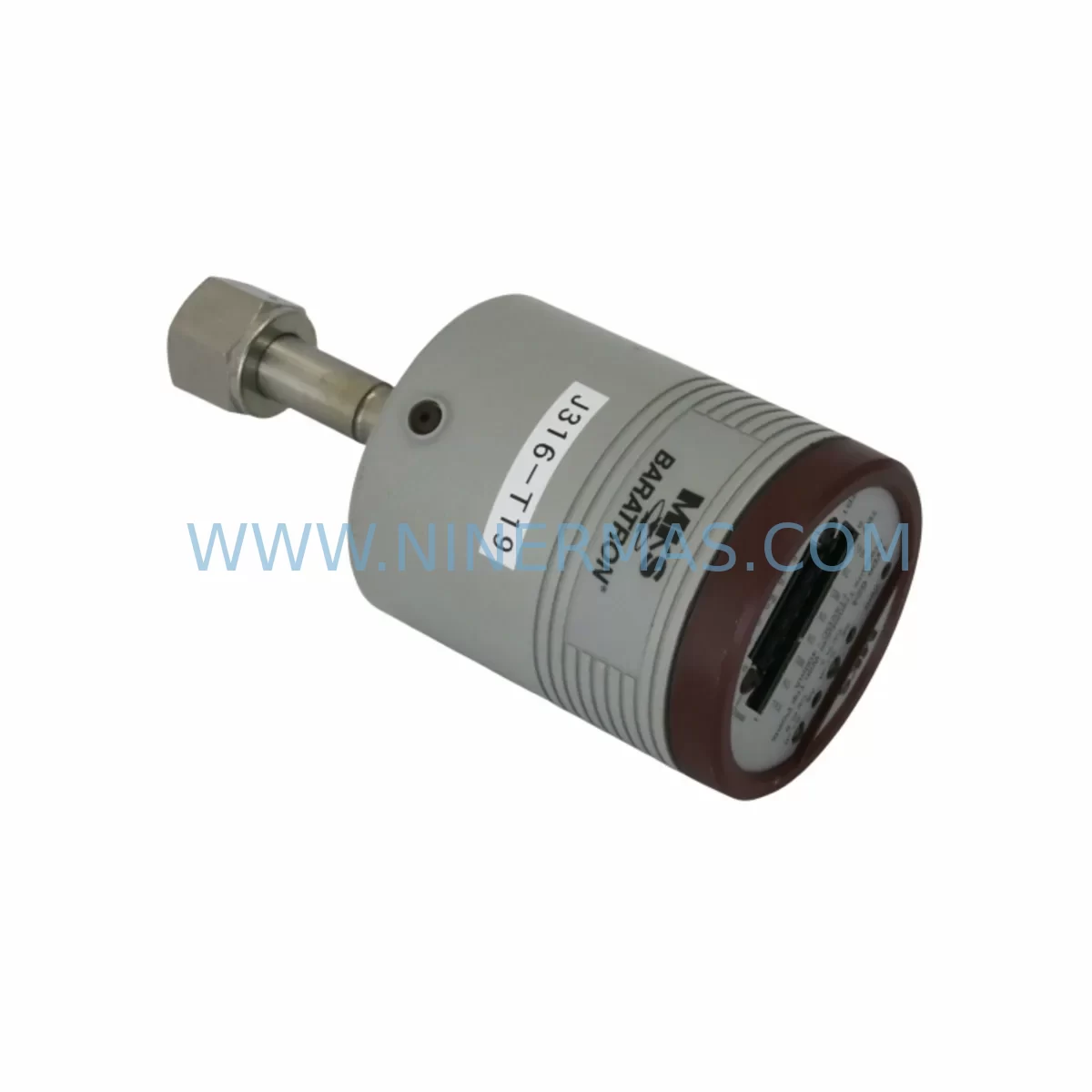

The MKS 624A12TBC is a precision capacitance manometer transducer from MKS Instruments, designed for high-accuracy pressure measurement in semiconductor fabrication, vacuum processing, and industrial automation environments. As a service-ready original spare part, the 624A12TBC is a direct replacement for aging or failed Baratron series pressure sensors deployed across CVD, PVD, etch, and diffusion systems. Procurement engineers and maintenance teams operating in high-uptime environments rely on this component to restore system pressure feedback loops quickly, minimizing unplanned downtime and protecting process integrity.

NINERMAS maintains verified stock of the MKS 624A12TBC and related Baratron series components, each subject to pre-shipment functional testing and shipped with a 12-month warranty. Whether you are executing a scheduled annual overhaul, responding to an emergency sensor failure, or building a strategic spare parts inventory for a multi-tool fab, the 624A12TBC is a critical line item that should be stocked at the site level to support MTTR targets of four to six hours.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the MKS 624A12TBC in a vacuum process chamber or industrial control cabinet, a thorough site inspection of the surrounding electrical and pneumatic circuit is essential to prevent repeat failures and ensure a clean return to operation. Maintenance engineers should treat the 624A12TBC replacement as an opportunity to audit the full pressure measurement loop.

Begin by verifying the ±15 VDC power supply rail feeding the Baratron transducer. A degraded or noisy power supply — such as a failing MKS 62C or equivalent dual-rail industrial power module — can cause erratic pressure readings even after a sensor replacement. Inspect the signal cable assembly (typically a KK5002C or equivalent shielded cable harness) for insulation damage, connector corrosion, or intermittent contact at the D-sub or circular connector interface. Cable integrity is frequently overlooked and is a common root cause of recurring sensor faults.

Next, inspect the MKS 651C or 252A pressure controller or flow controller that receives the 624A12TBC analog output. Verify that the controller’s input calibration and full-scale range settings match the 100 Torr range of the replacement sensor. If the system uses a 1900K1-1018 signal conditioning board or a CENTON CPCB-00401 interface card, confirm that the board’s gain and offset trimmers are within specification and that no electrolytic capacitors show signs of bulging or leakage — these boards are age-sensitive and should be included in the annual inspection checklist.

For systems using a Baratron 627D or 722B as a secondary reference gauge on the same vacuum line, cross-check the readings between the new 624A12TBC and the reference gauge during pump-down to validate calibration. If the system includes an MKS 2000A multi-channel pressure display or a similar HMI readout, update the channel label and engineering unit configuration to reflect the replacement sensor’s serial number for traceability.

Additional components to inspect during the same maintenance window include: the KF16 or NW16 centering ring and O-ring seal at the sensor flange (replace if compressed or cracked), any in-line isolation valve or angle valve on the gauge port, the 92-005649-0X or 20-005650-02 interface PCB if installed in the controller rack, and the terminal block or DIN rail wiring associated with the analog signal return. Fuse holders on the ±15 VDC supply lines should also be checked for oxidation. Stocking a set of these consumable and wear-prone components alongside the 624A12TBC sensor in your site spare parts kit will significantly reduce the risk of a secondary fault extending the downtime window beyond your MTTR target.

Site Replacement Workflow

The MKS 624A12TBC is a direct form-fit-function replacement for earlier Baratron 624 series variants and compatible with all standard MKS pressure controller platforms. The replacement procedure follows a structured sequence to maintain system compatibility and minimize process disruption:

Step 1 — Isolation: Vent the vacuum chamber to atmosphere and close the isolation valve on the gauge port. De-energize the ±15 VDC supply to the sensor head before disconnecting any cables.

Step 2 — Removal: Disconnect the KK5002C signal cable at the sensor connector. Loosen the KF clamp and remove the 624A12TBC from the NW16 flange. Inspect the flange face for contamination or process deposits.

Step 3 — Installation: Install a new KF16 O-ring and centering ring. Mount the replacement 624A12TBC and torque the clamp to specification. Reconnect the signal cable, ensuring the connector is fully seated and the locking ring is engaged.

Step 4 — Verification: Re-energize the power supply and allow the sensor to warm up for a minimum of 15 minutes before taking readings. Perform a zero-point calibration at base pressure using the MKS 651C or 252A controller’s auto-zero function. Compare readings against a reference gauge if available.

Step 5 — Documentation: Record the replacement sensor serial number, installation date, and calibration result in the equipment maintenance log. Update the spare parts inventory to trigger a reorder for the consumed 624A12TBC unit, maintaining a minimum buffer stock of one unit per tool or per process zone.

This workflow preserves original program logic, maintains system compatibility with existing MKS controller configurations, and supports regulatory and safety audit requirements in ISO- and SEMI-compliant facilities.

Spare Parts Support FAQ

Q1: Is the MKS 624A12TBC available for long-term supply, and can NINERMAS reserve stock for scheduled maintenance programs?
Yes. NINERMAS supports long-term supply agreements and reserved inventory programs for the 624A12TBC and related Baratron series components. Contact our sales team to discuss minimum stock commitments, lead time guarantees, and annual blanket order arrangements that align with your planned maintenance schedule.

Q2: What pre-shipment testing is performed on the 624A12TBC before delivery?
Every unit undergoes functional verification prior to shipment, including power-on testing, output signal verification across the measurement range, and visual inspection for mechanical integrity. Units that do not meet specification are quarantined and not shipped. A 12-month warranty is provided from the date of shipment.

Q3: How do I confirm compatibility between the 624A12TBC and my existing MKS pressure controller?
The 624A12TBC is compatible with all standard MKS Baratron-compatible controllers, including the 651C, 252A, and 2000A series, as well as third-party systems that accept a 0–10 VDC analog pressure signal on a ±15 VDC supply. Verify your controller’s input range and full-scale pressure setting before installation. If you require compatibility confirmation for a specific system configuration, provide your controller model and cable assembly part number to our technical team.

Q4: What is the recommended spare parts stocking strategy for the 624A12TBC in a multi-tool facility?
For facilities operating three or more tools using Baratron 624 series sensors, NINERMAS recommends maintaining a minimum of one spare 624A12TBC per process zone, plus one additional unit as a facility-level emergency buffer. Pair this with a stock of KF16 O-rings, centering rings, and a spare KK5002C cable assembly to ensure a complete replacement kit is available at all times. Annual review of consumption rates and lead times is advised to adjust buffer quantities as the installed base ages.
