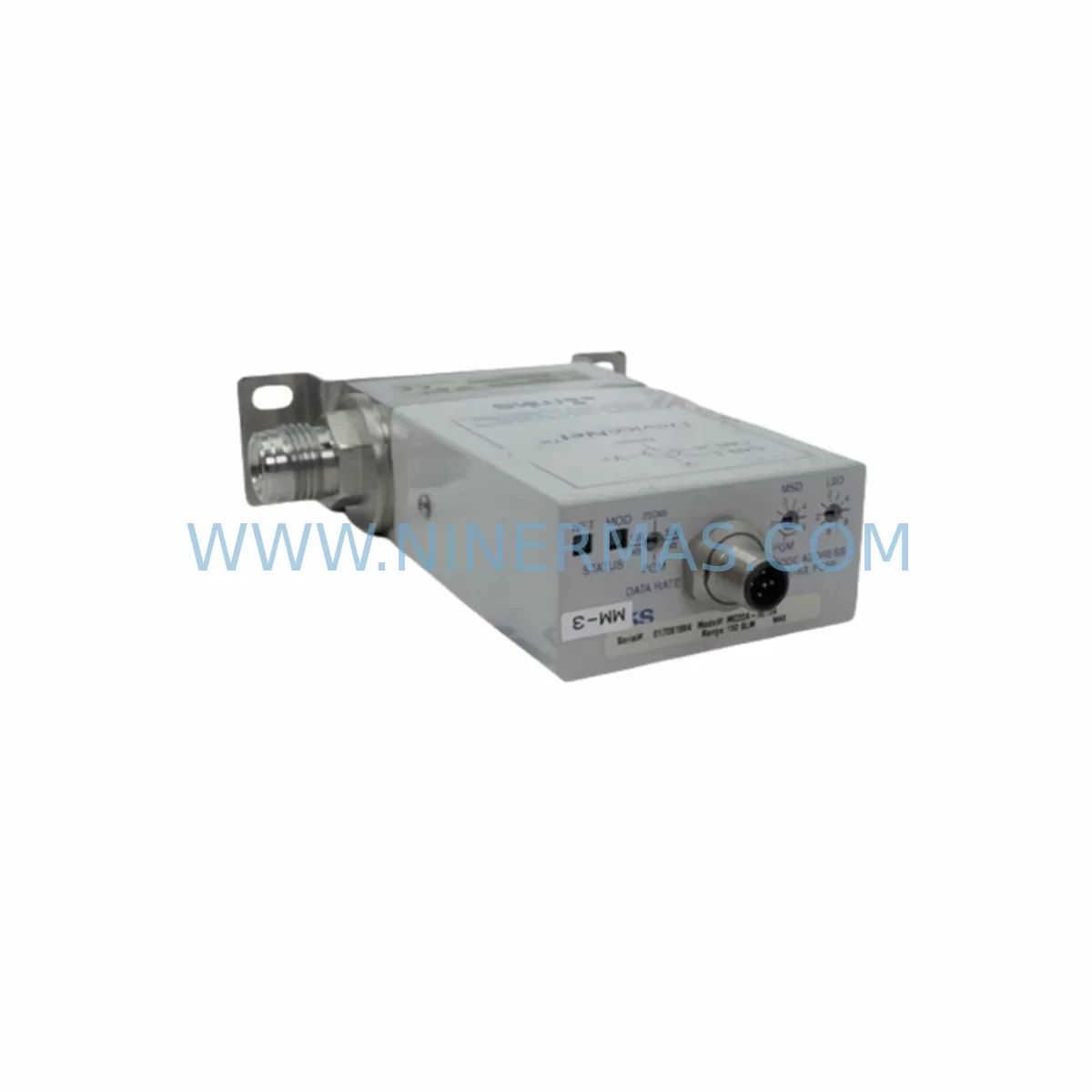

The MKS MC20A-30190 is a ruggedized mass flow controller (MFC) engineered for demanding industrial process environments where precision gas flow measurement and control are mission-critical. As a direct service-ready spare part, the MC20A-30190 is stocked and dispatched to support rapid replacement during unplanned shutdowns, scheduled turnarounds, and preventive maintenance programs across semiconductor fabrication, chemical processing, industrial gas handling, and advanced manufacturing facilities.

Downtime in process-critical environments is never acceptable. Whether your maintenance team is responding to a flow deviation alarm, executing a planned annual overhaul, or building a resilient spare parts inventory for aging MKS-equipped control systems, the MC20A-30190 delivers the original-specification performance required to restore operations without compromise. Every unit shipped by NINERMAS undergoes pre-dispatch functional verification and is backed by a 12-month warranty, giving procurement and maintenance engineers the confidence to plan long-term supply commitments.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance or reliability engineer identifies the MKS MC20A-30190 as a replacement requirement, the scope of inspection should extend beyond the MFC itself. A mass flow controller sits at the intersection of gas delivery, power distribution, and process control signal chains — meaning a single failure event often reveals adjacent wear or degradation in connected components.

During any MC20A-30190 replacement, the maintenance team should simultaneously inspect the MKS PR4000B flow ratio controller or equivalent ratio/pressure controller upstream, as flow set-point deviations are frequently caused by upstream pressure instability rather than MFC failure alone. The MKS 600 series pressure transducer or inline pressure sensor feeding the MFC manifold should be checked for calibration drift, particularly in high-cycle or corrosive gas service.

On the power supply side, the ±15 VDC or +24 VDC instrument power rail supplying the MC20A-30190 should be verified for voltage stability and ripple. Aging DIN-rail mounted SITOP or equivalent 24 VDC power supply modules in the control cabinet are a common source of intermittent MFC signal errors and should be included in the spare parts checklist for any facility running legacy MKS-equipped process panels.

Signal integrity between the MC20A-30190 and the process controller or PLC should be confirmed. Inspect the analog I/O signal cables and terminal blocks for corrosion, loose crimps, or insulation degradation — particularly in environments with chemical exposure. Where digital communication variants are deployed, verify the RS-232 or DeviceNet interface module and associated wiring harness for continuity and correct termination.

For facilities using MKS Type 247 or 651 multi-channel readout and control units, the channel card associated with the MC20A-30190 circuit should be inspected and, if showing signs of age, added to the preventive replacement schedule. Similarly, solenoid valve assemblies in the gas delivery manifold — often MKS 248A or equivalent — should be cycled and tested during any MFC replacement event to confirm full shutoff and response time.

Procurement engineers building a resilient spare parts inventory for MKS-equipped systems should consider stocking the MC20A-30190 alongside MKS 1179A or 1480A general-purpose MFC variants for cross-compatibility in lower-criticality flow loops, as well as MKS 670 signal conditioner modules for analog output buffering. Fuse holders and instrument-grade fuses rated for the MFC power circuit are low-cost, high-impact spares that are frequently overlooked until a nuisance trip causes an unplanned outage.

For facilities with aging control cabinets, a proactive inspection of terminal strip assemblies (Phoenix Contact or equivalent), cable duct integrity, and grounding bus continuity during the MC20A-30190 replacement window maximizes the value of each maintenance intervention and reduces the probability of a secondary failure within the same maintenance cycle.

Site Replacement Workflow

Step 1 — Isolation and Lockout/Tagout: Isolate the gas supply to the affected MFC manifold and apply LOTO procedures to the instrument power rail. Confirm zero-energy state on both the gas and electrical circuits before proceeding.

Step 2 — Documentation and Baseline Recording: Record the current flow set-point, actual flow reading, and any active alarms from the process controller or HMI display. Photograph the existing wiring and tubing connections for reference during reinstallation.

Step 3 — Removal of the Faulty MC20A-30190: Disconnect the signal cable connector (typically a 15-pin D-sub or equivalent), remove the power connector, and carefully disconnect the inlet and outlet gas fittings. Cap all open gas ports immediately to prevent contamination.

Step 4 — Compatibility Verification: Before installing the replacement MC20A-30190, confirm the full part number, gas calibration range, and control interface type match the system documentation. Cross-reference with the original MKS calibration certificate if available.

Step 5 — Installation and Reconnection: Install the replacement unit, reconnect gas fittings to the specified torque, and reattach the signal and power connectors. Restore instrument power and perform a zero-flow check before reintroducing process gas.

Step 6 — Functional Verification: Command the MFC through its full flow range from the process controller or a portable calibrator. Confirm set-point tracking, response time, and zero/span accuracy meet process specifications before returning the system to production.

Step 7 — Documentation Closure: Update the maintenance management system (CMMS) with the replacement date, new unit serial number, and post-installation test results. Flag the MC20A-30190 spare parts stock level for replenishment to maintain minimum inventory coverage.

Spare Parts Support FAQ

Q1: Is the MC20A-30190 a direct drop-in replacement for the existing unit in my system?
The MC20A-30190 is designed as a direct replacement within the MKS MC20A series footprint. However, mass flow controllers are calibrated for specific gas types and flow ranges. Always verify that the replacement unit’s gas calibration, full-scale range, and control interface (analog vs. digital) match your system’s original specification before installation. NINERMAS can assist with compatibility verification prior to order confirmation.

Q2: What does the 12-month warranty cover, and what is the claims process?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, exposure to gases outside the unit’s calibrated range, or physical damage in transit. To initiate a warranty claim, contact NINERMAS at sale@ninermas.com with the order reference, unit serial number, and a description of the failure. Replacement or repair will be coordinated promptly.

Q3: How should I structure a long-term spare parts inventory strategy for MKS MFC components?
For facilities with multiple MKS MC20A-series MFCs in service, a minimum stock of one replacement unit per critical flow loop is recommended. For high-utilization or corrosive-gas service applications, a two-unit buffer is advisable. NINERMAS supports long-term supply agreements and can provide scheduled delivery programs to maintain your inventory without requiring large upfront purchases. Contact our team to discuss a tailored spare parts program aligned with your annual maintenance calendar.

Q4: What pre-shipment testing is performed on the MC20A-30190 before dispatch?
Every MC20A-30190 unit dispatched by NINERMAS undergoes functional verification including power-on self-test, zero-flow baseline check, and signal output confirmation prior to packaging. Units are shipped with appropriate protective packaging to prevent transit damage. A test report or certificate of conformance can be provided upon request at the time of order.

—
