MKS 626A01TDE Safety-Reliable Pressure Transducer for Critical Control

MKS 626A01TDE Safety-Reliable Pressure Transducer for Critical Control

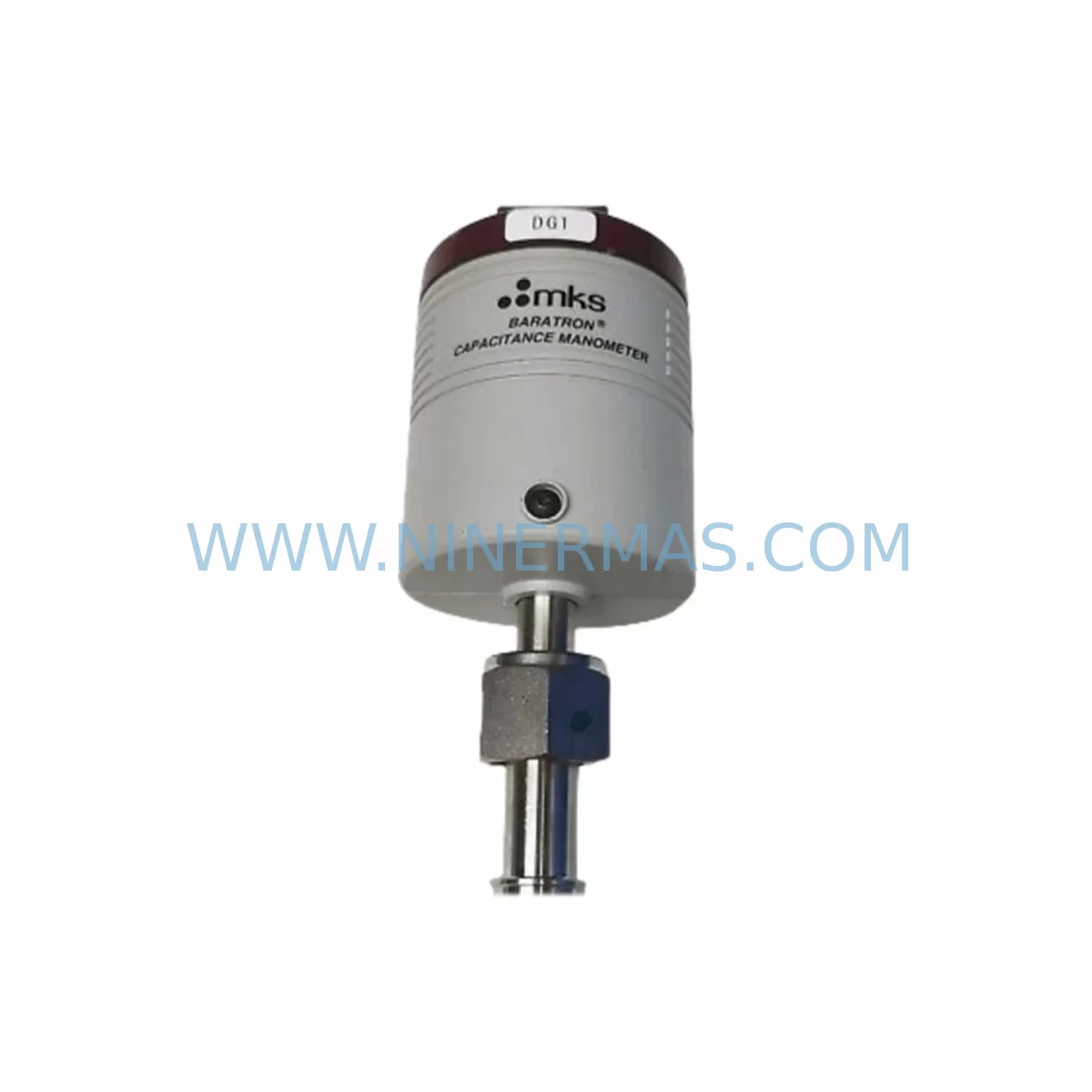

The MKS 626A01TDE is a high-precision capacitance manometer from MKS Instruments’ industry-proven Baratron 626 Series, engineered for absolute pressure measurement in the most demanding critical control environments. Designed to deliver consistent, drift-free signal output across continuous production cycles, this transducer is a cornerstone component for process engineers and maintenance specialists who cannot afford measurement uncertainty in safety-critical loops. Whether deployed in semiconductor fabrication, chemical processing, or high-purity gas distribution systems, the 626A01TDE provides the measurement integrity that underpins safe, uninterrupted plant operation.

In industrial environments where pressure deviations directly trigger safety interlocks or emergency shutdown sequences, signal reliability is non-negotiable. The MKS 626A01TDE delivers a stable, temperature-compensated output that resists drift even under sustained thermal cycling, vibration, and electromagnetic interference — conditions routinely encountered in heavy-load control cabinets and field-mounted enclosures. Its all-metal sensor construction eliminates contamination risk from process gases, making it suitable for corrosive, reactive, and ultra-high-purity applications where sensor degradation could compromise both product quality and personnel safety.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a well-engineered critical control cabinet, the MKS 626A01TDE does not operate in isolation — it is one node in a layered protection architecture. Upstream, a MKS Type 670 Signal Conditioner provides regulated ±15 VDC excitation and conditions the transducer output before it reaches the PLC analog input card, eliminating ground loop noise and power fluctuation that could cause false readings or nuisance trips. Alongside the 626A01TDE, a MKS PDR-C-2C Dual-Channel Pressure Display and Controller provides real-time setpoint monitoring and relay-based interlock output, enabling operators to configure high/low pressure alarms that feed directly into the safety instrumented system (SIS).

For installations where the control cabinet is located in high electromagnetic interference zones — near variable frequency drives, large motor starters, or arc welding equipment — pairing the 626A01TDE with a MKS PR-4000B Multi-Channel Power Supply and Readout provides additional signal isolation and surge suppression. The PR-4000B’s built-in filtering architecture prevents transient voltage spikes from propagating back to the sensor, protecting calibration integrity over extended service intervals. In parallel, a Phoenix Contact QUINT-PS/1AC/24DC/10 DIN-rail power supply with SFB (Selective Fuse Breaking) technology ensures that a downstream short circuit does not collapse the 24 VDC bus serving the transducer’s signal conditioning chain.

Where the 626A01TDE feeds into a Siemens S7-300 or S7-400 PLC analog input module (such as the SM 331 or SM 334), proper shielded cable routing and PE bonding at a single point prevents common-mode interference from corrupting the 0–10 VDC signal. For safety loop validation, a Fluke 789 ProcessMeter or equivalent loop calibrator allows technicians to inject a known pressure-equivalent voltage and verify the full signal chain — from transducer output through the analog input card to the SCADA historian — without interrupting the process. Completing the protection layer, a Weidmüller DEK 6 surge protection terminal block installed at the cabinet entry point guards against lightning-induced transients and power line surges that could otherwise damage the sensor’s precision electronics.

Critical Industrial Safety Applications

The MKS 626A01TDE is deployed across a broad spectrum of safety-critical industrial environments where pressure measurement accuracy directly governs process safety and regulatory compliance.

In semiconductor and flat-panel display fabrication, the 626A01TDE monitors process chamber pressure during CVD, PVD, and etch sequences. A pressure deviation of even a few mTorr can alter film stoichiometry, trigger particle contamination events, or — in the case of reactive gas processes — create conditions for uncontrolled exothermic reactions. The transducer’s sub-1% accuracy and fast response time ensure that the chamber pressure control loop maintains setpoint within the process window, protecting both the wafer batch and the equipment.

In petrochemical and refinery operations, the 626A01TDE is used in low-pressure measurement applications within distillation column overhead systems, vacuum dehydration units, and flare header monitoring. Accurate low-pressure measurement in these systems is essential for preventing column flooding, maintaining safe vapor-liquid equilibrium, and ensuring that flare systems operate within their design envelope. A failed or drifted pressure transducer in these loops can lead to unplanned shutdowns, product loss, or — in worst-case scenarios — overpressure events that challenge relief valve integrity.

In pharmaceutical and biotech manufacturing, the 626A01TDE supports lyophilization (freeze-drying) chamber pressure control, where precise vacuum measurement is critical to product quality and batch release. Regulatory frameworks such as FDA 21 CFR Part 11 and EU GMP Annex 1 require documented evidence of instrument calibration and performance — requirements that the 626A01TDE’s traceable calibration certificate and 12-month warranty period directly support.

In power generation and utility plants, the transducer is applied in turbine lube oil vacuum systems, condenser vacuum monitoring, and hydrogen-cooled generator seal oil systems. In these applications, measurement reliability is directly linked to equipment protection: a loss of vacuum indication in a condenser system, for example, can lead to turbine back-pressure exceedances that trigger automatic load shedding or unit trip.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the MKS 626A01TDE?
The 12-month warranty covers manufacturing defects, calibration integrity, and sensor performance under normal operating conditions. Each unit undergoes pre-shipment functional verification and calibration check against traceable standards. If a unit fails to meet its published specifications within the warranty period under normal use, NINERMAS will provide replacement or repair support. Warranty documentation is provided with each shipment.

Q2: What pre-shipment testing is performed on the 626A01TDE before delivery?
Every MKS 626A01TDE unit sourced and supplied by NINERMAS undergoes a pre-shipment inspection that includes visual examination for physical integrity, connector and cable continuity check, power-on functional verification, and output signal linearity spot-check. Units that do not pass inspection are quarantined and not shipped. Test records are retained and available upon request for quality-critical procurement processes.

Q3: Is the 626A01TDE a direct drop-in replacement for existing Baratron 626 Series installations?
Yes. The MKS 626A01TDE is a direct mechanical and electrical replacement for other Baratron 626 Series variants with the same full-scale range and output configuration. It uses the standard MKS 15-pin D-sub connector and is compatible with existing MKS signal conditioners including the PDR-C-2C, PR-4000B, and Type 670. No wiring modifications or software reconfiguration are required for like-for-like replacement in most installations. For non-standard configurations, NINERMAS technical support can advise on compatibility prior to order.

Q4: Can NINERMAS guarantee long-term supply of the MKS 626A01TDE for ongoing maintenance programs?
NINERMAS maintains strategic inventory of high-demand MKS Baratron spare parts to support planned maintenance, emergency replacement, and multi-year service contracts. For facilities operating multiple 626 Series transducers, we recommend establishing a standing spare parts agreement to ensure availability without lead-time risk. Contact our technical sales team to discuss volume pricing, consignment stock arrangements, and scheduled delivery programs tailored to your maintenance cycle.
