EPRO PR6423/000-040 CON021 Retrofit-Compatible Proximitor for Legacy Systems

EPRO PR6423/000-040 CON021 Retrofit-Compatible Proximitor for Legacy Vibration Monitoring Systems

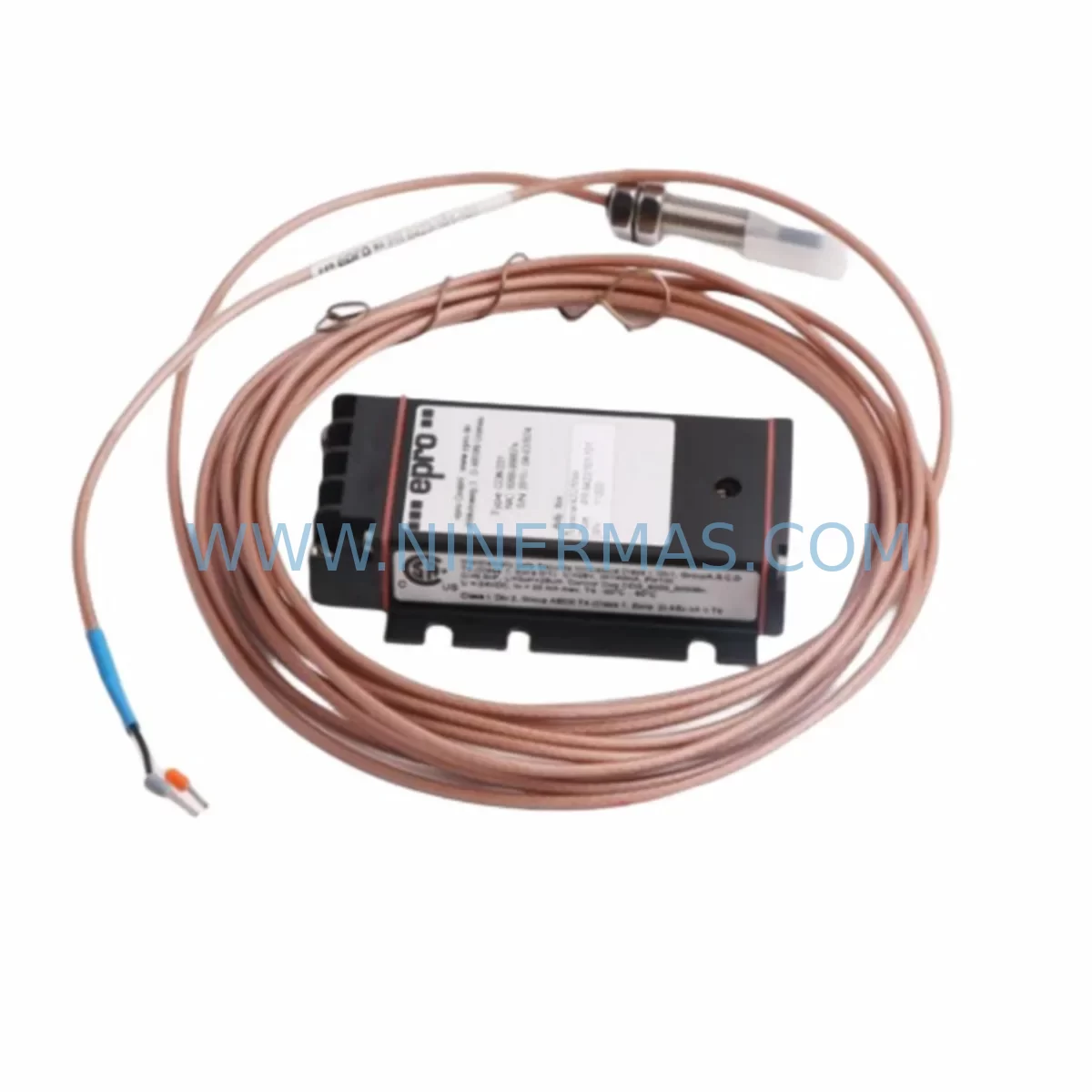

The EPRO PR6423/000-040 CON021 is a retrofit-compatible proximitor signal conditioner engineered to replace and upgrade aging eddy-current proximity measurement modules in legacy industrial control and machinery protection systems. Designed for seamless integration into existing control cabinets and monitoring racks, this unit supports the migration of critical rotating machinery protection infrastructure without requiring full system replacement. It is widely deployed in turbine protection panels, compressor monitoring skids, and generator vibration monitoring systems across oil & gas, power generation, and petrochemical processing facilities.

As original EPRO PR6423 series modules approach end-of-life and OEM support is discontinued, plant engineers and reliability teams face increasing pressure to source verified replacement units that maintain signal integrity, terminal compatibility, and system-level interoperability. The PR6423/000-040 CON021 addresses this challenge directly — providing a validated retrofit path that preserves existing wiring, maintains compatibility with downstream monitoring systems, and eliminates the need for costly panel redesign or PLC reprogramming.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the PR6423/000-040 CON021 within an active machinery protection system requires a structured approach to avoid signal interruption and protect existing program logic. Before initiating the swap, engineers should audit the full signal chain: from the proximity probe (typically an EPRO PR6424 series tip with matched extension cable) through the proximitor itself, and on to the connected monitor card — commonly an EPRO PR9268 or a Bently Nevada 3300 XL series monitor in mixed-vendor installations.

Power supply integrity is the first checkpoint. The PR6423/000-040 CON021 draws from the rack’s -24 VDC bus, supplied by the panel’s dedicated EPRO PR9376 or equivalent power supply module. Confirm that the existing PSU has sufficient current headroom to support the replacement unit alongside other active modules in the same rack. Overloaded power rails are a common root cause of intermittent faults following module swaps.

Terminal wiring on the PR6423 series follows a standardised EPRO screw-terminal layout. In most direct replacement scenarios, existing field cables can be transferred terminal-for-terminal without modification. However, if the installation has been previously modified — for example, to interface with a Bently Nevada 3500/42M position monitor or a third-party vibration transmitter — verify the wiring diagram against the current as-built documentation before disconnecting any conductors.

Where the control system includes a Siemens S7-300 or GE Fanuc Series 90-30 PLC receiving analogue vibration signals from the monitoring rack, confirm that the 4–20 mA or voltage input range configured in the PLC’s analogue input module (such as a Siemens SM 331 or GE IC693ALG222) matches the output specification of the replacement PR6423/000-040 CON021. No PLC program changes are typically required for a like-for-like proximitor replacement, but input scaling parameters should be verified in the engineering workstation before returning the loop to service.

For installations where the HMI — whether a Siemens TP700 Comfort panel or a SCADA workstation running on an Emerson DeltaV or ABB 800xA platform — displays real-time vibration trend data, confirm that the tag scaling and alarm setpoints remain valid after the module swap. Gap voltage and sensitivity values for the new unit should be documented and, if necessary, updated in the HMI tag database to reflect any minor calibration differences between the outgoing and incoming proximitor.

Backplane and rack slot alignment must also be confirmed. In multi-module EPRO racks, adjacent modules such as the EPRO PR9268 monitor card and associated relay output modules occupy fixed slot positions. Ensure the replacement PR6423/000-040 CON021 is seated in the correct slot and that the backplane connector is fully engaged before applying power. Partial seating is a frequent cause of no-output faults that can be misdiagnosed as module failure.

Downtime Control During System Migration

Minimising unplanned downtime during a proximitor replacement is a primary concern for plant reliability engineers. The PR6423/000-040 CON021 is designed to support a rapid swap procedure that, when properly planned, can be completed within a single planned maintenance window — typically under two hours for a single-channel replacement in an accessible control cabinet.

The recommended sequence begins with a pre-outage audit: photograph the existing terminal wiring, record the as-found gap voltage (typically between -10 V and -18 V for a correctly gapped EPRO probe), and note the current vibration reading on the monitor. This baseline documentation protects the original program logic and provides a reference for post-installation verification.

During the swap, isolate the affected channel at the monitor card — using the channel inhibit function available on most EPRO PR9268 and Bently Nevada 3500 series monitors — to prevent spurious trips or alarms from propagating to the DCS or safety system while the proximitor is disconnected. This inhibit function preserves the integrity of the overall machinery protection system and keeps the remaining channels active throughout the maintenance activity.

After installing the PR6423/000-040 CON021, re-establish the probe gap to the manufacturer’s recommended clearance, verify the bias voltage output, and confirm the AC vibration signal level against the pre-outage baseline. Once the as-left readings are within acceptable tolerance, release the channel inhibit and return the system to normal monitoring. All as-found and as-left data should be recorded in the plant’s maintenance management system (CMMS) to support future reliability analysis and spare parts lifecycle planning.

For sites operating under IEC 61511 functional safety requirements, the replacement activity should be documented as a proof test and reviewed against the SIL verification record for the affected protection loop. Confirm with the site safety engineer whether a partial stroke test or full functional test of the associated shutdown logic is required following the module replacement.

Retrofit Support FAQ

Q1: Is the EPRO PR6423/000-040 CON021 a direct drop-in replacement for other PR6423 series variants?
The PR6423/000-040 CON021 is designed as a direct replacement within the PR6423 series. Minor variant differences (e.g., sensitivity range or output scaling) may exist between sub-variants. Confirm the full part number of the outgoing module and compare the specification sheets before installation. In most cases, terminal wiring and mechanical form factor are identical across the series.

Q2: What commissioning steps are required after installation?
After seating the module and reconnecting field wiring, perform a gap voltage check using a calibrated voltmeter at the proximitor output terminals. Adjust the probe gap to achieve the target bias voltage specified in the EPRO installation manual (typically -10 V to -18 V depending on probe type and gap distance). Verify the AC vibration output against a known reference or the pre-outage baseline reading. Document all as-left values before returning the channel to service.

Q3: Does NINERMAS pre-test units before shipment?
Yes. All PR6423/000-040 CON021 units supplied by NINERMAS undergo functional verification prior to dispatch, including power-up testing and output signal confirmation. Units are shipped with a test report and are covered by a 12-month warranty against manufacturing defects and functional failure under normal operating conditions.

Q4: What is the typical lead time and stock availability?
NINERMAS maintains stock of the PR6423/000-040 CON021 to support urgent replacement requirements. Standard lead time for in-stock units is 3–7 business days for international shipment. For large-quantity orders or long-term spare parts programmes, contact our team to discuss reserved stock arrangements and scheduled delivery options.
