Bently Nevada 330704-00-050-10-01-05 Service-Ready Spare Part

Bently Nevada 330704-00-050-10-01-05 Service-Ready Spare Part: Spare Replacement and Downtime Risk Control

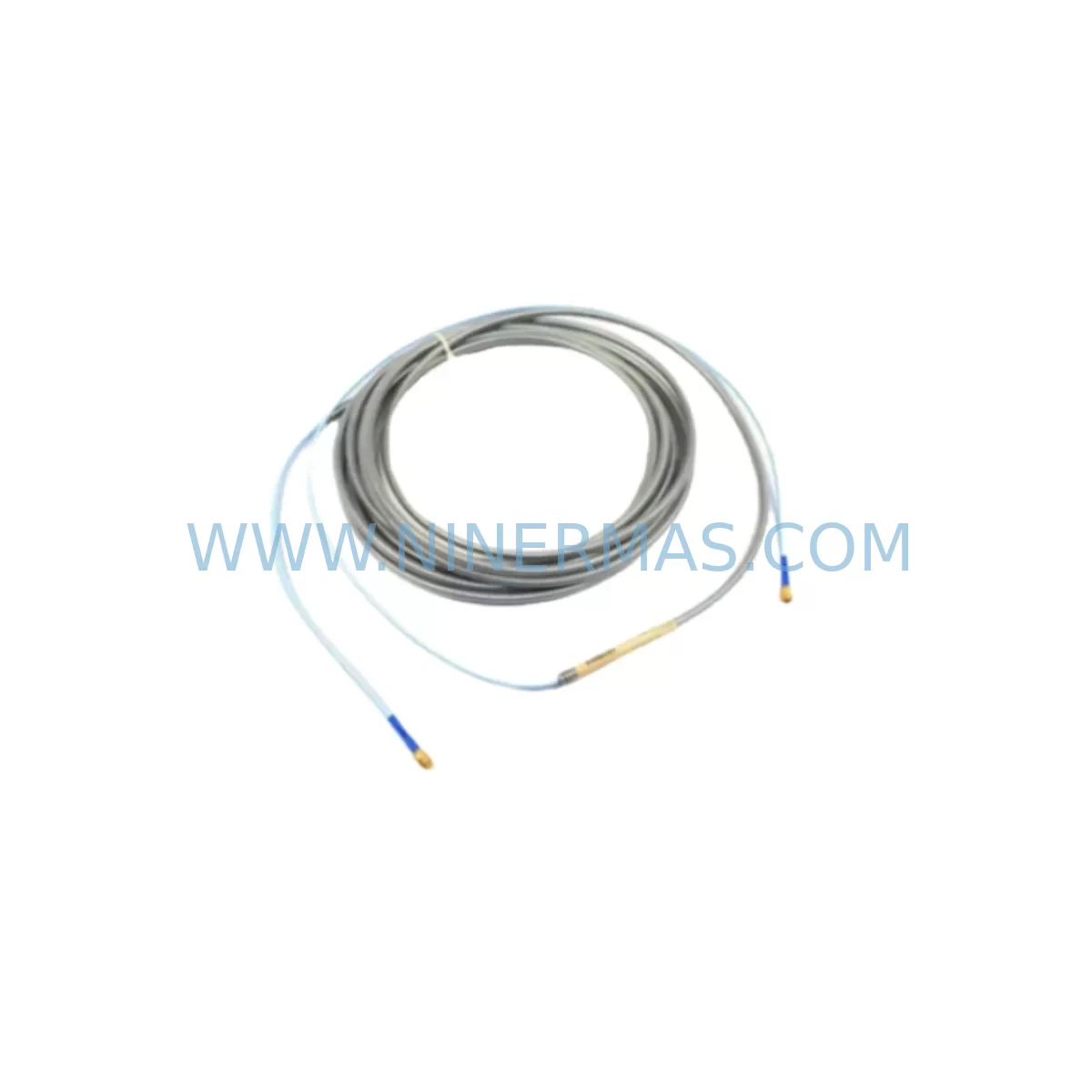

The Bently Nevada 330704-00-050-10-01-05 is an 8mm proximity probe with a 5-metre integral cable, designed for reverse-mount installation within the 3300 XL proximity transducer system. This SKU is a critical field-replaceable unit used in continuous vibration monitoring of rotating machinery — including steam turbines, gas compressors, centrifugal pumps, and large induction motors — across petrochemical, power generation, oil & gas, and heavy manufacturing facilities worldwide.

Maintaining a service-ready stock of the 330704-00-050-10-01-05 is a fundamental requirement for any maintenance programme that depends on the 3300 XL platform. When this probe fails or drifts out of calibration, the entire vibration channel goes offline, triggering a machinery protection alarm or, in the worst case, an unplanned shutdown. A pre-tested, in-stock replacement eliminates the lead-time risk and restores the monitoring loop within the same maintenance window.

Every unit supplied by NINERMAS undergoes pre-shipment electrical verification — gap voltage linearity, insulation resistance, and cable continuity — before dispatch. Each part is covered by a 12-month warranty from the date of delivery, giving procurement and maintenance teams a documented quality assurance baseline for their spare parts register.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance or reliability engineer schedules replacement of the 330704-00-050-10-01-05, the scope of work should extend beyond the probe itself. The 3300 XL transducer system is a three-component chain — probe, extension cable, and driver — and a fault in any one element degrades the entire channel. Before closing the work order, the following associated components should be inspected or replaced as part of the same maintenance event:

The 330780-50-05 driver (3300 XL 8mm, 5m) is the active oscillator-demodulator that powers the probe and converts gap displacement into a DC voltage signal. Driver output drift is a common root cause of false vibration alarms; if the probe is being replaced due to suspected signal anomaly, the driver should be bench-tested or swapped simultaneously. Similarly, the 330130-080-00-00 extension cable — which connects the probe to the driver over longer distances — should be inspected for jacket damage, connector corrosion, and continuity, as cable degradation is frequently misdiagnosed as probe failure.

At the monitor level, the 3500/42M proximitor monitor processes the driver output and generates the 4–20 mA or relay trip signals used by the DCS or safety system. During a probe replacement outage, it is good practice to verify the monitor’s OK relay status, check the channel configuration against the current machine train datasheet, and confirm that the 3500/15 power supply module is delivering stable −24 VDC to the transducer loop. A marginal power supply is a silent contributor to intermittent vibration channel faults.

For facilities running the 3500/22M transient data interface, the replacement window is also an opportunity to verify that the Keyphasor signal — typically sourced from a 3500/25 Keyphasor module and its associated once-per-revolution probe — is correctly phased and within the accepted gap voltage range. Phase reference errors produce incorrect 1X amplitude and phase readings that can mislead condition monitoring analysts for months before being identified.

On the termination side, inspect the TK-3e terminal blocks and field wiring for tightness, insulation integrity, and correct shielding continuity. In high-EMI environments such as motor control centres or variable-frequency drive (VFD) cabinets, poor shield grounding is a primary source of noise on the vibration channel. If the control cabinet also houses 3300 XL 11mm proximity transducers on adjacent machine trains, use the same outage to perform a gap voltage audit on those channels — cross-contamination of maintenance scope is a common efficiency gain in multi-train facilities.

Finally, for sites that have integrated the 3300 XL system with a 3500/20 rack interface module for Modbus or Ethernet communication to a plant historian or SCADA, confirm that the channel data is being correctly logged after the replacement. A misconfigured channel tag or an incorrect engineering unit scaling factor in the historian is a post-maintenance error that is easy to introduce and difficult to detect without a deliberate verification step.

Site Replacement Workflow

Step 1 — Pre-replacement verification. Before removing the 330704-00-050-10-01-05 from service, record the current gap voltage at the driver output using a calibrated multimeter. The nominal gap for an 8mm probe at a 1.0 mm air gap is approximately −10 VDC. Document the as-found value in the maintenance management system (CMMS) as the baseline for the replacement unit.

Step 2 — Isolation and removal. De-energise the transducer loop at the 3500/15 power supply or the rack power input. Disconnect the probe integral cable from the extension cable or driver connector. Remove the probe from the probe holder, noting the as-found gap setting (number of turns from flush) for reference during reinstallation.

Step 3 — Installation of the 330704-00-050-10-01-05 replacement unit. Install the new probe into the probe holder and set the gap to the machine-specific target — typically 1.0 mm (40 mils) for radial vibration applications, or as specified in the original machinery OEM documentation. Re-energise the loop and measure the gap voltage at the driver output. Adjust the gap until the output is within ±0.5 VDC of the nominal value.

Step 4 — System verification. Confirm that the 3500/42M monitor shows an OK status for the replaced channel. Verify that the vibration reading is within the expected baseline range for the machine at its current operating condition. If the machine is offline, perform a slow-roll check (typically below 600 RPM) to confirm signal integrity before returning to full speed.

Step 5 — Documentation and spare parts register update. Record the as-left gap voltage, the replacement part serial number, and the date of installation in the CMMS. Update the site spare parts register to reflect the consumption of one 330704-00-050-10-01-05 unit and initiate a replenishment order to maintain the minimum stock level defined in the site’s critical spare parts policy.

This workflow is applicable whether the 330704-00-050-10-01-05 is replacing a like-for-like unit on an existing 3300 XL system or is being installed as part of a retrofit from an older 3300 series (non-XL) transducer. The 3300 XL system is backward-compatible with many 3300 series drivers and monitors, but compatibility should be confirmed against the Bently Nevada system compatibility matrix before mixing components from different generations.

Spare Parts Support FAQ

Q1: What is the expected service life of the 330704-00-050-10-01-05, and when should it be proactively replaced?
Under normal operating conditions — clean environment, stable gap, no mechanical contact — a Bently Nevada 8mm proximity probe can remain in service for 10 to 15 years. However, proactive replacement is recommended during major overhauls (every 4–6 years for critical machinery) or whenever the gap voltage trend shows a drift of more than ±1 VDC from the original baseline. For end-of-life systems where the 3300 XL platform is no longer supported by the OEM, maintaining a minimum of two spare probes per machine train is a prudent inventory strategy.

Q2: How do I confirm compatibility between the 330704-00-050-10-01-05 and my existing 3300 XL driver?
The 330704-00-050-10-01-05 is designed for use with 3300 XL 8mm drivers in the 330780 and 330180 series. Compatibility is determined by probe diameter (8mm), cable length (5m), and mounting style (reverse mount). Before ordering, confirm the driver part number installed on your rack. If you are unsure, provide the driver part number and rack configuration to NINERMAS and our technical team will verify compatibility before shipment.

Q3: Does NINERMAS perform pre-shipment testing, and what does the 12-month warranty cover?
Yes. Every 330704-00-050-10-01-05 unit is electrically tested before dispatch, including gap voltage linearity across the measurement range, insulation resistance between the coil and cable shield, and cable continuity end-to-end. The 12-month warranty covers manufacturing defects and electrical performance failures under normal operating conditions. It does not cover damage resulting from mechanical contact, incorrect installation gap, or operation outside the specified temperature range. A test report is available upon request.

Q4: Can NINERMAS support long-term supply agreements for the 330704-00-050-10-01-05?
Yes. NINERMAS maintains reserved inventory agreements for critical spare parts on end-of-life and long-lead-time platforms, including the Bently Nevada 3300 XL series. If your facility requires a guaranteed annual supply of this SKU — for example, to support a multi-year maintenance contract or a fleet of identical machine trains — contact our procurement team to discuss a long-term supply arrangement with fixed pricing and priority allocation.
