Bently Nevada 330104-00-13-50-02-00 Retrofit-Compatible Proximity Transducer

Bently Nevada 330104-00-13-50-02-00 Retrofit-Compatible Proximity Transducer for Legacy Systems

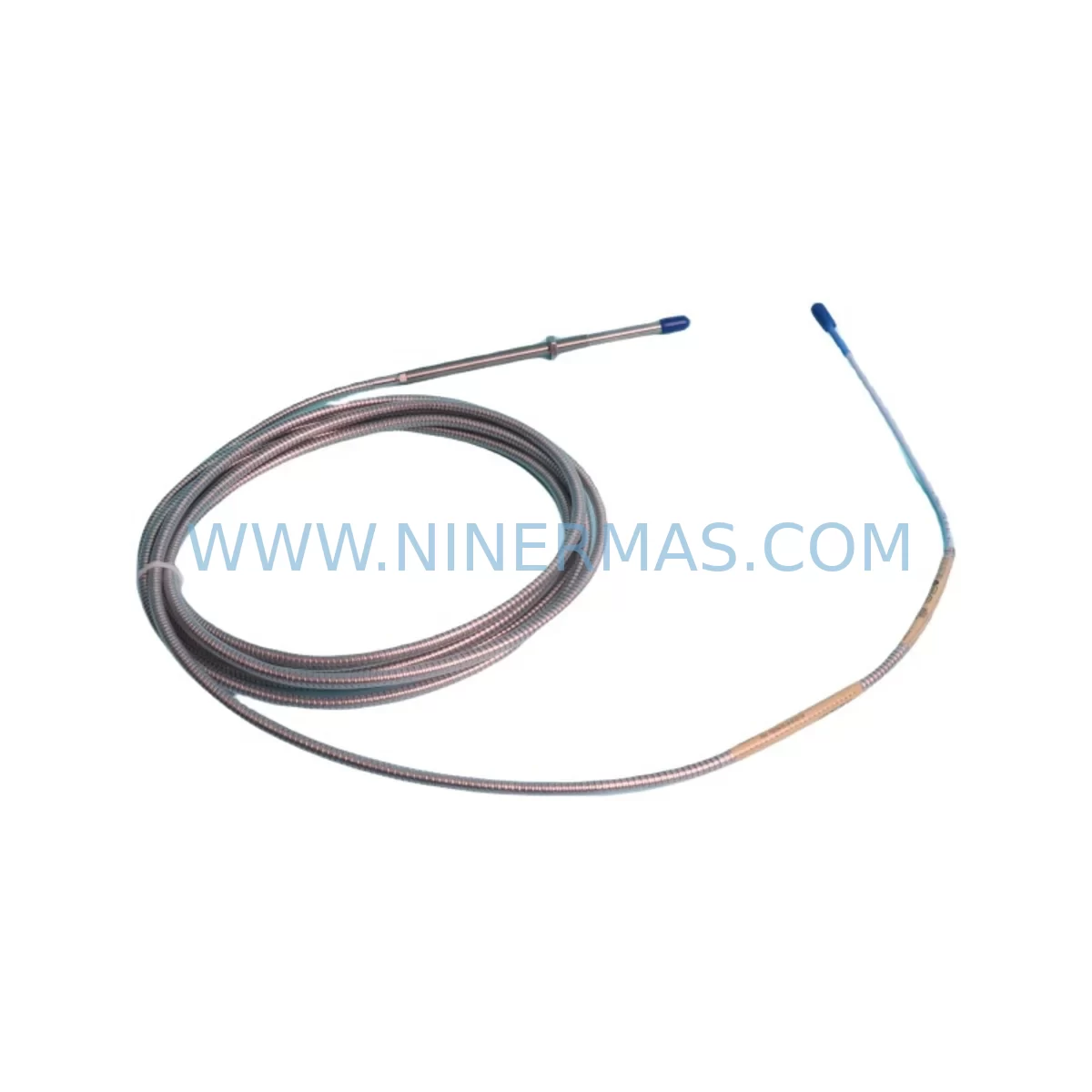

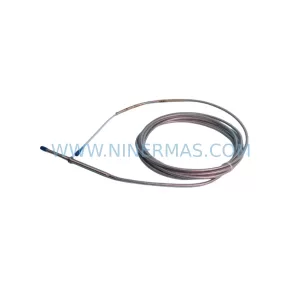

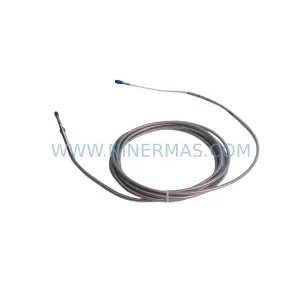

The Bently Nevada 330104-00-13-50-02-00 is a high-precision proximity transducer engineered for the 3300 XL Series vibration monitoring platform. As legacy industrial control systems face increasing pressure from discontinued spare parts and aging infrastructure, this unit serves as a critical retrofit-compatible replacement for facilities operating older Bently Nevada 3300 Series installations. Whether you are managing a planned upgrade cycle or responding to an unplanned failure of a discontinued component, the 330104-00-13-50-02-00 provides a reliable, field-proven solution that minimizes engineering rework and reduces total downtime.

Designed to interface directly with the Bently Nevada 3300 XL proximitor/seismic monitor, this transducer maintains full signal compatibility with existing rack-mounted monitor modules. Facilities that have standardized on the 3300 XL platform will find that the 330104-00-13-50-02-00 integrates without requiring changes to existing DCS or safety system configurations, provided that terminal wiring, cable lengths, and gap voltage settings are verified during commissioning.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 330104-00-13-50-02-00 into a legacy monitoring system begins with a thorough pre-retrofit audit. Engineers should document the existing wiring scheme from the probe tip through the extension cable to the proximitor input terminal on the 3300 XL monitor module. The Bently Nevada 3300 XL proximitor, typically installed in a 19-inch rack alongside other condition monitoring modules, accepts a specific input impedance range — any deviation caused by mismatched cable lengths or damaged extension cables will produce erroneous gap voltage readings and trigger false alarms in the connected DCS or safety instrumented system.

When planning the retrofit, it is advisable to inspect the full signal chain. The 330104-00-13-50-02-00 probe is typically paired with a compatible Bently Nevada extension cable (such as the 330130 series) and a 3300 XL proximitor module. If the proximitor itself is also approaching end-of-life, replacing both the probe and the proximitor simultaneously reduces the risk of a secondary failure shortly after the initial retrofit. In installations where the 3300 XL rack also houses Bently Nevada 3300/16 dual-channel monitor cards or 3300/55 temperature monitor modules, care should be taken to avoid disturbing adjacent module seating during probe replacement, as backplane connector integrity is critical to overall system stability.

For facilities running mixed-generation control architectures — for example, a GE Mark V or Mark VI turbine control system feeding vibration data from Bently Nevada transducers into a Rockwell Automation ControlLogix or Siemens S7-400 PLC via a 4–20 mA analog input module — the retrofit process must also account for signal scaling at the receiving controller. If the legacy probe had a different sensitivity specification, the analog input channel scaling in the PLC program may need to be adjusted to maintain accurate engineering unit conversion. This is particularly important in applications where vibration amplitude thresholds are used to trigger automatic shutdown sequences.

In turbomachinery applications, the 330104-00-13-50-02-00 is commonly installed alongside Bently Nevada 3300 XL thrust position monitors and speed sensors. During a planned outage, it is efficient to replace all aging proximity transducers in the same bearing housing simultaneously, reducing the number of future maintenance windows. Facilities should also verify that the Keyphasor transducer — often a Bently Nevada 330180 or 330980 series — remains within calibration, as Keyphasor signal integrity directly affects phase reference accuracy for all vibration channels on the 3300 XL platform.

Where I/O expansion is required as part of a broader control system modernization, engineers may be integrating the vibration monitoring data into a newer distributed control system via a Bently Nevada System 1 software platform or a third-party OPC DA/UA gateway. In these cases, confirming that the analog signal from the 330104-00-13-50-02-00 is correctly mapped through the I/O termination panel and into the historian or condition monitoring software is an essential commissioning step before returning the machine to service.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern for any maintenance team executing a proximity transducer replacement on a running production asset. For the 330104-00-13-50-02-00, the recommended approach is to pre-stage all replacement components — including the matched extension cable, any required probe holder adapters, and a calibrated gap-setting tool — before the machine is taken offline. This preparation allows the physical swap to be completed within a single maintenance window, typically two to four hours for a single bearing location, depending on accessibility.

Before disconnecting the legacy probe, the maintenance team should capture a screenshot or hardcopy of the current gap voltage, direct vibration amplitude, and 1X/2X vector readings from the 3300 XL monitor display or the connected System 1 workstation. These baseline values serve as the acceptance criteria for post-installation verification. Once the 330104-00-13-50-02-00 is installed and the gap is set to the manufacturer-specified voltage (typically -10.0 VDC ±0.2 VDC at the nominal gap distance), the monitor should be powered up and the output values compared against the pre-outage baseline before the machine is restarted.

For facilities where the vibration monitoring system is interlocked with the machine protection logic — for example, where a high-high vibration trip is wired through a Bently Nevada 3500 Series rack or a hardwired relay logic panel — it is essential to place the relevant trip channels in bypass mode through the proper management of change procedure before beginning probe replacement. This prevents a nuisance trip during the installation and gap-setting process. The bypass should be removed and the trip logic verified as functional before the machine is returned to normal operation.

Maintaining a small buffer stock of the 330104-00-13-50-02-00 and its associated extension cables in the site spare parts inventory is strongly recommended for critical rotating equipment. Given the global supply chain constraints affecting legacy industrial components, having two to three units on-site ensures that an unplanned probe failure can be addressed within hours rather than days, protecting both production continuity and equipment integrity.

Retrofit Support FAQ

Q: Is the 330104-00-13-50-02-00 a direct drop-in replacement for my existing 3300 Series proximity probe?
A: In most cases, yes. The 330104-00-13-50-02-00 is designed to be dimensionally and electrically compatible with standard 3300 XL Series installations. However, you should verify the probe tip thread size, the total cable system length, and the proximitor model number before installation to confirm full compatibility with your specific configuration.

Q: What commissioning steps are required after installation?
A: After physical installation, you must set the probe gap to achieve the specified output voltage (typically -10.0 VDC at the nominal gap), verify the signal at the 3300 XL monitor input terminals, and confirm that the direct vibration and gap readings are within expected ranges. If the probe is connected to a System 1 or DCS historian, verify that the engineering unit scaling is correct before returning the machine to service.

Q: Does this unit ship with a warranty, and what does it cover?
A: Yes. The 330104-00-13-50-02-00 is supplied with a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from improper installation, incorrect gap setting, or operation outside the specified environmental limits.

Q: What is the typical lead time, and do you maintain stock?
A: We maintain inventory of the 330104-00-13-50-02-00 to support urgent replacement requirements. Standard orders are processed and shipped within 1–3 business days. For large quantity requirements or time-critical shutdowns, please contact our sales team directly to confirm current stock availability and expedited shipping options.
