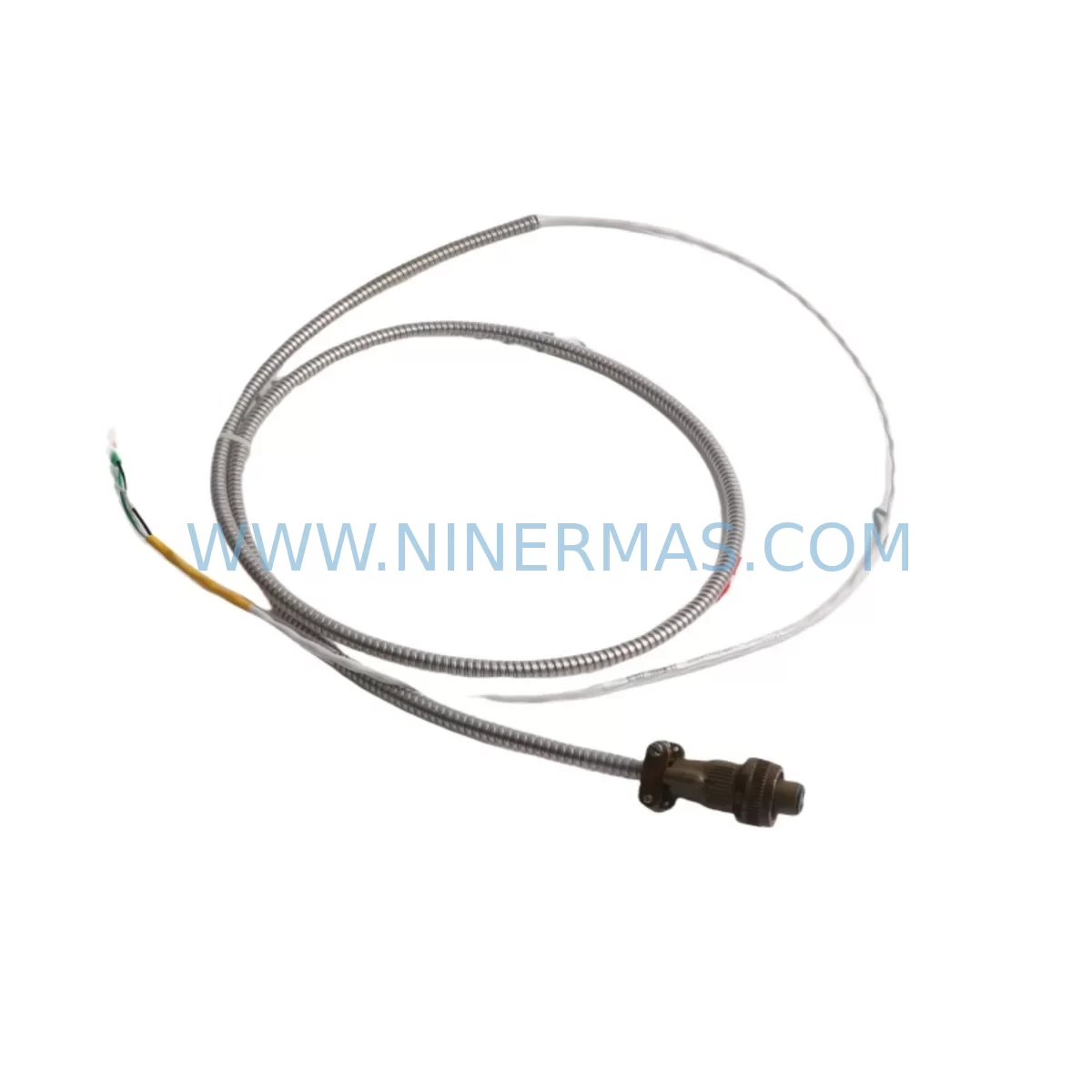

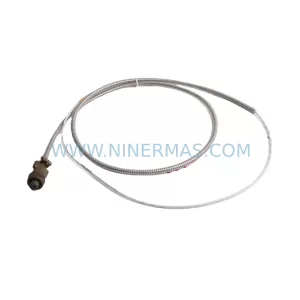

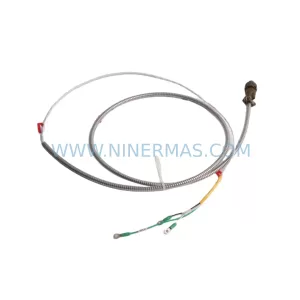

The Bently Nevada 84661-06 is an original proximity probe cable engineered for continuous-duty vibration monitoring in rotating machinery protection systems. Designed to interface with Bently Nevada 3300 and 3500 series proximity transducer systems, this cable delivers the precise signal transmission required for shaft displacement, radial vibration, and axial position measurement in turbines, compressors, pumps, and motors operating in critical industrial environments.

For maintenance engineers managing rotating equipment reliability programs, the 84661-06 cable is a front-line spare that directly impacts system uptime. Signal degradation, connector corrosion, or cable damage in a proximity probe loop can trigger false alarms, mask real vibration events, or cause complete loss of protection coverage on a monitored machine train. Stocking a verified replacement eliminates the diagnostic ambiguity and procurement delay that extend unplanned outages into multi-day shutdowns.

At NINERMAS, every 84661-06 unit is sourced through controlled supply channels, inspected against OEM dimensional and electrical specifications, and function-tested prior to shipment. Each unit ships with a 12-month warranty covering manufacturing defects and electrical performance, giving procurement engineers a documented quality assurance baseline for maintenance records and audit compliance.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A proximity probe cable replacement is rarely an isolated event. When a 84661-06 cable is flagged during a routine control cabinet inspection or after a vibration monitor alarm, the surrounding measurement loop and protection system components should be evaluated concurrently to prevent repeat failures and maximize the value of the maintenance window.

Begin with the proximity probe tip (typically a Bently Nevada 330101 or 330103 series 8mm probe) paired with this cable. Probe tip wear, target area contamination, or gap drift will produce the same erratic output as a faulty cable — replacing the cable without verifying probe condition leaves the root cause unresolved. Simultaneously, inspect the Bently Nevada 330180 series proximitor / oscillator-demodulator, which converts the probe’s eddy-current signal into a usable DC voltage. A proximitor with degraded internal circuitry will corrupt readings even with a new cable installed.

At the rack level, verify the Bently Nevada 3500/42M Proximitor Monitor module or equivalent I/O card seated in the 3500 rack backplane. Loose rack connectors and backplane contact oxidation are common causes of intermittent channel faults that are misdiagnosed as cable failures. While the rack is open, inspect the 3500 rack power supply module — typically a 3500/15 or 3500/05 — for output voltage stability, since a sagging –24 VDC supply rail will shift the operating point of every proximity channel in the rack simultaneously.

For systems using Bently Nevada 3500/22M transient data interface or 3500/25 keyphasor modules, confirm that reference signals are clean and that the keyphasor probe cable (a separate 84661-series or equivalent) is also within its service life. Keyphasor signal integrity is critical for phase-referenced vibration analysis and should be treated as part of the same maintenance event.

On the field wiring side, inspect terminal blocks and junction box connections along the cable run. Corroded or loose terminals introduce resistance that shifts the DC bias voltage and can cause the monitor to report a “not OK” condition. If the installation uses signal isolators or galvanic isolators between the proximitor and the control system DCS input card, verify isolator output accuracy — these devices age and drift, particularly in high-temperature environments near turbine casings.

Finally, for facilities running Bently Nevada System 1 condition monitoring software or a third-party DCS historian, confirm that the channel configuration (gap voltage setpoints, alert and danger thresholds) is correctly restored after the cable swap. A replacement cable with a slightly different electrical length can shift the static gap voltage by a measurable amount, requiring a gap re-adjustment at the probe tip and a configuration update in the monitoring system.

Procurement engineers building annual MRO spare parts lists for rotating equipment protection systems should consider stocking the 84661-06 alongside complementary items such as replacement proximitor units, spare 3500 rack I/O modules, and terminal block assemblies to support rapid response to any single-point failure in the measurement loop.

Site Replacement Workflow

Step 1 — Isolation and Documentation: Before removing the existing cable, record the current gap voltage reading from the Bently Nevada monitor display or System 1 software. This baseline value is essential for verifying correct reinstallation. Follow site lock-out/tag-out (LOTO) procedures for the monitored machine if a hot-swap is not permitted by site safety policy.

Step 2 — Cable Removal: Disconnect the 84661-06 cable at both the probe tip connector and the proximitor input. Inspect the connectors on the probe and proximitor for corrosion, bent pins, or thread damage. If connector damage is found on the probe or proximitor side, address those components before installing the new cable — a damaged mating connector will degrade the new cable immediately.

Step 3 — New Cable Installation: Route the replacement 84661-06 cable following the original cable path. Avoid sharp bends below the cable’s minimum bend radius and keep the cable away from high-voltage power conductors to prevent electromagnetic interference. Torque connectors to the manufacturer’s specified value — over-tightening damages the coaxial connector center pin.

Step 4 — Gap Verification: After connection, power the proximitor and measure the static gap voltage. The target gap voltage for most 3300/3500 series installations is –10.0 VDC ±0.5 VDC at the nominal probe gap (typically 1.0 mm for 8mm probes). Adjust the probe gap mechanically if the reading is outside the acceptable window. Do not accept a reading outside specification and assume it will self-correct.

Step 5 — System Restoration and Functional Test: Restore the monitor channel to normal operation, clear any latched alarms, and verify that the channel status indicator shows “OK.” Perform a functional test by introducing a known displacement (using a calibrated shim or by observing machine coast-down) to confirm the channel responds correctly before returning the machine to service.

This structured replacement workflow minimizes the risk of repeat failures, reduces total maintenance time compared to ad-hoc troubleshooting, and produces a documented record suitable for reliability-centered maintenance (RCM) databases and regulatory inspection files.

Spare Parts Support FAQ

Q1: Is the 84661-06 compatible with both the Bently Nevada 3300 and 3500 series systems?
Yes. The 84661-06 extension cable is designed for use within the Bently Nevada proximity transducer system ecosystem and is compatible with 3300 XL and 3500 series installations using standard coaxial connector interfaces. Always verify the probe tip model and proximitor model in your specific installation to confirm the complete loop compatibility before installation.

Q2: How should the 84661-06 be stored as a long-term spare?
Store the cable in its original packaging or an anti-static, moisture-resistant bag in a climate-controlled environment (15°C–30°C, relative humidity below 70%). Avoid coiling the cable tightly for extended periods, as this can stress the coaxial dielectric. Inspect connector protective caps before storage and replace any that are missing or damaged. Properly stored units maintain their electrical specifications for several years beyond the purchase date.

Q3: What does the 12-month warranty cover, and how is a warranty claim processed?
The 12-month warranty covers manufacturing defects, connector integrity failures, and electrical performance deviations from OEM specifications under normal installation and operating conditions. Warranty claims are initiated by contacting NINERMAS at sale@ninermas.com with the order reference, a description of the failure mode, and photographic documentation of the defect. NINERMAS will arrange for inspection and, where the claim is validated, replacement shipment at no additional cost.

Q4: Can NINERMAS support blanket purchase orders or long-term supply agreements for the 84661-06?
Yes. NINERMAS maintains an ongoing stocking program for Bently Nevada proximity system spare parts, including the 84661-06 and related cables, probes, and proximitor units. Long-term supply agreements and blanket purchase orders are supported to help maintenance and procurement teams secure inventory against lead-time risk and price volatility. Contact sale@ninermas.com or call +0086 187 5021 5667 to discuss volume pricing and supply terms.
