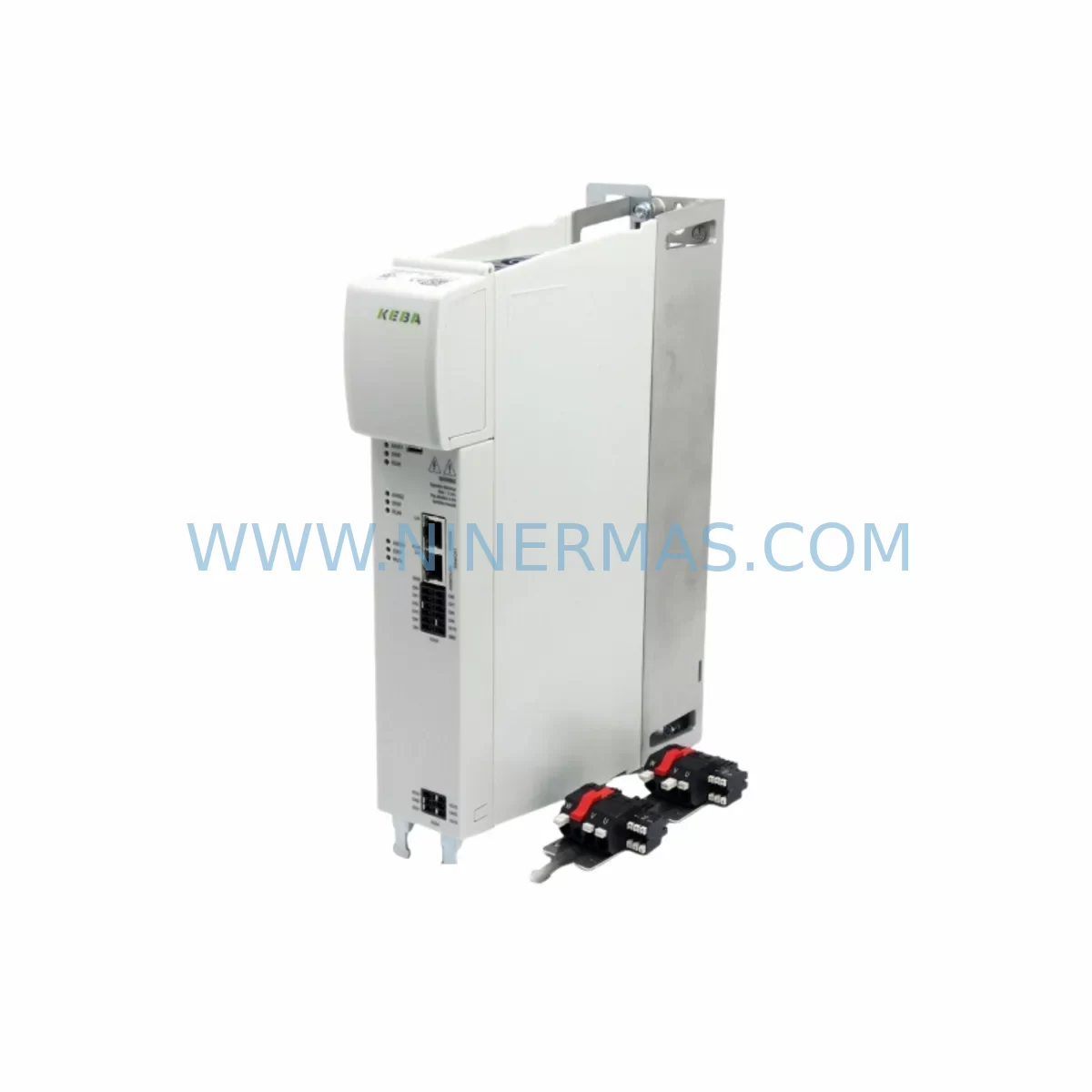

KEBA D3-DP 300/A-1000-00 Service-Ready Spare Part

KEBA D3-DP 300/A-1000-00 Service-Ready Spare Part for Industrial Maintenance

The KEBA D3-DP 300/A-1000-00 is a critical drive controller module within KEBA’s D3 series motion control platform, widely deployed in precision manufacturing, plastics injection moulding, CNC machining centres, and automated assembly lines. When this module fails or reaches end-of-service life, the consequences are immediate: production halts, cycle times collapse, and maintenance teams face mounting pressure to restore operation with minimal downtime. Sourcing a verified, original-specification replacement is the single most effective action a maintenance or procurement engineer can take to recover the line and protect long-term system integrity.

At NINERMAS, every D3-DP 300/A-1000-00 unit is sourced from authorised supply channels, subjected to pre-shipment functional verification, and backed by a 12-month warranty. Our global logistics network ensures rapid dispatch to plant sites across Asia, Europe, and the Americas, supporting both emergency breakdown orders and planned annual overhaul stock replenishment.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A drive controller module like the D3-DP 300/A-1000-00 does not operate in isolation. During routine cabinet inspections and annual overhauls, maintenance engineers should treat the replacement of this module as the trigger for a broader system health review. The following components share the same electrical environment and are subject to comparable wear cycles:

Begin with the D3 series power supply module (e.g. KEBA D3-PS variants), which feeds the DC bus that the D3-DP 300/A-1000-00 draws from. A degraded power supply will cause recurring drive faults even after a module swap, so verifying output voltage stability and ripple is essential before commissioning the replacement. Similarly, the D3 backplane bus connector and inter-module ribbon cables should be inspected for pin corrosion, mechanical stress, or intermittent contact — issues that are frequently misdiagnosed as drive module failures.

On the input side, check the three-phase input fuses and circuit breakers feeding the drive cabinet. Overcurrent events that triggered the original module failure may have weakened upstream protection devices. Replace any fuse that shows signs of thermal discolouration. The EMC line filter and input choke upstream of the drive should also be tested; a compromised filter allows conducted interference to re-enter the drive, shortening the service life of the replacement module.

For axis-level diagnostics, inspect the servo motor feedback cable and encoder connector associated with the axis driven by this module. Damaged shielding or loose encoder connectors are a leading cause of position error faults that are incorrectly attributed to the drive module itself. The motor thermal sensor wiring (PTC/NTC circuit) should be continuity-tested to confirm the drive’s overtemperature protection chain is intact.

At the control level, verify the KEBA KeMotion or KeControl PLC communication interface — typically a PROFIBUS-DP or EtherCAT link — that coordinates motion commands to the D3-DP module. A corrupted parameter set or broken fieldbus segment will prevent the replacement module from accepting motion commands. If the site uses a KEBA CP250/CP260 control panel or HMI terminal, confirm that the axis configuration and drive parameters stored in the controller match the replacement module’s firmware version.

Finally, review the 24 VDC auxiliary power supply feeding the drive’s logic board and the safety relay module in the STO (Safe Torque Off) circuit. An undersized or ageing auxiliary PSU is a common root cause of intermittent drive lockouts. Stocking a spare 24 V DIN rail power supply and a replacement safety relay alongside the D3-DP 300/A-1000-00 is a low-cost insurance policy that significantly reduces mean time to repair on future incidents.

Site Replacement Workflow

Step 1 — Isolate and de-energise. Follow site LOTO procedures. Isolate the drive cabinet at the main disconnect and verify zero-voltage on the DC bus using a calibrated meter before opening the enclosure.

Step 2 — Document the existing configuration. Before removing the faulty D3-DP 300/A-1000-00, photograph the wiring, record all parameter values from the KEBA controller, and note the firmware version displayed on the module’s status LED or diagnostic interface. This data is essential for commissioning the replacement.

Step 3 — Remove the faulty module. Disconnect the power and signal connectors in the sequence specified in the KEBA D3 series service manual. Release the module retention clips and slide the unit out of the backplane. Inspect the backplane connector for bent pins or debris before inserting the replacement.

Step 4 — Install the replacement D3-DP 300/A-1000-00. Seat the module firmly into the backplane, reconnect all power and signal connectors, and verify torque on any screw terminals. Confirm that the module’s hardware revision is compatible with the installed firmware on the KEBA controller.

Step 5 — Parameter restore and commissioning. Upload the saved parameter set to the replacement module via the KEBA engineering tool. Perform a no-load test run to verify correct axis response, then a loaded test cycle at reduced speed before returning the axis to full production speed.

Step 6 — Update maintenance records. Log the replacement date, module serial number, and next scheduled inspection interval. Flag the replaced unit for return or repair evaluation.

Spare Parts Support FAQ

Q1: Is the D3-DP 300/A-1000-00 still available for long-term supply?
Yes. NINERMAS maintains ongoing sourcing relationships for KEBA D3 series components, including end-of-life and discontinued modules. We support long-term supply agreements for customers managing legacy D3 installations, with lead times confirmed at the time of enquiry.

Q2: How do I verify compatibility before ordering?
Provide your existing module’s part number, hardware revision, and the firmware version of your KEBA controller. Our technical team will confirm compatibility and advise on any parameter migration steps required for the replacement unit.

Q3: What pre-shipment testing is performed?
Every D3-DP 300/A-1000-00 unit undergoes functional verification prior to dispatch, including power-on self-test and interface continuity checks. Units are packed in anti-static, shock-protected packaging with a test report included in the shipment.

Q4: What does the 12-month warranty cover?
The warranty covers manufacturing defects and functional failures under normal operating conditions for 12 months from the shipment date. It does not cover damage resulting from incorrect installation, overvoltage events, or operation outside the module’s rated parameters. Our after-sales team provides technical support throughout the warranty period.
