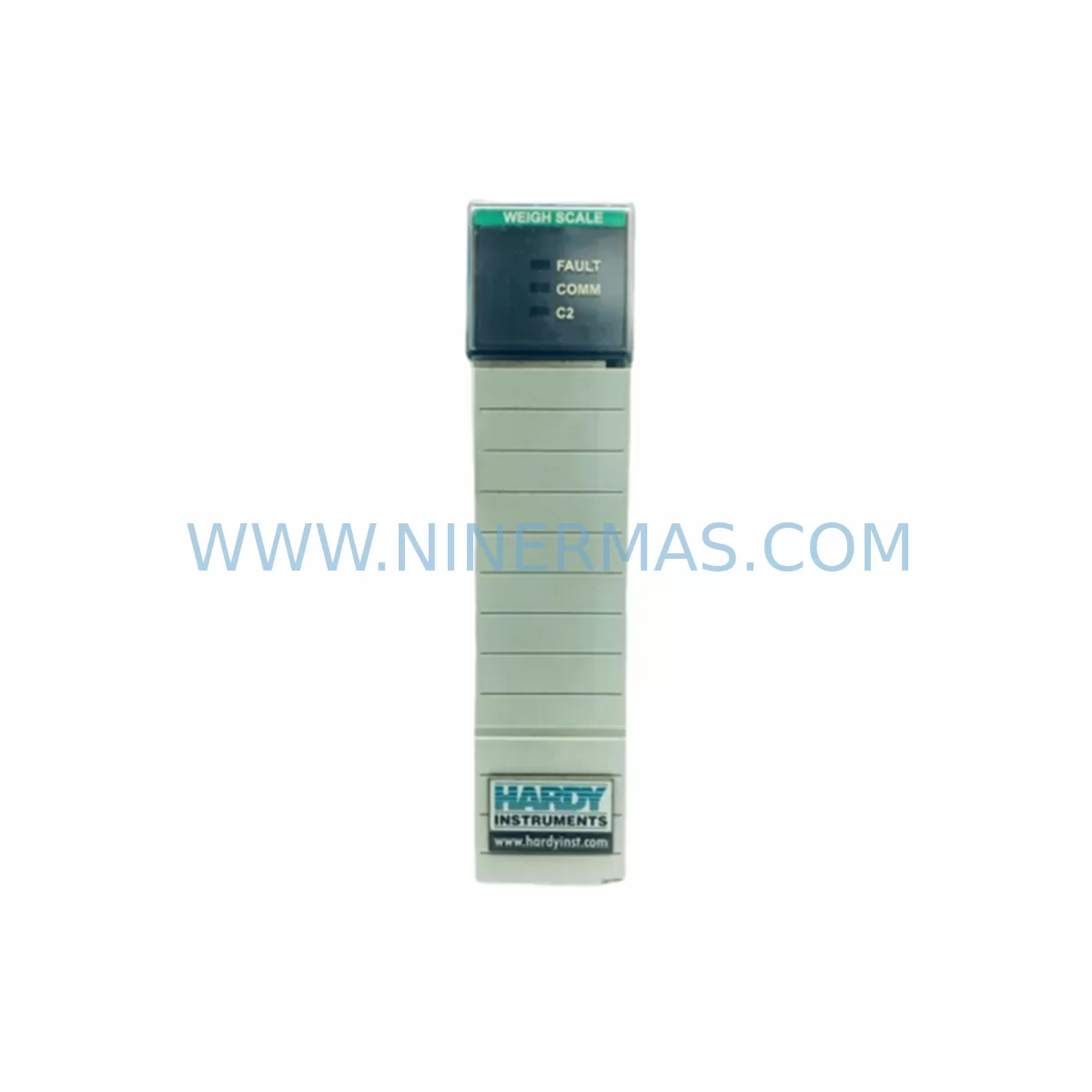

The HARDY 1756-2WS is a ControlLogix-platform weigh scale module engineered for precision weight measurement and process control in demanding industrial environments. As a direct-fit spare part, the 1756-2WS integrates seamlessly into Allen-Bradley ControlLogix backplanes, making it a critical component for maintenance engineers managing batching systems, filling lines, conveyor scales, and hopper weighing applications. When a weigh scale module fails, production downtime can cascade rapidly — having a verified, service-ready 1756-2WS in your spare parts inventory is the most effective strategy for rapid line recovery.

For maintenance and procurement engineers responsible for continuous operations, the 1756-2WS represents a high-priority spare. Its role in closed-loop weight control means that any degradation — whether from vibration fatigue, connector wear, or firmware incompatibility after a PLC upgrade — can immediately compromise batch accuracy and trigger safety interlocks. Proactive stocking of this module, alongside a structured inspection schedule, is the foundation of a resilient maintenance program.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When planning a replacement of the 1756-2WS in a ControlLogix system, maintenance engineers should treat the intervention as a full weigh-circuit audit rather than a single-module swap. Begin by verifying the integrity of the load cell junction box wiring and the shielded signal cables connecting the load cells to the module’s input terminals — degraded cable shielding is a common source of measurement drift that is often misdiagnosed as module failure.

Next, inspect the 1756-PA75 or 1756-PB75 power supply module supplying the chassis. A marginal power supply can cause intermittent weigh scale errors that mimic module faults. Confirm that the 1756-A10 or 1756-A17 chassis backplane shows no signs of corrosion or damaged connector pins at the slot occupied by the 1756-2WS. If the system uses a 1756-EN2T EtherNet/IP communication module for remote I/O or SCADA integration, verify that the network configuration and IP addressing remain intact after the module swap.

For systems with a PanelView Plus HMI displaying weight data, confirm that the tag mappings referencing the 1756-2WS channel outputs are correctly re-established after the replacement module is installed and the controller program is downloaded. In batching applications, also inspect the 1756-OB16I or similar digital output modules that trigger fill valves and discharge gates based on weight setpoints — these I/O modules are subject to coil wear and should be part of the annual inspection cycle.

Signal isolators installed between the load cell summing box and the module input are another component worth checking during this maintenance window. If the facility uses relay output modules such as the 1756-OW16I for interlock control based on weight thresholds, verify contact resistance and replace any relays showing signs of arcing or pitting. Terminal blocks and DIN rail connections within the control cabinet should be torqued to specification and inspected for oxidation, particularly in humid or chemically aggressive environments.

Procurement engineers should note that the 1756-2WS is a legacy Hardy module with limited availability on the open market. Establishing a long-term supply agreement and maintaining at least one verified spare in stock is strongly recommended for facilities running multiple weigh scale loops. Pairing the 1756-2WS spare with a stocked 1756-L71 or 1756-L73 ControlLogix processor ensures that a complete system recovery is possible without extended lead times.

Site Replacement Workflow

Before beginning the replacement, place the ControlLogix controller in Program mode via RSLogix 5000 or Studio 5000 Logix Designer to inhibit all weigh-based outputs and prevent unintended actuator commands during the swap. Export and save the current controller program and module configuration, including the 1756-2WS calibration data (C2 calibration coefficients and zero/span settings), as these will need to be restored or re-entered after the new module is installed.

Power down the chassis slot using the chassis keying procedure if available, or perform a full chassis power-down if the system does not support hot-swap for this module type. Remove the faulty 1756-2WS by releasing the top and bottom locking tabs and sliding the module out of the backplane slot. Inspect the backplane connector for bent pins or contamination before inserting the replacement unit.

After seating the new 1756-2WS, power up the chassis and allow the module to complete its self-test sequence. Re-enter or restore the calibration data using the Hardy WINLOG or RSLogix 5000 Add-On Profile (AOP) for the 1756-2WS. Perform a live calibration verification using certified test weights before returning the system to automatic mode. Document the replacement in the site maintenance log, including the module serial number, calibration date, and technician sign-off, to support audit and warranty tracking requirements.

This structured workflow minimizes downtime to typically under two hours for a prepared maintenance team, compared to multi-day delays when waiting for emergency procurement of an untested module.

Spare Parts Support FAQ

Q: Is the HARDY 1756-2WS still available as a new or refurbished spare part?

A: Yes. NINERMAS maintains stock of the 1756-2WS as a service-ready spare. Each unit is tested before shipment and covered by a 12-month warranty. Contact our team to confirm current availability and lead time for your region.

Q: How do I verify compatibility between the 1756-2WS and my existing ControlLogix chassis?

A: The 1756-2WS is designed for the Allen-Bradley 1756 ControlLogix chassis platform. Compatibility depends on your chassis model (e.g., 1756-A10, 1756-A17), firmware revision of the ControlLogix controller, and the version of RSLogix 5000 / Studio 5000 in use. Provide your controller catalog number and firmware version when ordering to allow our technical team to confirm compatibility.

Q: What pre-shipment testing is performed on the 1756-2WS?

A: Every 1756-2WS unit shipped by NINERMAS undergoes functional verification including backplane communication check, channel input response test, and self-diagnostic confirmation. Units that do not pass all test criteria are not shipped. A test report is available upon request.

Q: Can NINERMAS support long-term supply of the 1756-2WS for multi-site maintenance programs?

A: Yes. We support long-term procurement agreements for critical spare parts including the 1756-2WS. This includes reserved stock allocation, priority fulfillment, and 12-month warranty coverage per unit. Contact sale@ninermas.com to discuss a supply program tailored to your maintenance schedule and site count.
