HARDY 1746-WS Retrofit-Compatible Weigh Scale Module

HARDY 1746-WS Retrofit-Compatible Weigh Scale Module: Legacy SLC 500 System Upgrade & Replacement

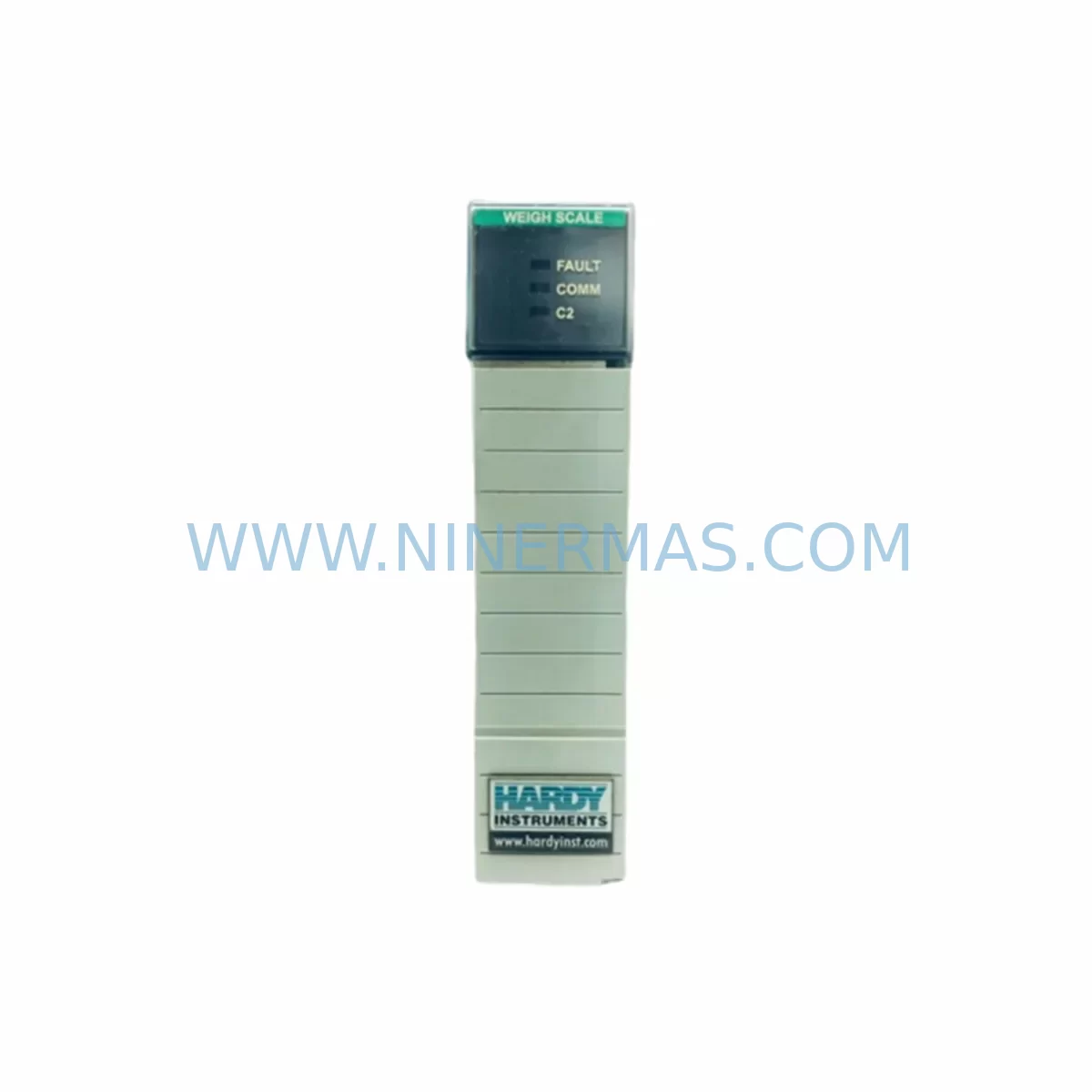

The HARDY 1746-WS is a ruggedized weigh scale module engineered for Allen-Bradley SLC 500 rack-based control systems. As legacy SLC 500 platforms approach end-of-life and spare parts become increasingly scarce, the 1746-WS remains one of the most sought-after retrofit components for industrial weighing applications in food processing, chemical batching, bulk material handling, and heavy manufacturing environments. NINERMAS maintains in-stock inventory of the HARDY 1746-WS to support planned maintenance shutdowns, emergency replacements, and long-term spare parts programs — all backed by a 12-month warranty.

Designed to occupy a single slot in the SLC 500 modular rack, the 1746-WS interfaces directly with the SLC 5/03, SLC 5/04, and SLC 5/05 processors via the standard 1746 backplane. It supports up to four load cell inputs with built-in excitation, providing high-resolution weight measurement, tare control, and digital filtering — all configurable through RSLogix 500 ladder logic without requiring a separate weigh scale controller or junction box in most retrofit scenarios.

For engineers planning a retrofit or emergency replacement, the 1746-WS integrates into existing SLC 500 chassis such as the 1746-A4, 1746-A7, 1746-A10, and 1746-A13 fixed and modular racks without mechanical modification. Slot addressing follows the standard SLC I/O map, and the module’s configuration data is stored in the processor file — meaning a pre-configured processor backup (ACD or SLC program file) can restore full weigh scale operation after a module swap with minimal re-commissioning time.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful 1746-WS retrofit begins well before the module arrives on-site. Engineers should pull the existing RSLogix 500 program and verify the slot number assigned to the weigh scale module in the I/O configuration tree. If the original module occupied slot 3 of a 1746-A7 chassis, the replacement 1746-WS must be installed in the same slot — otherwise the processor will fault on I/O mismatch at power-up. For systems where the chassis itself has been damaged or is being expanded, migrating to a 1746-A10 or 1746-A13 rack provides additional slots for future I/O growth without changing the processor or communication architecture.

Power budget verification is a critical pre-installation step. The SLC 500 power supply — typically a 1746-P2, 1746-P4, or 1746-P7 — must have sufficient backplane current capacity to support the 1746-WS alongside existing digital I/O modules such as the 1746-IB16, 1746-OB16, and any installed analog modules like the 1746-NI4 or 1746-NO4I. Exceeding the power supply’s 5 VDC or 24 VDC backplane budget will cause intermittent faults or module initialization failures — a common oversight during rushed emergency replacements.

Load cell wiring should be documented before the old module is removed. The 1746-WS uses a standard 6-wire load cell connection (EXC+, EXC−, SIG+, SIG−, SEN+, SEN−). If the existing installation uses a summing junction box with multiple load cells, verify that the combined mV/V output is within the module’s input range. Shield grounding practices should be maintained to prevent noise interference, particularly in environments with variable-frequency drives (VFDs) or high-current motor starters in the same control cabinet.

For systems that also include a 1747-SDN DeviceNet Scanner or a 1747-AENTR EtherNet/IP adapter for remote I/O communication, the 1746-WS retrofit does not affect the network configuration — the weigh scale data is accessed locally through the backplane and mapped to the processor’s data file, then shared upstream via the existing communication module. This is particularly relevant in distributed control architectures where the SLC 500 acts as a local weigh controller feeding data to a supervisory ControlLogix system via a 1756-DHRIO or 1756-ENBT bridge module.

HMI screens connected via PanelView 550, PanelView 600, or PanelView Plus terminals that display weight data will continue to function without modification after a same-model 1746-WS swap, provided the data file addresses (N7, F8, or custom integer/float files) remain unchanged in the processor program. If the HMI application references specific bit-level status tags from the weigh module’s output image, these should be verified against the replacement module’s documentation to confirm bit mapping consistency.

Downtime Control During System Migration

Minimizing production downtime during a 1746-WS replacement requires a structured pre-swap checklist. Before taking the system offline, upload and archive the current RSLogix 500 program from the processor using RSLinx Classic or RSLinx Enterprise. Verify the upload is complete and the program file opens without errors on the programming workstation. This backup is your recovery baseline — if the replacement module behaves unexpectedly, you can restore the processor to its last known-good state within minutes.

Place the SLC 500 processor in Program mode before removing the 1746-WS. Never hot-swap a weigh scale module while the processor is in Run mode — doing so risks corrupting the I/O image table and may trigger downstream safety interlocks or conveyor stop sequences that are difficult to reset without a full system restart. If the control system includes a 1746-OW16 relay output module driving field devices, confirm that all outputs are de-energized before proceeding.

After installing the replacement 1746-WS in the correct slot, power up the chassis and observe the module’s status LED. A solid green LED indicates successful backplane communication and self-test completion. Download the archived program to the processor, switch to Run mode, and verify the weight reading against a known test load before returning the system to production. For batching or filling applications, run at least one complete cycle in manual mode before enabling automatic sequencing. Total planned downtime for a prepared swap is typically 30–90 minutes; unplanned replacements without a program backup can extend to several hours.

NINERMAS ships the HARDY 1746-WS with pre-shipment functional testing and full documentation. Express logistics options are available for emergency procurement. All units are covered by a 12-month warranty from the date of shipment.

Retrofit Support FAQ

Q1: Is the HARDY 1746-WS a direct drop-in replacement for a failed unit in my existing SLC 500 system?
Yes. The 1746-WS is a same-model replacement and installs directly into the original slot in any compatible 1746 chassis. No changes to the RSLogix 500 program are required for a same-model swap. Verify the slot number in your I/O configuration before installation.

Q2: What load cell wiring checks should I perform before installing the replacement module?
Confirm the load cell cable integrity, verify excitation voltage at the junction box, and check that the mV/V output is within the 1746-WS input specification. Inspect shield grounding and ensure no wiring changes were made to the terminal block since the original installation. Document the wiring before removing the old module.

Q3: Does NINERMAS perform pre-shipment testing on the 1746-WS?
Yes. Every HARDY 1746-WS unit shipped by NINERMAS undergoes functional verification prior to dispatch. Units are supplied with a 12-month warranty covering manufacturing defects and operational failures under normal industrial use conditions.

Q4: What is the typical lead time and do you maintain stock for emergency orders?
NINERMAS maintains in-stock inventory of the HARDY 1746-WS to support both planned maintenance programs and emergency replacement requirements. Contact our team at sale@ninermas.com or +0086 187 5021 5667 for real-time stock confirmation and express shipping options.
