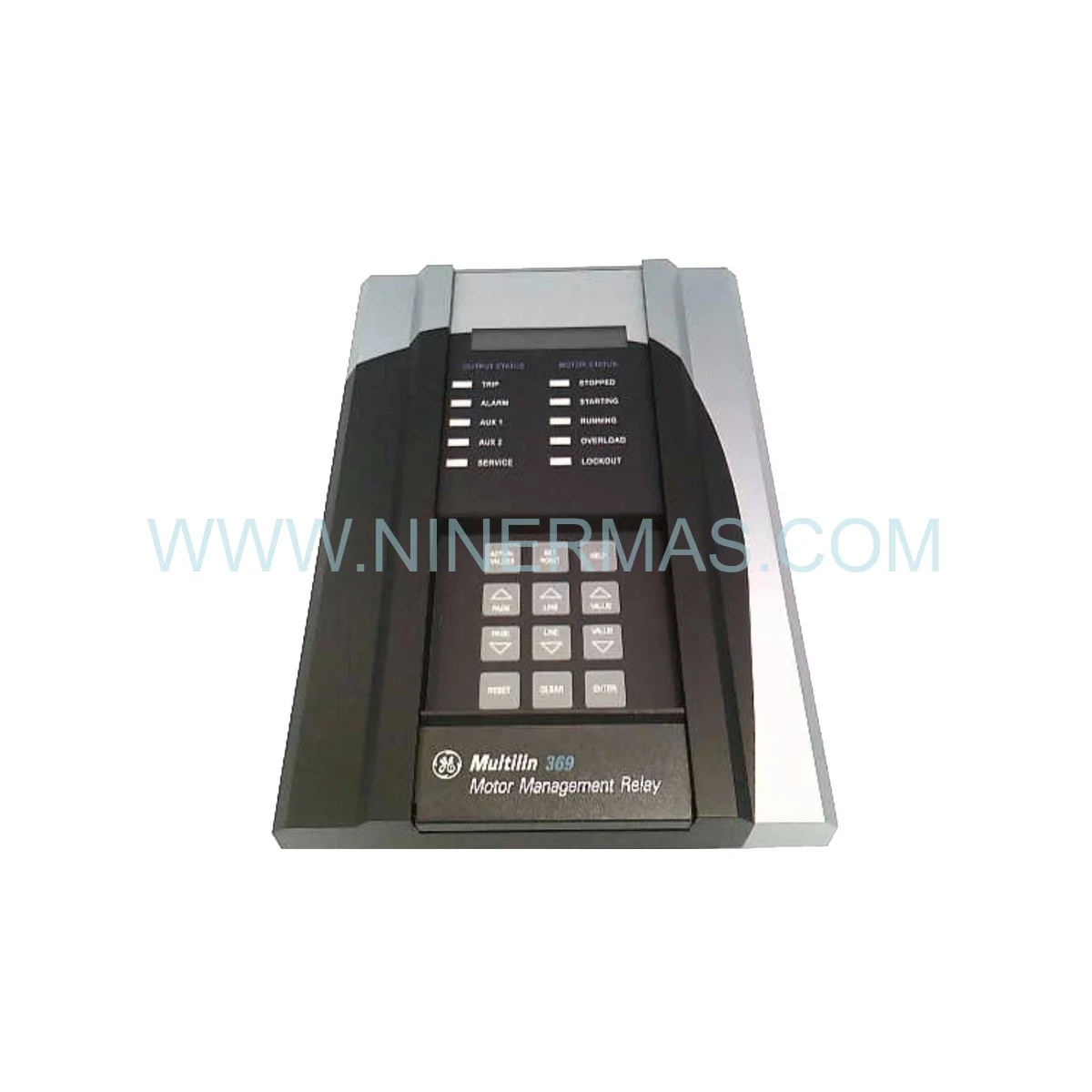

GE Multilin 369-HI-R-M-F-E-H-E | Industrial Motor Protection Relay

GE Multilin 369-HI-R-M-F-E-H-E — Lifecycle Excellence & Technical Performance

Operational Integrity & System Analysis

From the perspective of an Industrial Compliance Consultant, the GE Multilin 369-HI-R-M-F-E-H-E represents a cornerstone asset in maintaining the operational integrity of mission-critical motor systems. Engineered to IEC and ANSI protection standards, this relay fulfills a decisive role in safeguarding high-value rotating machinery against thermal overload, phase unbalance, ground fault, and locked-rotor conditions — all of which are primary contributors to unplanned downtime and catastrophic asset failure in regulated industrial environments. Its 12-channel RTD temperature monitoring architecture enables granular thermal profiling across stator windings and bearing assemblies, delivering the data fidelity required for proactive lifecycle management and regulatory compliance documentation.

Within the framework of Industry 4.0 and digital asset optimization, the GE Multilin 369-HI-R-M-F-E-H-E demonstrates exceptional long-term compatibility with modern SCADA architectures and distributed control systems. Its fiber optic communication interface — immune to electromagnetic interference endemic to high-voltage switchgear environments — supports Modbus RTU, DNP3, and IEC 61850 protocol stacks, ensuring seamless integration into both legacy and next-generation supervisory platforms. This multi-protocol capability extends the operational lifespan of the relay across successive control system upgrades, reducing total cost of ownership and preserving system performance continuity over multi-decade asset lifecycles.

As a factory-sealed, certified original equipment component, this relay carries full Original Documentation traceability from GE Multilin’s quality assurance chain. Deploying authenticated OEM hardware is not merely a procurement preference — it is a Safety Integrity requirement under IEC 61511 and ISO 13849 frameworks, ensuring that protection functions perform within validated parameters and that system certification audits remain uncompromised.

Compliance & Safety Benchmarks

✅ UL / CSA / CE Certified: Meets North American and European safety directives for industrial protection relays, enabling deployment in regulated facilities without additional certification overhead.

✅ IEC 61850 Protocol Compliance: Supports substation automation communication standards, ensuring interoperability within modern digital protection architectures.

Thermal Overload & Ground Fault Protection: Adheres to ANSI/IEEE C37.96 motor protection standards, providing deterministic response times for fault isolation and system preservation.

✅ EMI-Immune Fiber Optic Interface: Eliminates signal degradation in high-voltage environments, maintaining data integrity for compliance reporting and event logging.

Wide Operating Temperature Range (-40°C to +70°C): Validated for extreme industrial environments, meeting durability benchmarks for outdoor switchgear and harsh-duty applications.

✅ Factory Sealed & OEM Authenticated: Each unit ships with original GE Multilin documentation, supporting Standard Adherence requirements for ISO 9001-certified maintenance programs.

Vertical Industry Integration & Optimization

Semiconductor & Electronics Manufacturing: Precision motor protection for cleanroom HVAC systems and process cooling pumps, where unplanned motor failure risks contamination events and production yield loss. The 12 RTD inputs enable continuous thermal monitoring of critical drive motors, supporting predictive maintenance schedules aligned with semiconductor fab uptime requirements.

Pharmaceutical & Life Sciences: In GMP-regulated facilities, the relay’s comprehensive event logging and fault recording capabilities provide the audit trail documentation required for FDA 21 CFR Part 11 compliance. Motor protection data integrates directly into batch record systems via Modbus or IEC 61850 communication links.

Chemical & Petrochemical Processing: Deployed in hazardous area motor control centers, the fiber optic communication interface eliminates spark risk associated with copper signal wiring, while the relay’s phase unbalance and ground fault detection functions protect against the motor failures most likely to trigger process upsets or safety system activations.

Water & Wastewater Treatment: Municipal utilities rely on continuous pump motor availability for regulatory compliance with discharge permits. The relay’s thermal model and RTD-based protection ensure pump motors operate within design parameters, extending mean time between failures and reducing emergency maintenance expenditure.

Power Generation & Utilities: In generating station auxiliary motor applications, the relay’s DNP3 communication capability integrates with energy management systems for centralized monitoring, while its wide operating voltage range (90-300 VAC/VDC) accommodates the variable supply conditions characteristic of generation facility auxiliary buses.

Comprehensive Engineering Specifications

Fulfillment Strategy & Technical Support

Factory Sealed Condition: Every GE Multilin 369-HI-R-M-F-E-H-E unit is dispatched in its original factory packaging with intact tamper-evident seals, ensuring that the component arrives in the precise condition validated by GE’s quality control system. Original Documentation — including calibration records, test certificates, and compliance declarations — accompanies each shipment to support incoming inspection and asset registration procedures.

Rapid Global Logistics: Our fulfillment infrastructure supports expedited international shipping to over 80 countries, with priority routing available for critical plant maintenance scenarios. Customs documentation, including HS code classification and country of origin certification (USA), is prepared in advance to minimize border clearance delays and ensure on-time delivery to scheduled maintenance windows.

12-Month Quality Guarantee for Legacy Systems: All units are covered by a comprehensive 12-month quality guarantee, encompassing defects in materials, workmanship, and factory configuration. For legacy system integrations where the 369 series replaces end-of-life protection hardware, our technical support team provides pre-installation compatibility assessments and post-commissioning verification assistance to ensure that protection settings align with motor nameplate data and system coordination studies.

Expert Technical FAQ

Q: Does the 369-HI-R-M-F-E-H-E comply with IEC 61511 Safety Integrity Level (SIL) requirements for safety instrumented systems?
A: The GE Multilin 369-HI-R-M-F-E-H-E incorporates protection functions designed in alignment with IEC 61511 principles for functional safety in process industries. For formal SIL-rated applications, a Safety Requirements Specification (SRS) review and proof test procedure should be established in accordance with the facility’s Safety Management System. Contact our technical team for access to the relay’s failure mode and diagnostic coverage data to support your SIL verification process.

Q: What firmware version is current for the 369-HI-R-M-F-E-H-E, and how does firmware affect relay certification status?
A: GE Multilin periodically releases firmware updates for the 369 series to address protocol enhancements and protection algorithm refinements. Each unit ships with the factory-installed firmware version documented in the accompanying test certificate. Firmware upgrades should be performed in accordance with GE’s published upgrade procedures to preserve UL/CSA/CE certification validity — unauthorized firmware modifications may void compliance status.

Q: What are the environmental adaptability limits for installation in outdoor switchgear or tropical climates?
A: The relay is rated for operating temperatures from -40°C to +70°C and is designed to withstand humidity levels up to 95% non-condensing, making it suitable for tropical and sub-arctic industrial environments. For outdoor installations, the relay should be housed in an IP54 or higher rated enclosure to protect against ingress of dust and moisture, consistent with IEC 60529 environmental protection standards.

Q: How does the fiber optic communication interface affect installation compliance in hazardous classified areas?
A: The fiber optic interface eliminates the electrical continuity between the relay and remote communication equipment, removing the risk of ignition-capable energy transmission through signal cables in Zone 1 or Zone 2 hazardous areas (IEC 60079). This makes the 369-HI-R-M-F-E-H-E particularly well-suited for motor control centers located in or adjacent to classified areas in chemical, petrochemical, and oil & gas facilities.

Q: Can the 369-HI-R-M-F-E-H-E be integrated into an existing GE Multilin protection ecosystem without reconfiguring the entire motor control center?
A: Yes. The 369 series is designed for backward compatibility with existing GE Multilin motor protection installations and uses standard panel cutout dimensions for direct replacement of legacy units. Communication settings, protection parameters, and RTD assignments can be configured via the front panel keypad or through GE’s EnerVista software suite, enabling non-disruptive integration into operational motor control centers.

Q: What documentation is provided to support asset lifecycle management and maintenance audit requirements?
A: Each unit is supplied with the original GE Multilin instruction manual, factory test report, compliance declarations (UL, CSA, CE), and a certificate of conformance. This Original Documentation package supports ISO 55000 asset management requirements, facilitates maintenance audit trails, and provides the technical baseline data required for protection relay coordination studies and periodic proof testing under IEC 61511 lifecycle management frameworks.
