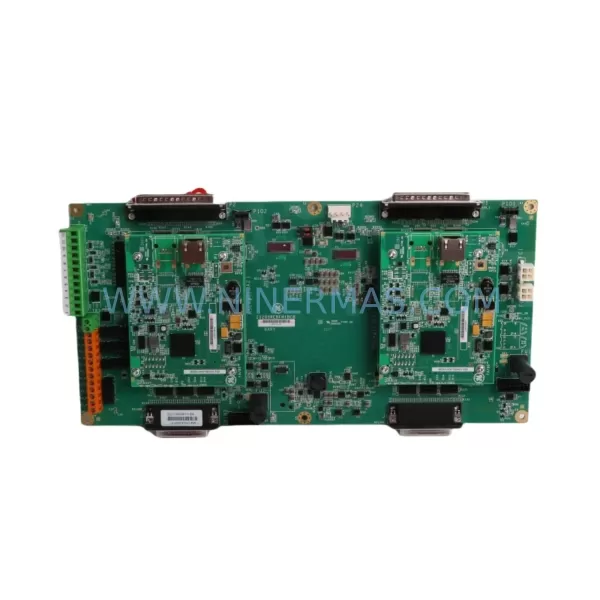

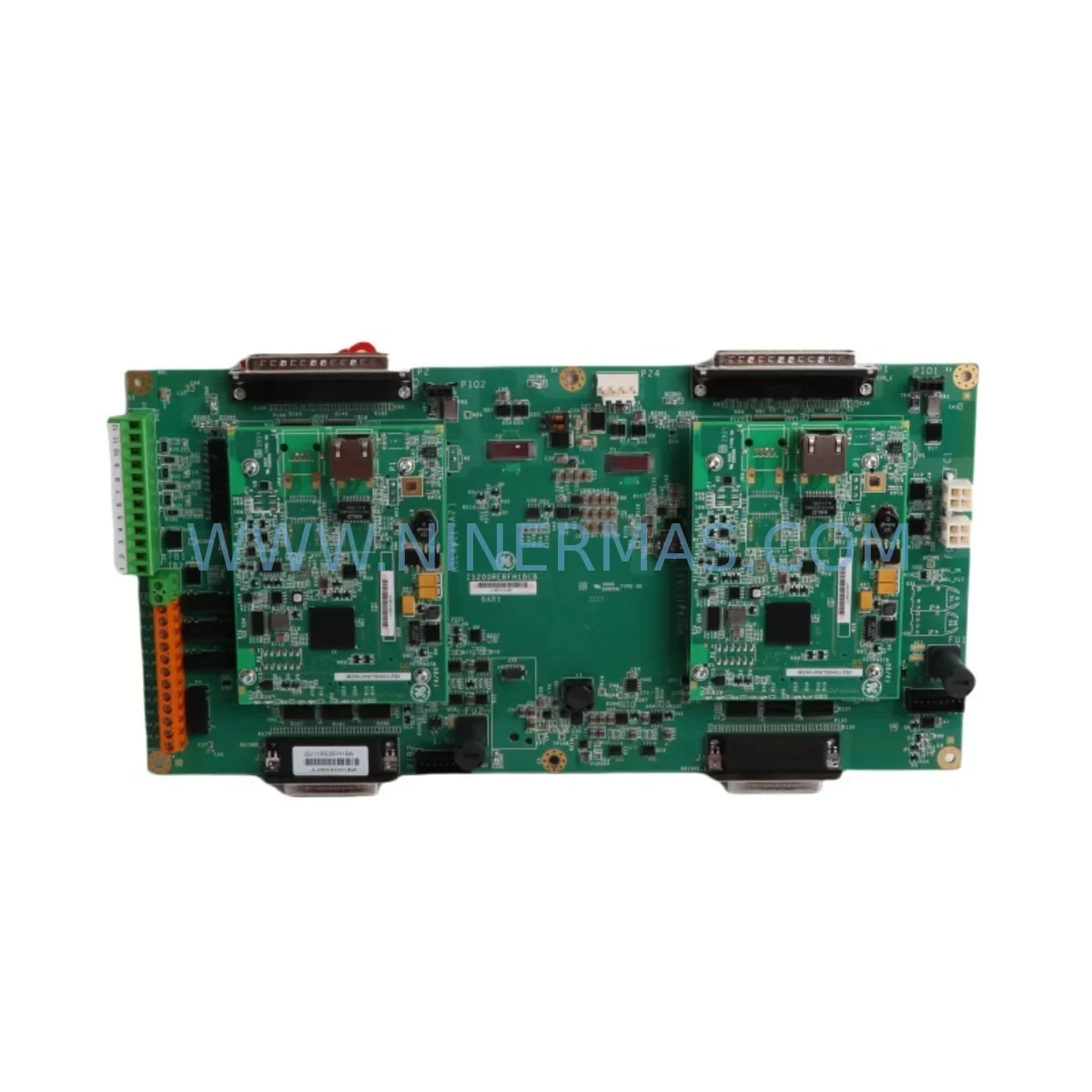

GE IS215REBFH1B Retrofit-Compatible VME Bus Interface

GE IS215REBFH1B Retrofit-Compatible VME Bus Interface for Legacy Systems

The GE IS215REBFH1B is a ruggedized VME bus interface module engineered for demanding industrial environments and designed to serve as a reliable drop-in replacement within aging GE Mark V and Mark VI turbine control architectures. As legacy distributed control systems (DCS) and programmable logic controller (PLC) platforms approach end-of-life, plant engineers and maintenance teams face mounting pressure to source verified, tested replacement modules that can restore system integrity without triggering a full platform migration. The IS215REBFH1B addresses this challenge directly — offering a proven retrofit path that preserves existing program logic, minimizes downtime, and extends the operational life of installed control infrastructure.

At NINERMAS, every IS215REBFH1B unit is sourced from verified supply channels, subjected to pre-shipment functional testing, and backed by a 12-month warranty. Our inventory is maintained to support urgent replacement scenarios, including unplanned outages and emergency spare parts procurement.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the IS215REBFH1B into an existing control system requires a structured pre-installation assessment. Begin by auditing the target rack — typically a GE Mark VI VMIVME or IS200 series rack — to confirm available slot positions, backplane revision level, and the condition of the VME bus connectors. In multi-rack configurations, the module address must be set correctly to avoid conflicts with other IS215-series cards already installed in the system, such as the IS215VCMIH2C (VME communications module) or the IS215AEPAH1B (analog I/O module).

Power integrity is a critical pre-check. The IS215REBFH1B draws regulated voltage from the rack’s backplane, supplied by the IS200 power supply module. Before inserting the replacement card, use a calibrated multimeter to verify that the +5 VDC and +12 VDC rails are within tolerance. A degraded power supply is a common root cause of repeated module failures in aging Mark VI installations and should be replaced concurrently if rail voltages are marginal.

Terminal wiring and I/O mapping must be validated against the original engineering drawings. In many retrofit scenarios, the field wiring connects to a dedicated IS200 terminal board mounted in the control cabinet. Inspect each terminal for tightness, insulation integrity, and correct labeling before powering the system. If the installation involves signal isolation — common in high-noise industrial environments such as power generation or petrochemical plants — verify that any signal isolator or signal conditioner modules in the loop are still correctly ranged for the new module’s input specifications.

For systems that include serial or network-based communication, the IS215REBFH1B’s communication link must be re-established after the swap. In ARCNET-based Mark VI architectures, the coaxial cable connections and node ID configuration must be confirmed. In Ethernet-enabled configurations, update the IP address assignment in ToolboxST and verify connectivity to the IS215UCVEH2A (unit data highway communications module) or equivalent network gateway. If the plant is migrating from ARCNET to Ethernet as part of a broader protocol modernization, this module swap is an appropriate point to implement that transition.

Where the retrofit scope extends to I/O expansion — for example, adding new measurement points to an existing turbine control loop — the IS215REBFH1B can be paired with additional IS215AEPAH1B analog input modules or IS215DTURH2A digital I/O modules to extend the system’s sensing and control capacity without replacing the core controller. This approach is particularly cost-effective when the existing IS215UCVEH2A controller module and its associated application program are to be retained.

Finally, confirm that the control cabinet has adequate physical space and thermal management for the replacement module. VME 6U cards require proper airflow across the card edge connectors. In cabinets where modules have been added over time, verify that the cooling fan assembly — often a separate IS200 fan tray module — is operational and that no adjacent modules are blocking airflow channels.

Downtime Control During System Migration

Minimizing production downtime during a module replacement is the primary operational concern for most plant engineers. The IS215REBFH1B retrofit can typically be completed within a planned maintenance window of two to four hours when all preparatory steps are completed in advance. The following approach is recommended to protect program logic, maintain field control continuity, and reduce commissioning risk.

Pre-Shutdown Preparation: Before taking the system offline, export a full backup of the ToolboxST application project, including all I/O configurations, alarm setpoints, and communication parameters. Photograph or document the existing terminal wiring and module slot assignments. Confirm that the replacement IS215REBFH1B has been bench-tested and that its firmware revision is compatible with the installed ToolboxST version.

Controlled Shutdown Sequence: Follow the plant’s established lockout/tagout (LOTO) procedure. Place the turbine or process unit in a safe hold state before de-energizing the control rack. Do not remove the module under power — VME bus hot-swap is not supported on standard Mark VI configurations.

Module Swap and Re-commissioning: Insert the IS215REBFH1B into the correct rack slot, secure the front panel latch, and restore power to the rack. Allow the module to complete its self-diagnostic boot sequence before attempting to download the application program. Use ToolboxST to re-download the application, verify I/O forcing is cleared, and confirm that all analog and digital signals are reading correctly against field instruments.

Communication Link Verification: Confirm that the module has re-established its network presence on the ARCNET or Ethernet segment. Check that the HMI displays — whether running on a GE Cimplicity SCADA station or a third-party HMI platform — are receiving live data and that no stale or frozen values are present on critical process screens.

Return to Service: Conduct a controlled ramp-up of the process unit, monitoring all I/O channels for correct response. Document the completed replacement in the plant’s maintenance management system (CMMS) and update the spare parts inventory record to reflect the consumed module.

Retrofit Support FAQ

Q1: Is the IS215REBFH1B a direct replacement for my existing GE Mark VI VME bus interface module?
In most Mark VI installations, the IS215REBFH1B is a direct slot-compatible replacement. However, you should verify the backplane revision, firmware compatibility, and module address configuration before installation. Our technical team can assist with compatibility confirmation based on your system’s serial number and rack configuration.

Q2: What pre-shipment testing is performed on each unit?
Every IS215REBFH1B shipped by NINERMAS undergoes functional power-on testing and visual inspection for component integrity. Units are shipped with a test report and are covered by a 12-month warranty against manufacturing defects. DOA (dead on arrival) units are replaced within 5 business days.

Q3: Can I install this module without re-downloading the application program?
In most cases, a full application re-download via ToolboxST is required after a module swap to ensure correct I/O mapping and communication parameter initialization. Attempting to operate without re-downloading may result in incorrect I/O states or communication faults. We recommend always performing a full download and I/O verification as part of the commissioning procedure.

Q4: What is your lead time and do you maintain stock for urgent orders?
NINERMAS maintains inventory of the IS215REBFH1B to support both planned procurement and emergency replacement scenarios. Standard orders ship within 3–5 business days. For urgent requirements, please contact our sales team directly to confirm current stock availability and expedited shipping options.
