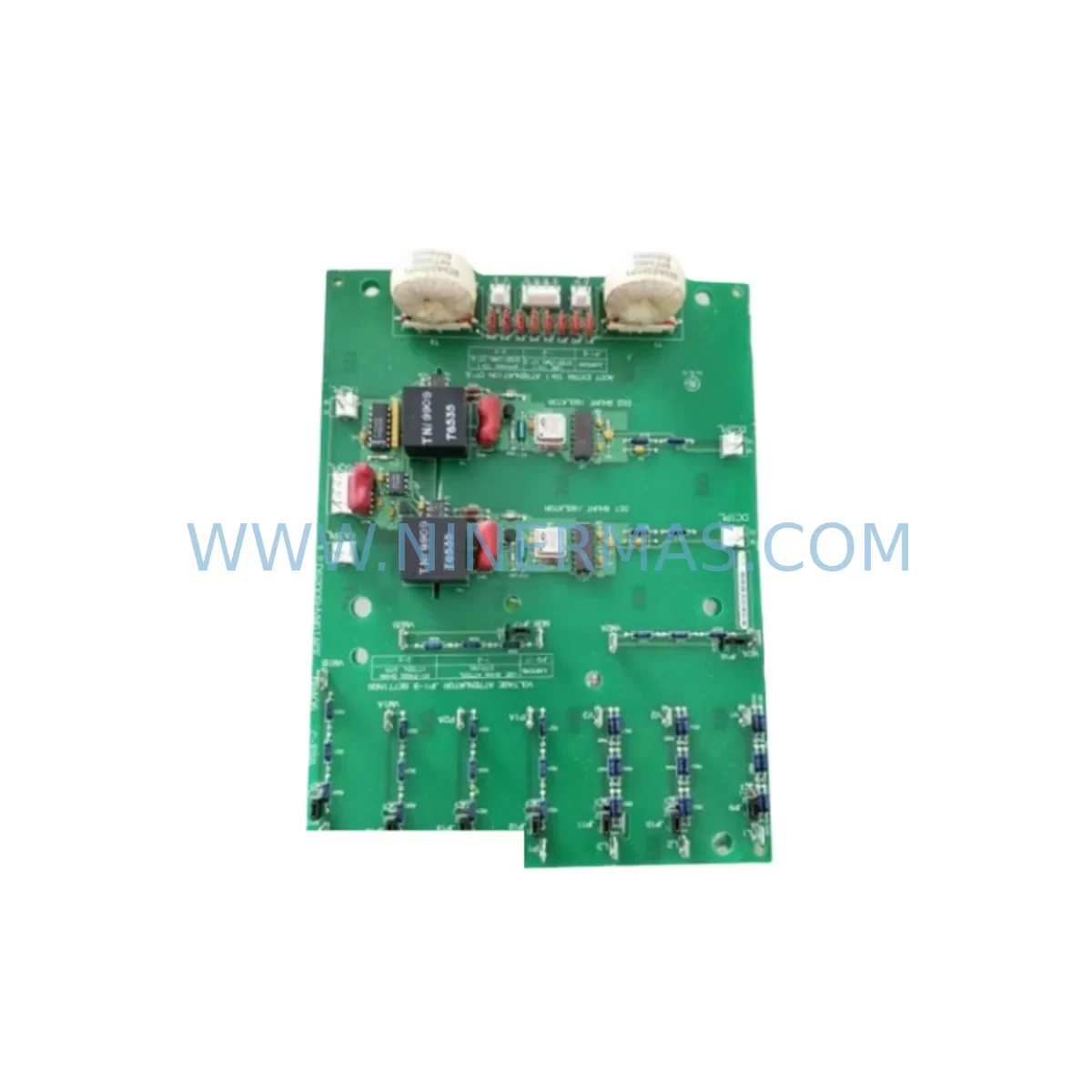

GE DS200SHVMG1AFE Retrofit-Compatible Interface Module

GE DS200SHVMG1AFE Retrofit-Compatible Interface Module: Legacy System Compatibility & Smooth Upgrade

The GE DS200SHVMG1AFE is a ruggedized M-Frame interface module engineered for the GE Mark V turbine control platform and the broader DS200 Series control architecture. As legacy GE Mark V systems approach end-of-life and OEM support windows close, plant engineers and maintenance teams face mounting pressure to source verified replacement modules that preserve existing program logic, wiring configurations, and HMI screen layouts without triggering a full control system overhaul. The DS200SHVMG1AFE addresses this challenge directly — it is a proven retrofit-compatible component that slots into existing M-Frame backplane assemblies, restoring system integrity with minimal downtime and no requirement for full re-engineering.

NINERMAS maintains verified inventory of the DS200SHVMG1AFE sourced from original GE supply channels, with each unit subject to pre-shipment functional testing and covered by a 12-month warranty. Whether you are managing a gas turbine control cabinet, a steam turbine upgrade project, or a broader DCS migration, this module provides the interface continuity your system demands.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the DS200SHVMG1AFE within an operating Mark V turbine control system requires a structured approach that accounts for the interdependencies between modules sharing the same M-Frame rack. Before initiating the swap, engineers should audit the DS200SDCCG1A Sequence of Events and Diagnostic Card and the DS200SDCIG1AFE I/O Interface Card to confirm that adjacent slot assignments will not be disrupted. The M-Frame backplane carries both power and communication signals, so any module removal must be preceded by a controlled shutdown sequence that protects the DS200PCCAG1A Power Supply Module from transient load spikes.

Field wiring connected to the SHVMG1AFE typically includes high-voltage interface signals routed through the turbine control cabinet’s terminal blocks. Maintenance teams should photograph and document all terminal connections before removal, cross-referencing the original GE Mark V wiring schematics. Where wiring harnesses connect to the DS200TBQCG1A Terminal Board or similar interface boards, verify that connector seating is secure after module reinsertion to prevent intermittent signal faults during post-installation commissioning.

For plants undertaking a broader control system migration — for example, transitioning from Mark V to GE Mark VIe or integrating with a third-party DCS via Modbus TCP or PROFIBUS DP — the DS200SHVMG1AFE can serve as a bridging component during the phased cutover period. This approach allows the legacy Mark V panel to remain operational on critical turbine protection loops while new I/O infrastructure is commissioned in parallel. Communication continuity between the Mark V IONet and any new Ethernet-based control network should be validated using the DS200TCQAG1A Communication Card or equivalent gateway hardware before the final switchover.

I/O expansion requirements during retrofit should also be assessed early. If the upgrade scope includes adding new analog input channels for vibration monitoring or exhaust temperature profiling, the DS200IIBDG1A Analog Input Board and DS200AIOCG1A Analog I/O Card are commonly specified alongside the SHVMG1AFE to extend measurement capability without modifying the core control logic. Signal isolators may be required at field junction boxes where legacy 4–20 mA loops interface with new instrumentation, particularly in environments with elevated electrical noise from variable frequency drives or large motor starters.

Programming cable access for firmware verification or application code backup should be confirmed prior to the maintenance window. The GE Mark V Programming Interface Cable (IS200 series compatible) allows technicians to connect a laptop running the GE Toolbox software to read out the current application program, verify I/O forcing status, and confirm that no latched faults are present before the replacement module is powered up. This step is critical for reducing commissioning time and avoiding unexpected trips during the first startup after the swap.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational concern when replacing end-of-life modules in a running turbine control system. For the DS200SHVMG1AFE, the recommended approach is a hot-standby pre-staging strategy: the replacement module is received, inspected, and bench-verified against the original firmware revision before the maintenance window opens. NINERMAS ships each DS200SHVMG1AFE with a pre-shipment functional test report, allowing the site team to confirm module health before scheduling the outage.

During the actual swap, the Mark V application program should be backed up to an external storage device using the GE Toolbox interface. All I/O forcing and override states must be documented and cleared before module removal to prevent the control system from entering an undefined state during the transition. If the turbine is operating in a redundant control configuration — for example, with a TCCA/TCCB/TCCC triple-redundant voter arrangement — the replacement can often be performed on one panel while the remaining two panels maintain turbine protection, reducing the required outage window to the time needed for a single panel restart and re-synchronization.

Post-installation, the commissioning sequence should include a full I/O loop check on all signals interfaced through the SHVMG1AFE, verification of IONet communication link status, and a review of the Mark V diagnostic display for any new fault codes. HMI screens on the Cimplicity workstation or the Mark V operator panel should be confirmed to be displaying live process values before the turbine is returned to service. Maintaining a structured commissioning checklist — covering power-up sequence, communication link verification, I/O status confirmation, and alarm review — is the most effective method for controlling restart risk and protecting the original program logic throughout the migration.

Retrofit Support FAQ

Q1: Is the DS200SHVMG1AFE a direct drop-in replacement for the original GE module?
Yes, for like-for-like replacements within the same Mark V panel configuration, the DS200SHVMG1AFE installs directly into the existing M-Frame backplane slot without requiring panel modification, re-wiring, or software changes, provided the firmware revision matches the original module. NINERMAS can advise on firmware revision compatibility prior to shipment.

Q2: What pre-shipment testing does NINERMAS perform on the DS200SHVMG1AFE?
Each unit undergoes functional testing to verify board-level operation before dispatch. A test report is available upon request. All units are covered by a 12-month warranty from the date of shipment, with direct support available at sale@ninermas.com.

Q3: Can this module be used during a phased migration from Mark V to a newer control platform?
Yes. The DS200SHVMG1AFE is commonly retained as a bridging component during phased migrations, allowing the legacy Mark V system to remain operational on critical protection loops while new control infrastructure is commissioned in parallel. This approach reduces migration risk and allows program logic to be validated on the new platform before the final cutover.

Q4: What is the typical lead time and stock availability?
NINERMAS maintains stock of the DS200SHVMG1AFE and can confirm availability and lead time upon inquiry. For urgent requirements, contact sale@ninermas.com or call +0086 187 5021 5667. Stock levels are updated regularly and priority dispatch can be arranged for critical plant situations.
