GE DS200SHVIG1BGD Safety-Reliable Signal I/O for Mark V

GE DS200SHVIG1BGD Safety-Reliable Signal I/O Board for Mark V Critical Control Sites

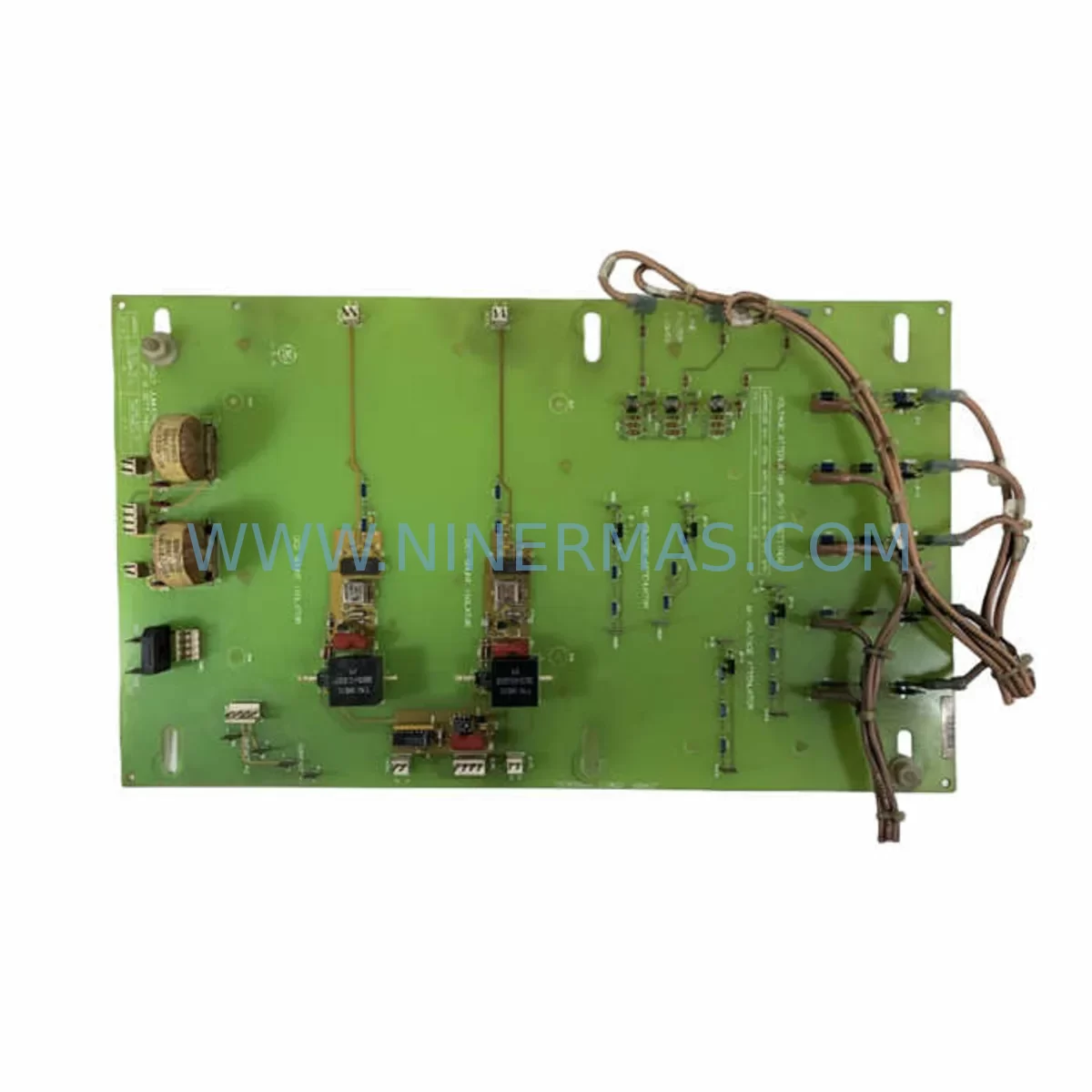

The GE DS200SHVIG1BGD is a Signal Hybrid Voter I/O Gate board engineered for deployment within GE Mark V turbine control systems — one of the most demanding safety-critical control architectures in continuous industrial operation. Designed to handle high-density signal conditioning, voting logic, and hybrid I/O interfacing, this board plays a pivotal role in maintaining the integrity of turbine protection circuits, emergency shutdown sequences, and real-time process monitoring across power generation, petrochemical, and heavy industrial facilities.

At NINERMAS, every DS200SHVIG1BGD unit is sourced, inspected, and dispatched under a strict quality assurance protocol — ensuring that each spare part delivered to your control cabinet meets the functional and safety expectations of the original GE Mark V platform. With a 12-month warranty and pre-shipment functional testing, this board is a dependable replacement for aging or failed I/O gate assemblies in mission-critical turbine control loops.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a GE Mark V turbine control cabinet, the DS200SHVIG1BGD Signal Hybrid Voter I/O Gate board does not operate in isolation — it is part of a tightly integrated safety and control architecture where every component must perform reliably under continuous load. Signal drift, I/O gate failure, or voter logic corruption in this board can cascade into turbine trips, false ESD activations, or — more critically — a failure to trip when a genuine hazard is present.

To maintain the full protective capability of the Mark V system, the DS200SHVIG1BGD is typically deployed alongside companion boards such as the DS200SDCCG1A (Speed and Dynamics Control Card), which governs turbine speed regulation and acceleration control. Any degradation in the I/O gate’s signal routing can directly compromise the speed control loop’s ability to respond to overspeed conditions. Similarly, the DS200TCQAG1BHF (Turbine Control Quad Analog I/O board) works in parallel to process analog sensor inputs — if the SHVIG board’s voter logic is compromised, analog signal arbitration across the TMR (Triple Modular Redundancy) architecture becomes unreliable.

Power supply stability is equally critical. The DS200PCCAG1A (Power Supply and Control Card) provides regulated DC power to the Mark V I/O boards; voltage ripple or transient surges from this supply can induce signal errors in the DS200SHVIG1BGD’s conditioning circuits. Pairing the SHVIG board replacement with an inspection or simultaneous replacement of the DS200PCCAG1A is a recommended risk reduction practice in high-availability turbine sites.

Communication integrity is another dimension of risk. The DS200TCDAG1A (Turbine Control Data Acquisition board) aggregates process data from I/O boards including the SHVIG and transmits it to the operator HMI and historian. A faulty I/O gate can introduce corrupted data into this stream, leading to incorrect alarm states or masked fault conditions. In facilities running the Mark V with a DS200DSPCH1A (Digital Signal Processor and Communications Handler), communication anomalies originating from a degraded SHVIG board can propagate across the entire control network.

For sites operating in high-dust, high-humidity, or chemically aggressive environments — such as offshore platforms, coastal power stations, or chemical processing plants — the DS200SHVIG1BGD should be part of a planned preventive maintenance cycle that also covers the DS200IOCAG1A (I/O Controller and Analog board) and the DS200EXPNG1A (Expansion I/O board). These boards share the same backplane and are subject to the same environmental stressors. Replacing the SHVIG board while leaving adjacent boards uninspected is a common source of recurring faults in aging Mark V installations.

Surge protection at the cabinet level — through properly rated transient voltage suppressors and grounding of the DS200TBQCG1A (Terminal Board for Quad I/O) — further reduces the risk of electrostatic discharge damage to the SHVIG board’s hybrid gate circuits. NINERMAS recommends a holistic cabinet audit whenever a DS200SHVIG1BGD replacement is triggered by an unplanned failure, as the root cause is frequently found in an upstream power or grounding issue rather than the board itself.

Critical Industrial Safety Applications

The GE DS200SHVIG1BGD is deployed across a wide spectrum of critical industrial environments where turbine-driven machinery forms the backbone of continuous production or utility supply:

Power Generation (Gas & Steam Turbines): In combined-cycle power plants and peaking stations, the Mark V system governs turbine start-up sequences, load control, and emergency shutdown. The DS200SHVIG1BGD’s voter I/O gate function is essential for maintaining TMR voting integrity — ensuring that a single sensor or I/O channel failure does not cause a spurious trip or, worse, a failure to protect. Grid-connected turbines operating at full load cannot tolerate I/O gate degradation without risking both equipment damage and grid instability.

Petrochemical and Refinery Compressor Trains: In ethylene crackers, LNG liquefaction trains, and crude distillation units, gas turbine-driven compressors operate under Safety Instrumented System (SIS) oversight. The DS200SHVIG1BGD interfaces with the safety loop to route ESD signals and process interlocks. A failed I/O gate in this context can prevent a compressor from tripping on high-high pressure or high-high temperature, creating a potential for catastrophic release or explosion.

Mining and Mineral Processing: Large-scale mining operations rely on turbine-driven ventilation fans, hoisting systems, and grinding mill drives. The Mark V control system, with the DS200SHVIG1BGD at its I/O interface layer, ensures that these drives respond correctly to process upsets, overload conditions, and emergency stop commands. In underground mining environments with elevated methane risk, the reliability of the ESD signal path through the SHVIG board is a life-safety requirement.

Water and Wastewater Treatment: High-capacity pumping stations and water treatment facilities use turbine-driven pumps for raw water intake and treated water distribution. The DS200SHVIG1BGD supports the control logic that protects these pumps from cavitation, overspeed, and dry-run conditions — failures that can result in extended service outages affecting entire municipalities.

Metallurgy and Steel Production: Blast furnace blowers, rolling mill drives, and continuous casting lines in steel plants operate under extreme thermal and mechanical stress. The Mark V system’s I/O gate boards, including the DS200SHVIG1BGD, must maintain signal fidelity in environments with intense electromagnetic interference from arc furnaces and induction heating systems. Signal drift or voter logic errors in this context can lead to uncontrolled process excursions with significant safety and financial consequences.

Port and Marine Applications: LNG carrier vessels and FPSO (Floating Production, Storage and Offloading) units use GE Mark V-controlled gas turbines for propulsion and power generation. The DS200SHVIG1BGD must perform reliably in the corrosive, high-vibration marine environment — where an unplanned turbine shutdown at sea carries both operational and safety implications.

Safety and Quality FAQ

Q1: What does the 12-month warranty on the DS200SHVIG1BGD cover?
The 12-month warranty covers functional failure of the DS200SHVIG1BGD under normal operating conditions consistent with GE Mark V system specifications. If the board fails to perform its signal conditioning, voter logic, or I/O gate functions within the warranty period due to a manufacturing or component defect, NINERMAS will provide a replacement unit. The warranty period begins from the date of shipment. Physical damage caused by incorrect installation, overvoltage events beyond rated limits, or unauthorized modification is excluded.

Q2: How is the DS200SHVIG1BGD tested before shipment?
Every DS200SHVIG1BGD unit dispatched by NINERMAS undergoes a pre-shipment functional verification process. This includes power-on testing, I/O channel continuity checks, and voter logic validation where test equipment permits. Units that do not pass functional verification are quarantined and not offered for sale. A test record is maintained for each unit and can be provided upon request for critical-site procurement requirements.

Q3: Is the DS200SHVIG1BGD compatible with both TMR and Simplex Mark V configurations?
The DS200SHVIG1BGD is designed for use within the GE Mark V platform and is compatible with both Triple Modular Redundancy (TMR) and Simplex control configurations, subject to the specific slot and backplane assignment defined in the Mark V system documentation for your installation. NINERMAS recommends verifying the board revision suffix (G1BGD) against your site’s Mark V configuration drawing before installation. Our technical team can assist with compatibility verification for your specific turbine control panel layout.

Q4: Can NINERMAS support long-term or scheduled spare parts supply for the DS200SHVIG1BGD?
Yes. NINERMAS operates a long-term spare parts supply program specifically designed for legacy GE Mark V components, including the DS200SHVIG1BGD. Given that GE Mark V systems are no longer in active production, securing a reliable supply of tested spare boards is a critical risk management priority for plant operators. NINERMAS maintains standing inventory and can support scheduled procurement agreements, annual blanket orders, and emergency expedite requests. Contact our team at sale@ninermas.com to discuss a tailored supply arrangement for your facility’s maintenance schedule.
